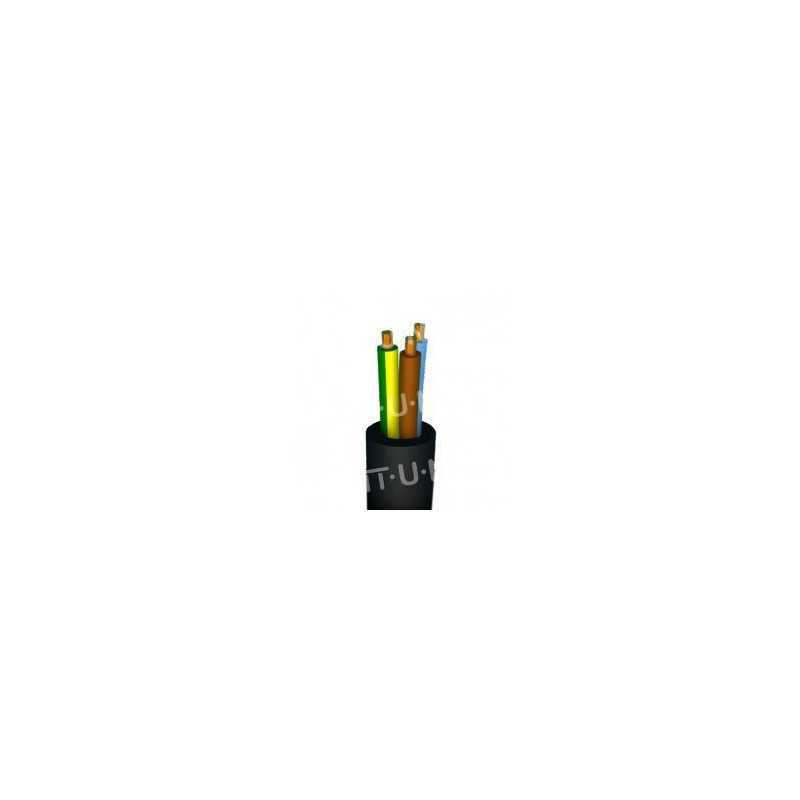

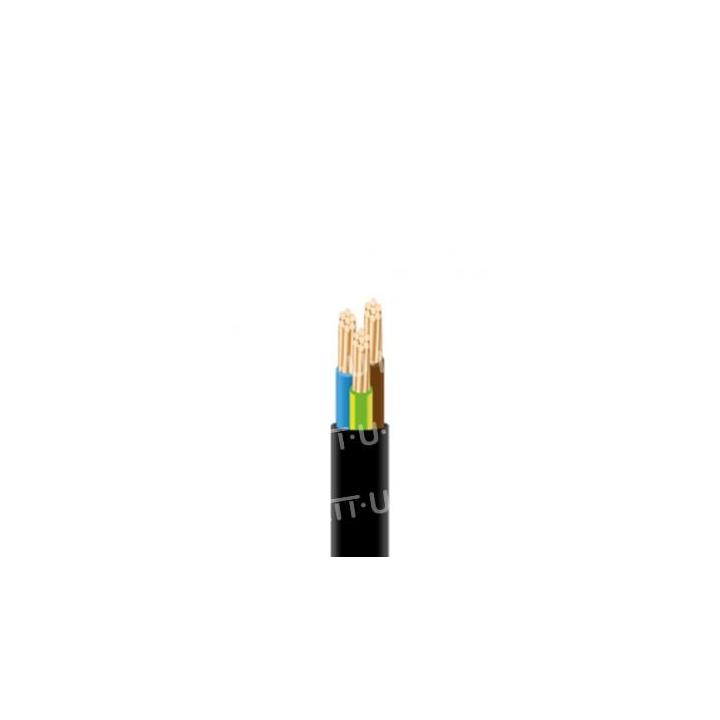

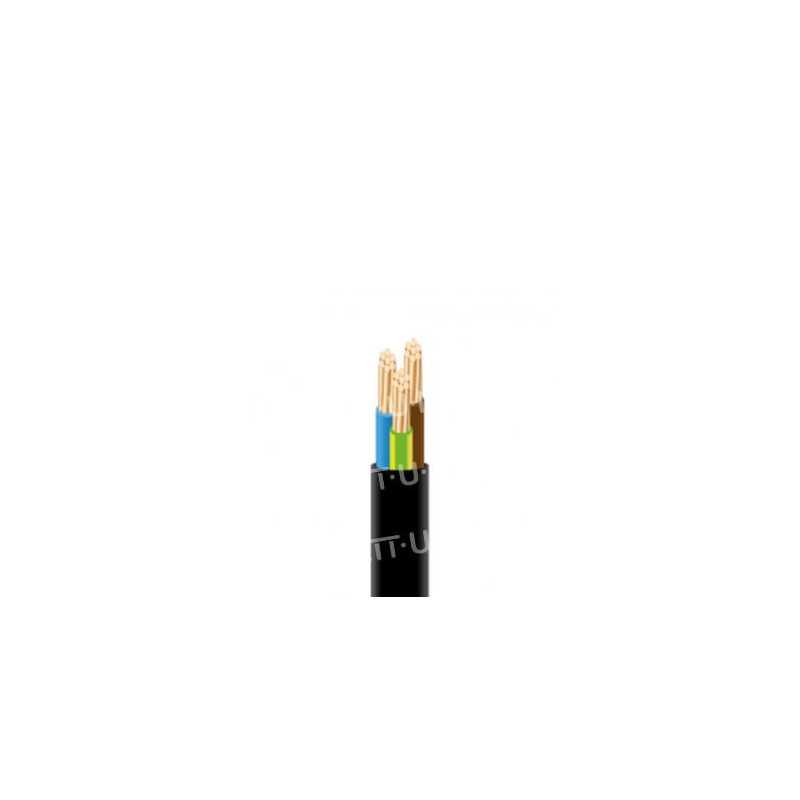

The H07RN-F 3G1.5 mm² flexible cable is a black neoprene electrical connection cable designed for single-phase domestic and professional installations. With its three 1.5 mm² conductors (phase, neutral and earth), this cable can carry up to 3450W of 230V single-phase power, making it ideal for connecting photovoltaic microinverters, household appliances, lighting or low-power equipment requiring a flexible, reliable connection.
The neoprene sheath gives the cable outstanding resistance to impact, abrasion, weather and UV. This robust design guarantees a long service life, even when used outdoors or in demanding environments. Its exceptional flexibility makes it easy to install in confined spaces or on complex routes. The cable can withstand a temperature range of -25°C to +60°C, making it ideal for both indoor and outdoor use.
Main applications: connection of photovoltaic microinverters (Enphase, Hoymiles, APSystems), connection of household appliances, lighting wiring, power supplies for garden equipment, electrical extenders for workshops. Sold by the linear metre, so you can order exactly the length you need for your project. Complies with European standards HD 21.3 / IEC 60245 and ECA reaction to fire classification.
Your review appreciation cannot be sent
Report comment
Report sent
Your report cannot be sent
Write your review
H07RN-F 3G1.5 mm² Neoprene cable 450/750V | Wattuneed
Review sent
Your review cannot be sent
You are about to create a quotation for the kit H07RN-F 3G1.5 mm² Neoprene cable 450/750V | Wattuneed.
This action will open the quotation app in a new tab.
The H07RN-F 3G1.5 mm² cable is a flexible black neoprene electrical connection cable designed to meet the requirements of domestic, photovoltaic and professional electrical installations. With its robust rubber sheath and a cross-section of 1.5 mm² per conductor, this three-phase cable offers a reliable and cost-effective solution for your indoor and outdoor connection needs.
This H07RN-F electrical cable is specially designed for applications requiring flexibility and strength. The 3G1.5 designation indicates that it has 3 conductors (phase, neutral and earth) with a cross-section of 1.5 mm² each, enabling it to carry current safely for low- to medium-power equipment.
The rated voltage of 450/750V guarantees use in compliance with European standards for domestic and tertiary circuits. This cable meets the requirements of the ECA (Euro Class A) standard, attesting to its performance in terms of reaction to fire, an essential criterion for the safety of electrical installations.
The black neoprene outer jacket gives this H07RN-F cable exceptional mechanical and environmental resistance. Neoprene is renowned for its ability to resist weathering, UV, abrasion and temperature variations, making it the preferred choice for outdoor installations.
The 1.5 mm² cross-section per conductor is particularly suitable for terminal distribution circuits and low-to-moderate power equipment. For your installations, this cross-section is ideal for the following applications:
To correctly size your cables according to your installation, use our voltage drop calculator available free of charge in the Wattuneed toolbox.
The H07RN-F 3G1.5 mm² cable is particularly well suited to the following applications in solar energy and electrical installations:
The H07RN-F 3G1.5 mm² cable is particularly recommended for photovoltaic installations with micro-inverters. In these systems, each solar panel is equipped with its own microinverter that converts direct current into alternating current directly at the panel.
This 1.5 mm² cross-section is perfectly sized for the typical power of microinverters (300W to 800W per unit). The H07RN-F cable provides the AC connection from the microinverters to the switchboard or grid connection point.
For Enphase systems in particular, this cable is often used in addition to specific Enphase IQ cables, to make the last few metres of connection between the Enphase trunk cable and the electrical panel.
H07RN-F complies with current European standards, guaranteeing safe use in residential and commercial electrical installations. The ECA (Euro Class A) classification attests to its low reaction to fire, a decisive criterion for limiting the spread of a fire in the event of an electrical problem.
Thanks to its flexibility, H07RN-F cable is easy to handle and install, even in confined spaces or with complex routes. The three conductors are clearly identifiable by their standardised colour code:
The neoprene sheath facilitates stripping and connection to terminals, dominoes or connectors. The cable can be pulled through cable trays, fixed on the surface or buried under a protective sheath depending on the needs of your installation.
Installation advice:
For examples of complete wiring diagrams for photovoltaic installations, visit our detailed wiring diagrams page.
As part of a complete photovoltaic installation with microinverters, the H07RN-F 3G1.5 mm² cable integrates perfectly with the other components of your system. It is ideal for making connections on the alternating current (AC) side, from the point of production to the electrical panel.
For higher-power installations or installations with centralised inverters, use larger cross-sections such as H07RN-F 3G1.6 mm² or H07RN-F 3G10 mm².
For connections on the direct current (DC) side between solar panels and inverter, use specific solar cables designed to withstand the stresses of direct current and prolonged outdoor conditions.
This H07RN-F 3G1.5 mm² cable is sold by the linear metre, allowing you to order exactly the length you need for your project. Each unit ordered corresponds to 1 metre of cable. For longer lengths, simply indicate the quantity you require in your basket.
Manufacturer reference : H07RN-F | EAN : 0768563817526
If you have any technical questions about cable sizing or compatibility with your installation, our support team is at your disposal at support.wattuneed.com.
