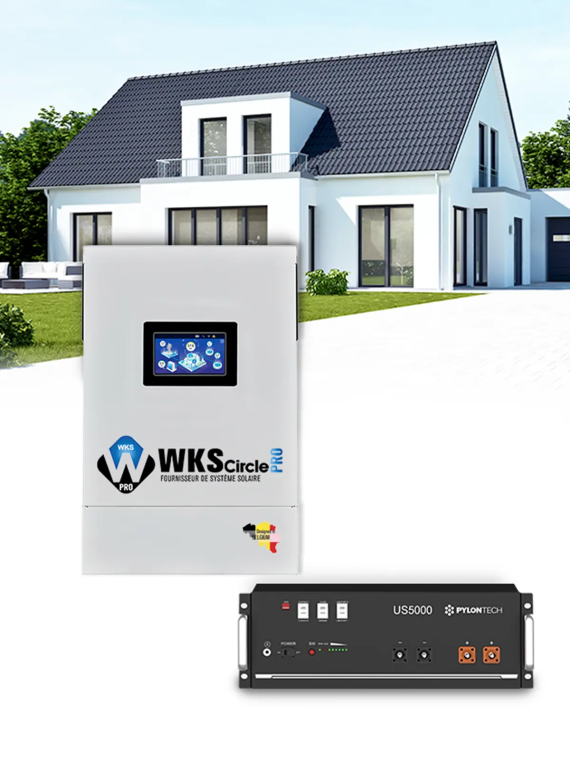

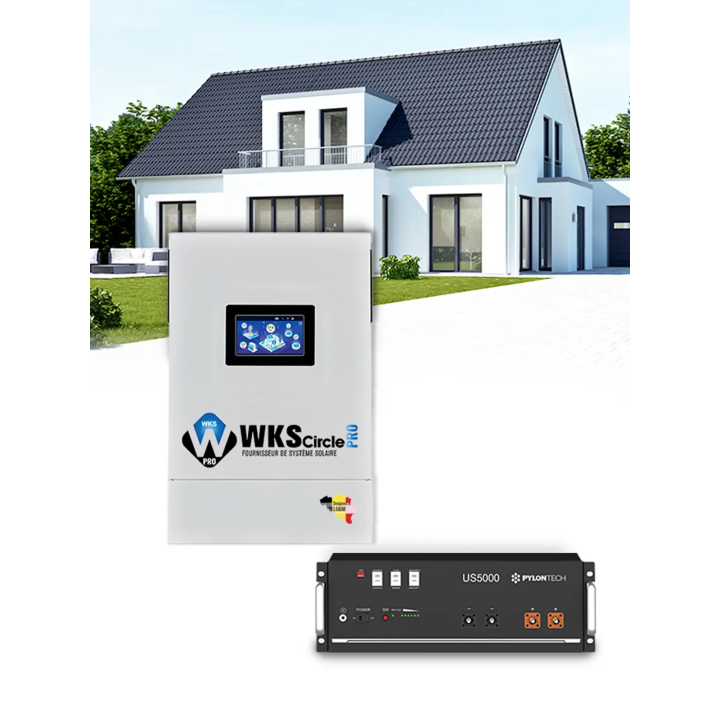

WKS EVO Circle Pro 6.5 kVA inverter and Pylontech lithium battery pack

Combining the WKS Evo 6.5 kVA 48V hybrid inverter with a Pylontech battery pack is a wise choice for domestic and professional solar installations. This combination guarantees optimum energy efficiency, intelligent energy management and increased system reliability. Pylontech batteries, renowned for their long life and stable performance, perfectly complement the advanced technology of the WKS Evo Circle Pro inverter, providing a sustainable and cost-effective power solution.

All our packs are configurable. In the options you can click on the product to choose another model or change the quantities to tailor the kit to your needs.
You can also see details of the products you have chosen directly below the price.

Important notice for our customers in Belgium: An environmental fee of € 114.73 excl. VAT will be applied to the purchase of each Pylontech US5000 lithium battery. More information at the bottom of the page.

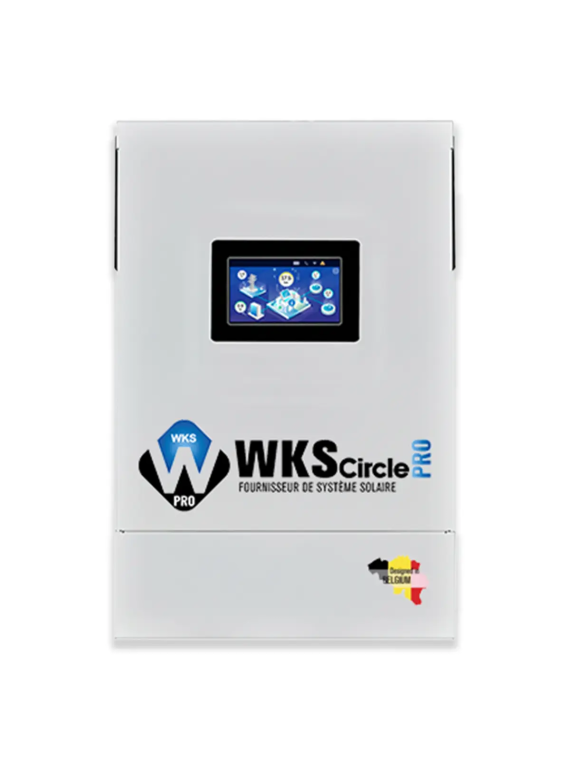

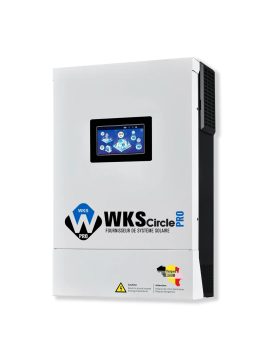

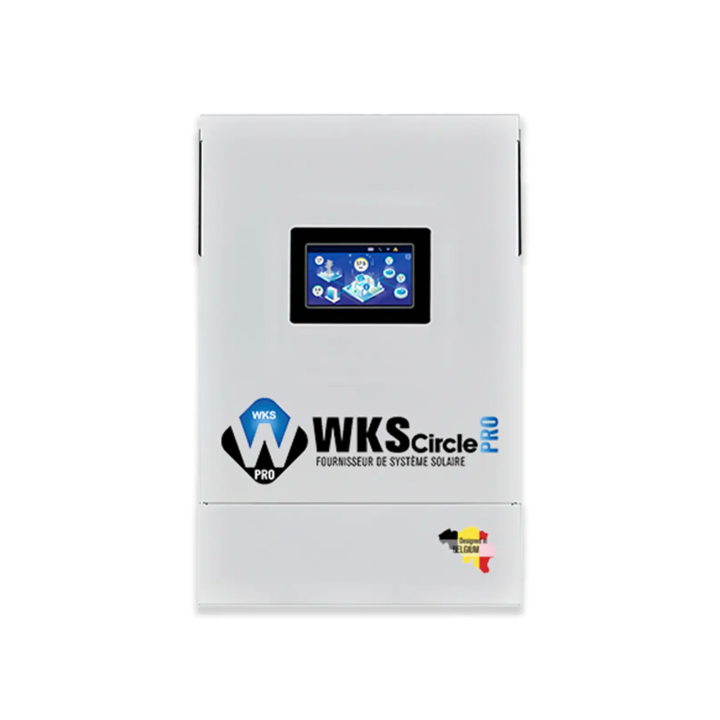

WKS Evo Circle PRO 6.5 kVA 48V hybrid inverter

The most advanced hybrid solar inverter of its generation

The WKS Evo Circle PRO is a state-of-the-art hybrid inverter designed for stand-alone and hybrid solar installations. It combines three essential functions in a single device: pure sine wave inverter, MPPT solar charge controller and mains charger. This all-in-one architecture greatly simplifies the design and management of a photovoltaic system, while guaranteeing high energy efficiency and exceptional reliability.

The WKS Evo Circle PRO stands out for its versatility, advanced connectivity and ability to operate in parallel for cumulative outputs of up to 39 kW.

This model is ideal for off-grid housing, hybrid systems with batteries, or industrial and tertiary installations requiring a reliable, continuous power supply.

An all-in-one UPS for energy independence

Designed to meet the needs of residential, professional or isolated installations, the WKS Evo Circle PRO provides a stable, clean and continuous power supply, even without an electricity grid.
Thanks to its 120 A MPPT technology and wide photovoltaic input range (90 V - 450 V), it makes the most of the solar energy available, guaranteeing efficiency of over 93%.

Its dual output system allows critical and secondary loads to be managed separately: your essential appliances remain powered, while non-priority loads are activated only when there is sufficient solar production.

1. Practical use - Example of a real installation

Example: Self-sufficient house with lithium batteries

An isolated 120 m² house, equipped with :

• 12 x 450 W solar panels (i.e. 5.4 kWp),
• 1 WKS Evo Circle PRO 6.5 kVa inverter,
• a battery bank with two 10 kWh Lithium Delong or Pylontech batteries.

The system works as follows:

• During the day, the WKS Evo Circle PRO converts solar energy directly to power the house and recharges the battery via its 120 A MPPT regulator.
• At night, it automatically switches to battery mode and continues to power essential equipment (lighting, fridge, freezer, telecommunications).
• In the event of a low battery or high power consumption, the integrated AC charger is triggered and recharges the batteries via the generator or the grid.

The result:

• 100% autonomy for most of the year,
• electricity bills cut by over 80%,
• no power cuts, even in isolated locations.

Wiring and connection

1. PV connectors
2. AC output connectors (load connection)
3. AC input connectors
4. Battery connectors
5. Power sharing port
6. Parallel communication port
7. Circuit breaker
8. On/off switch
9. External CT port
10. Internal WiFi
11. RS-232 communication port
12. BMS communication port: CAN, RS-485 or RS-232

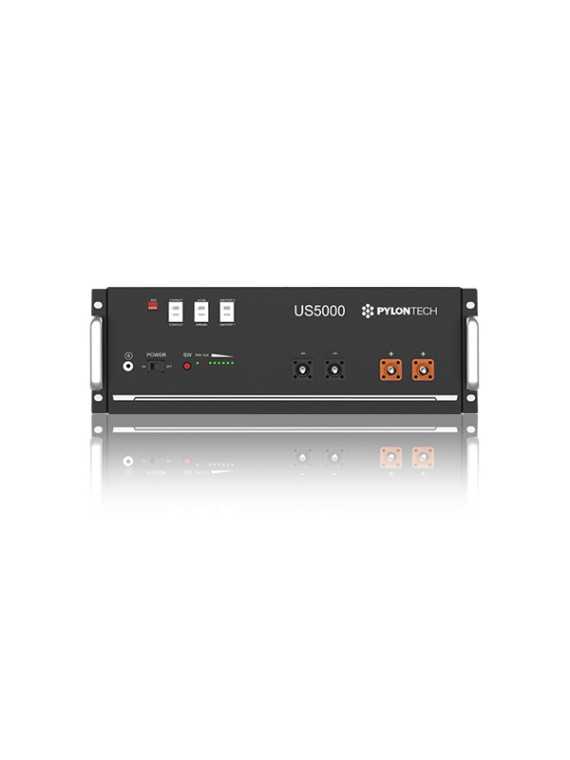

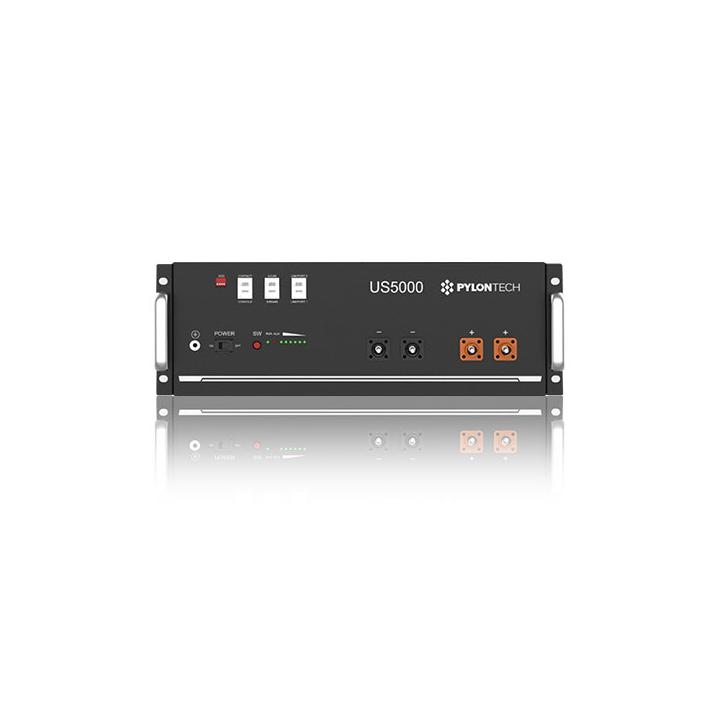

Pylontech US5000 +100 Lithium Battery - 4.8kWh

The US5000 battery from Pylontech is a new versatile energy storage product, offering reliable power with soft start to reduce current peaks. It features dual BMS protection, automatic address adjustment for multiple connections, and supports wake-up by RJ45 signal. It has a 95% depth of discharge, complies with environmental standards, and uses LiFePO4 for enhanced safety. The battery management system provides protection and automatic balancing. Compact, lightweight and self-cooling, it offers low self-discharge, no memory effect, and lends itself to flexible parallel configuration.

We chose Pylontech lithium batteries for a number of reasons:
- 7-10 year product warranty;
- Very fast charge/discharge speed;
- Possibility of upgrading capacity whenever you want;
- No technical capacity limit.

Single-phase 230V 32A changeover switch with socket - Secure mains/genset switching

230 V 32 A single-phase changeover switch with socket

This 230 V 32 A single-phase changeover box is designed to switch safely between two power sources, such as the mains and a generator. Ready to use, it includes all the components needed for a reliable, compliant installation.

Equipped with two 32 A circuit breakers, a type A 63 A / 300 mA differential switch and a 4-pole modular changeover switch, this box provides effective protection for people and equipment. The integrated socket with protection flap makes it easy and safe to connect single-phase appliances.

Robust, compact and easy to install, this inverter box is ideal for domestic, emergency or solar installations requiring reliable power supply management.

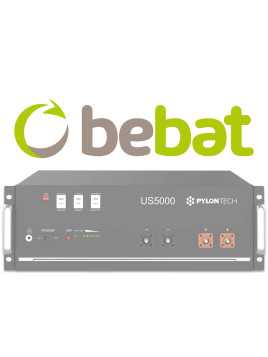

Specific information for Belgian customers - Bebat tax

As part of our commitment to regulatory compliance and environmental responsibility in Belgium, we would like to inform our customers that the purchase of a Pylontech US5000 battery is subject to a mandatory environmental levy.

An amount of €114.73 excluding VAT must be added for each battery purchased, as a direct contribution to Bebat, the organisation in charge of managing batteries and accumulators in Belgium. This measure complies with current Belgian environmental legislation.

Please note When purchasing lithium batteries, please add the corresponding product "Environmental contribution Bebat Pylontech US5000" according to the number of batteries you order. Otherwise, we will recalculate and invoice the amount after the purchase.

This tax only applies to Belgian customers.
