Tiny Village photovoltaic kit

Store your surplus solar production for later use, get rid of the grid.

This kit can power an isolated site or a small house connected to the grid.
It can operate alternately with the public grid or with a generator.
This semi-autonomous configuration will allow you to gradually free yourself from the public grid.

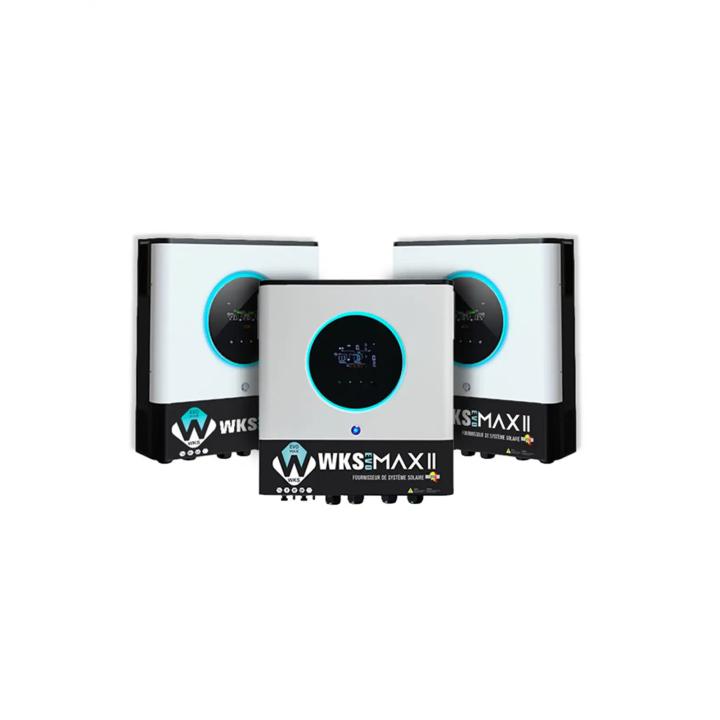

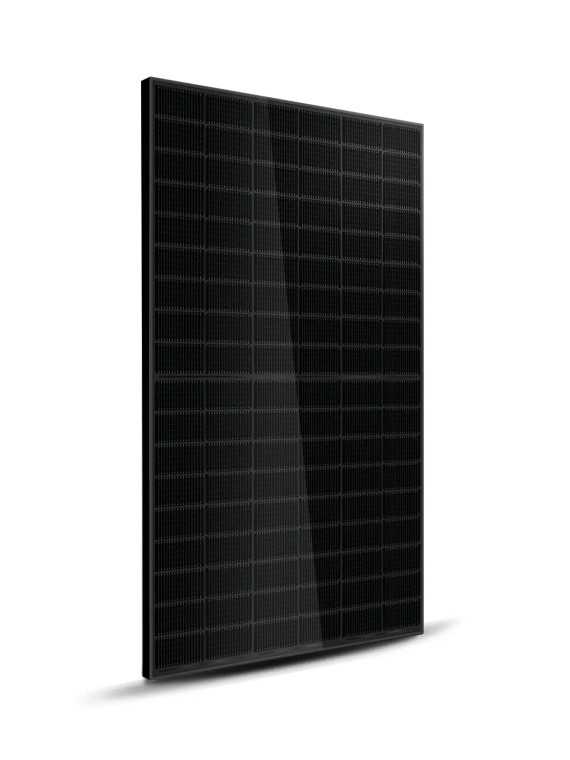

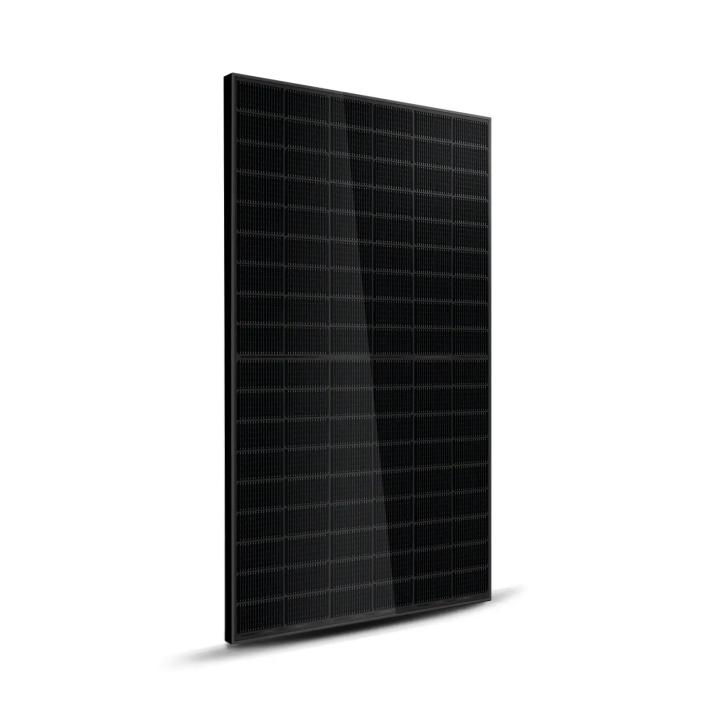

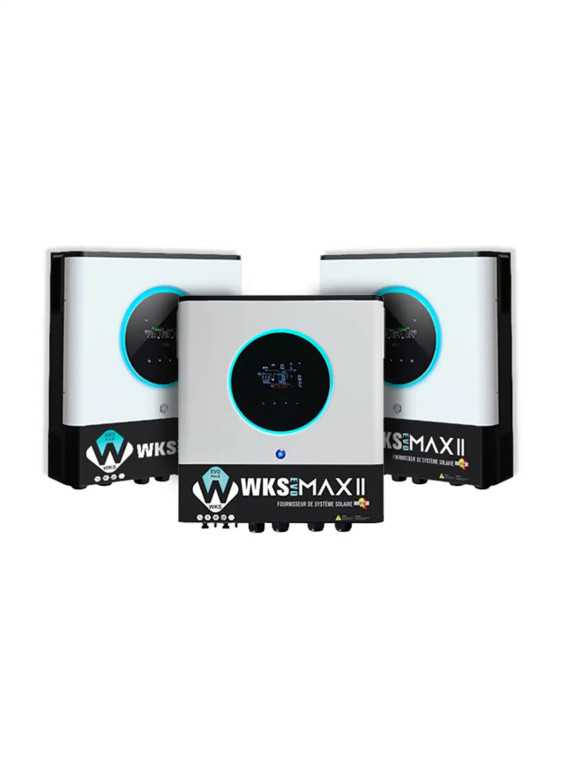

The basic kit contains 96 solar panels, two WKS EVO Max II 10 kVA single-phase inverters, solar cables to connect the panels to the inverter, and an optional panel mounting system. (The mounting system as well as the cabling and protections can be modified to suit your needs).

All our kits are configurable. In the options you can click on the product to choose another model or change the quantities to adapt the kit to your needs.
You can also see details of the products you have chosen directly below the price.

Important notice for our customers in Belgium: An environmental fee of € 114.73 excl. VAT will be applied to the purchase of each Pylontech US5000 lithium battery. More information at the bottom of the page.

Concrete benefits

1. Priority self-consumption

Consume the electricity produced by your panels as a priority, immediately reducing your dependence on the grid.

2. Reliable energy storage

16 lithium batteries mean you can use your solar energy at night, in bad weather or in the event of a power cut.

3. Surplus energy recovery

If your consumption is lower than your production, the surplus can be fed into the grid in accordance with local regulations, generating additional income.

4. Significantly lower bills

With an estimated annual production of 52,866 kWh, this kit can save you up to €15,800 a year on average.

5. Reliability and sustainable performance

Premium components (bifacial panels, WKS inverters, Pylontech batteries) guarantee safety, longevity and stable performance, even in northern Europe.

6. Suitable for demanding profiles

Ideal for high-consumption homes, insulated buildings, sheds, workshops or farms requiring significant energy autonomy.

Hybrid inverters: WKS Evo Circle vs WKS Evo MAX II

Choose the UPS that meets your needs:

The WKS Evo Circle PRO 6.5 kVA 48 V is the ideal technical solution for a stand-alone or hybrid solar system. It combines power and intelligent energy management. It provides a stable power supply thanks to its UPS (emergency) function with rapid changeover (10 to 20 ms, depending on the mode). A key technical feature is its programmable dual AC output.		The WKS Evo MAX II 10 kVA 48 V is a high-performance, scalable solar hybrid inverter designed for high-demand residential or semi-collective installations. It stands out for its high power, operational flexibility and intelligent interfaces.

Comparison table

Specifications	WKS Evo Circle 5.6 kVA (48 V)	WKS Evo MAX II 10 kVA (48 V)
Rated power	6.5 kVA / 6500 W	10 kVA / 10,000 W
Max PV power	≈ 9,000 Wp (1 MPPT, 120 A)	≈ 10,000 Wp (2 MPPT, 2 × 150 A)
MPPT range	90 - 450 V (Voc max: 500 V)	wider, up to 500 V
Max. efficiency	≈ 93 %	> 95 %
Max AC load	120 A	200 A
Modularity (parallel)	Yes, up to 6 units	Yes, up to 6 units
Interface & control	RS232, RS485, Wi-Fi	5″ colour LCD display, USB, Wi-Fi, RS485, CAN-BUS, BMS, LED
Advanced functions	Auto backup mode, pure sine wave	Energy prioritisation (PV/battery/grid), programmable timer, DC output
Maintenance	Standard	Replaceable fan, dust kit

---

A collection of videos to help you understand everything

Theme	Objective / Benefit
Technical labels	Decoding inverter information to make the right choice
Measuring DC voltage	Using a voltmeter to measure DC current
Protection box	Securing your installation: differential + earth
Connecting inverters and Pylontech batteries	Optimising installation and wiring
Lightning protection box (polarity)	Avoid polarity reversal
Lightning arrester box (earthing)	Understanding earthing
Connecting panels to an inverter	Maximising solar yield
AC IN/OUT connection	Correct electrical connection
AC wiring (neutral/phase)	Secure AC installation
Pylontech battery → WKS Circle inverter	Ensure optimum performance
Communication cable	Reliable system connection
Inverter pre-start	Pre-launch checks
Inverter-powered circuits	Ensuring correct operation & safety
Standard hybrid inverter start-up	Understanding indications & voltage
Basic UPS + lithium battery parameters	Optimising settings & performance

---

Lithium batteries

Choose the battery that suits your needs:

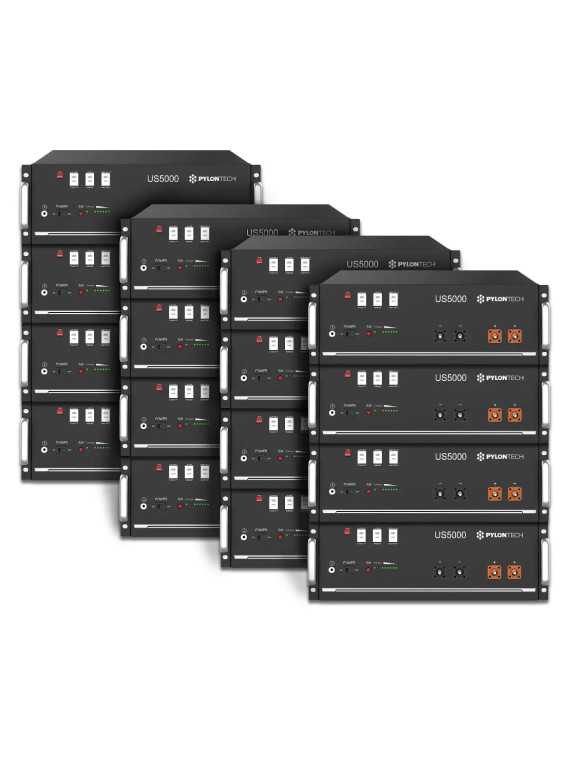

Pylontech US5000 The Delong Top Energy 5,12kWh - Pylontech US5000 is a safe bet: highly compatible with most inverters, renowned for its stability and long life. It is particularly suitable for progressive installations where you prefer to add modules gradually. - Delong Top Energy 5.12 kWh is interesting if you want a little more capacity per module and a compact installation thanks to its stackable format. It allows larger storage packs to be assembled quickly, while maintaining a good lifespan.

Comparison table

Criteria	Pylontech US5000 - 4.8 kWh	Delong Top Energy - 5.12 kWh
Capacity per module	4.8 kWh	5.12 kWh
Voltage	48 V	51,2 V
Technology	LiFePO4	LiFePO4 (grade A)
Claimed cycles	~6000 cycles @ 80% DOD	≥6500 cycles @ 80% DOD
Weight	≈ 40 kg	≈ 50 kg
Expansion	Up to ~76.8 kWh (serial / rack)	Up to ~81.9 kWh (parallel / stackable)
Product strengths	Reputation, stability, high compatibility with inverters	Slightly higher capacity, stackable design, quick to install
Points to check	Several modules required for energy-intensive installations	Voltage compatibility with the chosen inverter

---

Specific information for Belgian customers - Bebat tax

As part of our commitment to regulatory compliance and environmental responsibility in Belgium, we would like to inform our customers that the purchase of a Pylontech US5000 battery is subject to a mandatory environmental contribution.

An amount of €114.73 excluding VAT must be added for each battery purchased, as a direct contribution to Bebat, the organisation in charge of managing batteries and accumulators in Belgium. This measure complies with current Belgian environmental legislation.

Please note When purchasing lithium batteries, please add the corresponding product "Environmental contribution Bebat Pylontech US5000" according to the number of batteries you order. Otherwise, we will recalculate and invoice the amount after the purchase.

This tax only applies to Belgian customers.

Who is this kit for?

• Single-family homes with several occupants and energy-hungry appliances.
• Isolated buildings (rural areas, chalets, tiny houses) without a reliable connection.
• Workshops and sheds requiring stable electricity for machinery.
• Farms and agricultural businesses looking to reduce electricity bills and secure their power supply.

Concrete example: A family of 5 in a 200 m² house can cover almost all its annual consumption, even in winter, while having energy stored for the night.

Connection diagram

Connection to the WKS EVO MAX II inverter
