    Pompe immergée SQFlex

    Pompe immergée SQFlex

    $2,725.3
    95027324
    0712971132139

    The SQFlex family is an environmentally-friendly water supply solution. The pump system offers the perfect water supply solution in remote areas where water is scarce and the power supply is non-existent or unreliable.

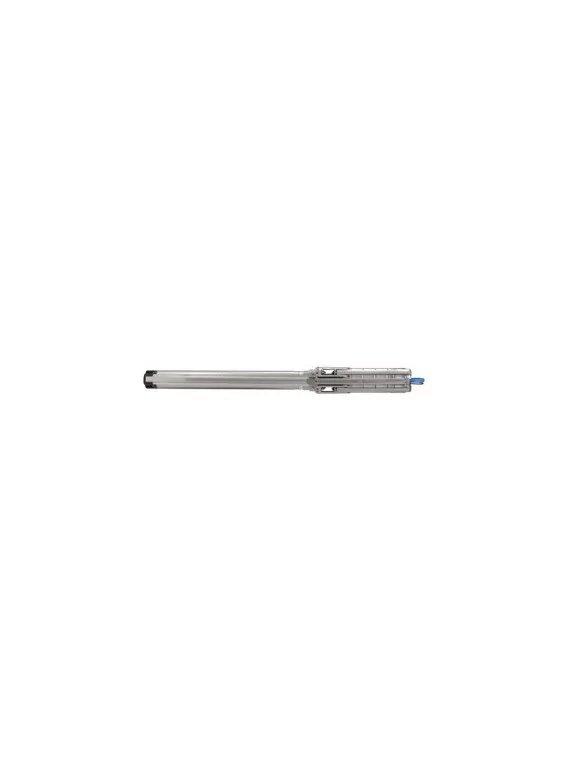

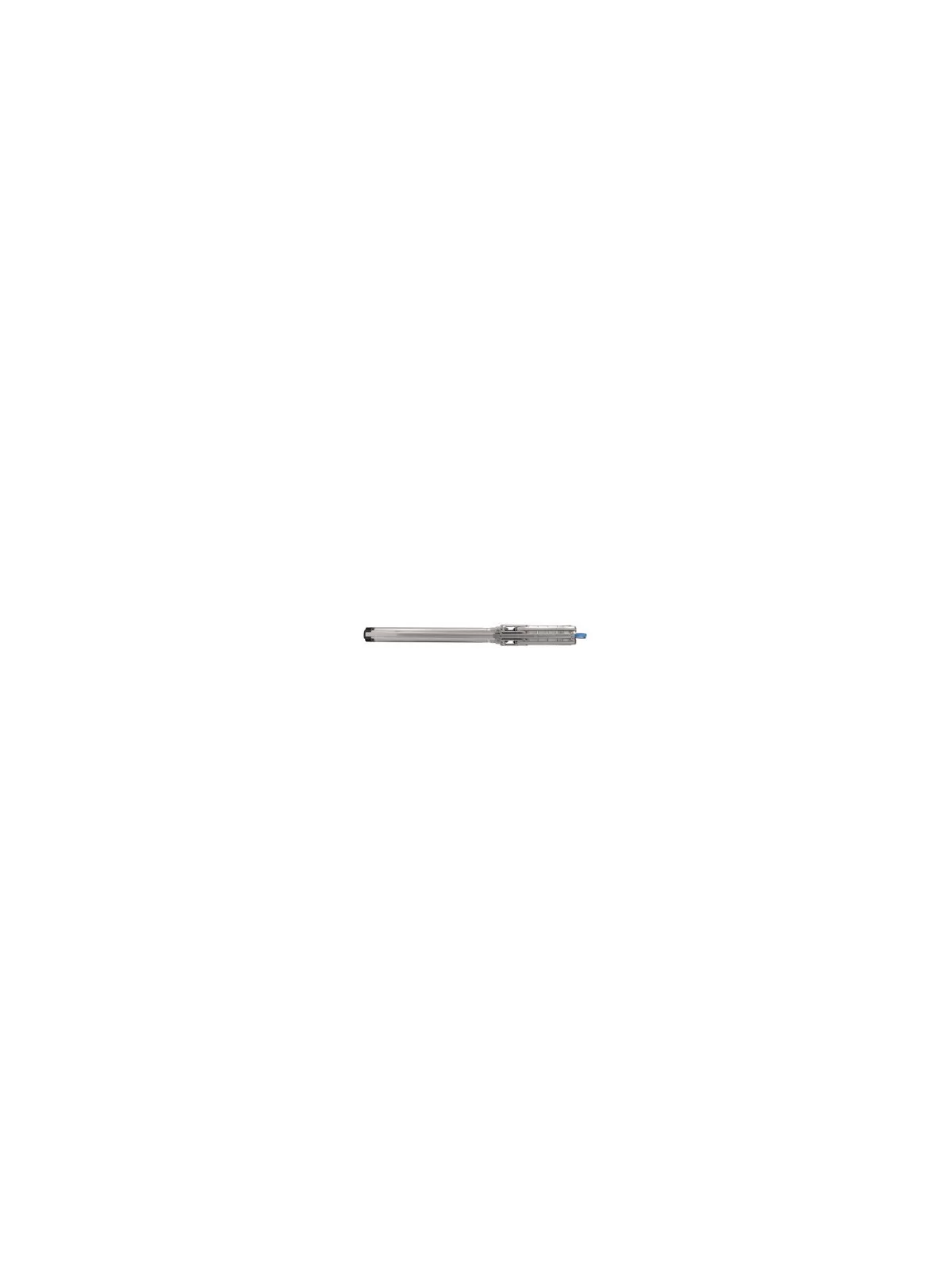

    Submersible pump SQFlex: SQF 3A-10

    Pompe immergée SQFlex

    $2,725.3

    Immerged water pump SQFlex

    Overview

    The SQFlex family is an environmentally-friendly water supply solution. SQFlex pumps are fitted with a permanent magnet motor which enables the efficient use of energy from nature. The pump system offers the perfect water supply solution in remote areas where water is scarce and the power supply is non-existent or unreliable.

    The SQFlex solar panels and wind turbines adapt to the characteristic weather profile of any given area. A battery backup system can store the extra energy generated and take over when the energy from nature is not available.

    SQFlex is more than just a pump – it's a complete intelligent system. Thanks to its built-in electronics, the pump is compatible with both DC and AC power supply without requiring an external inverter.

    The complete range consists of ten different pump sizes: Four helical rotor pumps for applications where a high head is required, and six centrifugal pumps for applications where a greater flow rate is necessary.

    Applications

    The SQFlex systems are suitable for applications in remote locations:

    • Villages, schools, hospitals, small houses
    • Farms and irrigation of greenhouses
    • Game parks and game farms
    • Conservation areas.

    Features and benefits

    • Renewable energy supply: solar panels or wind turbines
    • Built-in electronics, easy installation
    • Reliable water supply
    • Low operating costs
    • Dry-running protection.

    In short

    • Renewable energy
    • High efficiency
    • Wide performance range

    SQFlex 0,6-2SQFlex 0,6-3SQFlex 1,2-2SQFlex 1,2-3SQFlex 2,5-2SQFlex 3A-10SQFlex 5A-3SQFlex 5A-7SQFlex 8A-3SQFlex 8A-5SQFlex 11A-3
    Liquid temperature0 °C to +40 °C
    Chassis protection factorIP 68
    Nominal speed500 - 3600 RPM
    Electrical boxIO50, IO101, IO102, CU200
    Power supplyvoltage from 1 x 90-240 V - 10 %/+ 6 %, 50/60 Hz,VCA or 30-300 VCC
    BatteryRange of voltage of 30-300 VCC and 8.4A max
    Dimension RP1'' 1/41" 1/22"
    Dimension Drilling3''4''
    Voltage30-300 VCC
    or
    1 x 90-240 VCA,
    50/60Hz
    TypeHelicalCentrifugal
    P1 (kW)1,4
    I (A)8,4
    Cable2 m
    95027324

    Specific References

    New

    Download

    The world of SQFlex

    Download (587.49KB)

    Datasheet EN SQFlex

    Download (1.08MB)
