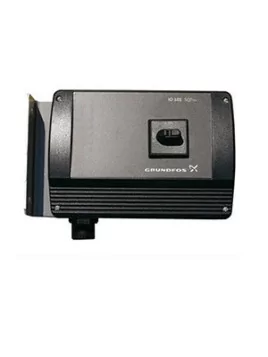

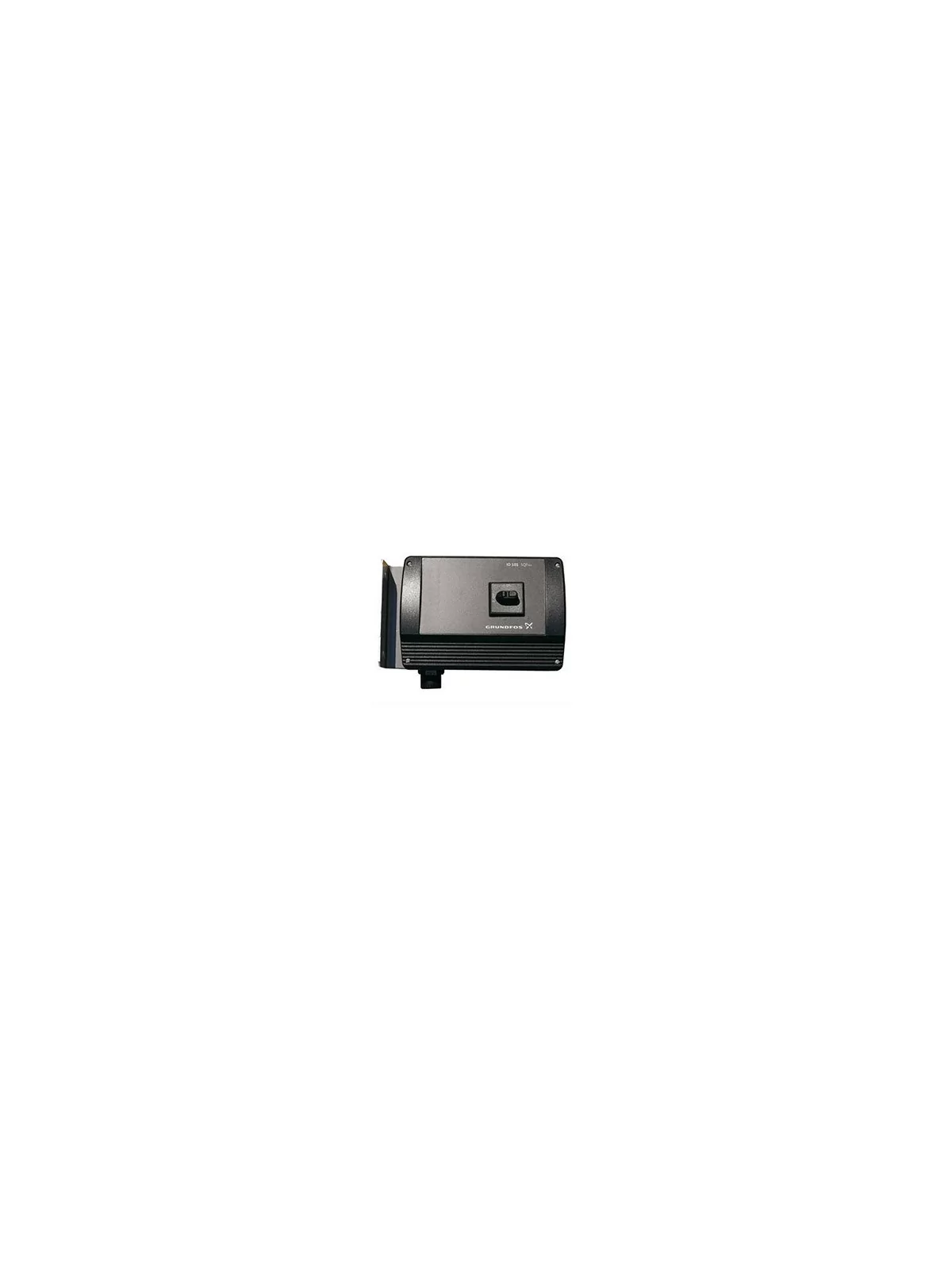

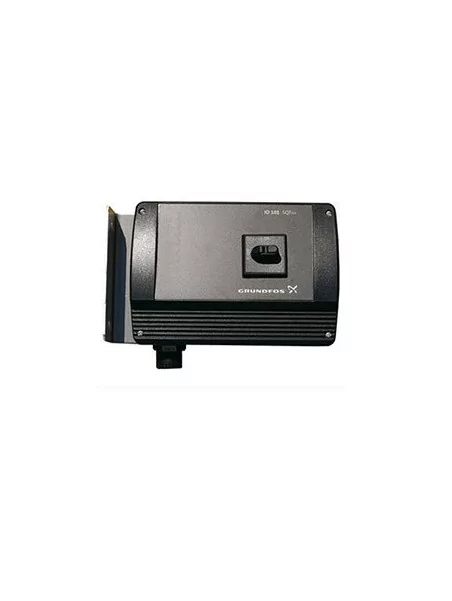

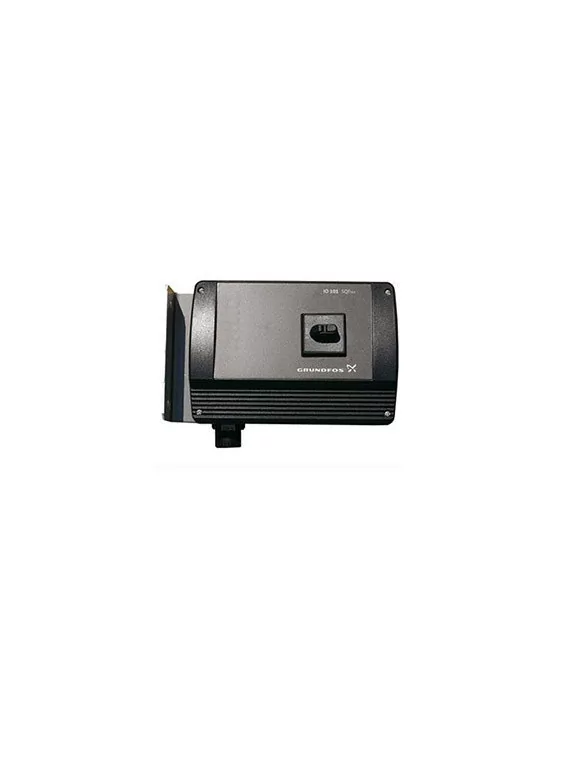

Switch box IO 102 SQFlex View full size

Switch box IO 102 SQFlex

Grundfos

382,36 € tax incl.

The IO 102 is designed specifically for wind-powered SQFlex systems. The IO 102 enables manual starting and stopping of the pump in an SQFlex Wind system or an SQFlex Combi system.

More details

More info

Switch box IO102 for solar pump SQFlex

Switch box IO 102

The IO 102 is designed specifically for wind-powered SQFlex systems. The IO 102 enables manual starting and stopping of the pump in an SQFlex Wind system or an SQFlex Combi system. The on/off switch has a built-in "electrical brake" for the turbine. When the switch is in "off" position, the turbine stops or slows down. The IO 102 rectifies the three-phase AC voltage from the wind turbine into DC voltage. Furthermore, the IO 102 enables the combination of wind energy from the wind turbine and solar energy from the solar panels. The IO 102 functions as a connection box joining all necessary cables.

IO 1002 SQFlex
ApplicationThe full range of SQFlex/CRFlex
Chassis protection factorIP55
Temperature rangefrom -30 °C to +50 °C
Maximum300 VCC, 265 VCA, 8.4 A
