By Julien Mawet · Solar PV Expert at Wattuneed • Updated April 2026
€48.40
Tax included
kit-fixation-bac-acier
0768563824401

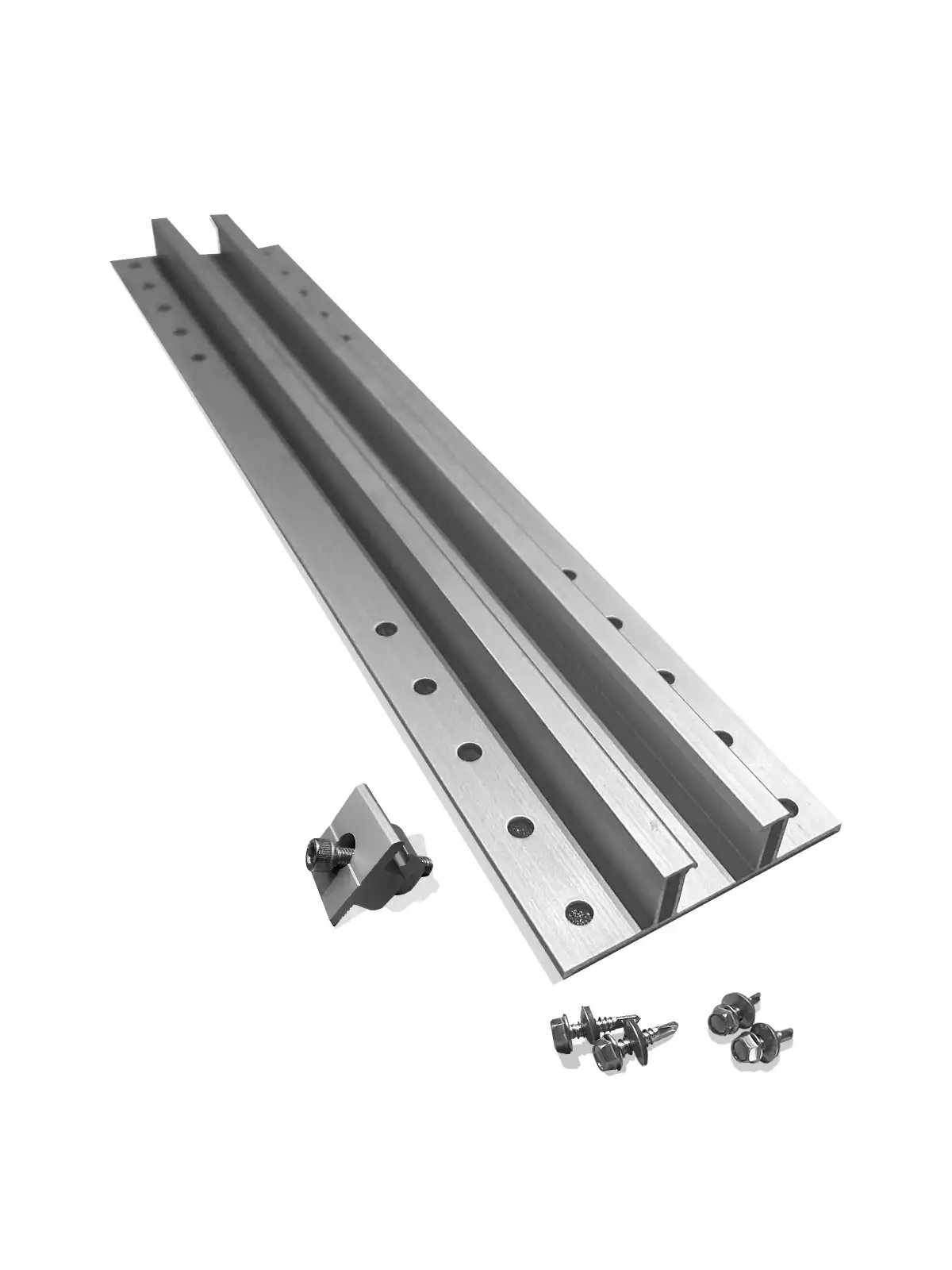

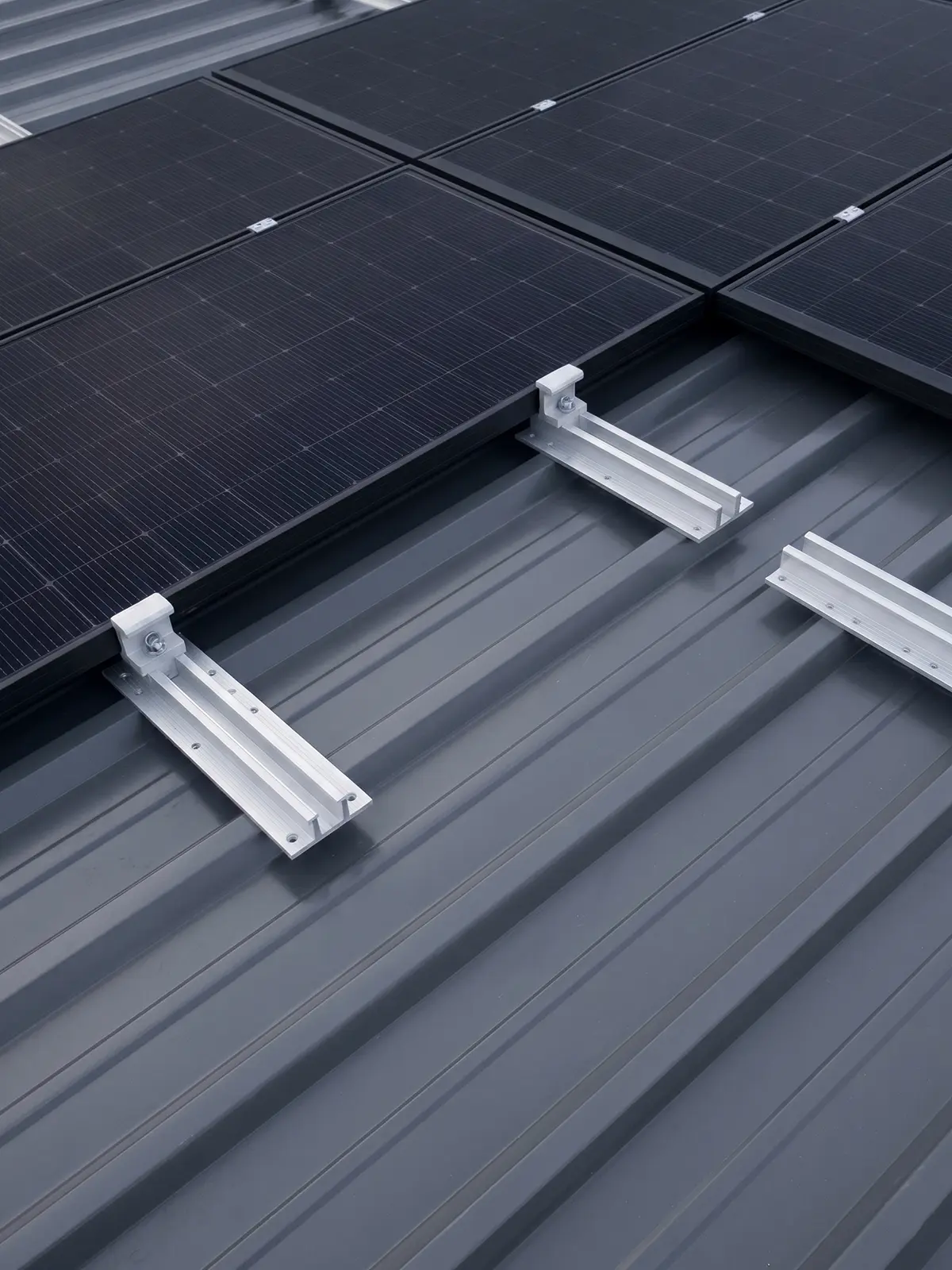

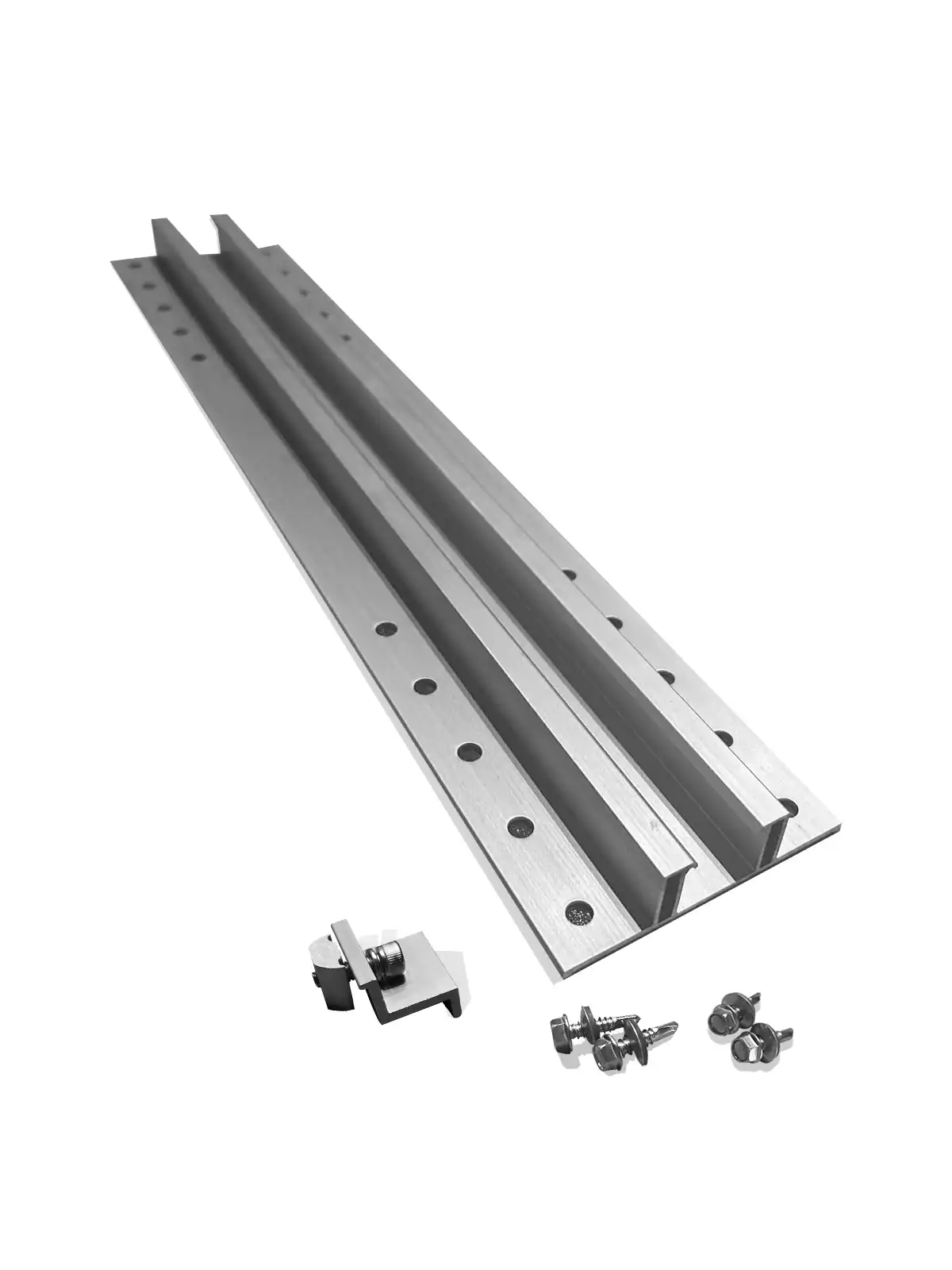

Mounting kit for metal roofing

Optimise the installation of your solar panels with this high-performance mounting kit for steel-clad roofs. Designed for quick and efficient installation, it also ensures electrical conductivity between the mounting system and the roof, guaranteeing safety and durability.

  • Quick and reliable installation
  • Compatible with landscape and portrait orientations for maximum flexibility
  • Number of panels configurable to suit your needs
  • Premium-quality materials for optimal longevity

Ideal for any industrial or residential roofing project, this kit combines performance, safety and ease of installation.

Contents of the solar panel mounting kit – Steel-clad roof

The number of components in the kit varies depending on the number of panels.

Included Fixation bac acier trapèze light+clame milieu NVT

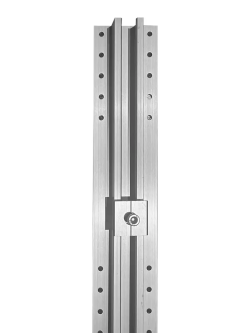

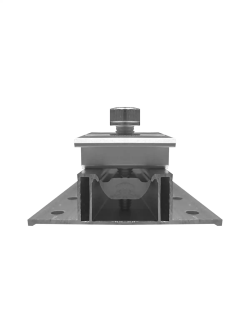

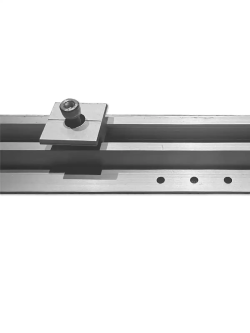

Aluminium mounting rail with centre clamp

 Specially designed to ensure a secure and durable mounting on steel-clad roofs.

Product details
Included Rail de montage en aluminium avec clame de fin et visserie

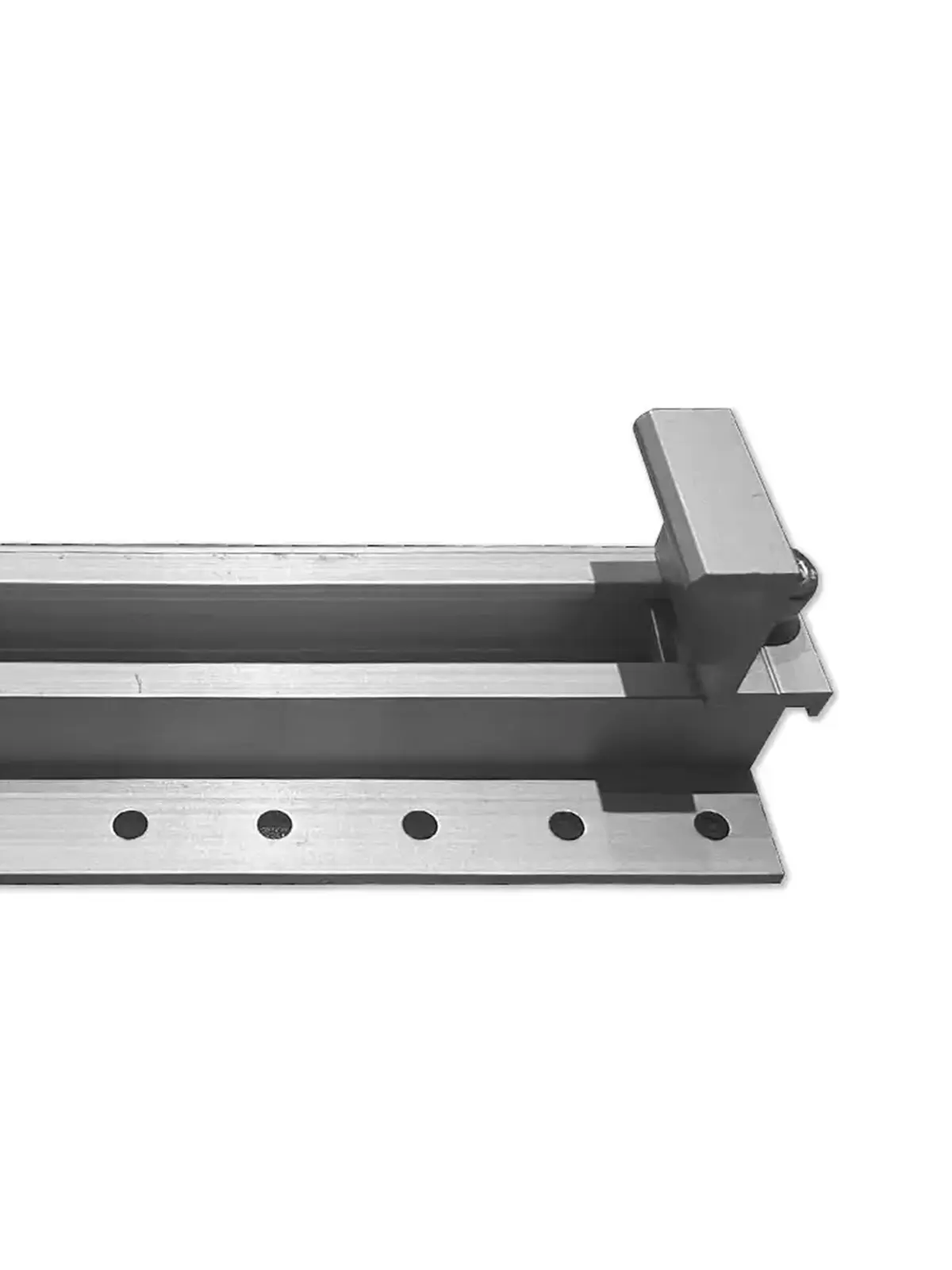

Aluminium mounting rail with end clamp

Designed to ensure quick, secure and durable installation of your steel trays

Product details
Includes Vis autoforante RP-T2

RP-T2 self-tapping screw

Sturdy screws designed to securely fix solar kits to steel roof panels, ensuring a quick and durable installation.

Product details
Included Clips de mise à la terre Rayvolt

Rayvolt earthing clips

Ensure electrical continuity and earthing.

Product details





Advantages of the mounting system:

Minimalist, fully pre-assembled components for quick installation. Cost-effective materials and extremely simple handling. High-performance direct fastening using certified thin-gauge sheet metal screws, with no chips to remove. Quick assembly requiring very few tools.





Details of materials supplied depending on the number of panels

Number of panels Rail with centre clamp Rail with end clamp Self-tapping screws Rayvolt
1 panel 0 4 16 1
2 panels 2 4 24 2
3 panels 4 4 32 3
4 panels 6 4 40 4
5 panels 8 4 48 5
6 panels 10 4 56 6
7 panels 12 4 64 7
8 panels 14 4 72 8
9 panels 16 4 80 9
10 panels 18 4 88 10
11 panels 20 4 96 11
12 panels 22 4 104 12
13 panels 24 4 112 13
14 panels 26 4 120 14
15 panels 28 4 128 15
16 panels 30 4 136 16
17 panels 32 4 144 17
18 panels 34 4 152 18
19 panels 36 4 160 19
20 panels 38 4 168 20

* Rail specifications are provided for guidance only and depend on the size of the panels.





FAQ - Steel Roof Fixing Kit

1. How does this system attach to my steel roof? +
The system uses high-performance RP-T2 self-tapping screws. These screws are specially designed to drill directly through thin sheet metal without producing chips, ensuring a direct, quick and extremely secure fixing of the aluminium rails onto the corrugations of the steel roofing.
2. What is the difference between centre clamps and end clamps? +
End clamps are used to secure the outer edges of your solar array (the panels at the ends). Mid-span clamps, on the other hand, are placed between two panels to hold them together on the rail. This is why the number of mid-span clamps increases with the number of panels, whilst the number of end clamps remains at 4 per row.
3. Why are Rayvolt earthing clips included? +
Safety is paramount. Rayvolt clips ensure electrical continuity between the panels and the aluminium structure. They enable effective earthing of the entire installation, thereby protecting your system against electrical hazards.
4. Is it easy to install this kit yourself? +
Yes, this system has been designed for ultra-simple handling. The components are minimalist and assembly requires very few tools. As the rail is fixed directly to the sheet metal, installation is much quicker than on traditional hook-mounted roofs.
5. How do I know if there will be enough materials for my project? +
We have created a detailed table (see the ‘Materials Details’ section) which automatically adjusts the number of rails, screws and clips based on the number of panels you choose. Simply select your number of panels to receive a complete, ready-to-install kit.
kit-fixation-bac-acier

Data sheet

Mounting
Sheet metal and steel roof

Specific References

UPC
768563824401
EAN13
0768563824401
MPN
kit-fixation-bac-acier
New
