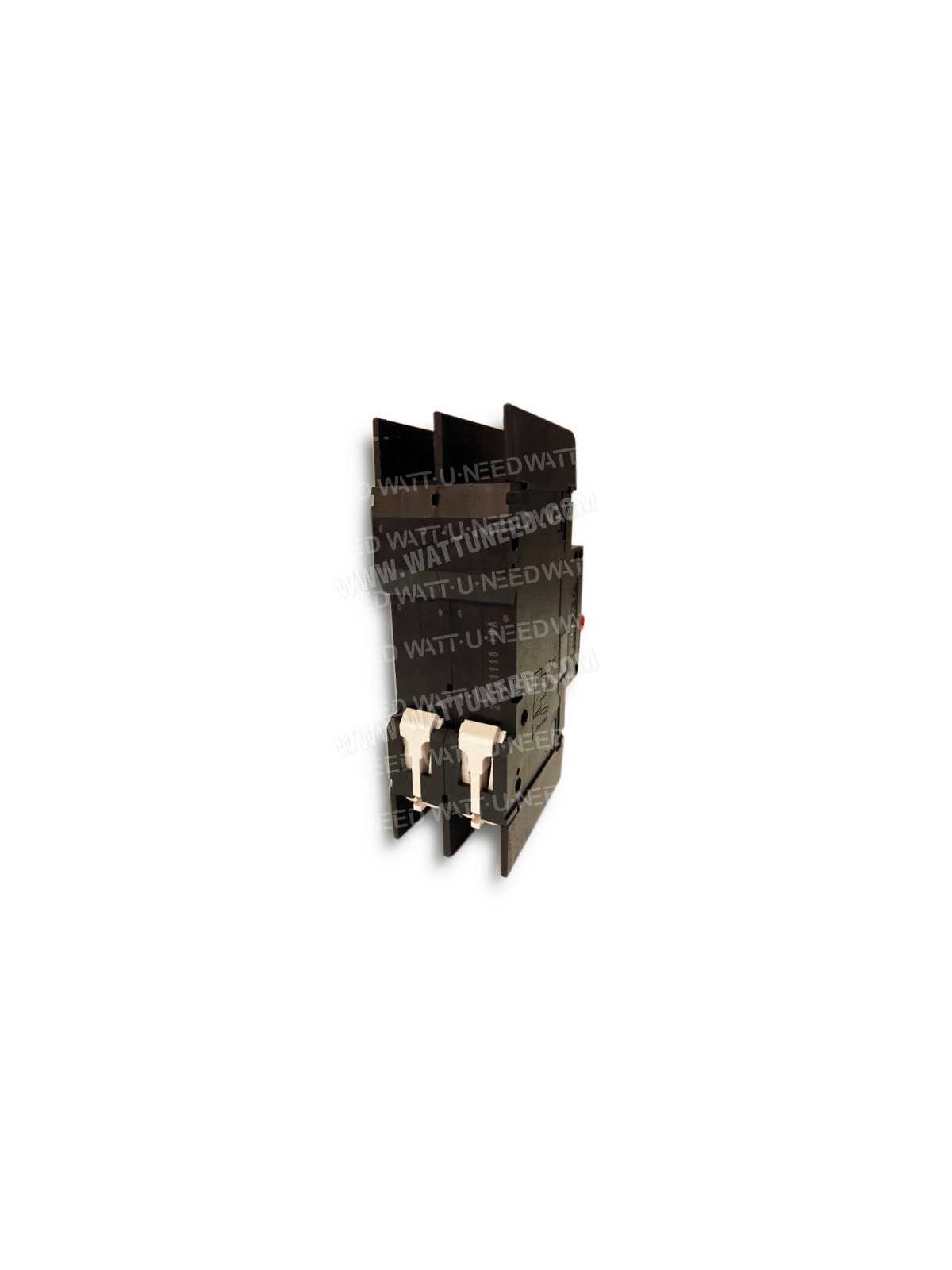

Circuit breaker DC 10A - 600V DC

10,10 € tax excl.

The PV breaker at current continuous.

Max voltage up to 600 AC/DC10A, 2 poles



More details

More info

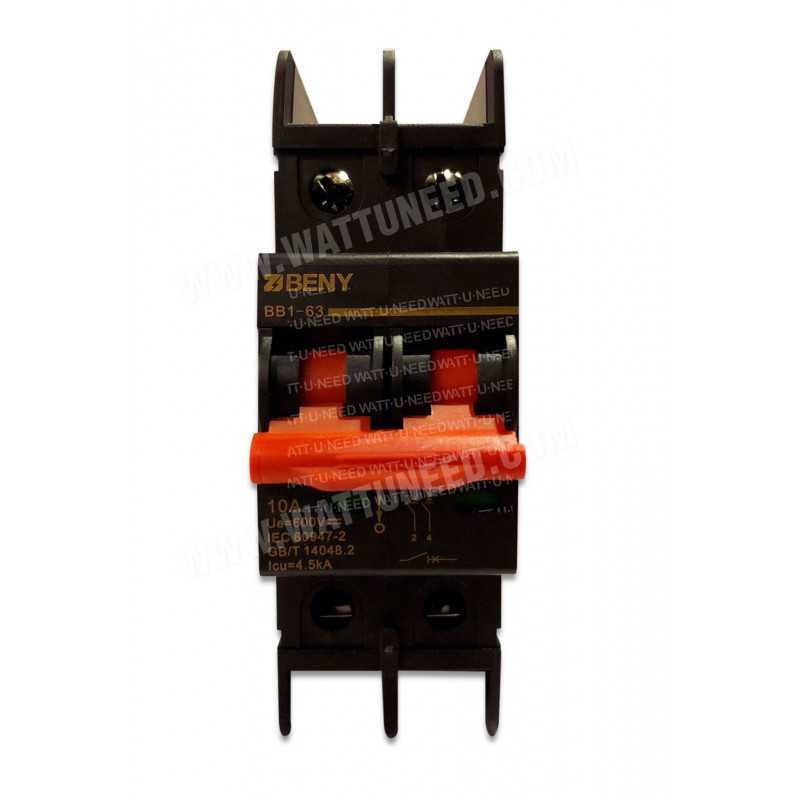

DC circuit breaker 10A - 600 V DC

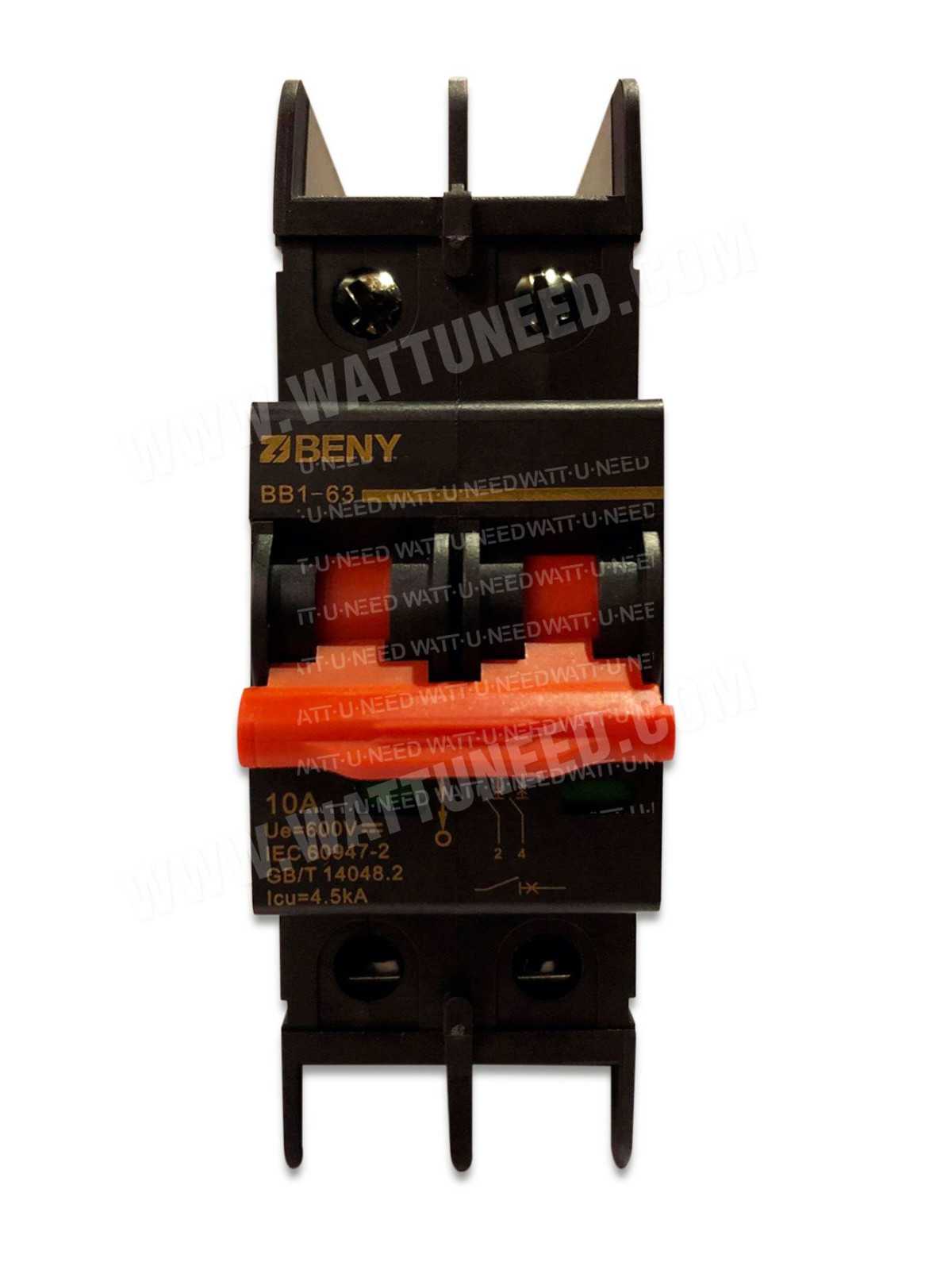

DC circuit breaker 10A - 600 V DC



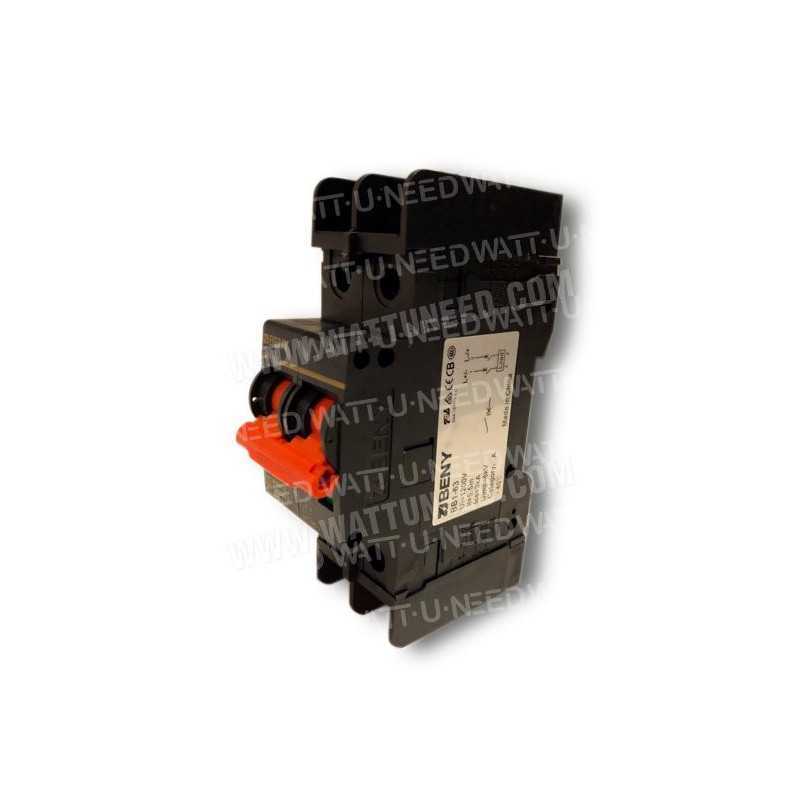

PV breaker at current continuous

The series, BB1 mini PV breakers are mainly used on solar cabinets DC, controllers, etc. The main functions are protection against overloads, anti-reflux protection and protection against short circuits. The scientific design of an arc extinguishing system to maintain a more secure solar system.


Dimensions

Dimensions

Dimensions




Contacts wiring diagram



Contacts wiring diagram

Contacts wiring diagram


Description




Electric characteristics
TypeBB1-63
In line withIEC60947-2/GB14048.2
Pole2 P
Nominal operating voltage600V Dc
Nominal max current.63A
Rated current10A
Rated insulated voltage600V DC
Nominal voltage of impulse4 KV
Ultimate breaking capacity 6 KA
Breacking capacity100.00%
Type of curveB
Trigger typeThermal type
Life/cycle time of operation
Current value20000
Standard value8500
Current value4000
Standard value1500
Installation environment
Protection against the instrusion All sides IP40, connection terminal Ip 20
Cross-section of the terminals 2.5 - 25 mm³
Operating temperature-25 ° C / 70 ° C.
Storage temperature -40 ° C / + 85 ° C
Moisture and heat resistanceII (when the humidity reaches 55 ° C, relative humidity 95%)
Shock resistance 2.6 IEC 60068 +
Resistance to impact
2.27 IEC60068
