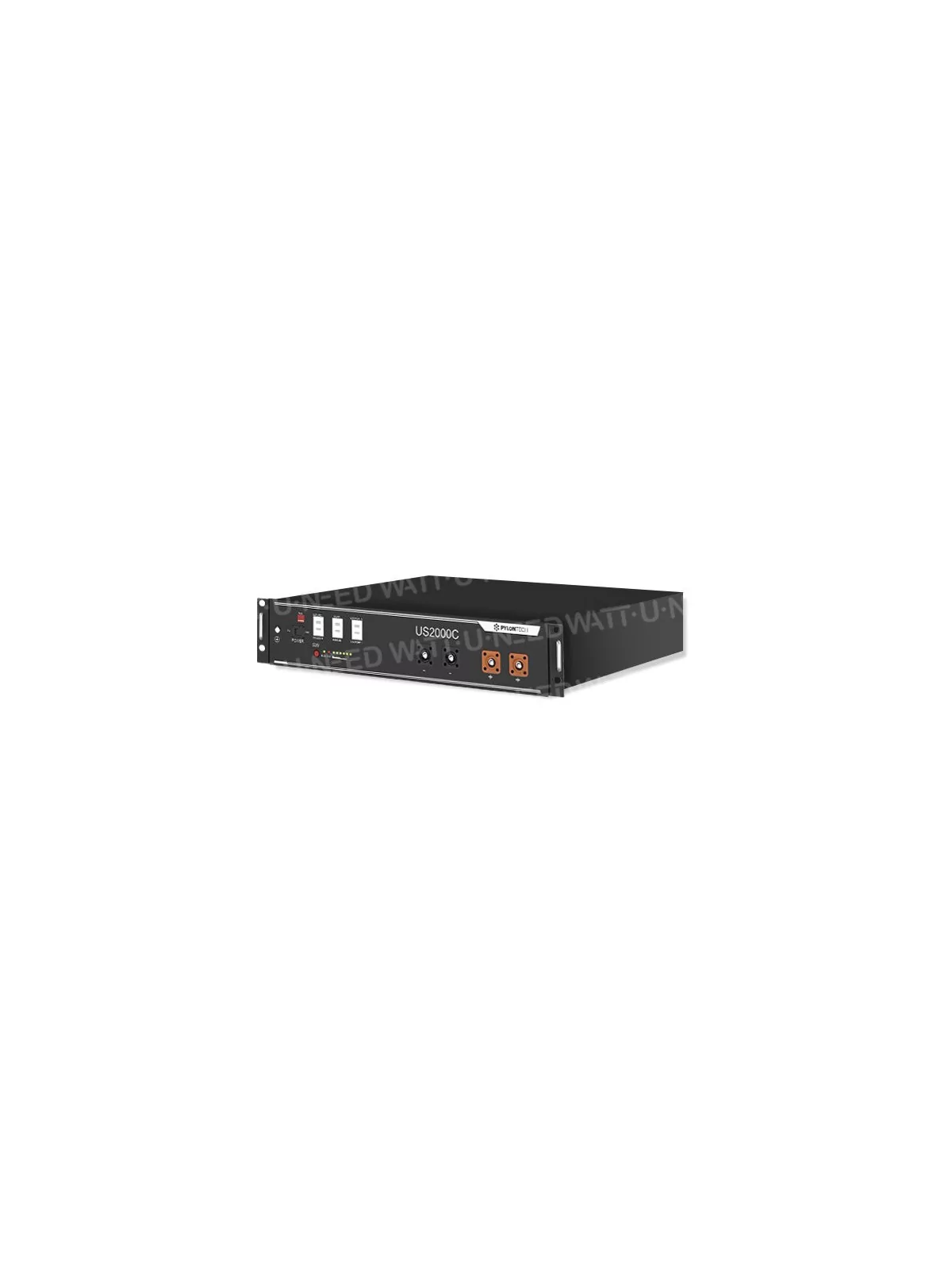

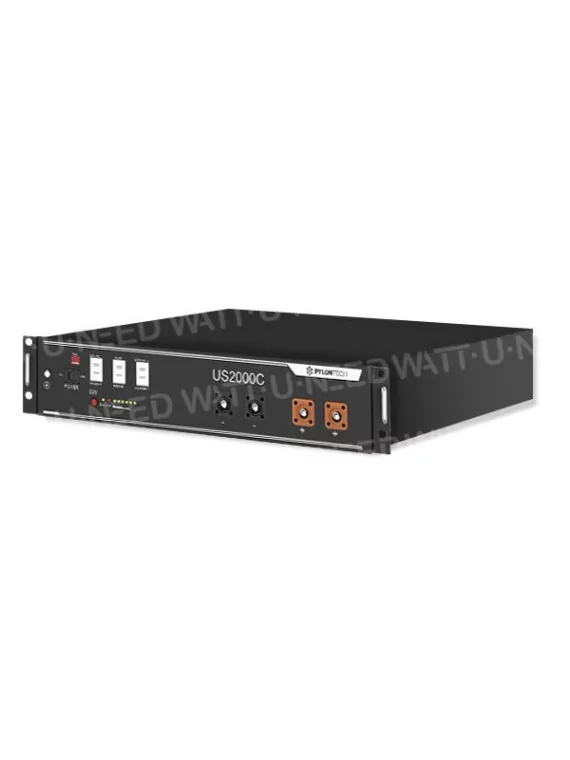

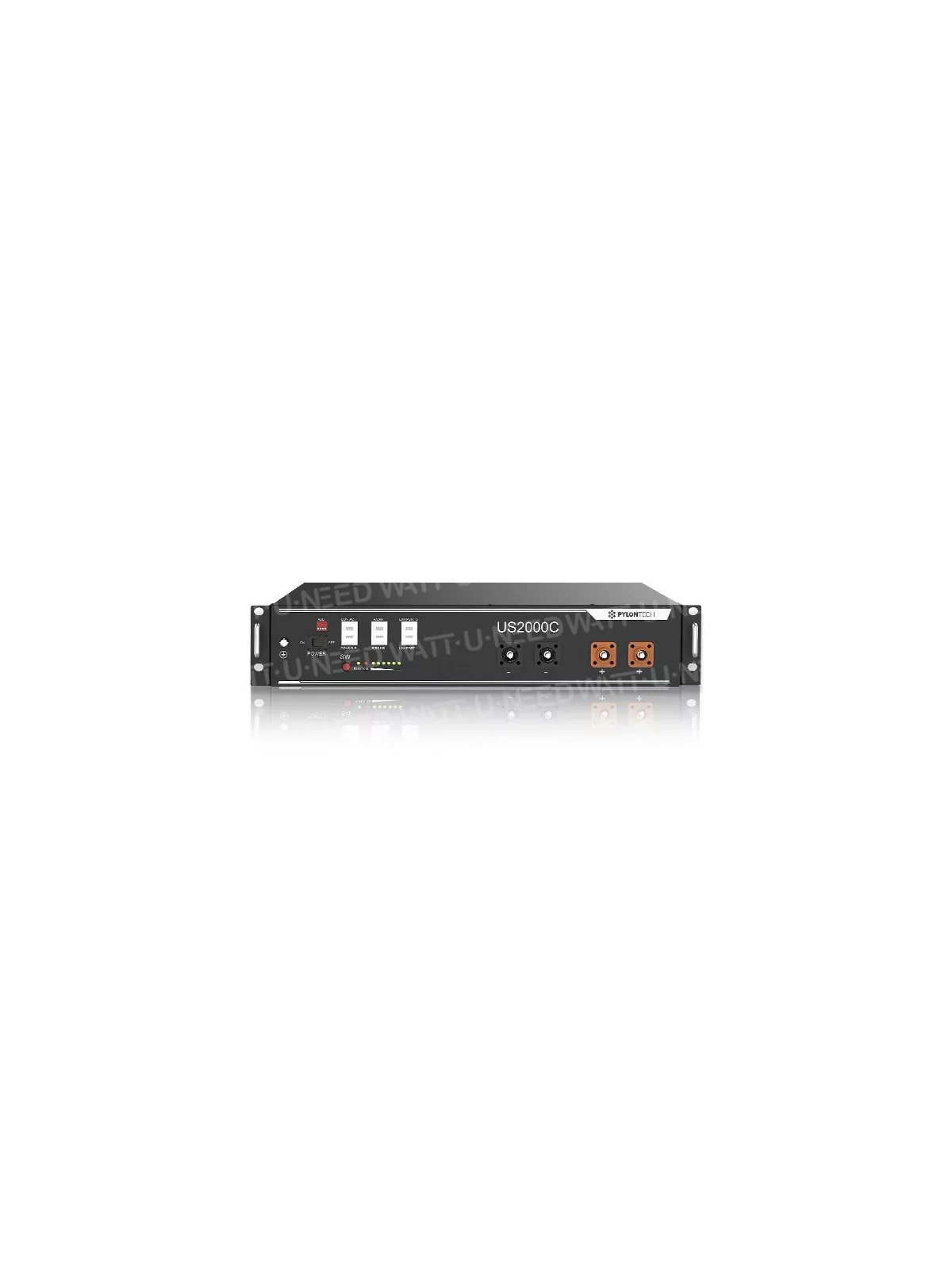

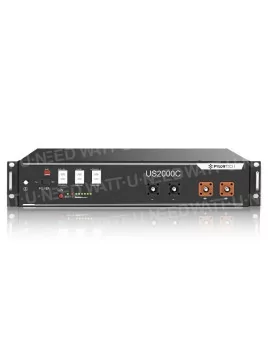

    Lithium Pylontech Battery - 50 - 2.4 kWh
    Lithium Pylontech Battery - 50 - 2.4 kWh
    Lithium Pylontech Battery - 50 - 2.4 kWh

    Pylontech Lithium Battery + 50 - 2.4 kWh

    $694.9
    US2000C
    0768563815706

    Optimize your energy autonomy.

    Designed for residential solar installations, this high-performance battery offers a reliable and scalable energy storage solution. Thanks to its lithium iron phosphate technology, it guarantees a long lifespan and maximum safety.

    Why choose it?

    • High power: Delivers up to 5 kW to meet your energy needs, even during peak consumption.
    • Exceptional longevity: Over 6000 cycles at 90% depth of discharge for a lifespan of more than 10 years.
    • Flexibility: Modular design allowing capacity to be increased according to your needs.
    • Enhanced safety: TÜV, CE, and UN38.3 certified for safe use.
    • Easy installation: Compact and lightweight design for simplified installation.


    Advantages of self-consumption:

    • Reduce your electricity bill: Consume the energy produced by your solar panels when you need it.
    • Energy independence: Decrease your reliance on the grid and protect yourself from price increases.
    • Environmentally friendly: Reduce your carbon footprint by consuming clean and renewable energy.

    Invest in the future with the Pylontech US2000C+50.

    Request your personalized quote now!

    Save it to the Pylontech website allows you to extend the warranty to 10 years.
    * Battery connection cable to the inverter sold separately.



    Sorry, there are no more items in stock.

    Pylontech Lithium Battery +...

    $694.9

    Pylontech US2000C Battery Overview

    Pylontech US2000C Lithium Battery: Compact and Powerful Solar Energy Storage

    The battery is charged during the day thanks to the production of photovoltaic panels.
    It is discharged during the day when production is lower than consumption and at night in order to limit energy discharges into the distribution network to the strict minimum.


    The US 2000 series is an ideal solution for residential storage applications, with a standard specification of 48V/50AH, up to 90% usable capacity and a guarantee of 6000 life cycles.

    Highlights of the Pylontech US2000C battery


    Latest HESS battery model from Pylontech+



    This model of Lithium battery already powers more than 20,000 homes. Exceptional service life, quality energy. Design design makes it easy to install and expand your system. This battery reflects all the real requirements of end users and the highest technical capabilities of Pylontech.

    You can find the 7-year warranty in the attached files. Save it to the Pylontech website allows you to extend the warranty to 10 years.


    Why a battery storage system for the home?

    Energy demand is high in the morning and evening.
    But solar production is more sufficient in the middle of the day.
    Battery storage system balances power and demand

    graphique consommation énergie


    Operating diagram

    Schéma de fonctionnement




    Exceptional service life



    Advertised for more than 6000 cycles considering a depth of discharge of 90%
    Pylontech batteries will accompany you for more than 10 years.


    Delivers more than 5kW per module



    The rated power per element is 2.5kW, but they can give 5kW to cope with high starting currents


    Modular design



    Pylontech batteries can be upgraded very easily
    It is quite possible to start with one or two elements, and then increase according to your needs.


    Compatible with most converters



    Any charge regulator or inverter whose charging voltages can be set is compatible with Pylontech batteries


    Compact and easy storage



    Pylontech batteries can be stacked very easily, and also be placed horizontally
    It is also possible to place them in any 19' rack


    Safety Cert.TÜV, CE, UN38.3, TLC



    Pylontech


    Loss of capacity depending on the number of discharges



    Tableau de comparaison Pylontech et autres marques de batteries

    Vertically: State of health
    Horizontal: Number of cycles (flow capacity / nameplate)

    Find the full ITP report by clicking here.


    Lithium battery test performed by an independent body



    Table test de batteries lithium par un organisme indépendant

    Find the link of the site by clicking here.


    Specifications



                             PARAMETERSPYLONTECH + 50
    NominalRated voltage (V)48
    PhysicsRated capacity (Ah)50
    ElectricDimensions (mm)440*410*89
    OtherWeight(Kg)24
     Discharge voltage(V)45~54
     Charging voltage (V)52.5 ~ 54
     Maximum discharge power (kW)5kW@1Min
     Maximum charging power (kW)5kW@1Min
     CommunicationRS232, RS485, CAN
     Temperature0°C~50°C
    -10°C~50°C
     Shelf temperature-20°C~60°C
     CertificationTÜV / CE / UN38.3 / TLC
     Lifespan10+ Years (25°C/77°F)
     Number of reload cycles>6000 (25°C, 90% DoD)




    Comparative table of price per useful kWh over battery life at a glance!

    Comparatif des batteries

    There are many different storage technologies: Gel or AGM batteries, lithium batteries, OPzS and OPsV. It's not easy to choose the right technology for your needs. Each technology has its own characteristics (size, power, cost, number of cycles and service life, etc.). With this table, you can quickly compare the price per useful kWh over the lifetime of the batteries.

    C10 = 10-hour charge/discharge test.
    C24 = examination of a charge or discharge in 24 hours.

    Click here to see our comparison table.



    US2000C

    Data sheet

    Voltage
    48V
    Technology
    Lithium
    Battery capacity
    50 Ah
    Weight
    24 kg
    Video Youtube 1 - ID
    wbV724Ih7cM
    Video Youtube 2 - ID
    72-v341joXg
    Video Youtube 3 - ID
    9MQ4tQrNsb4

    Specific References

    New

    Download

    User Manual EN

    Download (2.21MB)

    Datasheet Pylontech EN

    Download (672.03KB)

    Warranty Pylontech EN

    Download (720KB)

    Carte de garantie Pylon FR

    Download (110.65KB)

    Warranty Card Pylon EN

    Download (64.82KB)

    Config.-Garantie Pylontech (4)

    Download (830.64KB)

    Notice pylontech warranty form

    Download (698.6KB)
