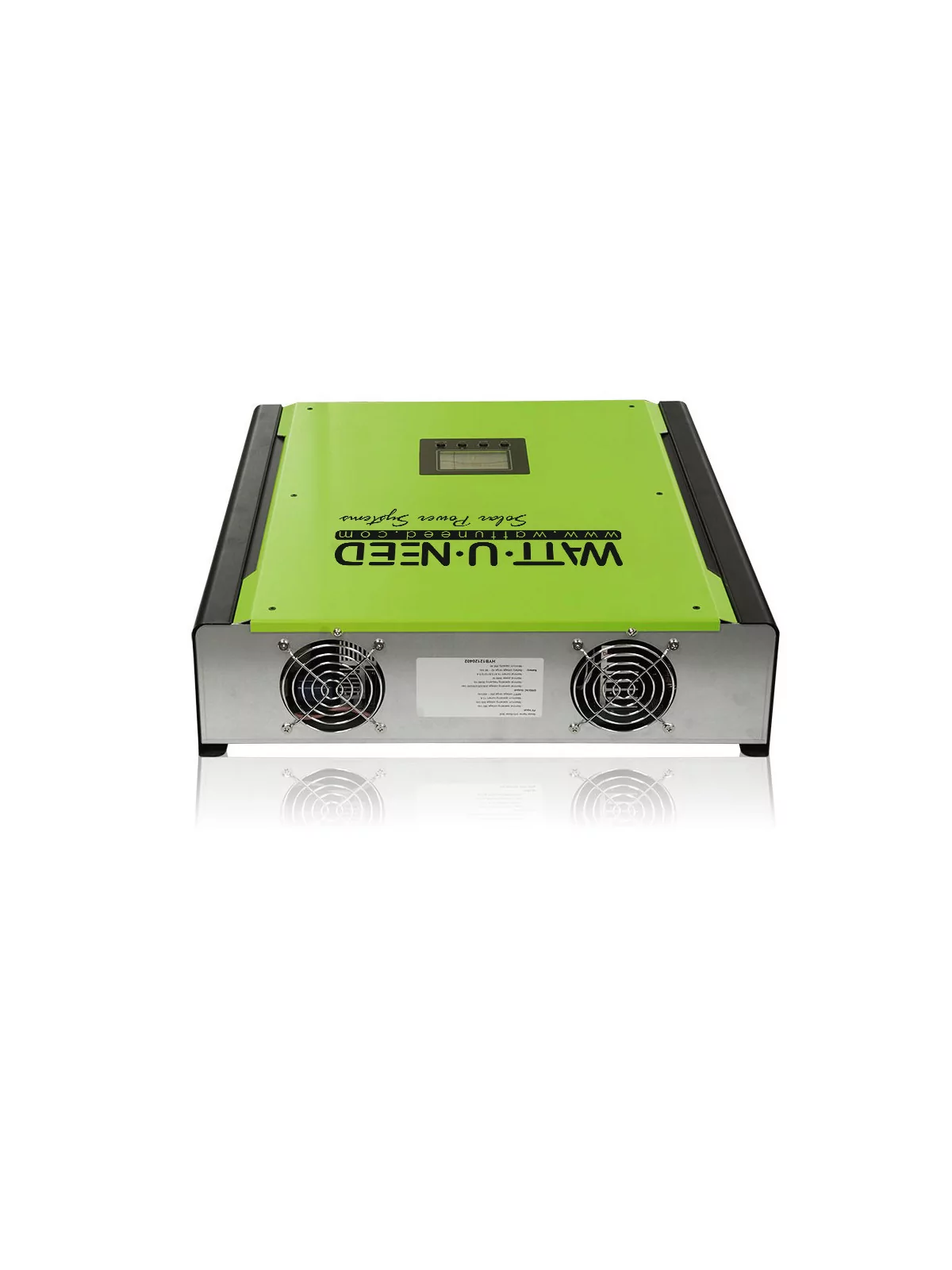

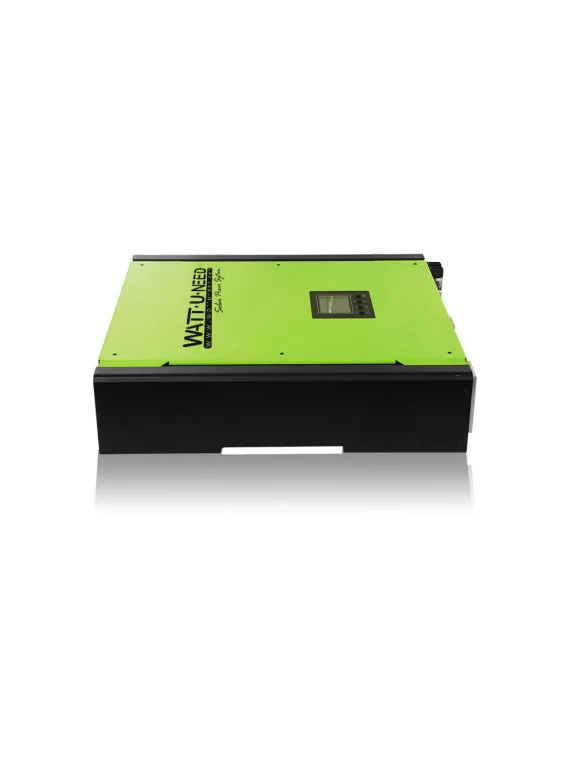

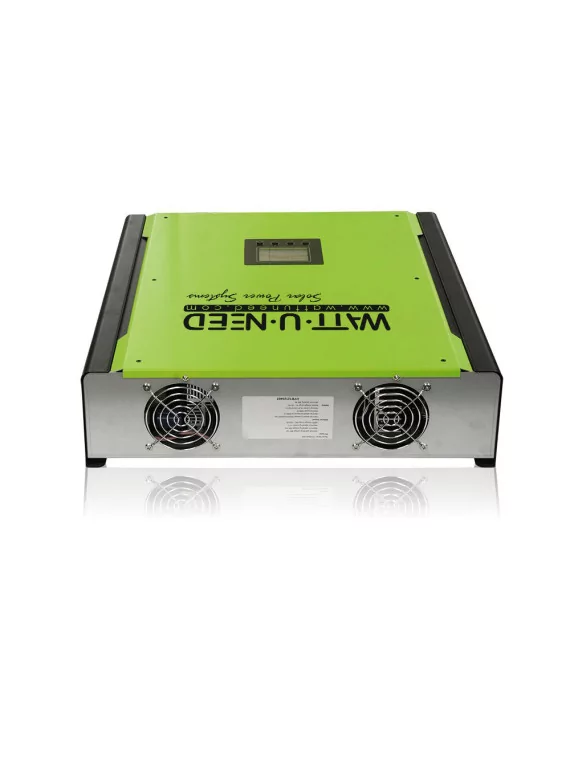

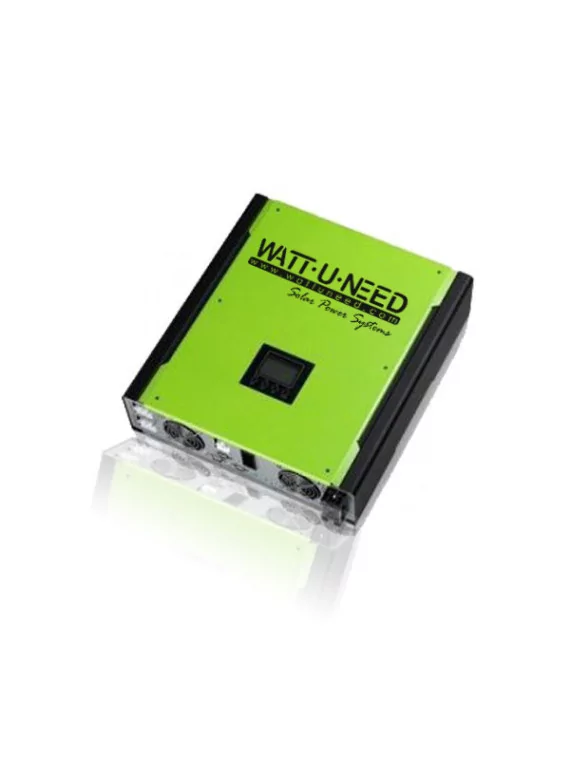

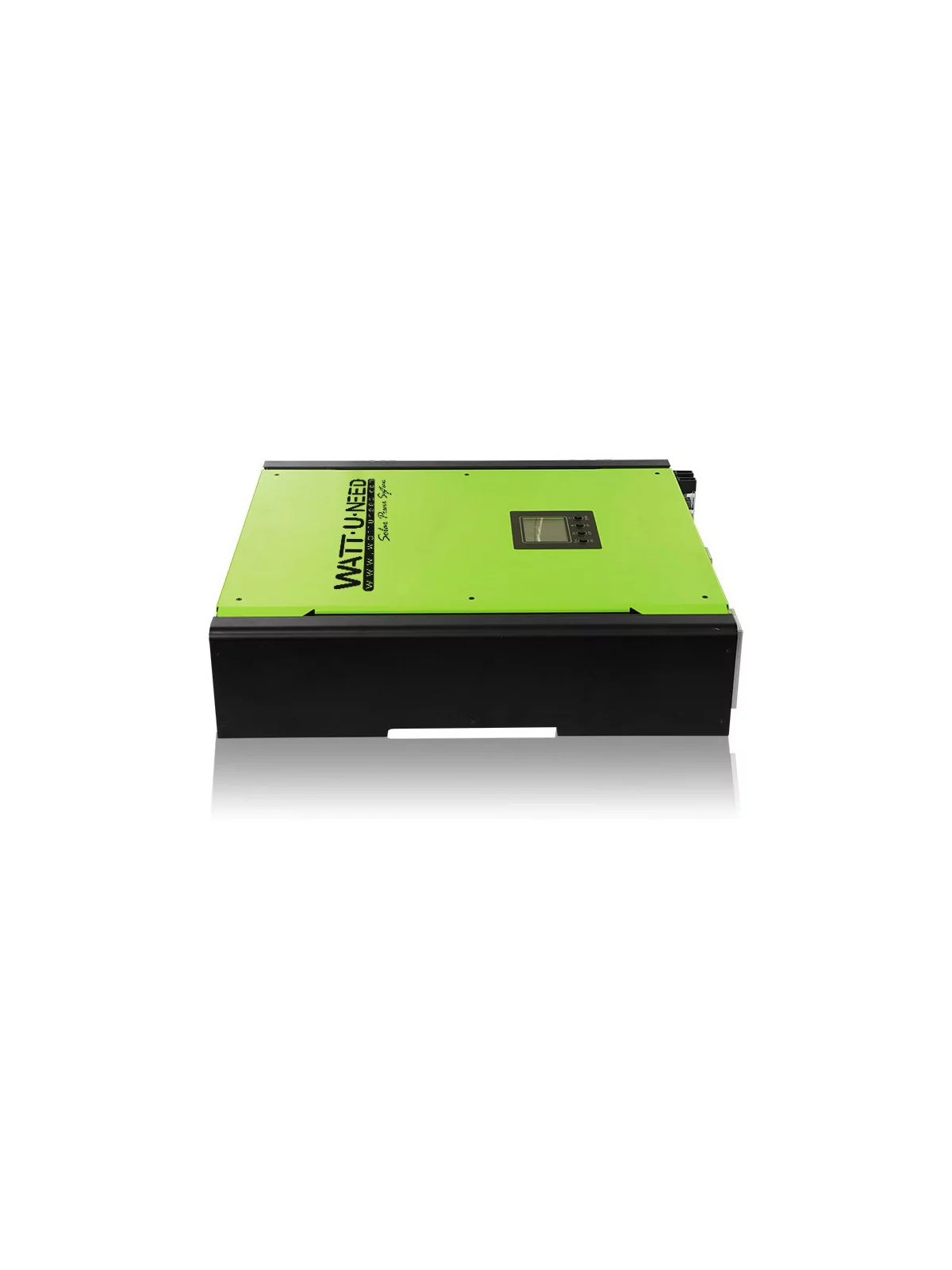

Multisolar 3kW grid-injection-storage hybrid inverter
€1,382.50
WUN-01487
0712971125216
- Power 230V: 3000W
- 25A (48V) charge controller
- AC output Pur Sinus
- Microprocessor-controlled
- Integrated MPPT tracker
- Backlit LCD display
100% secure payments
Customers who bought this product also bought:
MultiSolar: Store the bare minimum in your batteries and feed it back into the grid, provided the batteries are full.
Conversely, use the grid to make up for the shortfall in winter production, and top up the batteries when it rains.
Optimize your production to the maximum and never worry about power cuts again.
Simply connect the panel line coming down from the roof to the Hybrid inverter (max 3 kWp).
Store and use your solar electricity at a later date.
Description
MultiSolar high-performance inverter for hybrid power systems.
Connect solar panels, batteries and, optionally, a grid input to power your system.
Benefit from the best performance thanks to its integrated mppt tracker, as well as ease of use thanks to its compact design and intuitive LCD display.
- Pure sine wave output, 3kW
- Microprocessor-controlled for greater stability
- Multiple operations:
- Grid-connected, off-grid and grid-connected with backup power
- Integrated mppt solair charger

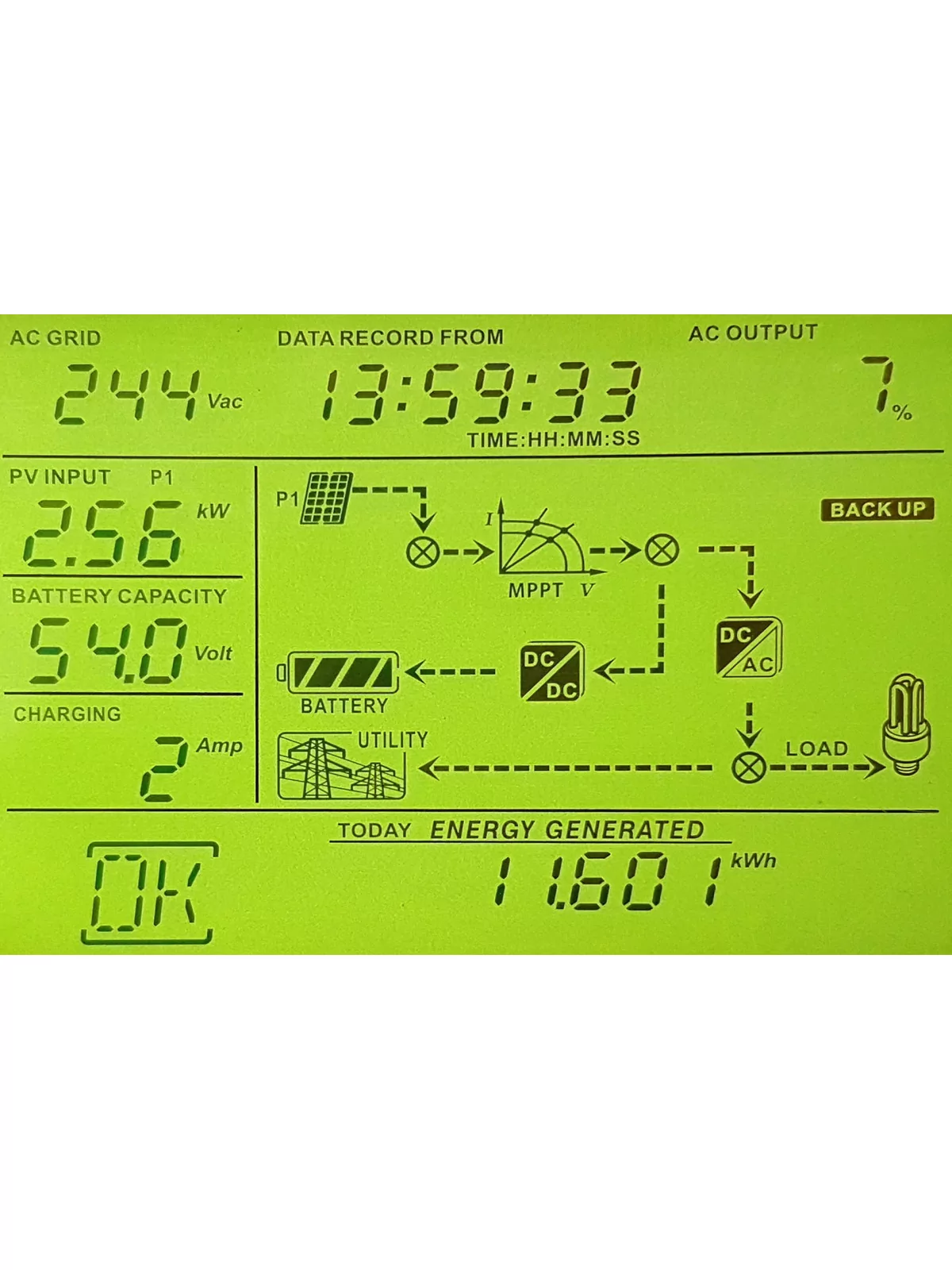

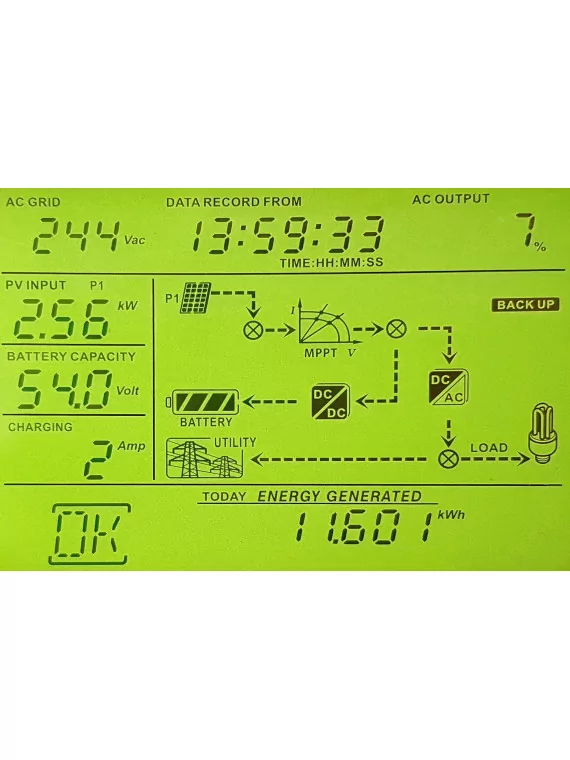

- Backlit LCD display for simple, interactive operation
- Multiple means of communication
- "Green" alternative to generators
- User-adjustable charging current, up to 25A
General features
| Power rating | 3000W |
| Physical characteristics |
| Dimension (mm) | 420 X 415 X 170 |
| Weight (kg) | 15.5 |
| Interface |

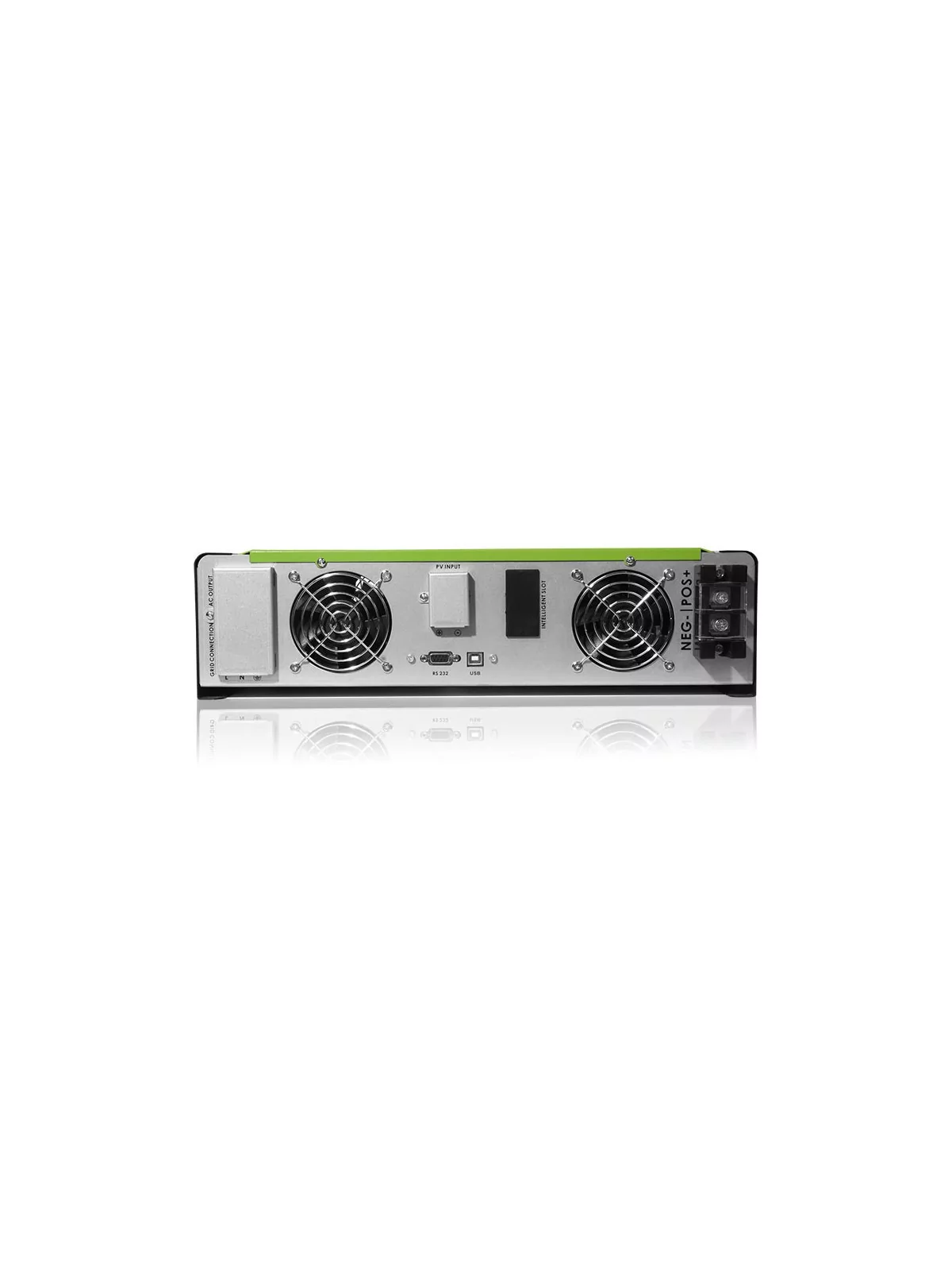

| Communication port | RS 232/USB |
| Environment |
| Humidity |
| - 90% |
| Operating temperature |
| - 40° C |
| Altitude |
| - 1000 m |
On-grid operation
| PV input (DC) |
| Rated voltage DC - Max. voltage | 360 V DC - 500 V DC |
| Starting voltage | 150 V DC |
| Mppt voltage range | 250 V DC - |
| 450 V DC |
| Max input current | 13A |
| AC input |
| Rated output voltage | 208/220/230/240 V AC |
| Output voltage range | 184 - 265 V AC |
| Rated output current | 13.6 A |
| Efficiency |
| Maximum efficiency | > 95.5% |
| Nominal power efficiency | > 94.5 |
Off-grid operation
| AC input |
| Starting voltage | 120 - 140 V AC / 185 V AC |
| Accepted input voltage range | 175 - 280 V AC |
| Max AC current | 20A |
| PV input (DC) |
| Max voltage | 500 V DC |
| Mppt voltage range | 250 V DC - |
| 450 V DC |
| Max current | 13A |
| AC output battery mode |
| Rated output voltage | 208/220/230/240 V AC |
| Output signal | Pure sine |
| Efficiency (DC to AC) | 92% |
Hybrid operation
| PV input (DC) |
| DC nominal voltage - max voltage | 360 V DC - 500 V DC |
| Starting voltage | 116 V DC - |
| 450 V DC |
| Max current | 13A |
| AC output |
| Rated output voltage | 208/220/230/240 V AC |
| Voltage range mppt | 250 V DC - 450 V DC |
| Max current | 13A |
| AC input |
| AC starting voltage | 140 V AC - |
| 194 V AC |
| Input voltage range | 184 - |
| 265 V AC |
| Max input current | 20 A |
| AC output battery mode |
| Output voltage | 208/220/230/240 V AC |
| Efficiency (DC to AC) | 92% |
| Battery and charger |
| Rated voltage | 48 V DC |
| Max charging current | 25 A |
Operating diagram of solar kit 1500Wp poly - 200Ah48V - 3000W
 |
 |
 |
 |
Remote control and inverter configuration
Connect the inverter to your computer using the USB cable supplied.
SolarPower software enables control and monitoring of multiple devices via LAN, Internet or USB.
Alert notifications, pop-up screen, sms and email.
Software
SolarPower 1.17SP7
WUN-01487
6 Items
Data sheet
- Voltage
- 48V
- Power
- 3000 VA
- Phase
- Monophasé
- Number of MPPT
- 1 MPPT
Specific References
- UPC
- 712971125216
- EAN13
- 0712971125216
