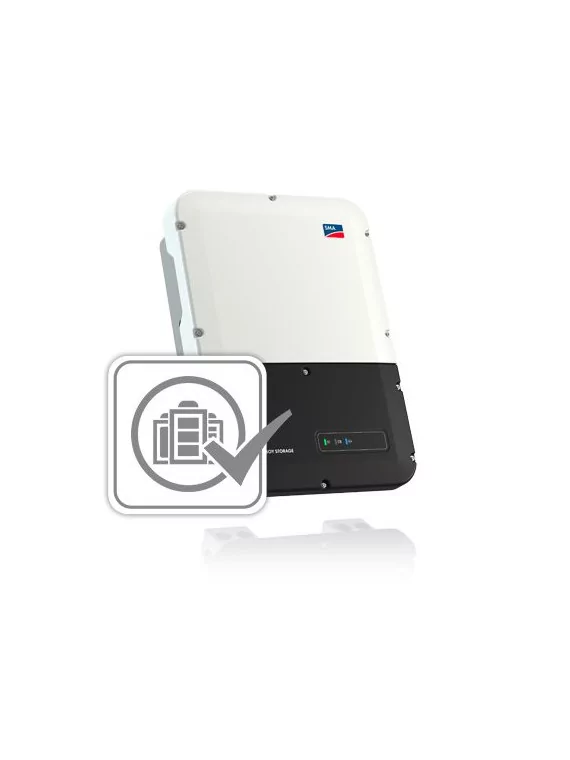

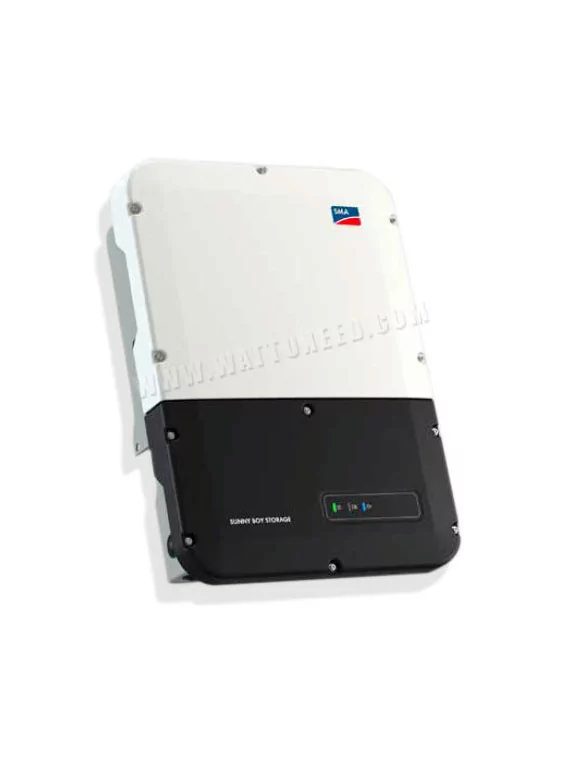

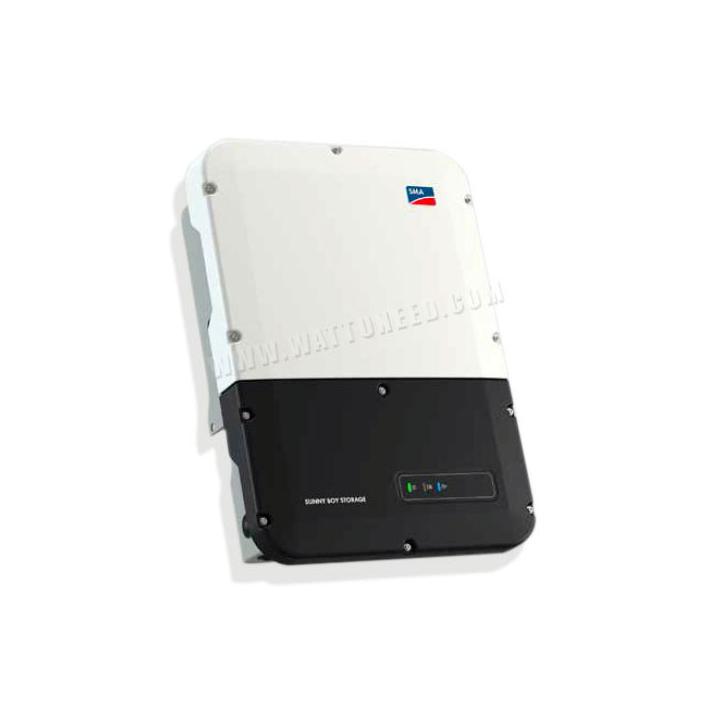

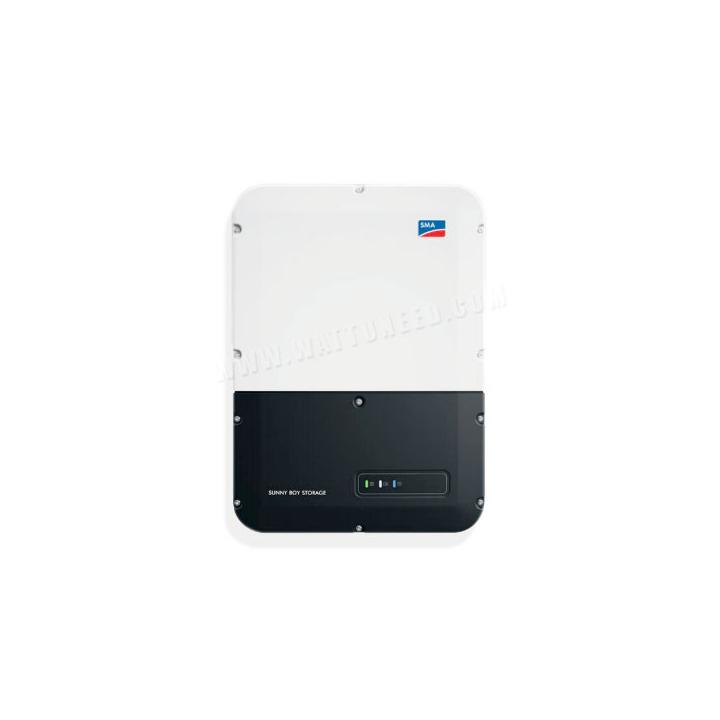

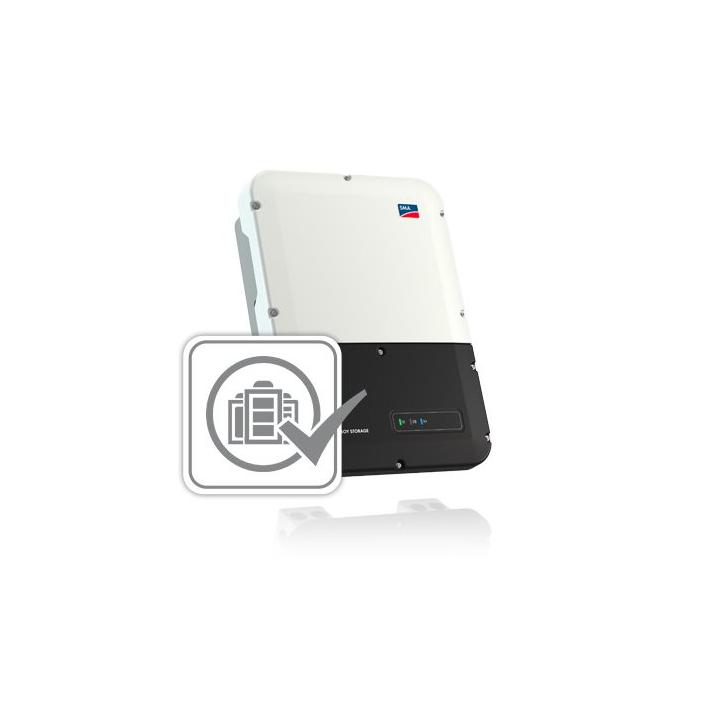

Single-phase inverter SMA Sunny Boy storage 5 kVA - SBS5.0-10

€2,607.70
Tax included
SBS5.0-10
0768563815669

SMA Sunny Boy Storage 5 kVA: Store Your Solar Energy and Gain Independence

The SMA Sunny Boy Storage 5 kVA inverter is the ideal solution to optimize your solar energy self-consumption. With its advanced features and flexibility, it allows you to store excess production from your solar panels for later use, reducing your reliance on the power grid.

Why choose the SMA Sunny Boy Storage 5 kVA?

  • Custom storage: Up to 3 batteries.
  • Guaranteed autonomy: Backup power supply.
  • Easy installation: Ready to use.
  • Maximum robustness: Solid design.
  • Live monitoring: Control your energy.

Key advantages:

  • Self-consumption optimization: Maximize the use of your solar energy.
  • Energy independence: Reduce your reliance on the electrical grid.
  • Flexibility: Adapt your system to your evolving needs.
  • Safety: Ensure continuous power supply in case of outages.

Ideal for:

  • Single-family homes
  • Self-consumption installations
  • Environmentally conscious individuals

Become energy independent with the SMA Sunny Boy Storage 5 kVA.

Request your personalized quote today and choose a high-performance, durable solar energy solution.

Comments (0)

No customer reviews for the moment.

Energy independence: Go for SMA Sunny Boy Storage 5.0



Sunny Boy storage 5.0





Solar energy storage

Additional battery can be added at a later date, as required

  • Ideal for grid-connected systems
  • Up to three high-voltage batteries can be connected
  • Integrated Secure Power Supply back-up function
  • Fully automated back-up function for household power supply (optional)



Flexible system sizing

Solar electricity today, tomorrow and beyond, for optimum power supply

A photovoltaic system equipped with an appropriate storage system is as individual as the electricity consumed and the household of those who use it.

Whatever the need - the growing family, the electric car to be charged or the garage to be turned into a workshop - connecting up to three high-voltage batteries means that all consumer devices can be supplied with solar electricity, whether the sun is shining or not.

Nouvelle installation : installation photovoltaïque avec système de stockage



New installation: photovoltaic system with storage system

A storage system makes users independent of traditional electricity distributors and rising energy costs. Thanks to high-voltage technology, storage systems equipped with Sunny Boy Storage are particularly efficient and easy to install.



Modernisation : installation photovoltaïque avec système de stockage



Modernization: photovoltaic system with storage system

To increase the amount of self-generated solar energy used in the home, the existing photovoltaic system can be retrofitted with a complete storage system by adding just a few additional components. The homeowner reduces the amount of electricity drawn from the grid, thereby lowering his electricity bill.



Extension : adapter un système de stockage aux besoins croissants



Extension: adapting a storage system to growing needs

Multistring technology allows up to three high-voltage batteries to be connected to Sunny Boy Storage at any one time. This means the operator can gradually expand his storage system to suit his specific needs.



Approvisionnement énergétique fiable

Reliable energy supply



Reliable energy supply, even in the event of grid failure

  • The integrated Secure Power Supply back-up function supplies the various electrical appliances manually from the battery, even in the event of a grid failure
  • An optional automatic transfer switch can be added for complete household power supply on all three line conductors from the battery and photovoltaic system in the event of a grid failure
  • A maximum output of 8 kW in back-up power mode is sufficient to supply all common electrical appliances
  • 10-year warranty


Its high IP65 protection class means it can withstand the harshest environmental conditions, and can even be installed outdoors.

Technical data

AC connection

SBS3SBS5

.7-10
.0-10 SBS6.0-10
Rated power at 230 V, 50 Hz 3680 W 5000 W 6000 W

V

Rated AC voltage 230 V 230 V 230
AC voltage range* 172.5 V to 264,5 V 172.5 V to 264.5 V 172.5 V to 264.5 V
Rated AC current at 220 V 16.7 A 22.7 A 26 A

SBS3

Rated AC current at 230 V 16 A
.7-10 26 A
Rated AC current at 240 V 15.3 A 20.8 A 25 A
Maximum AC current in standby mode 20 A / 1 min 28 A / 1 min 32 A / 1 min
AC current harmonic distortion rate < 4% < 4% <
4%
Maximum output current in case of malfunction 198 Apeak 198 Apeak 198 Apeak
Inrush current 18.5 A 18.5 A 18,5 A
Rated mains frequency 50 Hz 50 Hz 50 Hz
AC mains frequency* 50 Hz / 60 Hz 50 Hz 50 Hz/60 Hz

Hz to 55 Hz

Working range for an AC mains frequency of 50 Hz 45 Hz to 55 Hz 45 Hz to 55 Hz 45
Hz to 55 Hz
Working range for AC mains frequency 60 Hz 55 Hz to 65 Hz 55 Hz to 65 Hz 55 Hz to 65 Hz

1

Power factor at rated power

1

000

Phase shift factor cos φ, adjustable .8 inductive to 1 to 0.8 capacitive .8 inductive to 1 to 0.8 capacitive .8 inductive to 1 to 0,

8

capacitive

1

Injection phases

1

1

1

Connection phases

1

1

1

Overvoltage category to IEC 60664-1 III III III

*set

Depending on the regional data set

DC battery input

SBS5SBS6

xml-ph-0030@de7-10 .0-10 .0-10
Maximum DC voltage 600 V 600 V 600 V
Voltage range* 100 V to 550 V 100 V to 550 V 100 V to 550 V
DC voltage
rating 360 V 360 V 360 V
Maximum DC current per input 10 A 10 A 10 A

3

Number of DC inputs

3
Short-circuit currentcircuit 40 A 40 A 40 A

Li-Ion

Battery type**

Li-Ion

Li-Ion

Overvoltage category to IEC 60664-1 III III

e

AC output,

mergency power mode

"

Maximum AC power 3680 W
Rated AC voltage 230 V " "
Maximum output current 16 A " "

1

Minimum load
W " "
SBS5.0-10

Data sheet

Inverter power
5000VA
Charging power
20A
Width
535 mm
Height
730 mm
Thickness
198 mm
Weight
26 kg

Specific References

UPC
768563815669
EAN13
0768563815669
