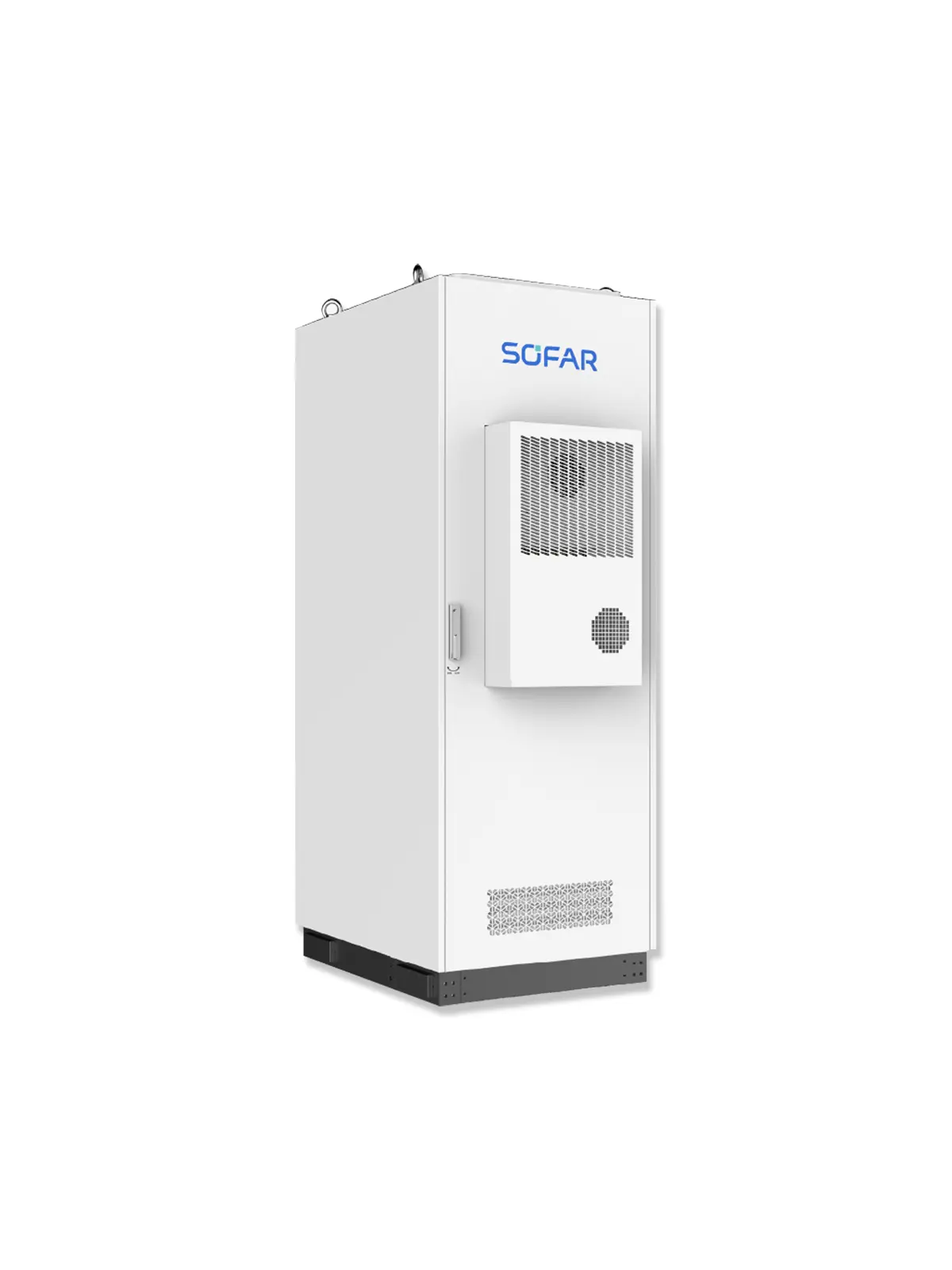

SOFAR CBS8000 – Smart Battery Cabinet 64 to 96 kWh | High-Efficiency Solar Energy Storage
SOFAR CBS8000 – Smart Battery Cabinet 64 to 96 kWh | High-Efficiency Solar Energy Storage

SOFAR SOLAR CBS8000 Lithium Battery Cabinet – Smart Cabinet 64 / 80 / 96 kWh

€22,438.25
Tax included
CBS8000-64KWH
0768563823404

The SOFAR CBS8000 is a compact, ready-to-use smart battery cabinet designed for residential and commercial applications requiring high storage capacity . Available in 64 kWh, 80 kWh, and 96 kWh versions , it delivers up to 48 kW of charge and discharge power and can be connected in parallel up to 384 kWh to meet all your energy needs.

Robust and durable, the CBS8000 benefits from IP55 protection , C4 level corrosion resistance , a dual fire protection system and active cell management , guaranteeing maximum safety and optimal performance over the long term.

Combining reliability, simplified installation and intelligent cloud-based monitoring , the SOFAR CBS8000 enables optimal energy autonomy , efficient self-consumption management and complete remote control for your photovoltaic installation or energy storage system.

Contact us now to get a personalized offer tailored to your needs and discover how the CBS8000 can optimize your energy consumption and production.

Comments (0)

No customer reviews for the moment.

SOFAR CBS8000 – Smart Battery Cabinet 64 / 80 / 96 kWh


Optimize your energy production and consumption with the SOFAR CBS8000 , a smart battery cabinet designed for residential, commercial, and industrial energy storage. Available in 64 kWh, 80 kWh, and 96 kWh versions, this system combines performance, safety, and easy installation for your photovoltaic and energy management projects.





Simplified installation and plug-and-play

  • Factory pre-installed system, ready to connect on site.
  • Floor mounting and quick commissioning.
  • Remote monitoring and management via cloud platform.





Intelligent management and optimization

  • Active balancing of battery modules to extend battery life.
  • Integrated CAN communication for compatibility with SOFAR systems.
  • Quiet operation (65 dB).
  • Intelligent cooling and heating (1.5 kW / 1 kW).





Safety and reliability

  • Double fire protection: aerogel and Perfluorohexanone option (FK-6-1-12).
  • IP55 protection rating and C4 corrosion resistance.
  • Operating range from -20°C to +50°C.





Flexibility and scalability

Possibility to connect up to 4 cabinets in parallel (384 kWh total).

  • CBS8000-64kWh
  • CBS8000-80kWh
  • CBS8000-96kWh





Robustness and durability

Designed to withstand harsh conditions, waterproof and corrosion-resistant, suitable for indoor or outdoor use, including coastal areas.





Practical applications and uses

  • High-end residences: solar storage to reduce bills and secure power supply.
  • Businesses: intelligent management and backup power.
  • Industrial sites: autonomous microgrids and high capacity.
  • Off-grid installations: autonomous power supply for isolated areas.
  • UPS systems: maintaining critical power.





Technical specifications

Main technical characteristics
Nominal capacity 64 / 80 / 96 kWh
Nominal voltage 600 V DC
Maximum charging current 150 A
Maximum discharge current 200 A
Battery technology LiFePO₄
Protection rating IP55
Corrosion resistance C4
Operating temperature -20°C to +50°C
Noise level 65 dB
Dimensions (L x W x H) 750 x 2100 x 1150 mm
Weight

≈ 1000 kg (64 kWh)

≈ 1120 kg (80 kWh)

≈ 1240 kg (96 kWh)





Certifications and standards

  • CE, IEC 62619, UL1973
  • RoHS and REACH environmental standards
  • Compliant with fire and electrical safety standards





Performance and efficiency

  • Energy efficiency: > 95%
  • Lifespan: 6000 cycles at 80% DOD
  • Typical autonomy for a residential home: 1 to 3 days depending on consumption





    FAQ – Frequently Asked Questions

    1. What is the lifespan of the SOFAR CBS8000?

    Approximately 10 to 15 years with minimal maintenance thanks to LiFePO₄ technology and intelligent management.

    2. Can I install multiple CBS8000 cabinets together?

    Yes, up to 4 cabinets can be connected in parallel for a total capacity of 384 kWh.

    3. Is the CBS8000 compatible with all solar panels?

    Compatible with most photovoltaic installations, optimal integration is achieved with SOFAR inverters.

    4. Can the cabinet be installed outdoors?

    Yes, thanks to the IP55 rating and C4 corrosion resistance.

    5. What maintenance is required?

    Periodic verification of connections and monitoring via the cloud platform to ensure optimal operation.

    CBS8000-64KWH

    Data sheet

    Width
    750 mm
    Height
    2100 mm
    Type of cooling
    Intelligent Airflow
    Rated capacity
    314 Ah
    Maximum discharge current
    200 A
    Battery Type
    LifePO4
    Operating temperature range
    -20°C to + 50°C (Derating above 45°C)
    Weight
    1000±100 kg (for the CBS8000-64KWH model)
    1120±100 kg (for the CBS8000-80KWH model)
    Communication
    CAN
    Relative humidity range
    5%~95%
    Installation method
    Floor Mounted
    Protection class
    Class 1
    Noise
    less than or equal to 65 dB
    Rated voltage
    600 Vd.c
    Rated power
    30.72 kW (for the CBS8000-64KWH model)
    38.40 kW (for the CBS8000-80KWH model)
    46.08 kW (for the CBS8000-96KWH model)
    Altitude
    Less than or equal to 3000m
    Depth
    1150 mm
    Maximum load current
    150 A
    Fire protection
    Aerogel (Optional Perfluorohexanone)
    Quantity per package
    4 units per pack (model CBS8000-64KWH)
    5 units per pack (for the CBS8000-80KWH model)
    6 units per pack (for model CBS8000-96KWH)
    Total battery energy
    64.31 kWh (for the CBS8000-64KWH model)
    80.38 kWh (for the CBS8000-80KWH model)
    96.46 kWh (for model CBS8000-96KWH)
    IP protection rating
    C4
    Air conditioner power
    1.5kW (Cooling), 1kW (Heating)

    Specific References

    UPC
    768563823404
    EAN13
    0768563823404
