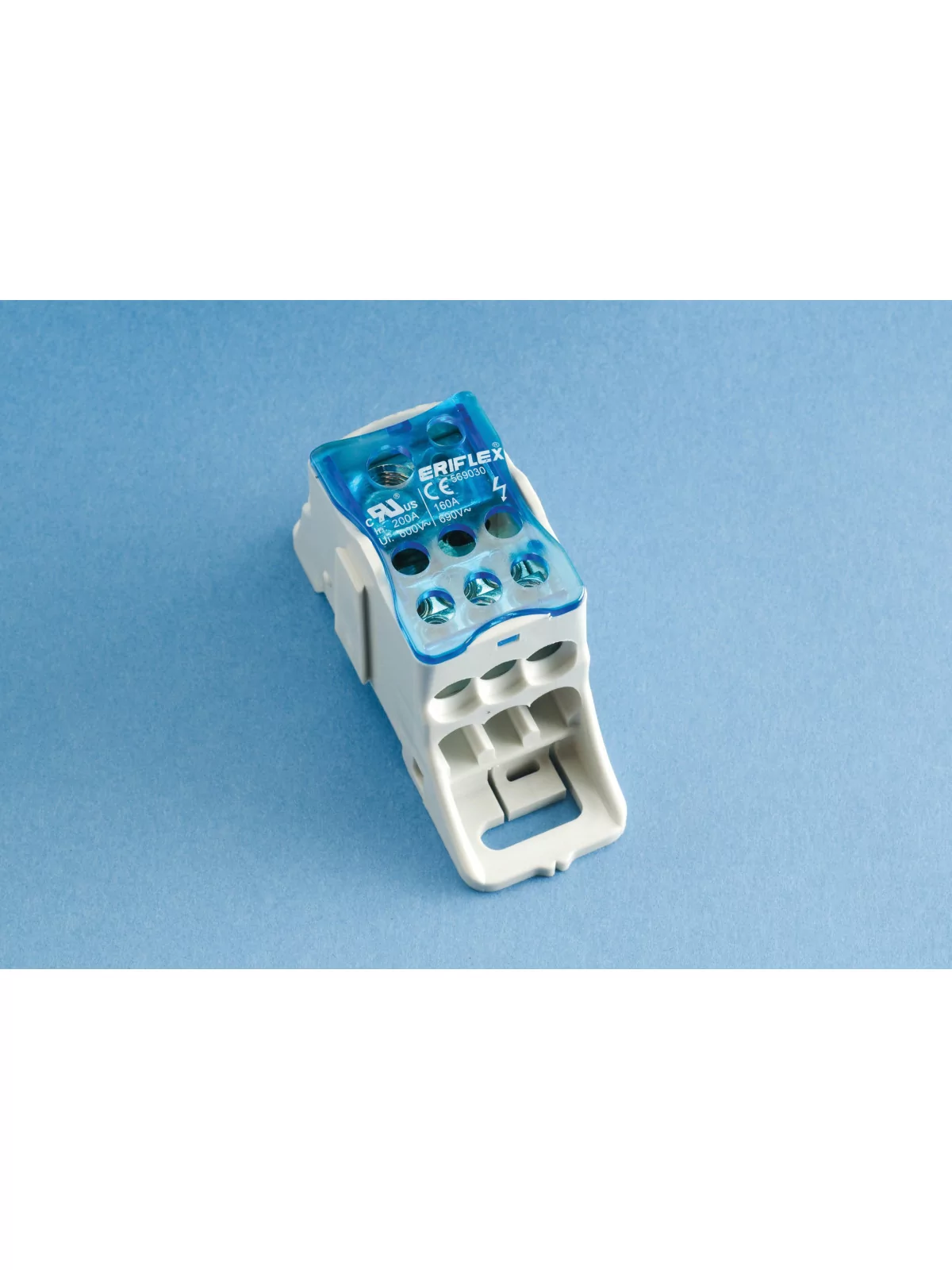

Single Pole Distribution Block Eriflex 125A

Eriflex

28,80 € tax incl.

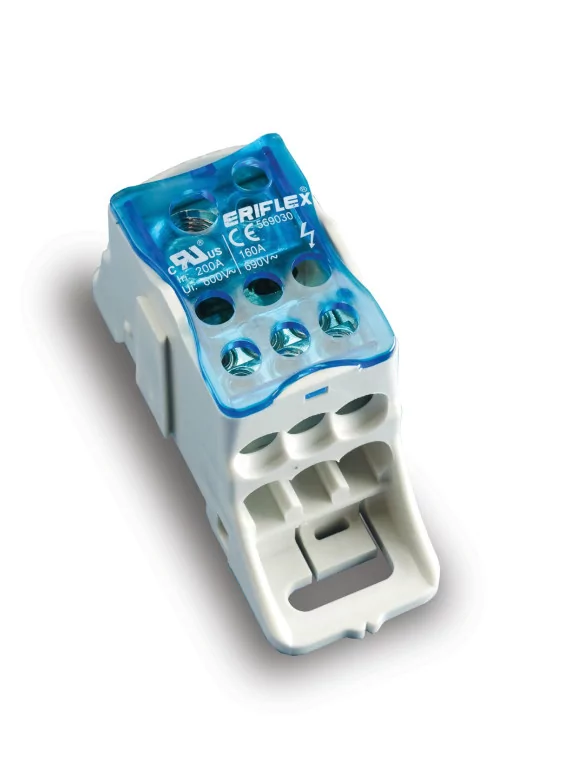

Unipolar distributor Eriflex 125A

Logo eriflex

In stock

More details

More info

" Unipolar distributor 125A Eriflex "

Features :

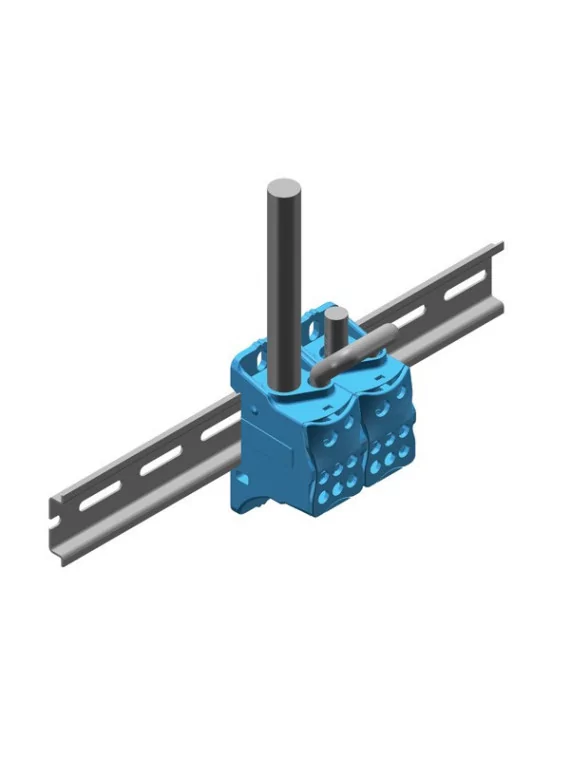

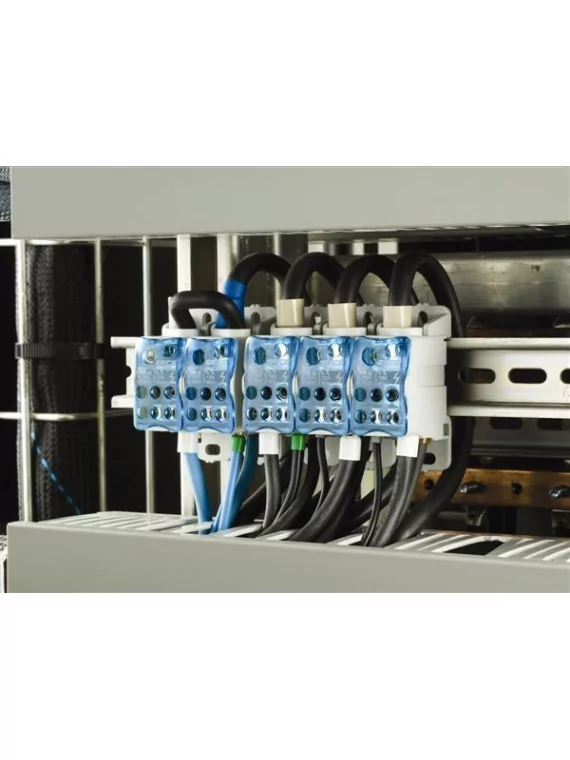

  • Increase the number of outputs with one input using a jumper wire

  • Tinned copper block allows for copper or aluminum conductor connections

  • Screw retaining cover is hinged and removable

  • Design allows for visual inspection of conductor and confirmation of connection

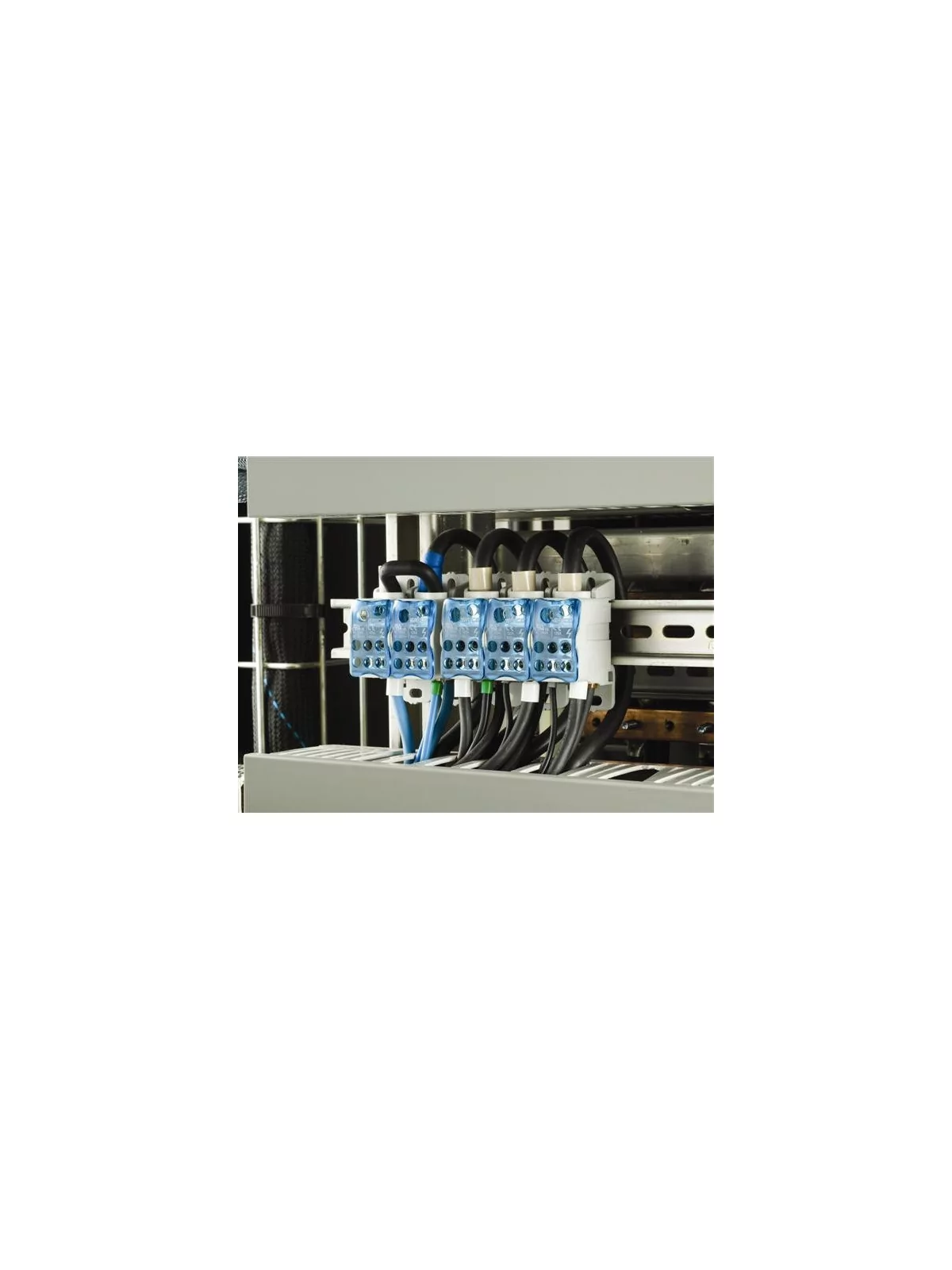

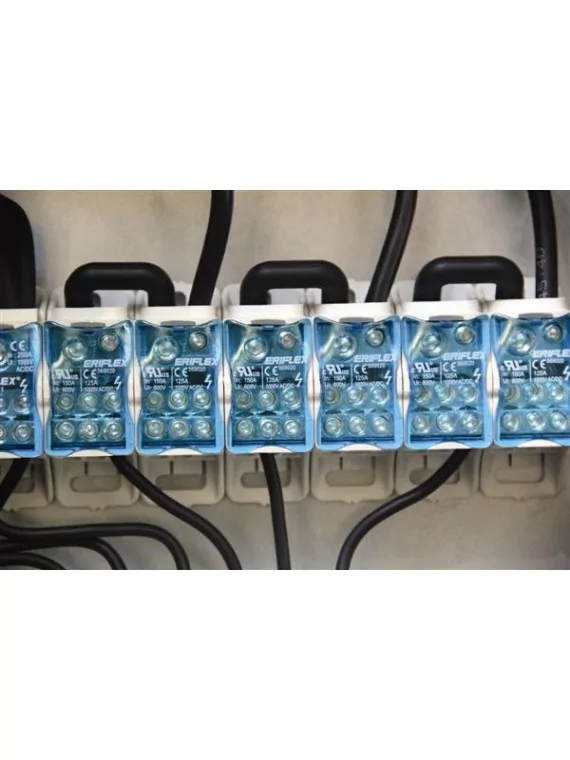

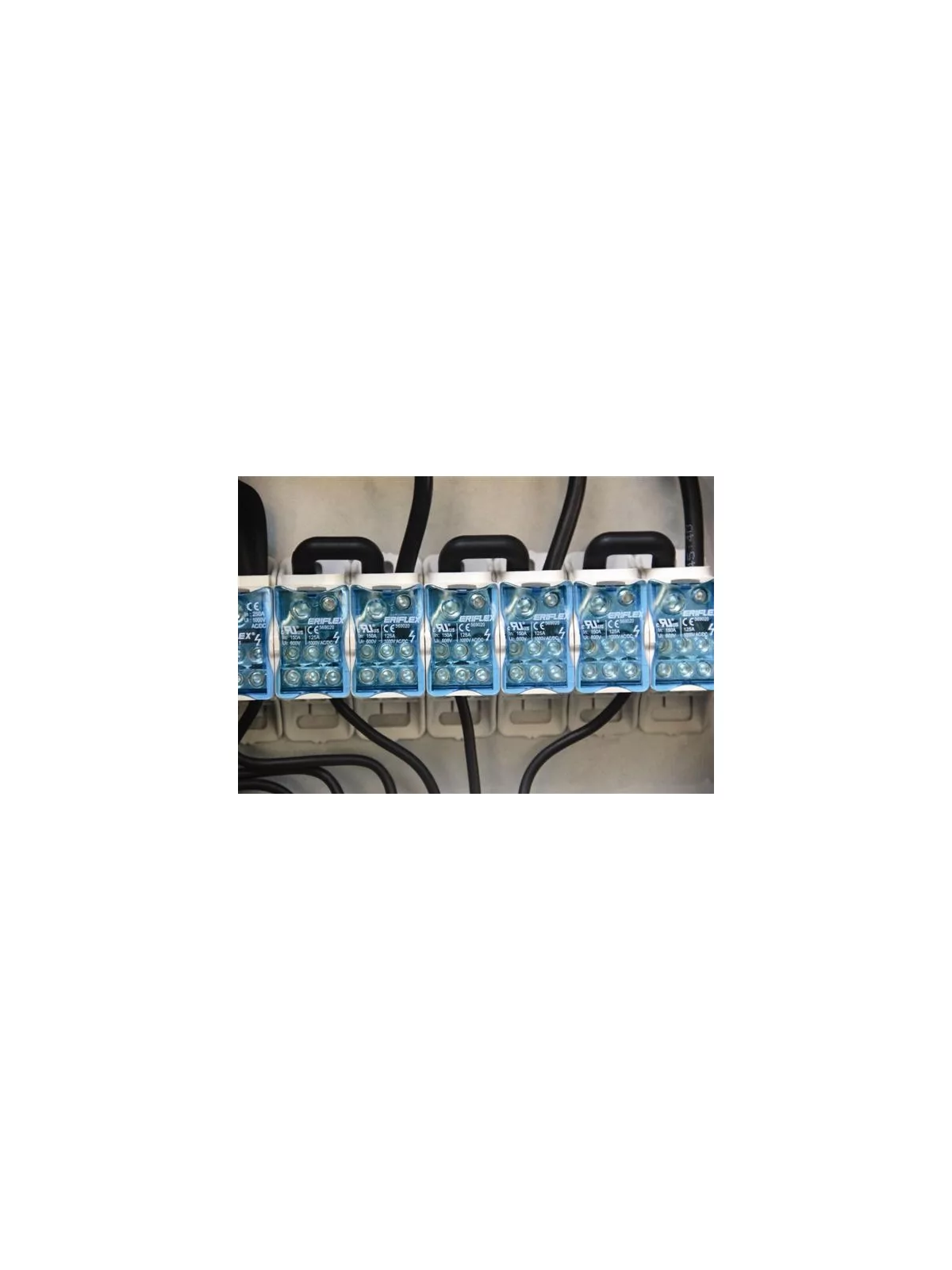

  • Gangable for building multi-pole power blocks

  • Easily clips onto DIN rail or mounts to panel with screws

  • 95% fill ratio

  • Halogen free

  • RoHS compliant

Specifications :

Material: Copper; Thermoplastic

Finish: Tinned

Part Number    UDj-125A

Article Number    569020

Max Current Rating, IEC125A
Max Current Rating, UL/CSA150A
Short Term Withstand Current (Icw) 1s4.2kA
Peak Short Circuit Current (Ipk)   30kA
Short Circuit Current Rating (SCCR)100kA
Max Working Voltage, IEC (Ui)1000 VAC/DC
Max Working Voltage, UL (Vin)600V
Line Side Number of Connections1
Line Side Compact Stranded Wire Size10 - 35 mm²
Line Side Wire Size#8 – 1/10
Load Side Number of Connections7
Load Side Compact Stranded Wire Size(1) 6 - 16 mm²
(6) 2,5 - 6 mm²
Load Side Stranded Wire Size - Ferrule(1) 6 - 16 mm²
(4) 2,5 - 16 mm²
Load Side Wire Size(1) #14 - #2 Stranted ; #14 - #10 Solid
(6) #10 - #4
Enclosure RatingIP 20

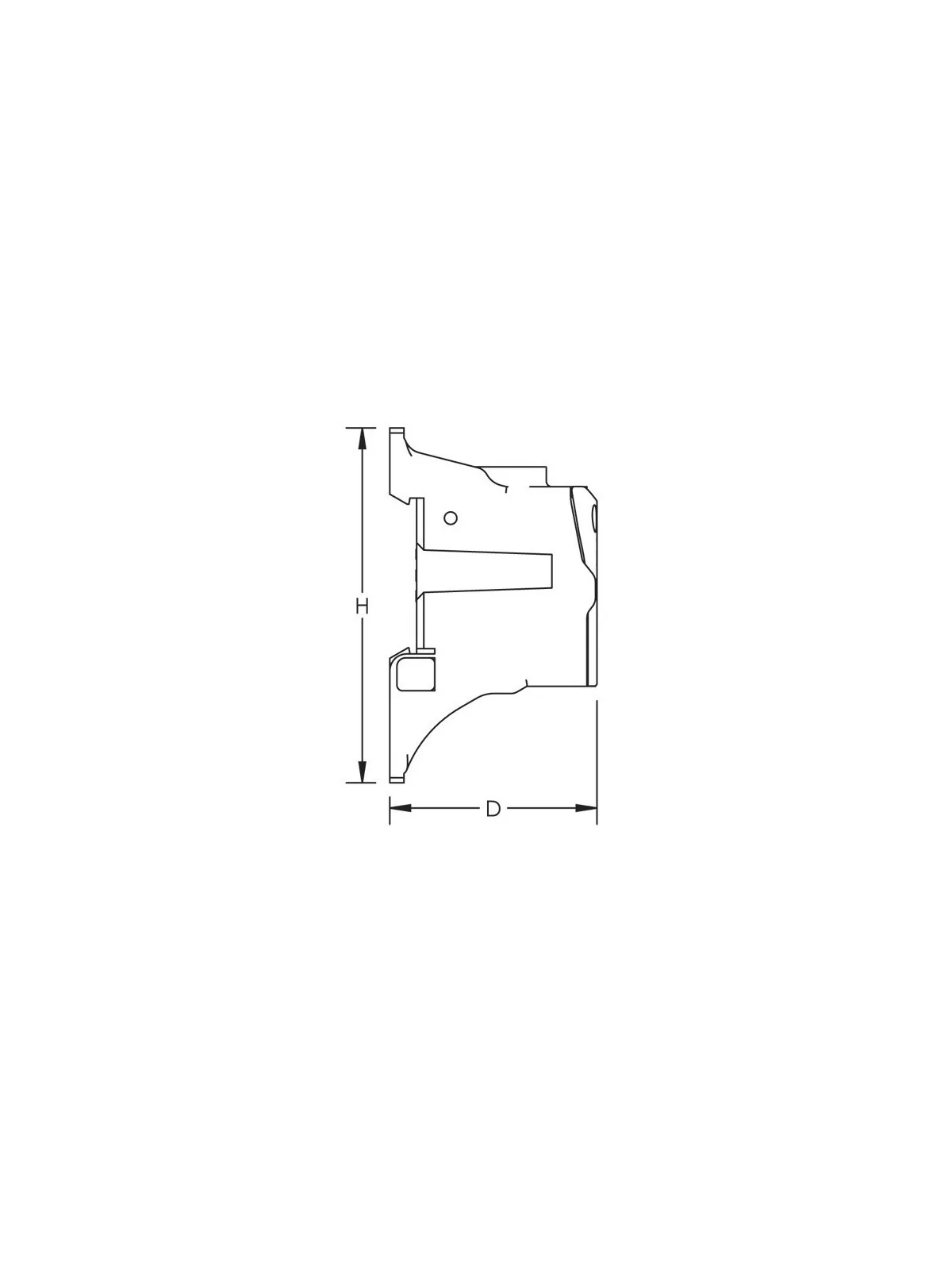

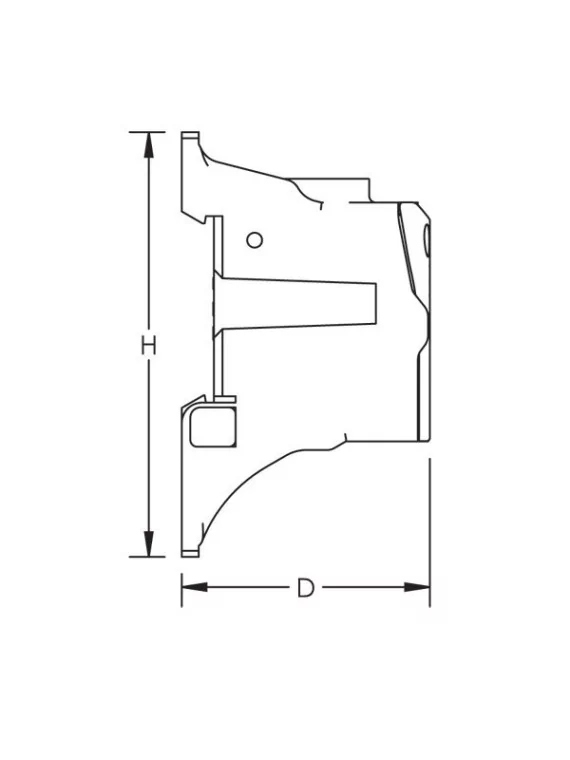

Depth (D)46 mm
Height (H)77 mm

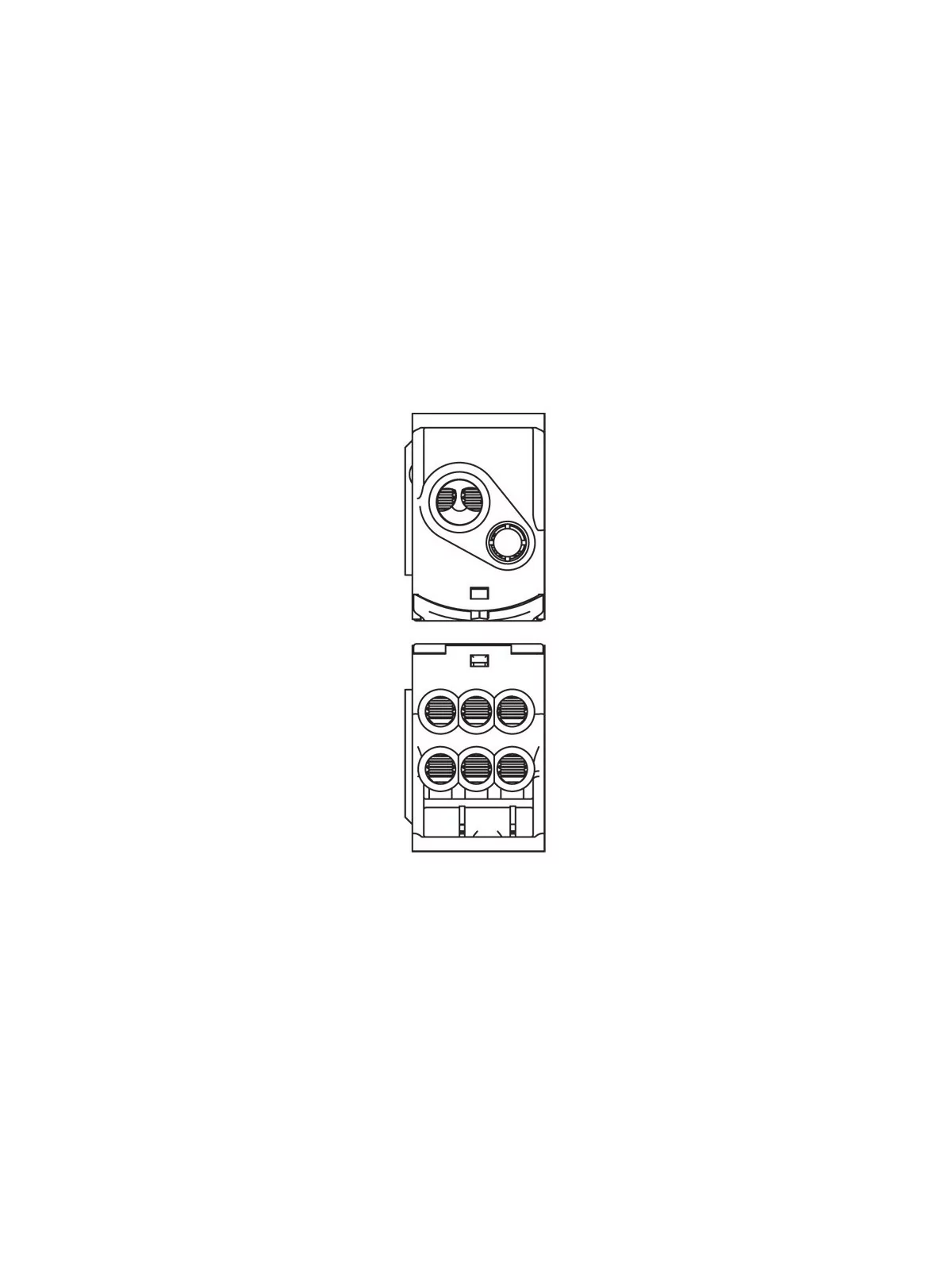

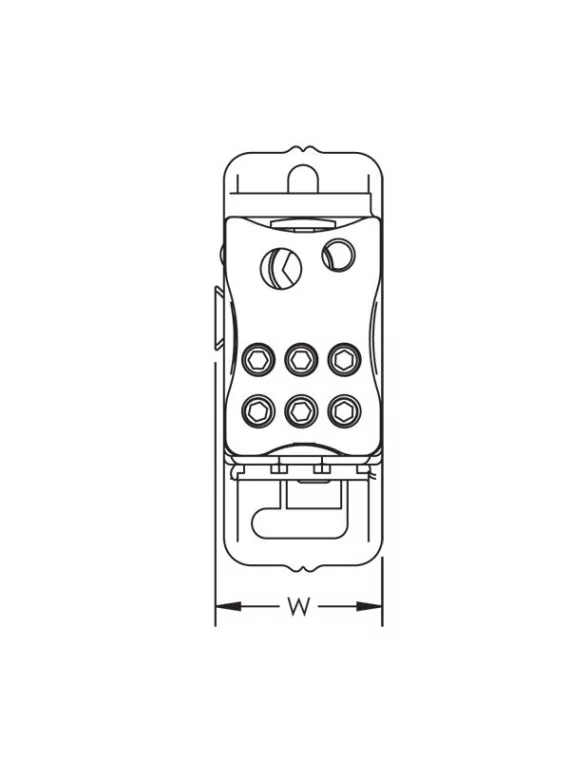

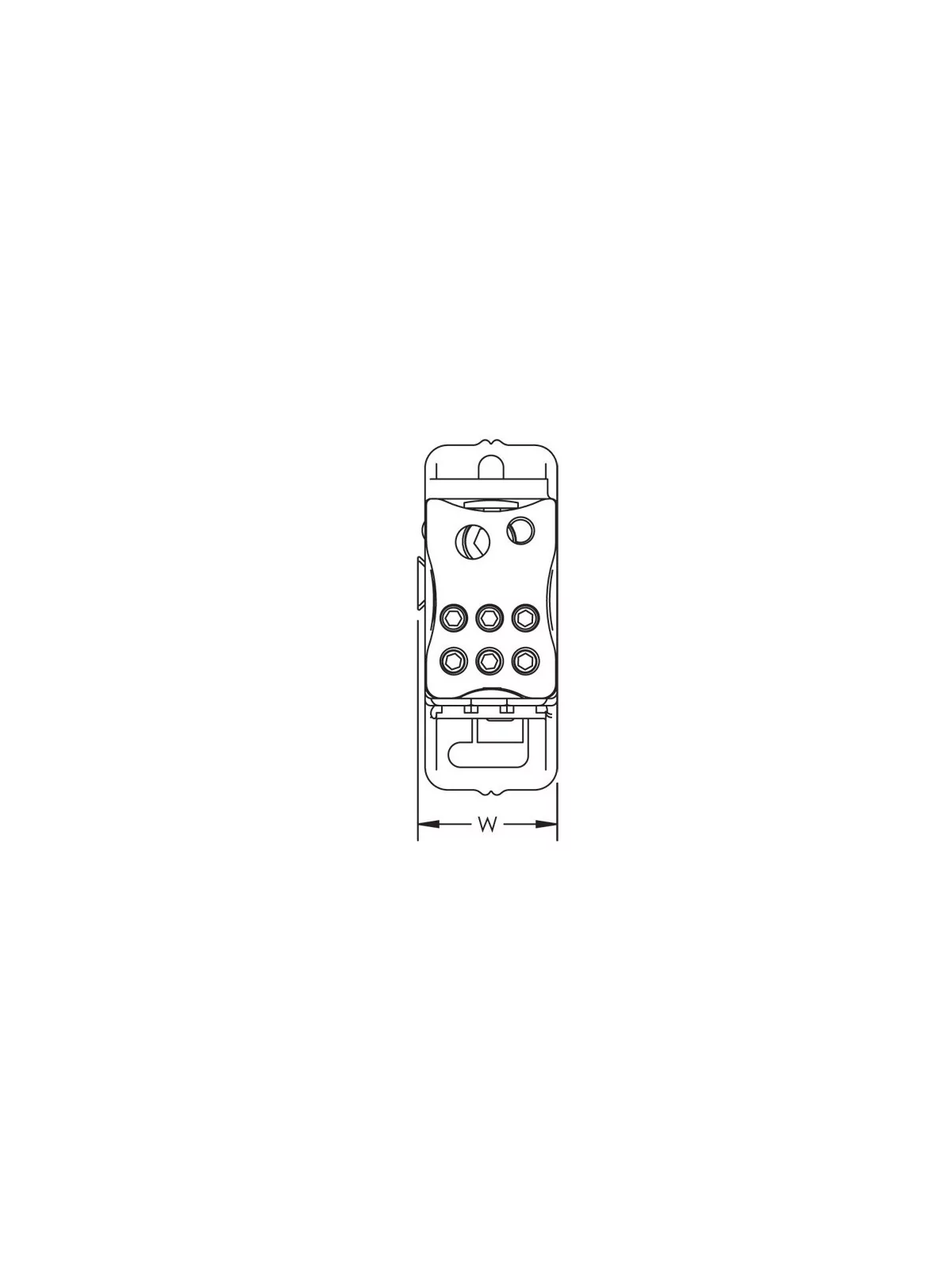

Width (W)29 mm
Unit Weight0,15 kg
Certification DetailsUL® 1059
Flammability RatingUL® 94V-0
Complies WithIEC® 60947-7-1
