Single-phase autotransformer 1F 4000VA
Review sent
Your review cannot be sent
You are about to create a quotation for the kit Single-phase autotransformer 1F 4000VA.
This action will open the quotation app in a new tab.
• impregnated under vacuum and pressure• partially common windings• reversible• equipped with a ground terminal• prepared for protection class I (bare executions for recessed installation)• protection class I (closed executions with sheet metal housing)• degree of protection IP00• IP20 protection level (closed executions with sheet metal housing)• dielectric stiffness relative to mass 2000 VAC• temperature class B• maximum ambient temperature at 40 °C
IP20, IP23, IP65 protective enclosures: chapter 9
• Connection terminals with screw fastening
• supports with fixing holes
EN 60076-11 (EN 60726)EN 61558-2-13 Ptype ≤ 1kVA
• degree of protection IP23 and IP65 (waterproof)• other tensions and other powers• connections with power outlets and with network cables• with fuses• tropicalization treatment

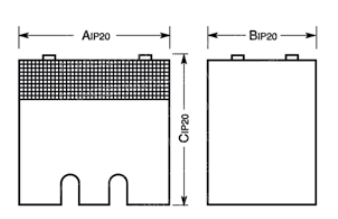

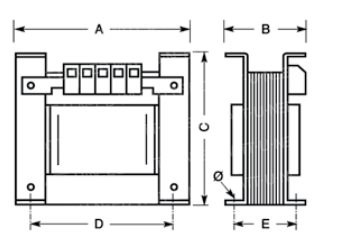

• A: 240mm• B: 145 mm• C: 224 mm• D: 200 mm• E: 122 mm• AIP20: 273 mm• BIP20: 210 mm
