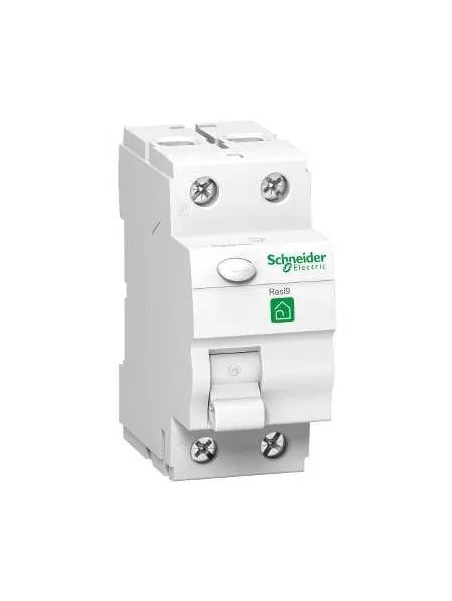

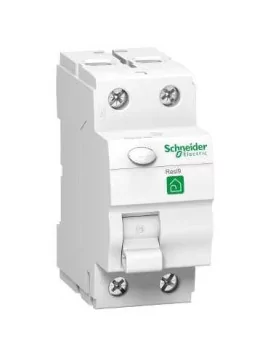

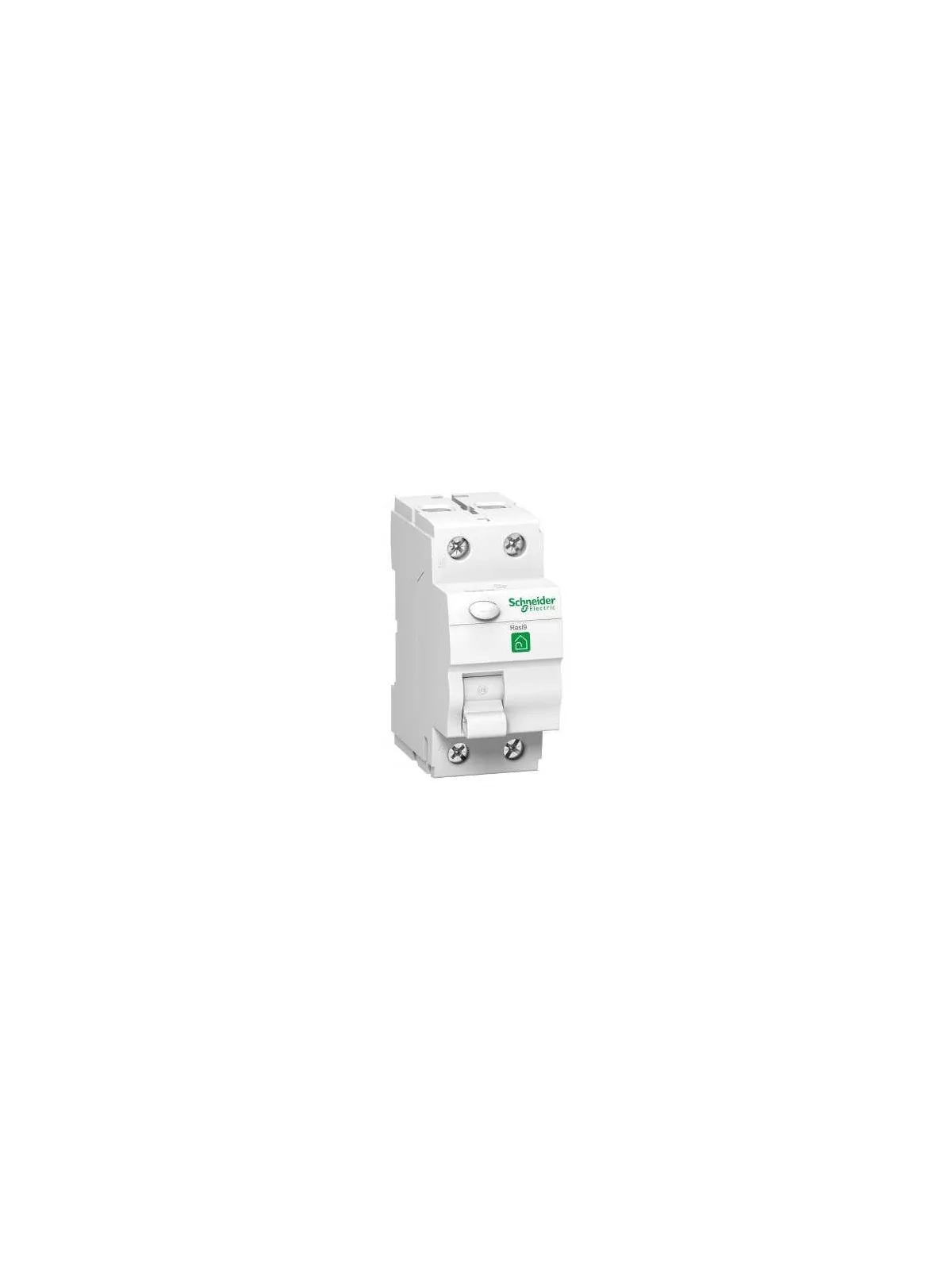

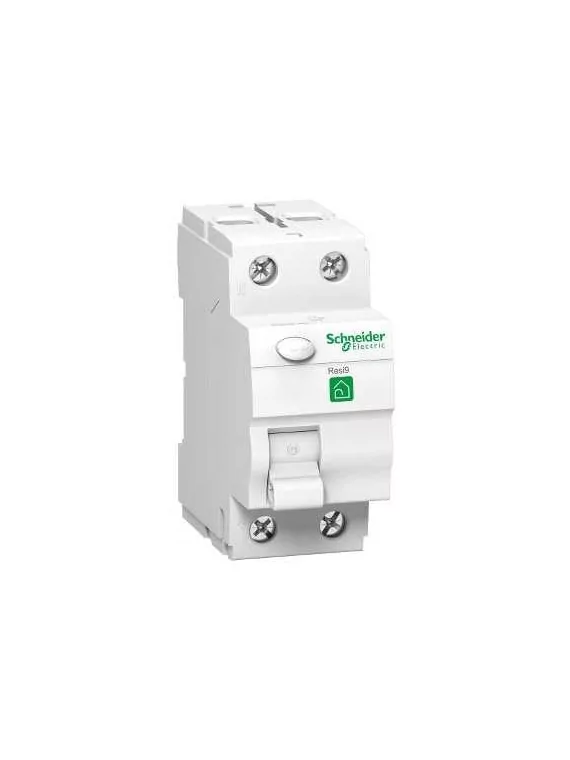

Differential switch type A 2P 63A 30ma
€100.50
Tax included
SERR9R01263
0712971133617
Differential switch type A 2P 63A 30ma
100% secure payments
Customers who bought this product also bought:
Differential switch type A 2P 63A 30ma
Function
Differential switches are devices that are placed in front of them and protect against leakage currents to earth unacceptable. They protect people against electric shock.
Operation
In case of a leakage current with a residual pulsating direct current, an imbalance appears in the primary coil of the toroid, thereby generating a residual magnetic field in the core. This residual magnetic field in turn generates a voltage and a current in the secondary coil which solicits over. The relay in turn solicits the release device and open the contacts under spring pressure.
| Main features | |
| Range | Resi9 |
| Product name | Resi9 RCCB |
| Product function | Residual current circuit breaker (RCCB) |
| NShort name of the device | Resi9 RCCB |
| Description of the poles | 2P |
| Position of the neutral pole | Left |
| Rated operational current | 63 A |
| Network type | CA |
| Differential sensitivity | 30 mA |
| Differential Timing | Instant |
| Differential Class | Classe A |
| Rated breaking and closing capacity | Im 500 A |
| Conditional short-circuit current | 6 kA 40 A |
| Additionnal features | |
| Network frequency | 50/60 Hz |
| [Ue] rated operating voltage | 230 V CA 50/60 Hz |
| Type of control | Rocker key |
| Local indication | Indication ON/OFF |
| Installation mode | Snap-in |
| Mounting bracket | DIN rail |
| Compatibility of the busbar comb distribution block | Biconnect |
| Step of 9 mm | 4 |
| Height | 100 mm |
| Width | 40 mm |
| Depth | 82 mm |
| Weight | 0.194 kg |
| Colour | White |
| Mechanical life | 5000 cycles |
| Electrical life | AC-1 : |
| Connection type | Terminals tunnel type flexible wire (s) 1 ... 25 mm² max without cable end Terminals tunnel type flexible wire (s) 1 ... 25 mm² max with cable end Tunnel type terminals rigid wire (s) 1 ... 35 mm² max |
| Tightening torque | 3.5 N.m |
| Environment | |
| Standards | EN 61008-2-1 IEC 61008-2-1 |
| Quality labels | CEBEC |
| Degree of protection | IP20 |
| Operating Temperature | -25…40 °C |
| Ambient temperature for storage | -30…70 °C |
| Sustainability of the offer | |
| Environmental product status | Green Premium product |
| RoHS (code date: YearWeek) | Compliant - since 1329 - Declaration of Conformity Schneider Electric |
| REACh | Reference not containing SVHC above threshol |
| Environmental Product Profile | Available |
| Product end-of-life instructions | No specific recycling operation |
SERR9R01263
429 Items
Data sheet
- Type of electrical equipment
- Interrupteur
Specific References
- UPC
- 712971133617
- EAN13
- 0712971133617
