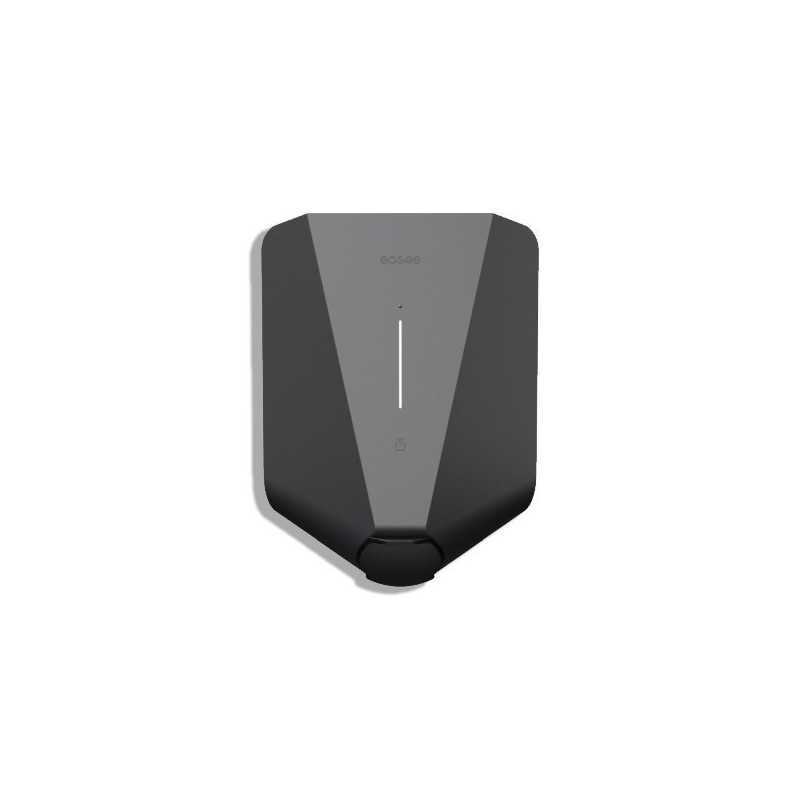

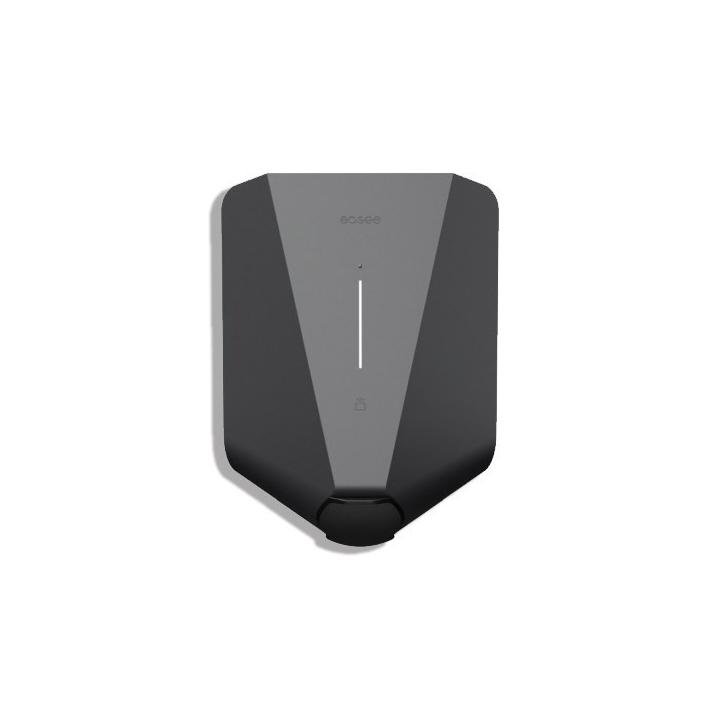

Easee Charge UP Charging Station – 1.4 to 22 kW – Type 2
€953.90
Tax included
10141
0768563819025
The Easee Charge Up is the next generation of intelligent charging stations designed exclusively for private residences. Succeeding the popular Easee Home, it offers flexible charging power ranging from 1.4 kW to 22 kW, ensuring universal compatibility with all electric vehicles and all installations (single-phase or three-phase). Combining award-winning Scandinavian design with advanced safety features, it is the ideal solution for reliable, secure, and scalable home charging.
5
items in stock!
Easee Charge UP Charging Station – 1.4 to 22 kW – Type 2
The Easee Charge UP charging station represents the next generation of intelligent chargers, designed to adapt to all electrical realities. Replacing the famous Easee Home, it stands out for its total and automatic compatibility with all types of electrical grids. With power ranging from 1.4 kW up to 22 kW, its Scandinavian design, and certified safety, it is the ultimate universal solution for constraint-free home charging.
Unmatched Universal Grid Compatibility.
Total Adaptability (IT, TT, TN)
One of the greatest assets of the Easee Charge UP is its ability to operate on all types of electrical grids. Whether your installation is 230V single-phase or three-phase, and regardless of the earthing system (IT, TT, or TN networks), the station automatically detects the configuration. It is the ideal solution for regions with specific grid types (very common in Belgium and Norway).
Maximum Charging Speed
Charge up to 22 kW (32 A) on a three-phase installation and up to 7.4 kW (32 A) on a single-phase installation.
All-in-One Charger
The chargers are compatible with all electric vehicles and all phase configurations. No need to worry about technicalities: the station adapts to your current car and your next one.
Always Up to Date
Thanks to Over-the-Air (OTA) software updates, your station evolves over time and continuously integrates the latest energy management optimizations.
Main Advantages of the Easee Charge UP
Versatility and Grid Intelligence
- Guaranteed compatibility with IT, TT, and TN networks (automatic detection).
- Works perfectly on both 230V and 400V installations.
- Automatically adjusts power according to your meter's capacity.
High and Flexible Charging Power
- Up to 22 kW in three-phase for ultra-fast charging.
- Also compatible with single-phase (up to 7.4 kW).
Intelligent Energy Management
- Dynamic load balancing to avoid overloading your installation.
- Solar optimization available (via accessories) to charge with your own energy.
- Full control via app (Wi-Fi, Bluetooth, and free lifetime built-in 4G).
Advanced Safety
- Integrated residual current protection (AC 30mA and 6mA DC detection).
- Continuous thermal monitoring via internal sensors.
- Extreme durability: IP54 (water/dust) and IK10 (impact) certifications.
Simple Installation and Compact Design
- Ultra-compact and lightweight format (≈1.5 kg).
- Modern Scandinavian design with customizable covers.
Easee Charge UP Dimensions
| Detailed Technical Specifications | |
|---|---|
Performance and Grids
|
Connectivity and Safety
|
Physical Characteristics
|
Warranty and Origin
|
An Intuitive App for Total Control
The Easee Charge UP doesn't just charge your vehicle; it’s controlled at your fingertips. The Easee App (available on iOS and Android) transforms your smartphone into a true intelligent energy management center.
Real-Time Management
Start, pause, or stop charging wherever you are. Instantly check the charging speed and the status of your current session.
Smart Scheduling
Schedule your charging during off-peak hours to optimize savings. The station activates itself when electricity is cheapest.
Security and Access
Permanently lock your charging cable via the app to prevent theft. Manage access rights for family or friends in just a few clicks.
Detailed History
Access a complete overview of your consumption. View your spending by month or session for total transparency on your energy budget.
Note: Thanks to free built-in 4G, your station remains connected to the app even without Wi-Fi nearby.
Download the Easee App:
FAQ - Easee Charge UP Charging Station
10141
Data sheet
- Phase
- Monophasé
Triphasé
Specific References
- UPC
- 768563819025
- EAN13
- 0768563819025
