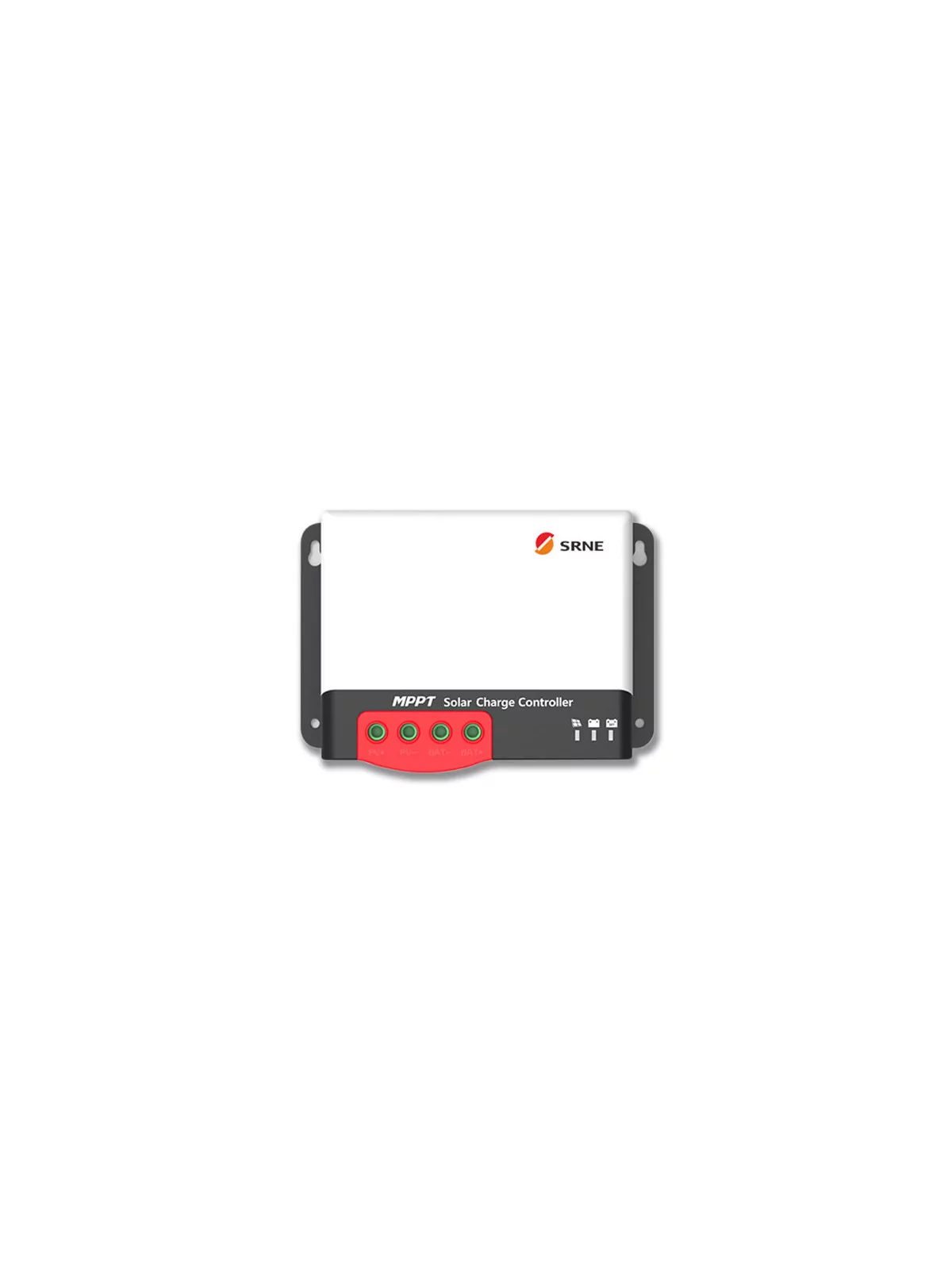

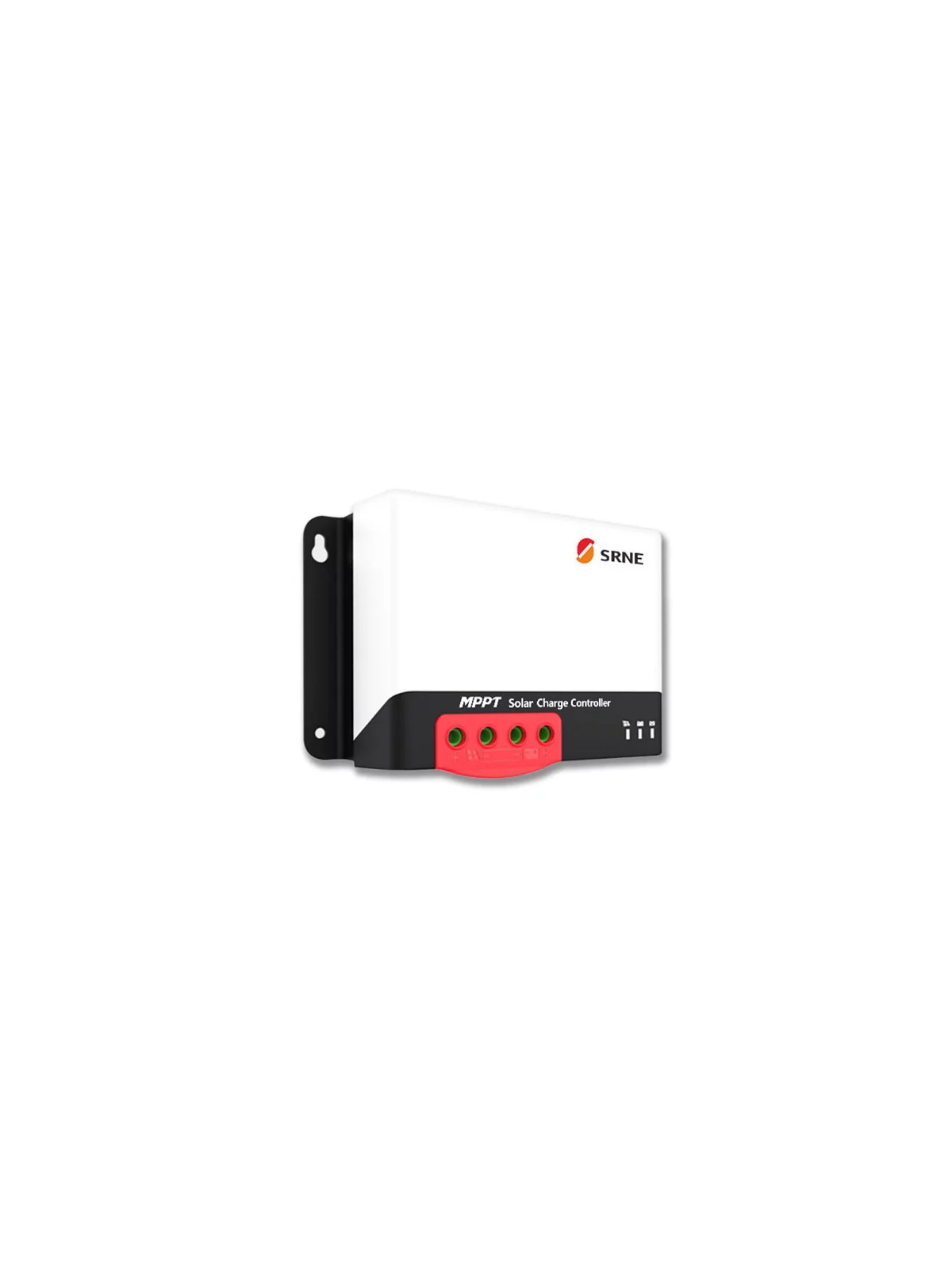

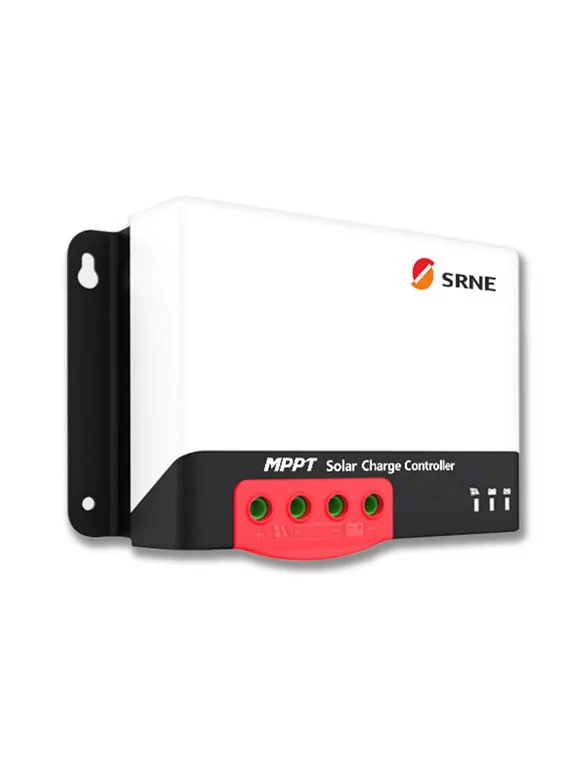

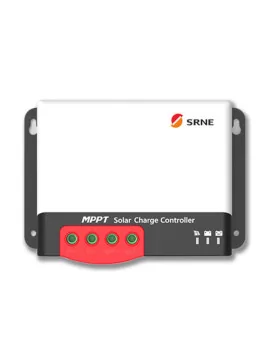

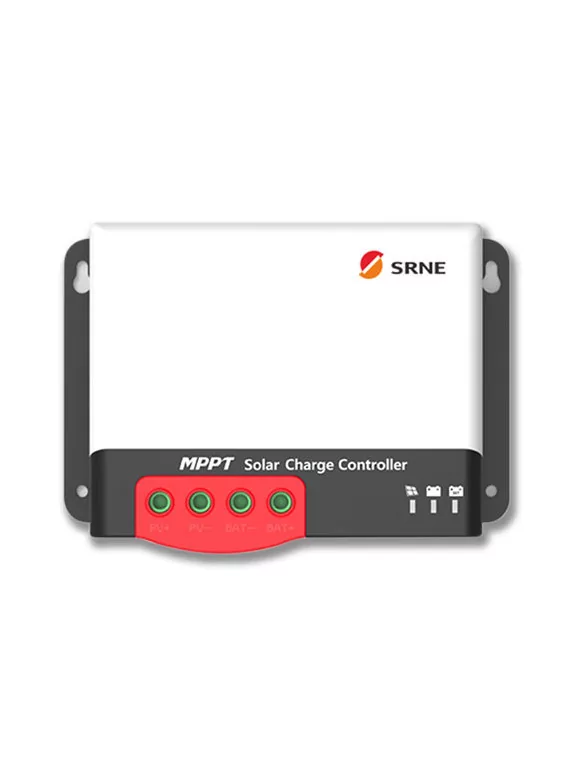

Solar controller SRNE MPPT 12/24V 50A - MC2450N10

SRNE MC2450N10 solar controller: PowerCatcher MPPT for maximum solar efficiency

Key features

♦ PowerCatcher technology, maximum power point tracking, enables the controller to track the maximum power point of solar panels, even in complex environments. Compared with traditional MPPT tracking technology, it offers faster response speed and greater tracking efficiency.

◆ An integrated MPPT (Maximum Power Point Tracking) algorithm significantly increases the energy utilization efficiency of the photovoltaic system, which is around 15% to 20% higher than traditional PWM charging.

◆ It offers an active charge voltage regulation function. When the battery is open-circuited or the BMS lithium battery overcharge protection is activated, the controller's battery terminal delivers the nominal value of the charging voltage.

◆ MPPT tracking efficiency is 99.9%.

◆ Thanks to advanced digital power technology, the circuit's energy conversion efficiency can reach 98%.

◆ Available for several battery types. It supports charging procedures for different battery types such as lithium batteries, colloidal batteries, sealed batteries, vented batteries, etc.

◆ A current-limited charging mode is available. When the solar panel's output is too high and the charging current exceeds the valve's rated output, the controller automatically reduces the charging output so that the solar panel can operate with the rated charging current.

◆ Supports automatic identification of lead-acid battery voltage.

◆ An external LCD display or Bluetooth module can be connected to view operating data and equipment status, and controller parameters can be modified.

◆ Support for standard Modbus protocol to meet communication needs on different occasions.

◆ A built-in overtemperature protection mechanism ensures that when the temperature exceeds the device setpoint, the load current decreases linearly with temperature.
