    Solar controller SRNE SHINER MPPT 12/24V 30A SHINER2430-B

    €120.49
    Tax included
    SHINER2430-B
    0768563820472

    - Maximum open-circuit voltage: 60Vdc
    - Nominal battery voltage: 12/24Vdc
    - Nominal charging current: 30A
    - MPPT tracking efficiency: >99%

    100% secure payments

    Customers who bought this product also bought:

    Solar controller SRNE...

    €120.49

    Présentation régulateur SRNE SHINER

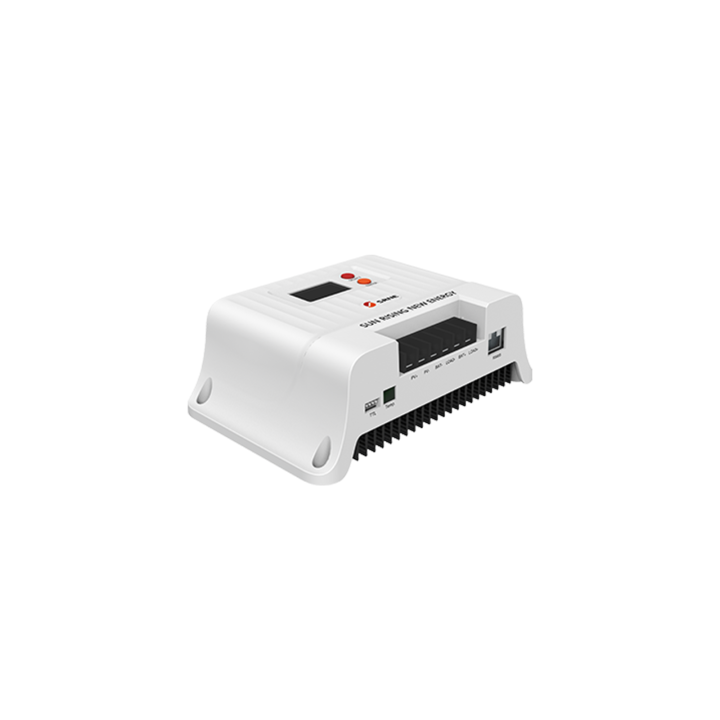

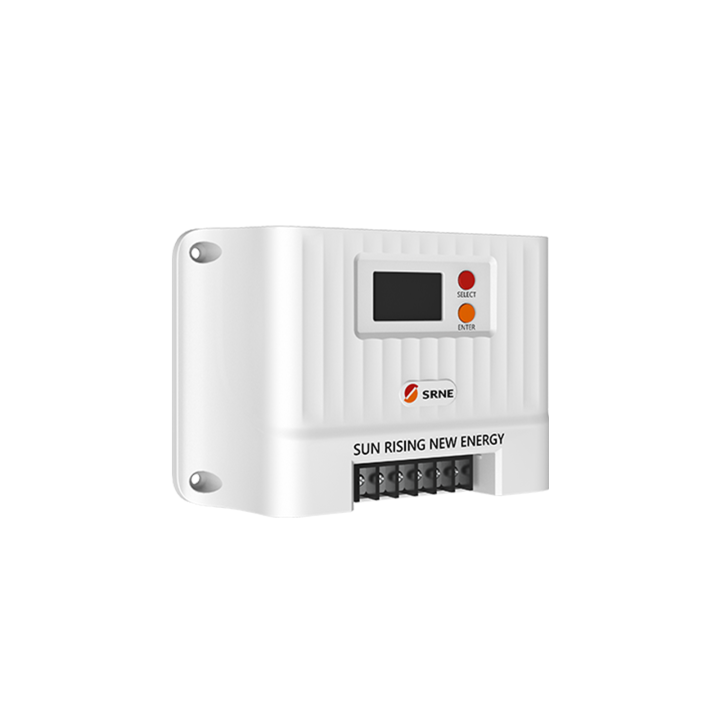

    Solar controller SRNE SHINER MPPT 12/24V 30A SHINER2430-B



    2application-hors-reseau-icone-srne.pngFor off-grid applications

    Can be connected to solar panels, battery and load at the same time. Several load operating modes to meet diverse needs.





    Efficiency

    Maximum power point tracking (MPPT) with up to 99.9% efficiency. Supports up to 2 solar panels in series/more in parallel.





    All-in-one

    Supports multiple battery types. Highly integrated, helps you save space and wiring





    Safety

    Complete charge and discharge protection mechanism. High-quality components for stable operation.





    User-friendly

    Easy to install and simple to use. Natural cooling, totally silent.





    Intelligent

    Supports TTL RS485 and CAN (RV-C protocol). Supports Bluetooth with mobile application.



    SHINER2430-B
    28 Items

    Data sheet

    Max.Voltage of Open Circuit
    60Vdc
    MPPT Voltage Range
    (Battery voltage+2V)～72Vdc
    Max.PV Input Power
    400W/12V - 800W/24V
    Charging power
    30A
    Voltage
    12V / 24V
    MPPT/PWM
    MPPT
    Battery Type
    USE/FLD/GEL/LI/SLD/ User Defined
    Rated Battery Voltage
    12/24/36/48Vdc
    12/24Vdc
    Battery Voltage Range
    8~32Vdc
    MPPT Charging Mode
    Buck
    Load Type
    Resistive, Capacitive, Inductive load
    Rated load voltage
    Equal to battery voltage 12V/24V/36V/48V
    Rated load current
    20A
    30A
    Load Working Mode
    Light control,Light control + Time control, manual control (default), Debugging mode, Normal open
    MPPT Tracking Efficiency
    less than 99%
    Max. Efficacité de conversion de la charge
    85%~98%(Correspond load power10%~100%)
    Weight
    2.64lb
    Dimensions (L x W x D)
    7.3*5.2*2.8in

    Specific References

    UPC
    768563820472
    EAN13
    0768563820472
    New

    Download

    DataSH Shiner SRNE-en

    Download (840.54KB)
