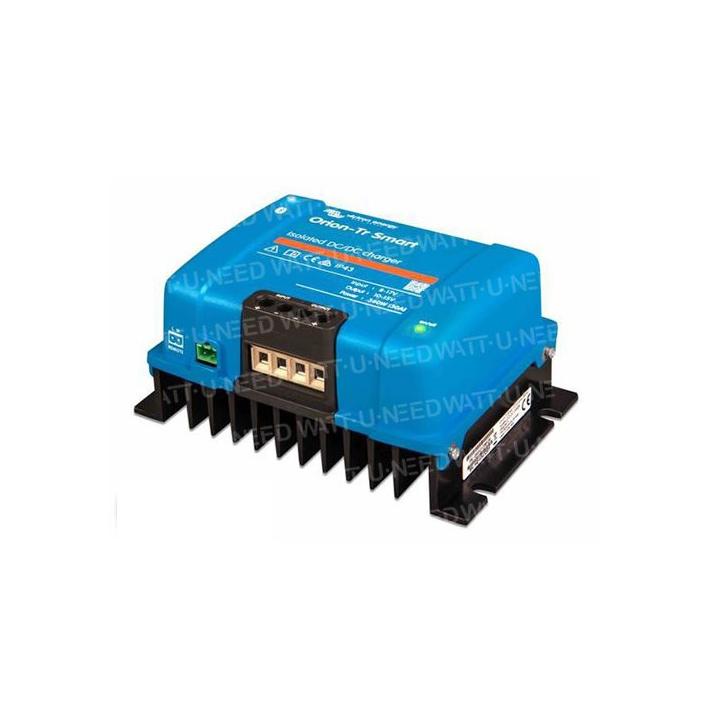

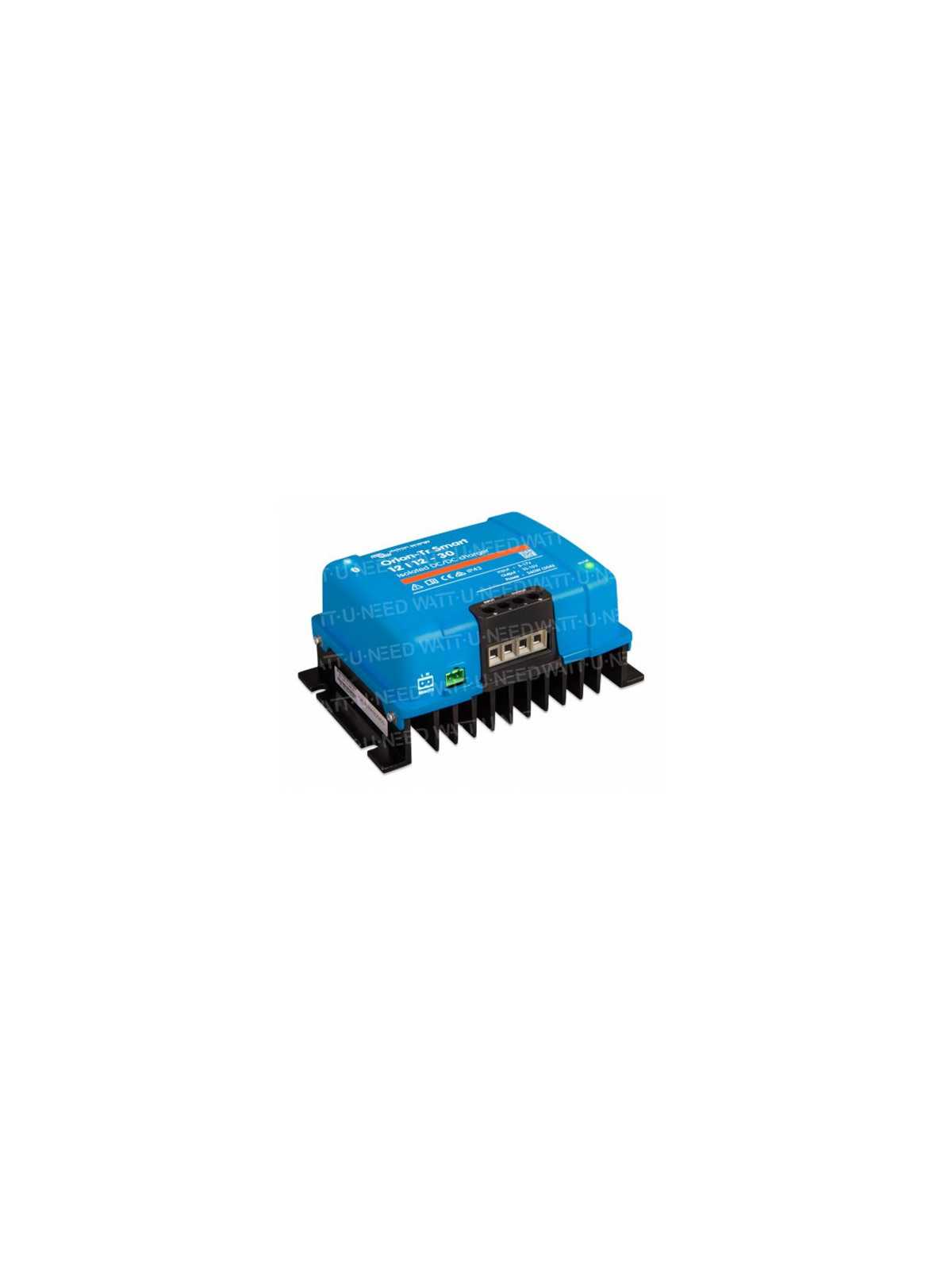

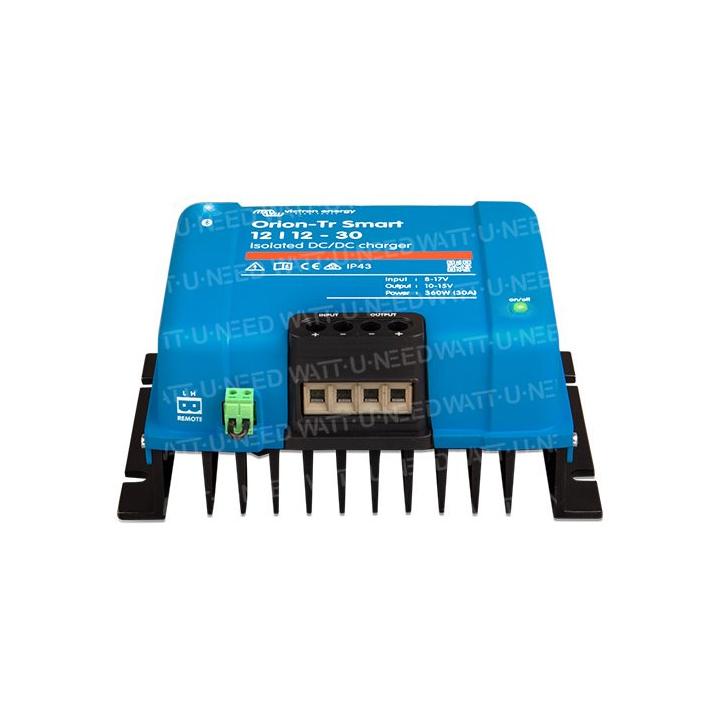

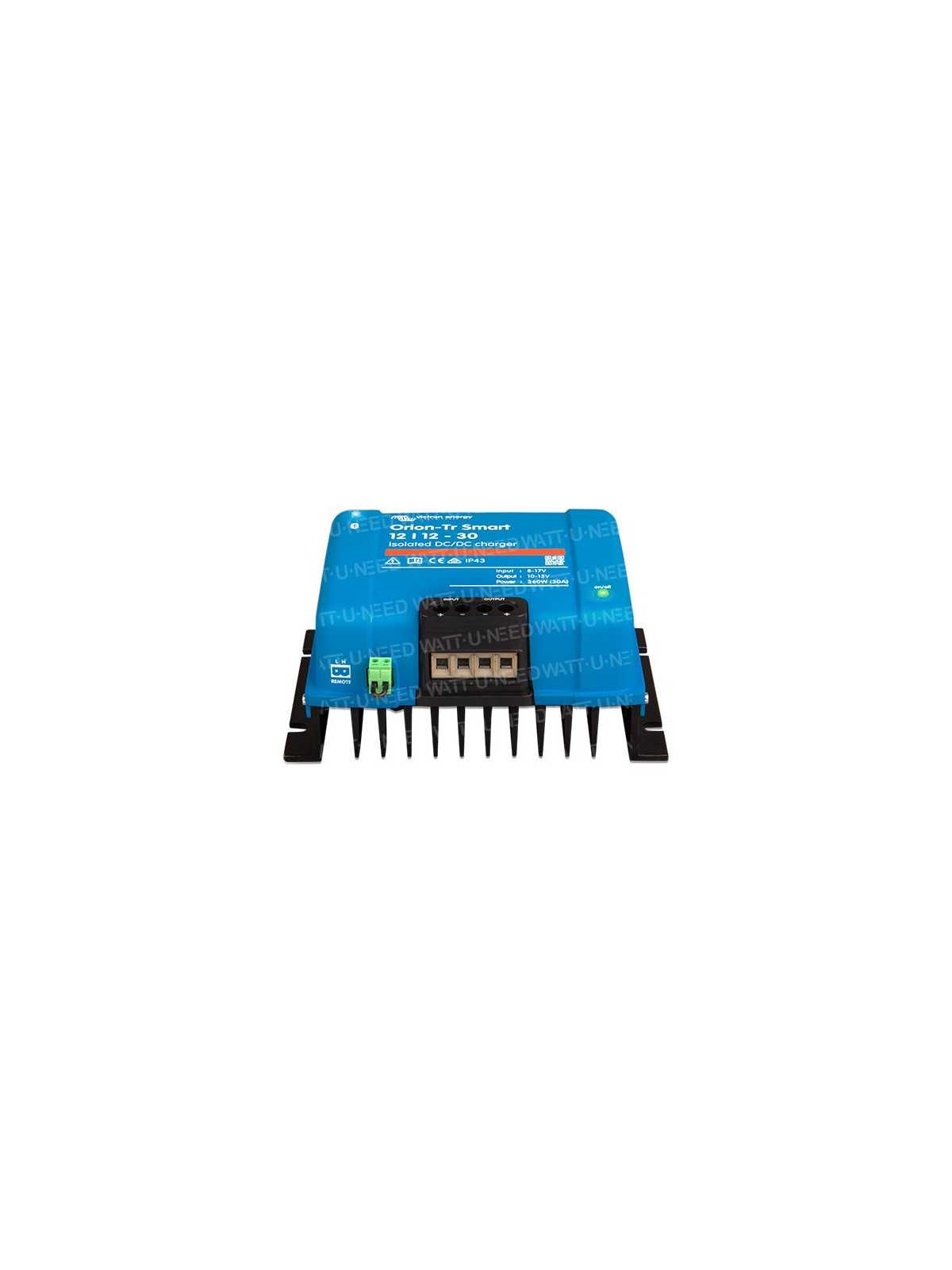

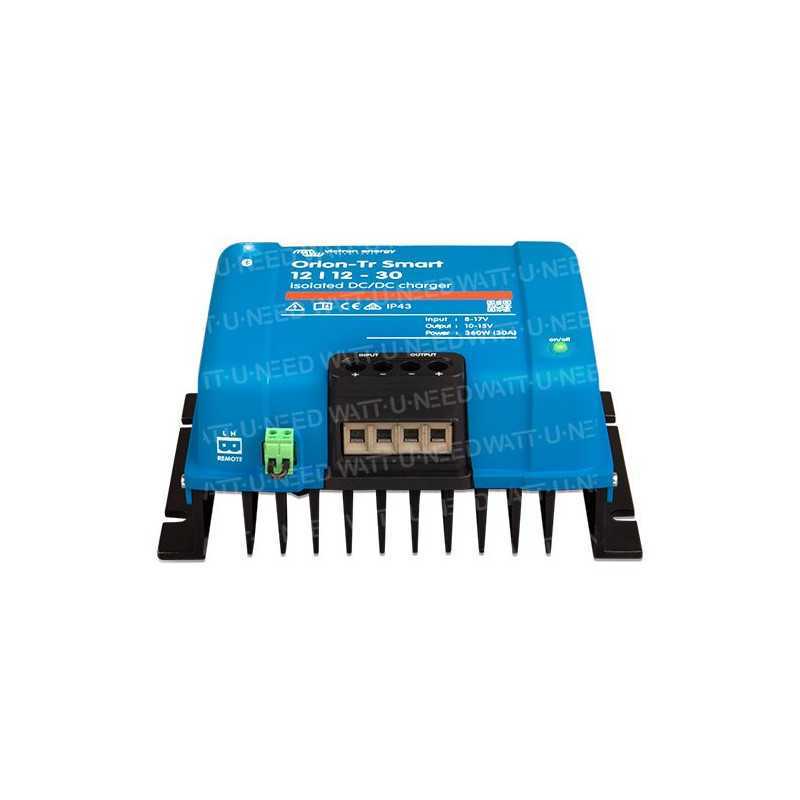

    The Orion-Tr Smart DC-DC is a professional DC-to-DC charger with three-stage adaptive charging and integrated Bluetooth.

    Victron Orion - Models: Orion-Tr isolé 12/12-30 (360W)

    copy of Victron Orion-Tr...

    €315.81

    Orion-Tr Smart DC-DC insulated charger

    The Orion-Tr Smart DC-DC is an isolated battery charger for use in dual battery systems incorporated in vehicles or boats, where the (intelligent) alternator and starter battery are used to recharge the service battery. The unit can be supervised and programmed via Bluetooth, and can be remotely controlled using a remote on/off switch. It also features a mechanism for detecting whether the engine is running or not.

    The Orion Tr-Smart charger can be used in 12 or 24 V systems, and is suitable for both lead-acid and lithium batteries. Models are available up to 400 W, and an unlimited number of units can be connected in parallel to increase power output.

    These chargers can be operated in temperatures up to 55°C, with full rated output down to 40°C.


    Bluetooth Smart enabled


    Smartphones, tablets and other Bluetooth-enabled devices can be used to monitor the charger, modify its settings and update it if new software functions become available.


    Fully programmable

    • Battery charging algorithm (configurable) or fixed output.
    • Intelligent alternator compatibility: engine running detection mechanism.

    3-stage adaptive charging algorithm: bulk - absorption - float


    - For lead-acid batteries, it's important to keep absorption times short during partial discharges, to avoid overcharging the battery. After a deep discharge, the absorption time is automatically increased to ensure the battery is fully recharged.
    - For lithium batteries, the absorption time is fixed at 2 hours by default.
    - Alternatively, a fixed output voltage can be selected.


    Suitable for use in vehicles fitted with an intelligent alternator (Euro 5 and Euro 6 engines)


    The integrated engine-stop detection function will stop the inverter when the engine is not running.
    This prevents accidental discharge of the starter battery (see manual for details).


    Remote start/stop


    A remote on/off switch or relay contact can be connected to a two-pole connector.
    Alternatively, the H terminal (right) of the two-pole connector can be switched to the positive battery terminal; or the L terminal (left) of the two-pole connector can be switched to the negative battery terminal (or the chassis of a vehicle, for example).


    All models are short-circuit protected, and can be installed in parallel to increase output current.


    An unlimited number of units can be connected in parallel.


    High-temperature protection


    Output current will be reduced at high ambient temperatures.


    IP43 protection


    If installed with screw terminals facing downwards.


    Screw terminals


    No special tools are required for installation.
    Input fuse (non-replaceable)


    Specifications

    Isolated Orion-Tr Smart chargers 220 - 280 Watt12/12-18 (220W)12/24-10 (240W)24/12-20 (240W24/24-12 (280W)
    Supply voltage range (1
    16-35V16-35v
    Undervoltage shutdown
    14V14V
    Undervoltage restart
    ,5V
    .5V15V15V
    Rated output voltage12.2V24.212.2V24.2V
    Output voltage setting range10-15V20-30V10-15V20-30V
    Output voltage tolerance
    Output
    mV rms
    Output current cont.rated output voltage and 40ºC.18A10A20A12A
    Max. output current (10 s) at rated output voltage25A15A25A15A
    Short-circuit output current40A25A50A30A
    Output power cont.
    at 25 ºC280W280W300W320W
    Power output cont.
    at 40ºC220W240W240W280W
    Efficiency87%88%88%89%
    No-load charging current<80 mA<100 mA<100 mA<80mA
    Standby current<1 mA
    Galvanic
    200 VDC between power supply, output and enclosure
    Operating temperature range
    to 55°C (Reduction 3% per °C above 40°C)
    Humidity95% max;

    n

    on-condensing
    DC connectionScrew terminals
    Maximum cable cross-section16 mm² / AWG6
    Weight
    .3 kg (3 lb)
    Dimensions (H x W x D)130 x 186 x 70 mm (5.1x7.3x2.8 pouvces)
    Standards :

    S

    afetyEN 60950
    EmissionEN 61000-6-3, EN 55014-1
    ImmunityEN 61000-6-2, EN 61000-6-1, EN 55014-2
    Automotive directiveECE R10-5

    Orion-Tr Smart insulated chargers 360 - 400 Watt12/12-30 (360W)12/24-15 (360W)24/12-30 (360W)24/24-17 (400W)
    Supply voltage range (1
    10-17V10-17V20-35V20-35V
    Undervoltage shutdown
    14V14V
    Undervoltage restart
    ,5V
    .5V15V15V
    Rated output voltage12.2V24.2V12.2V24.2V
    Adjustable output voltage range10-15V20-30V10-15V20-30V
    Output voltage tolerance
    Residual ripple
    mV rms
    Output current cont.rated output voltage and 40ºC.30A15A30A17A
    Maximum output current (10 s) at negative 20% nominal output voltage40A25A45A25A
    Short-circuit output current60A40A60A40A
    Output power cont.
    at 25 ºC430W430W430W480W
    Output power cont.
    at 40ºC390W360W360W400W
    Efficiency87%88%88%89%
    No-load charging current<80 mA<100mA<100 mA<80 mA
    Standby current<1 mA
    Galvanic
    200 VDC between power supply, case output
    Operating temperature range
    to +55°C (Reduction 3% per °C above 40°C)
    Humidity95% max.non-condensing
    DC connectionScrew terminals
    Maximum cable cross-section16 mm² / AWG6
    Weight12V output and/or 12V input models :1.8kg (3lb) Other models: 1.6 kg (3.5lb)
    Dimensions (H x W x D)12V output and/or 12V input models:
    130x186x80 mm (5.1 x7.3x3.2 inches) Other models: 130x186x70 mm (5.1x7.3x2.8 inches)
    Standards :

    S

    afetyEN 60950
    EmissionEN 61000-6-3, EN 55014-1
    ImmunityEN 61000-6-2, EN 61000-6-1, EN 55014-2
    Automotive directiveECE R10-5
