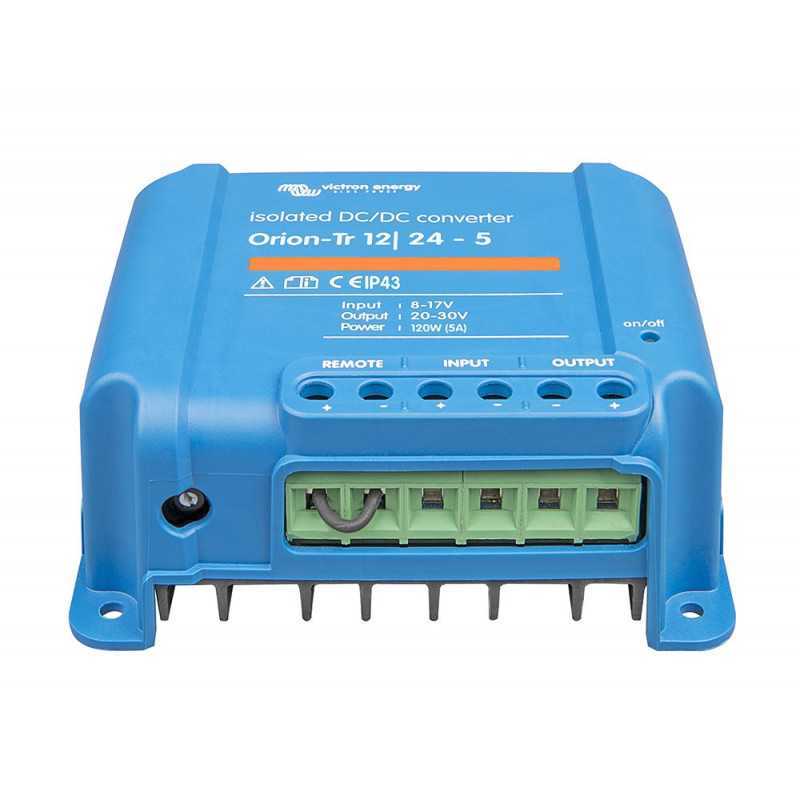

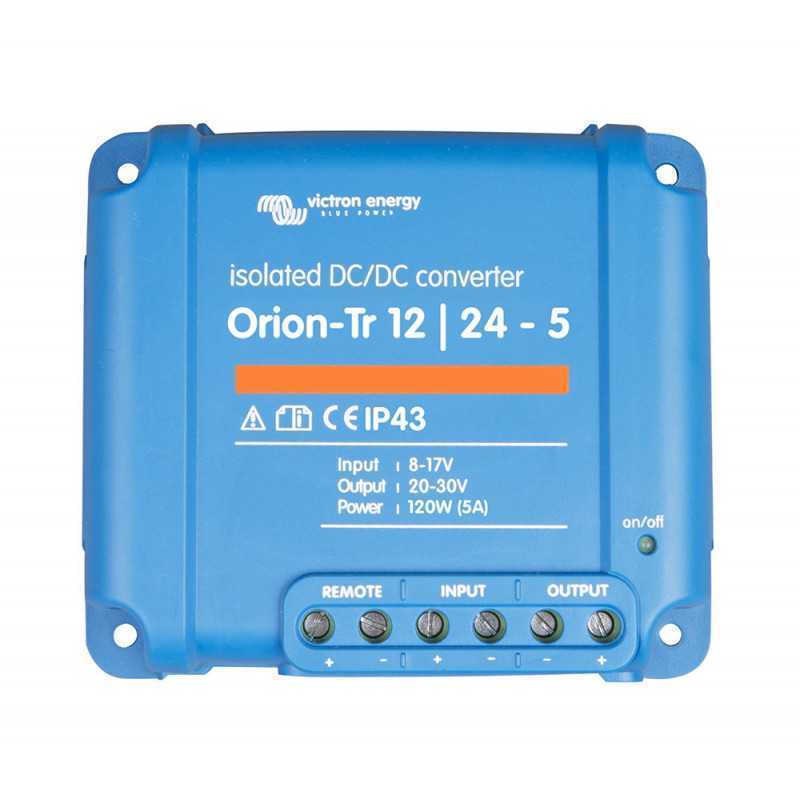

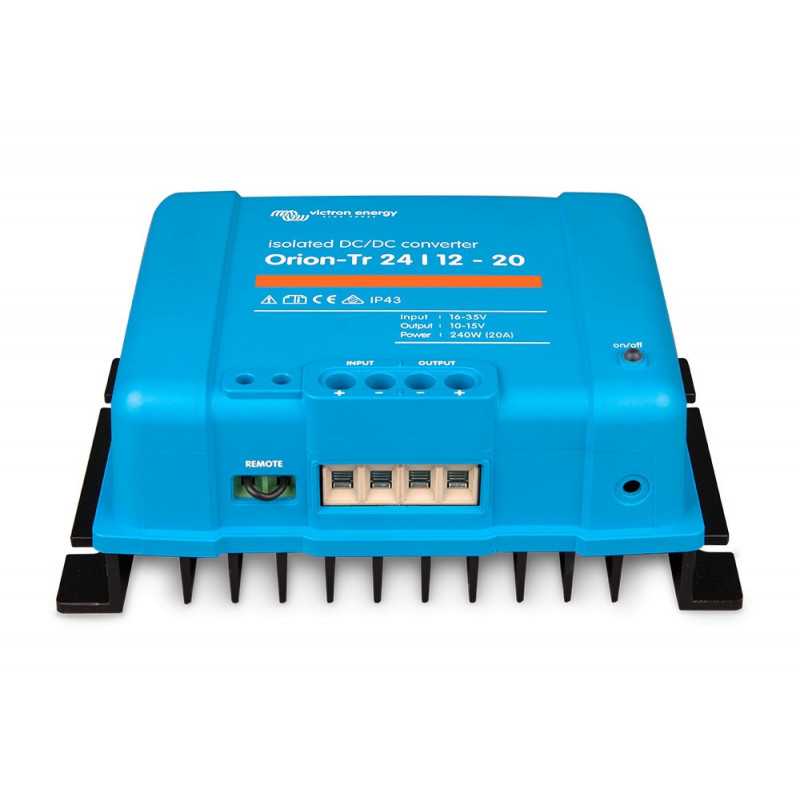

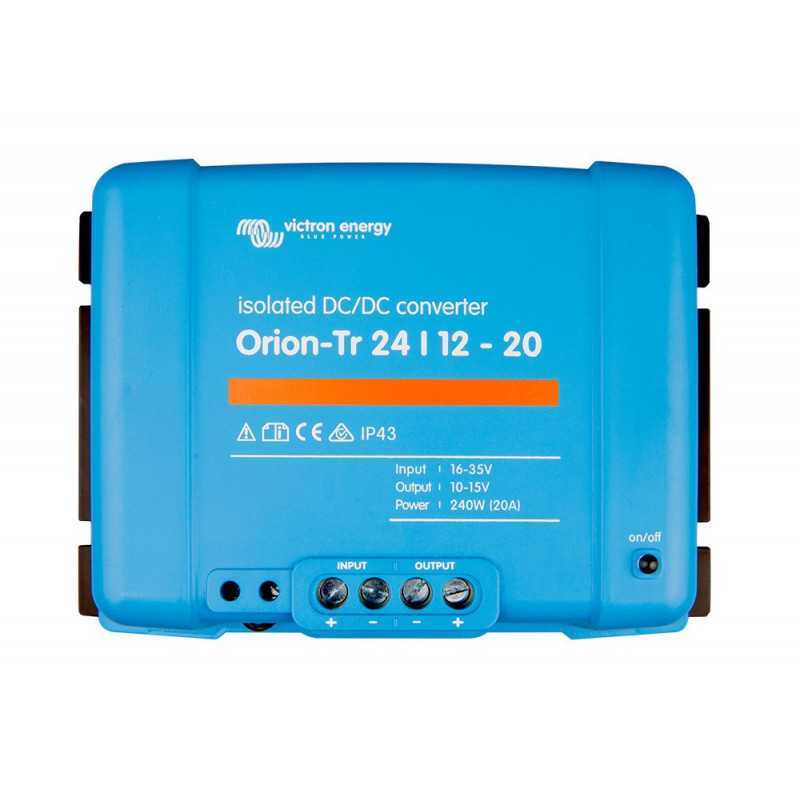

Victron Orion-Tr DC-DC converters - with insulation - 110W and 120W

Remote on/off connector

The remote on-off connector eliminates the need for a high-current switch on the input wiring. The remote on-off connector can be operated from a low-power switch or, for example, from a motor start/stop switch (see manual).

All models are short-circuit protected and can be installed in parallel to increase output current. An unlimited number of units can be connected in parallel.

IP43 protection: if installed with screw terminals, face down.

Screw terminals: No special tools are required for installation.

Input fuse: On 12 and 24 V models only.

Remote on-off

The "Remote On-Off" output dispenses with the need for a high-current switch in the input wiring. This function can be operated by a low-power switch or, for example, by the motor's "on/off" switch (see user manual).

Adjustable output voltage: can be used as a battery charger

For example, to charge a 12 V starter or service battery in a 24 V system.

All models are short-circuit protected and can be paralleled to increase output current.

An unlimited number of units can be paralleled.

IP43 protection

IP43 protection if the unit is installed with the terminal block at the bottom.

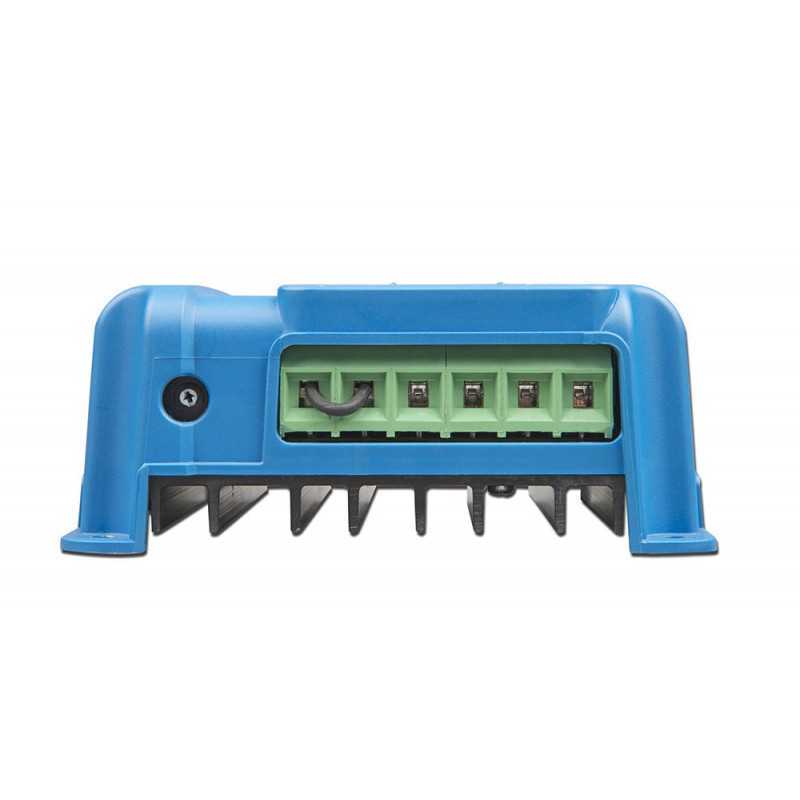

Terminal block

No special tools required for installation

Internal fuse

On 12 V and 24 V models only
