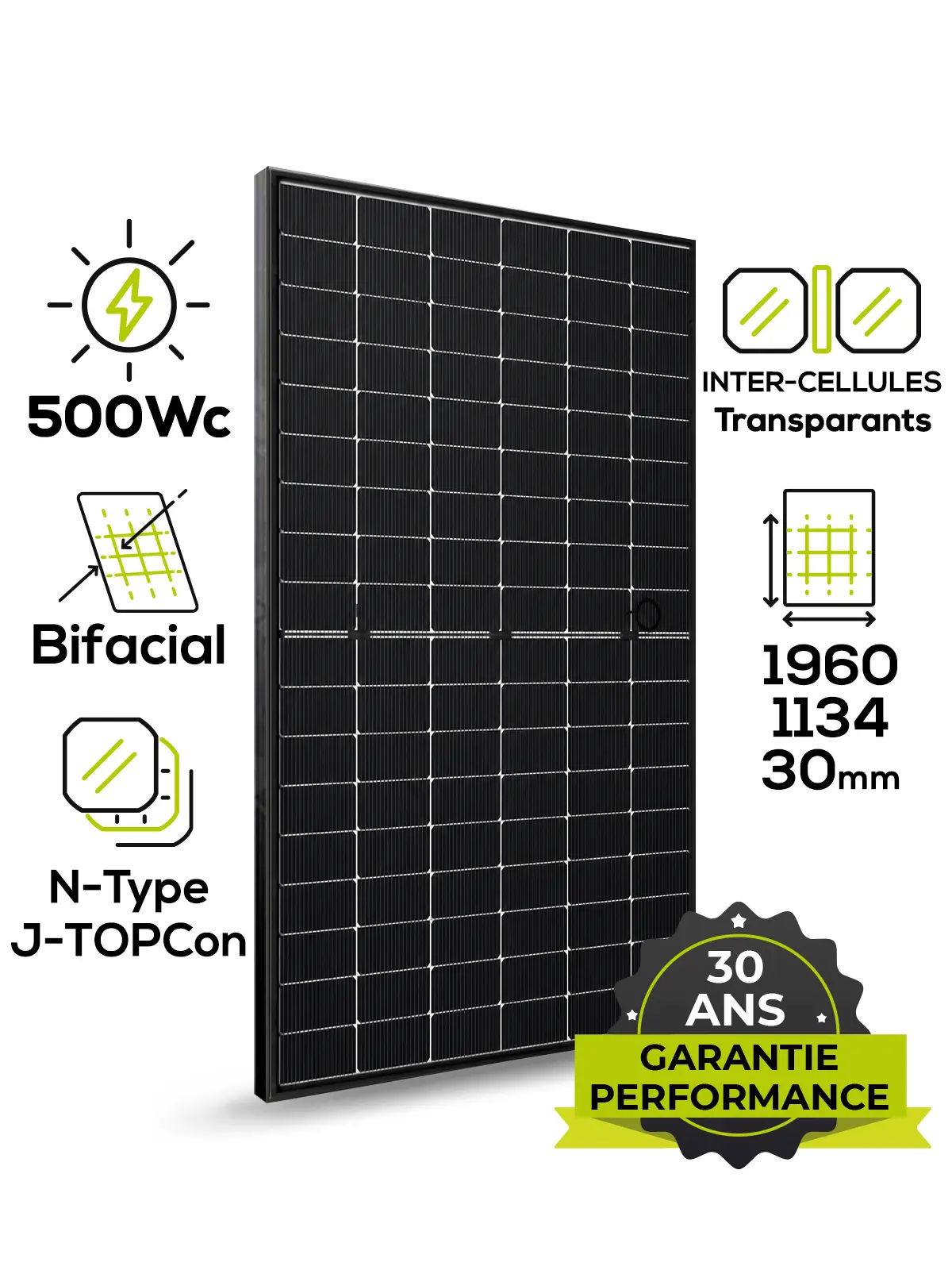

Jolywood JW-HD108N-R2 500W N-Type Bifacial Full Black Transparent
€113.74
Tax included
JW-HD108N-R2-500
4040326103944
LUXEN LUXNERI® N-Type 500W LECO Bifacial Solar Panel: Next-generation performance.
Discover the LUXEN 500W LECO N-Type bifacial panel, an innovative solution to maximise your energy output. Thanks to its LECO technology and robust double-glazed (DG) construction, it offers exceptional efficiency and increased longevity. Designed by a Tier 1 manufacturer, it is perfectly suited to both residential and commercial projects.
Key features:
- Power: 500W
- Dimensions: 1961 x 1134 x 30 mm
- Module efficiency: 22.48%
- Voc voltage: 40.00 V
- Vmpv voltage: 33.51 V
- Product warranty: 15 years
- Performance warranty: 30 years (87.4%)
Technical advantages:
- High performance: G12R N-Type and SMBB Half-Cut cells to minimise losses.
- Bifacial gain: Active light capture on both sides, enabling an output of 625W (25% rear gain).
- Durability: Maximum protection against PID and LID thanks to double glazing.
Why choose LUXEN SOLAR?
Invest in N-Type technology to eliminate typical degradation. Its bifacial design maximises overall efficiency and reduces energy costs over 30 years.
Contact our experts for a personalised assessment and a free quote.
Currently being restocked: expected to arrive shortly
⚡
Combien allez-vous économiser ?
Simulez vos économies
avec ce kit de 0.5 kWc
⭐ Exclusive technical advantages
Discover the innovations that make the difference
🔧 Compatibility & Installation
🔌 Connectors
- Compatible with MC4 connectors
- 4mm² cables (250mm+/350mm-)
- IP68 junction box (3 LEDs)
📐 Dimensions & Resistance
- Dimensions: 1960 × 1134 × 30 mm
- Weight: 27.5 kg
- Front Face Load: 5400 Pa
- Rear Face Load: 2400 Pa
⚙️ System Configuration
- Max. System Voltage: 1500 V DC
- Max. Series Fuse: 30A
- Cells: 108 N-type mono (6x18)
🌍 Standards & Logistics
- IEC 61215 / 61730 / 61701 / 62716
- ISO 9001 / 14001 / 45001
JW-HD108N-R2-500
Data sheet
- Max. power - Wp
- 500
- Open circuit voltage (Voc)
- 40,00 V
- Short-circuit current (Isc)
- 15,84 A
- Max. power voltage (Vmp)
- 33,51 V
- Max. power current (Imp)
- 14,92 A
- Panel yield
- 22,48 %
- Operating temperature
- -40~+85°C
- Number of cells
- 108
- Color
- Full Black
- Panel type
- Rigids
- Cells
- N-Type Mono
- Width
- 1134 mm
- Height
- 1961 mm
- Frame
- 30 mm
- IP protection
- IP 68
- Temperature coefficient Isc
- 0.045%/°C
- Temperature coefficient Voc
- -0.25%/°C
- Temperature coefficient Pmax
- -0.29 %/℃
- Weight
- 27.5 kg
- Maximum system voltage
- 1500V DC (IEC)
- Output tolerance
- 0~+5W
- Fuse current
- 30 A
- Frame type
- Black anodized aluminum alloy
Specific References
- EAN13
- 4040326103944
- MPN
- JW-HD108N-R2-500
New
Jolywood JW-HD108N-R2 500W N-Type Bifacial Full Black Transparent — Traditional solar panels
Jolywood JW-HD108N-R2 500W N-Type Bifacial Full Black Transparent by Jolywood is available in our Traditional solar panels catalog. Technical specifications: max. power - wp: 500, open circuit voltage (voc): 40,00 V, short-circuit current (isc): 15,84 A, max. power voltage (vmp): 33,51 V, max. power current (imp): 14,92 A, panel yield: 22,48 %, operating temperature: -40~+85°C, number of cells: 108, color: Full Black, panel type: Rigids, cells: N-Type Mono, width: 1134 mm, height: 1961 mm, frame: 30 mm, ip protection: IP 68, temperature coefficient isc: 0.045%/°C, temperature coefficient voc: -0.25%/°C, temperature coefficient pmax: -0.29 %/℃, weight: 27.5 kg, maximum system voltage: 1500V DC (IEC), output tolerance: 0~+5W, fuse current: 30 A, frame type: Black anodized aluminum alloy. Product weight: 27.5 kg. Reference: JW-HD108N-R2-500.
