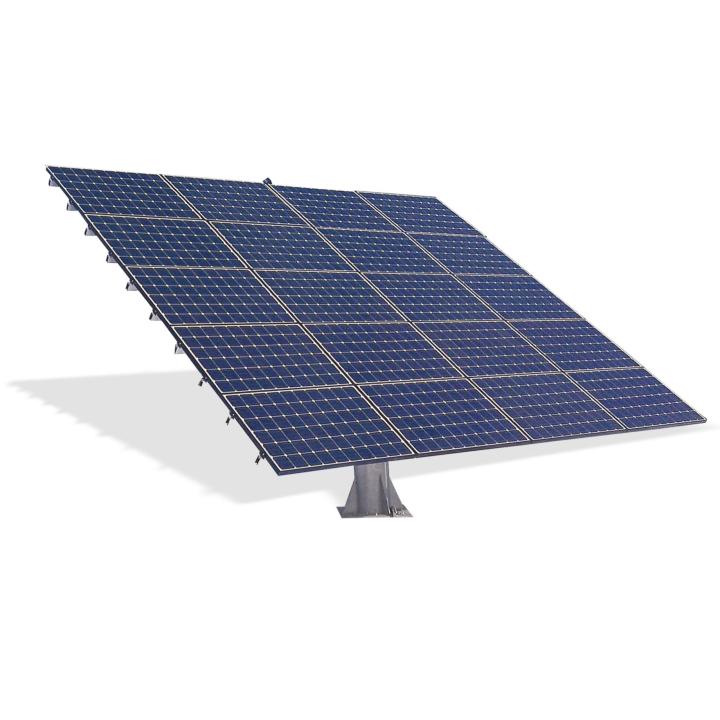

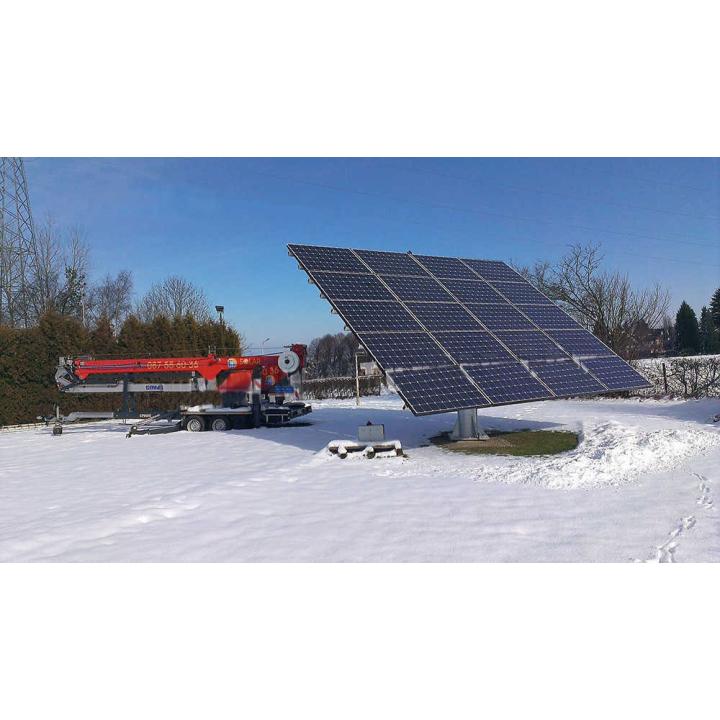

    2-axis photovoltaic tracker: 36 panels
    2-axis photovoltaic tracker: 36 panels
    2-axis photovoltaic tracker: 36 panels

    Follower photovoltaic 2 axes: 36 panels

    $16,161.6
    0246
    0712971125193

    This solar tracker can stand between 36 and 44 panels (depending on the size of the Panel) up to 25% extra performance against a South full installation

    Manufactured on demand. Contact us for more information.

    Follower photovoltaic 2...

    $16,161.6

    Photovoltaic Tracker - Solar Tracker 2 axes 36 panels

    The STS solar Trackers optimize the performance of a photovoltaic installation.


    Instantaneous production more and more great period of production with the tracker.



    A solar Tracker allows you to maintain an optimal orientation of the panels compared to the rays of the Sun. This optimal orientation allows to maximize electricity from photovoltaic panels. This type of structure allows to increase electricity generation compared to the fixed panels:



    • 25% increase compared with a plant in the South

    • 40% increase compared with a plant in the East or West


    Photovoltaic Tracker

        • Automated two-axis Tracker System

        • Hourly positioning and via brightness calculator

        • Hot galvanized steel structure

        • Suitable for all brands of photovoltaic panels

        • Robustessse

        • Performance


    Benefits



    • Increase in the production of 25% compared to a fixed system oriented to the South.
    • Possible installation in the absence of roof or misguided roofing.
    • Compact thanks to student performance.

    The installation includes

    • The structure
    • The system of detection and orientation (electronic + engine)

    Installation for professionals



    • You communicate the image of a caring society of ecology and the environment.
    • You talk about your company.
    • You invest in the future with a guaranteed return.

    Installation for professionals


    Characteristics of the Foundation





    Characteristics of the Foundation



     STS 36
    Width3 m
    Length3 m
    Depth1.25 m
    Volume11.3 m³
    Weight25900 kg

    Features of the structure

    Features of the structure



    The structure has two degrees of freedom: a horizontal rotation to set azimuth and vertical rotation for tilt. The horizontal rotation allows to track the movement of the Sun throughout the day. The vertical rotation helps guide the structure according to the seasonal variation of the Sun.



    MaterialsSteel/Alu
    Surface60 m²
    The number of columns9
    Number of lines4
    Height of mast3 m
    Height panels6.6 m
    Total width9 m
    Total height6,2 m
    Power
    (panels 260Wc)
     9360Wc
    Annual production 10800 Kwh
    Weight1700 kg
    Wind speed
    maximum eligible
    120 km/h
    Manufacturing100% Belgian


    Engine features

    Engine features



    Our solar Tracker has an automatic orientation of the panels according to the daily declination of the Sun (from East to West) throughout the day. This orientation takes place every 10 minutes through an electric motor. The orientation of the structure according to the seasonal variation of sunlight (orientation at 73 ° at the winter solstice to 27 ° at the summer solciste) is also automatic. The installed power is adjusted according to demand. A standard installation is of the order of 10kwp. The surface installed of PV panels is then 64 m².



    Horizontal axis  220 °
    Vertical axis60 °
    Operating voltage24 volt
    Engine power2 X 60W
    Consumption of
    operation
    200Wh/j
    Tracking systemSchedule +.
    brightness sensor
