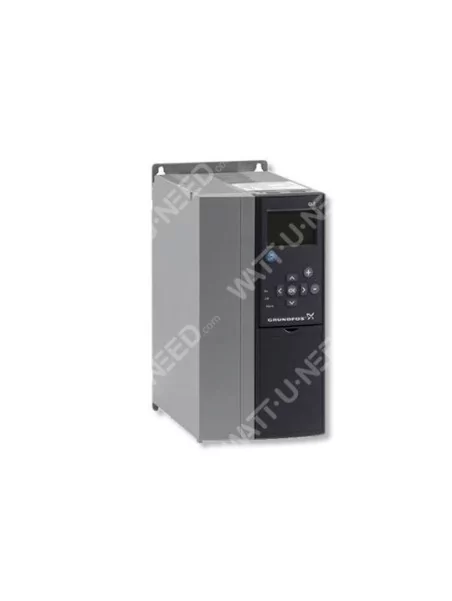

Grundfos CUE IP20 external frequency converters

€1,217.25
Tax included
CUE-IP20
0768563816758

The CUE is a multifunctional frequency converter suitable for many applications that require reliable and cost-effective operation.

Cue is used in five main applications:

Water supply and overpressure;

Heating and air conditioning;

Process and sanitary facilities;

Groundwater;

Wastewater.



Select your model in the options.



Logo Grundfos

Comments (0)

No customer reviews for the moment.

External frequency converters

A series of CUE frequency converters for the speed control of many Grundfos pumps.

CUE Grundfos is the newest member of the range of electronic speed-regulating pumping systems. It is suitable for a multitude of applications such as industry, building maintenance, private or municipal water supply, wastewater and irrigation. This new series of wall-mounted frequency converters with Grundfos pump features and a special user interface offers functions similar to those of Grundfos electronic pumps, which are equipped with motors incorporating a frequency converter.

With the CUE solution, you can regulate the speed of virtually any Grundfos pump, regardless of size, power range and scope.

Applications



The CUE is a frequency converter for Grundfos pumps and provides a range of predefined functions that make it easy to use the converter in virtually any application area. A series of predefined regulatory modes, such as constant pressure, proportional pressure, constant level or constant throughput, makes it easy to set up a system in just a few steps. A special starter guide will guide you through the CUE configuration.

The CUE has several entrances and exits



1 RS-485 GENIbus connection

1 analog input, 0-10 V, 0/4-20 mA: external set point

1 analog input, 0/4-20 mA: sensor input

1 analog output, 0-20 mA

4 digital entries: start/stop and 3 programmable entries

2 relays (C/NO/NC): programmable

Technical data and benefits



  • Grundfos pump speed control
  • Simple setup
  • Predefined regulation modes
  • Predefined sensor range
  • Predefined pump family data
  • Sharing the interface with the control equipment
  • Additional features available
  • Automatic adjustment of the direction of rotation
  • 16 steps to get the system up and running



Characteristics



P2 In type Ip Exit filter
Kw Has dU/dt sinus
0.55 1.8-1.6 CUE 0.55 kW 20   Sin. 2.5
0.75 2.4-2.1 CUE 0.75 kW
1.1 3-2.7 CUE 1.1 kW Sin.4.5
1.5 4.1-3.4 CUE 1.5 kW
2.2 5.6-4.8 CUE 2.2 kW Sin .8
3 7.2-6.3 CUE 3 kW
4th 10-8.2 CUE 4 kW Sin. 10
5.5 13-11 CUE 5.5 kW Sin. 17
7.5 16-14.5 CUE 7.5 kW
11th 24-21 CUE 11 kW dU/dt 44 Sin. 24
15 32-27 CUE 15 kW Sin. 38
18.5 37.5-34 CUE 18.5 kW
22 44-40 CUE 22 kW Sin. 48th
30 61-52 CUE 30 kW dU/dt 90 Sin .62
37 73-65 CUE 37 kW Sin. 75
45th 90-80 CUE 45 kW Sin. 115th
55 106-105 CUE 55 kW dU/dt 106
75 147-130 CUE 75 kW dU/dt 177 Sin. 180th
90 177-160 CUE 90 kW
