Palette 37 x Jolywood 500W N-Type bifacial Full Black
Palette 37 x Jolywood 500W N-Type bifacial Full Black
Palette 37 x Jolywood 500W N-Type bifacial Full Black
Palette 37 x Jolywood 500W N-Type bifacial Full Black

Palette 37 X Jolywood JW-HD108N-R2 500Wc N-Type Bifacial Full Black Transparent

By Julien Mawet · Solar PV Expert at Wattuneed • Updated April 2026
€4,208.38
Tax included
palette-JW-HD108N-R2-500
4040326103944
Full pallet offer: this product page is for a complete pallet of 37 Jolywood 500W N-Type bifacial modules. Use the single-panel product if you need unit quantities.

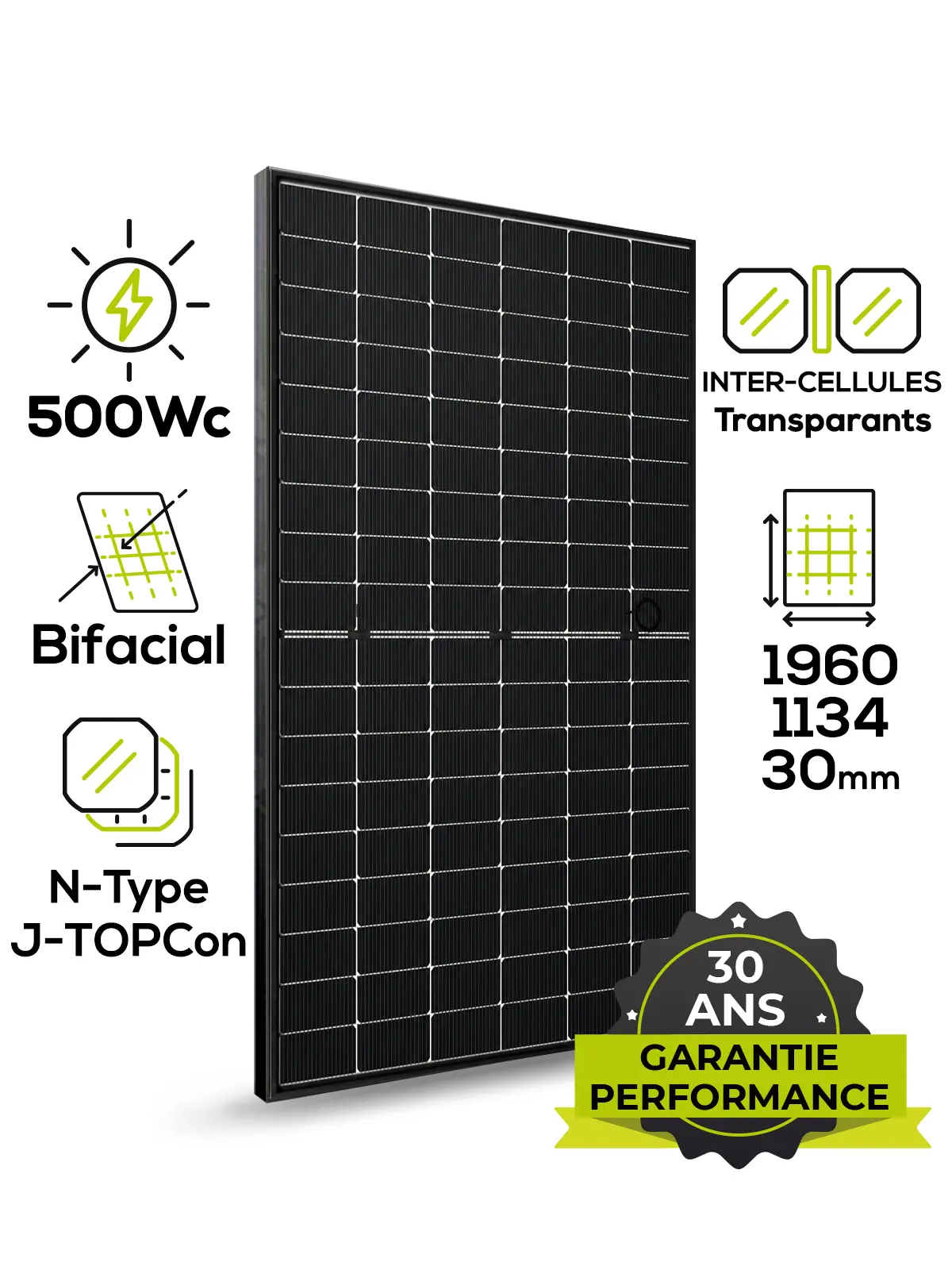

Jolywood JW-HD108N-R2 Solar Panel: N-type Bifacial Double-Glass Full Black Transparent Module

Jolywood is a recognised TIER 1 brand.

Discover the Jolywood N-Type bifacial Niwa black series panel, an innovative solution to maximise your output. Thanks to its robust double-glazed (DG) construction, it offers exceptional performance and increased longevity. Designed by a Tier 1 manufacturer, it is perfectly suited to residential and commercial projects.

Key features:

  • Power: 500W
  • Dimensions: 1960 x 1134 x 30 mm
  • Module efficiency: 22.5%
  • Voc voltage: 39.03 V
  • Vmp voltage: 33.50 V
  • Product warranty: 25 years
  • Performance warranty: 30 years (87.4%)

Technical advantages:

  • High performance: Half-cut cells to minimise losses.
  • Bifacial gain: Active light capture on both sides, enabling an output of 625W (25% rear gain).
  • Durability: Maximum protection against PID and LID thanks to double glazing.

Why choose the JOLYWOOD Niwa Black Series?

Invest in N-Type technology to eliminate common degradation issues. Its bifacial design maximises overall efficiency and reduces energy costs over 30 years.

Contact our experts for a personalised assessment and a free quote.

 Expected arrival on 15/05

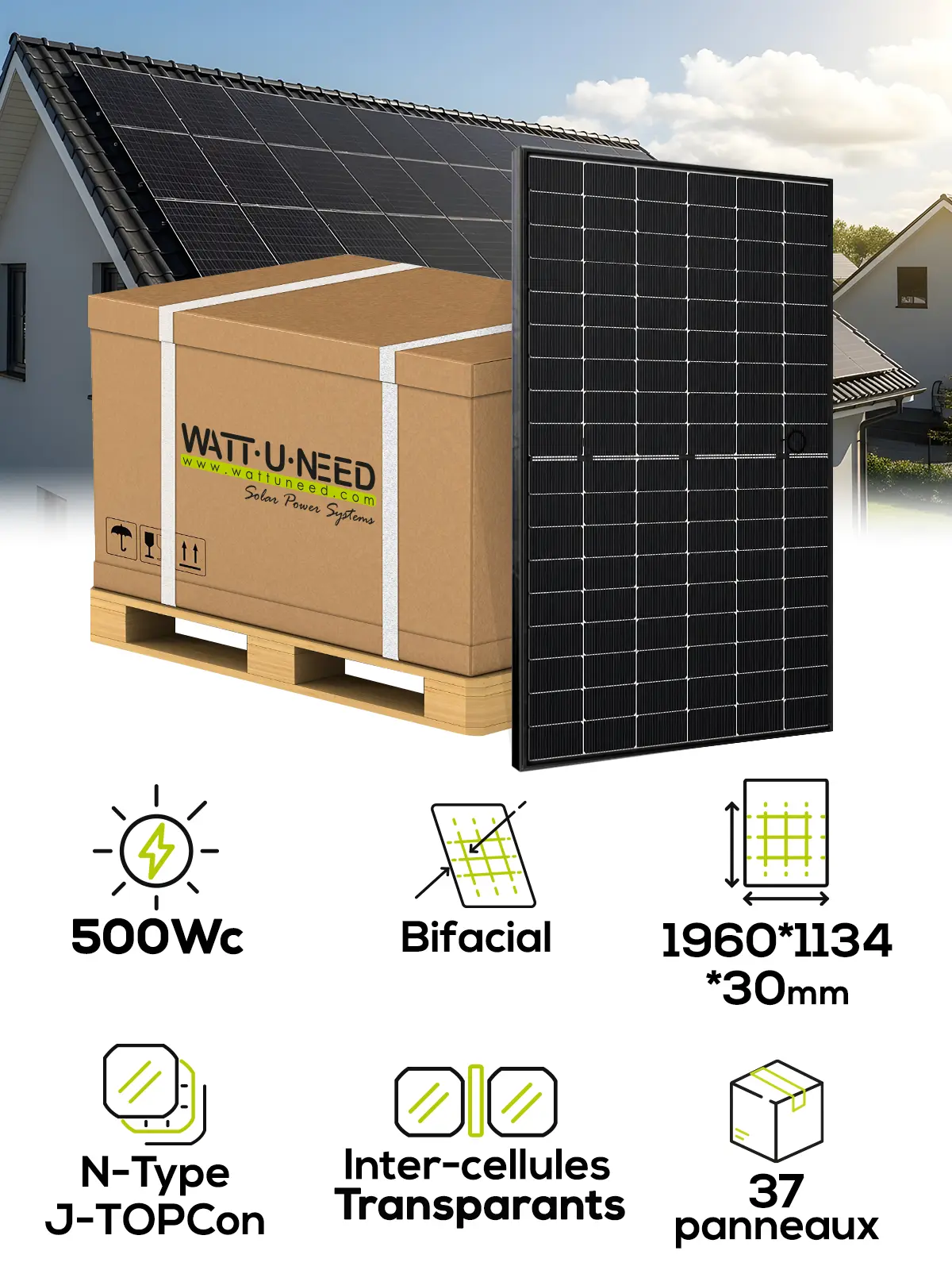

Complete pallet of 37 Jolywood 500W panels

This page is dedicated to the pallet format: 37 identical Jolywood JW-HD108N-R2 modules for large residential, commercial or installer projects. For one or a few panels, choose the individual product page.

✨ N-TYPE TECHNOLOGY

JOLYWOOD Solar Panel

Niwa Black Series
N-Type 500Wp Bifacial DG Full Black Transparent

N-Type Cells • J-TOPCon • Bifacial • IP68

⚡
500Wp
Pmax power
🔄
85%
Bifacial factor
📊
22.5%
Efficiency
🏆
Performance
30-year guarantee
87.4% minimum
🏆 GUARANTEES

Your investment 100% protected

25

PRODUCT WARRANTY

Materials & manufacturing defects

25-year guarantee
30

PERFORMANCE

87.4% guaranteed power

30-year linear
📜

CERTIFICATIONS

International Standards

ISO • CE • IEC

✨ Complete peace of mind: JOLYWOOD, a manufacturer offering a 30-year linear performance warranty.

🌱High-efficiency bifacial photovoltaic innovation

The Jolywood JW-HD108N-R2 500Wp incorporates bifacial N-type double-glass technology, designed to offer excellent efficiency, enhanced durability and optimised output even in low-light conditions. Thanks to its double-glazed design, this module ensures stable long-term performance, with a bifacial gain of up to +25% depending on installation conditions. Its transparent Full Black design also makes it a premium choice for residential and commercial projects.

🔬 Integrated technologies:
● N-type half-cut cells
● Bifacial double-glass technology
● Enhanced PID/LID protection
● High resistance to salt, ammonia and fog
📐 Key specifications
500Wp
Pmax power
22.5%
Module efficiency
1960 × 1134 × 30 mm
Dimensions
27.3 kg
Weight
☀
Premium manufacturer
Jolywood
Recognised TIER 1 manufacturer
Bifacial N-Type technology
15-year product warranty
30-year performance warranty

⭐ Exclusive technical advantages

Discover the innovations that make the difference

🛡️

N-Type technology

30-year stable performance guarantee
Reduced shading effects

Power guarantee
87.4% after 30 years
⚡

Bifacial production

Active double-sided capture
Up to 25% more energy

Pmax with 25% gain
625W
🔋

Premium double glazing

2.0mm semi-tempered glass
Optimised protection

Double Glass (DG)
Double Glass (DG)
🌡️

Thermal efficiency

Optimised coefficient of -0.29%
Excellent in low light

Operating temperature
-40°C to +85°C

🏠 Ideal applications

Maximise the potential of your JOLYWOOD

🏘️ Premium residential

Full Black aesthetic for villas

Advantage: Elegant visual integration with a black anodised aluminium frame.

🏢 Commercial & Industrial

Commercial buildings and warehouses

Benefit: Double-sided double-glazed structure ideal for optimising the LCOE of large areas.

🌾 Agricultural & Harsh Environments

Resistant to salt, ammonia and mist

Certified: Complies with IEC 61701/62716 for maximum durability in harsh conditions.

🔧 Compatibility & Installation

🔌 Connectors

  • Compatible with MC4 connectors
  • 4mm² cables (250mm+/350mm-)
  • IP68 junction box (3 LEDs)

📐 Dimensions & Resistance

  • Dimensions: 1960 × 1134 × 30 mm
  • Weight: 27.3 kg
  • Front load: 5400 Pa
  • Rear Face Load: 2400 Pa

⚙️ System Configuration

  • Max System Voltage: 1500V DC
  • Max. Series Fuse: 35A
  • Cells: 108 N-type mono

🌍 Standards & Logistics

  • IEC 61215 / 61730 / 61701 / 62716
  • ISO 9001 / 14001 / 45001

🚀 Your solar project with Jolywood

✨ Personalised technical study • Expert advice

• No obligation





FAQ - JOLYWOOD JW-HD108N-R2 500WC SOLAR PANEL

1. What are the main features of this Jolywood solar panel? +
This Jolywood solar panel has a power output of 500 Wp and uses N-type monocrystalline cells. It is a 108-cell Full Black Transparent bifacial double-glass module, designed to maximise solar production and deliver excellent performance in both residential and commercial projects.
2. What is the module’s efficiency? +
The module’s efficiency is approximately 22.5%, making it a high-performance solution for optimising energy production. The product page also highlights good thermal efficiency, a Pmax coefficient of -0.29%/°C and good performance in low light conditions.
3. What are the benefits of bifacial technology? +
Bifacial technology enables active light capture on both sides of the solar panel. Depending on the source, the rear-side gain can reach 25%, which allows power output to be increased to up to 625 W under favourable conditions and improves the overall efficiency of the installation.
4. What warranties are available for this panel? +
The Jolywood JW-HD108N-R2 comes with a 15-year product warranty and a 30-year linear performance warranty. The guaranteed power output after 30 years is stated as 87.4%, which reinforces the module’s durability and long-term cost-effectiveness.
5. Is this panel designed to withstand demanding conditions? +
Yes, its double-glazed construction provides enhanced protection against PID and LID. The source also indicates an IP68-rated junction box, resistance to operating temperatures from -40°C to +85°C, as well as suitability for saline, ammonia and fog environments.
6. For what types of projects is this solar panel recommended? +
This solar panel is described as suitable for premium residential projects, commercial and industrial buildings, as well as agricultural or harsh environments. Its Full Black design, black anodised aluminium frame and MC4 compatibility make it easy to integrate into high-performance, sustainable installations.
palette-JW-HD108N-R2-500

Data sheet

Max. power - Wp
500
Open circuit voltage (Voc)
39,03 V
Short-circuit current (Isc)
15,78 A
Max. power voltage (Vmp)
33,50 V
Max. power current (Imp)
14,92 A
Panel yield
22,50 %
Operating temperature
-40~+85°C
Number of cells
108
Color
Full Black
Panel type
Rigids
Cells
N-Type Mono
Width
1134 mm
Height
1960 mm
Frame
30 mm
IP protection
IP 68
Temperature coefficient Isc
0.045%/°C
Temperature coefficient Voc
-0.25%/°C
Temperature coefficient Pmax
-0.29 %/℃
Weight
27,3 kg
Maximum system voltage
1500V DC (IEC)
Output tolerance
0~+5W
Fuse current
35 A
Frame type
Black anodized aluminum alloy

Specific References

EAN13
4040326103944
MPN
JW-HD108N-R2-500
New

Palette 37 X Jolywood JW-HD108N-R2 500Wc N-Type Bifacial Full Black Transparent — Solar panels

Palette 37 X Jolywood JW-HD108N-R2 500Wc N-Type Bifacial Full Black Transparent by Jolywood is available in our Solar panels catalog. Technical specifications: max. power - wp: 500, open circuit voltage (voc): 39,03 V, short-circuit current (isc): 15,78 A, max. power voltage (vmp): 33,50 V, max. power current (imp): 14,92 A, panel yield: 22,50 %, operating temperature: -40~+85°C, number of cells: 108, color: Full Black, panel type: Rigids, cells: N-Type Mono, width: 1134 mm, height: 1960 mm, frame: 30 mm, ip protection: IP 68, temperature coefficient isc: 0.045%/°C, temperature coefficient voc: -0.25%/°C, temperature coefficient pmax: -0.29 %/℃, weight: 27,3 kg, maximum system voltage: 1500V DC (IEC), output tolerance: 0~+5W, fuse current: 35 A, frame type: Black anodized aluminum alloy. Product weight: 1025.0 kg. Reference: palette-JW-HD108N-R2-500.
