Kit 15 panels consumption / reinjection sort 5000W without storage
Solar inverter SMA SUNNY tripower
Solar panel JNLSOLAR Full Black
Solar inverter SMA SUNNY tripower
Solar panel JNLSOLAR Full Black

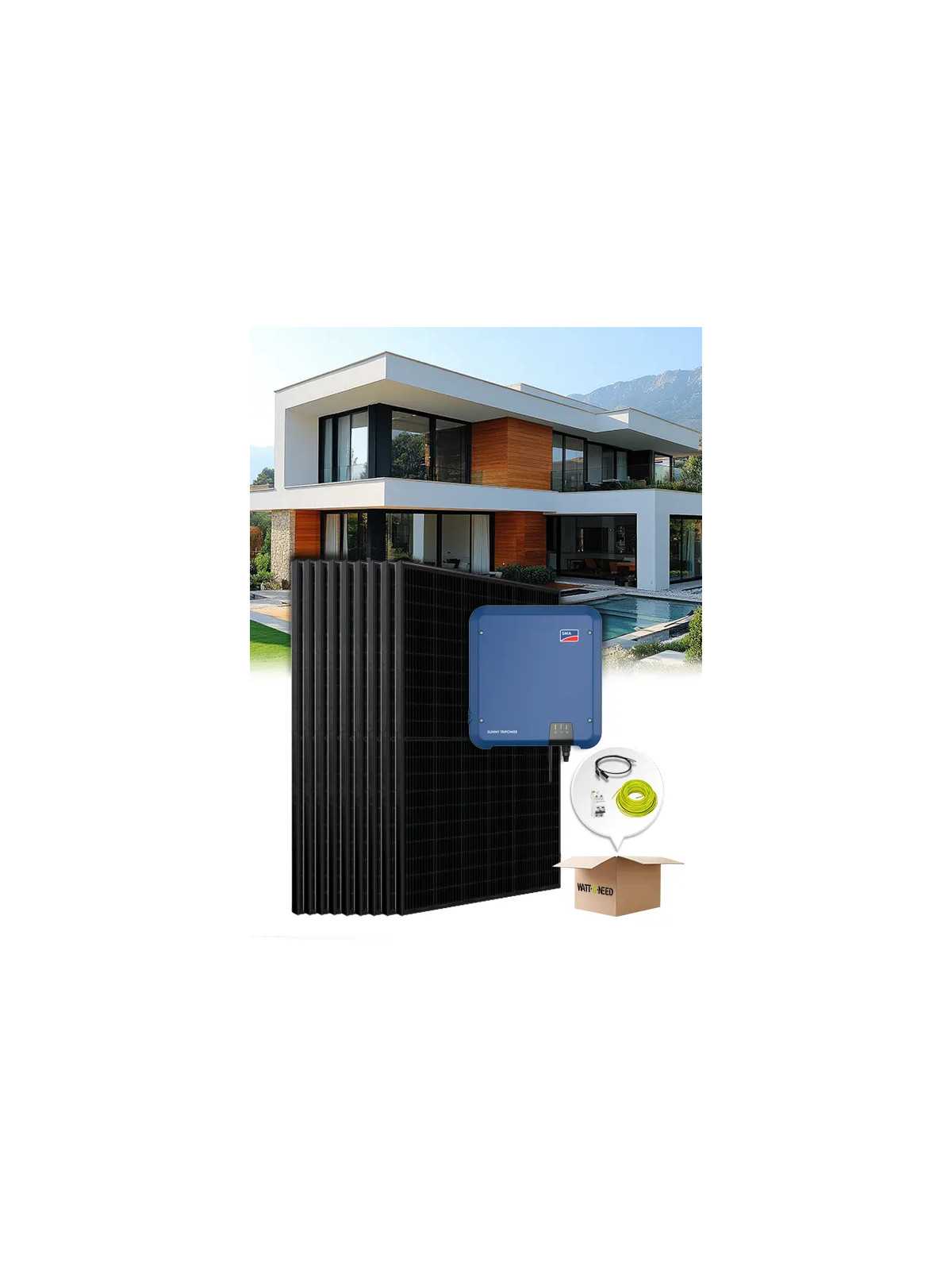

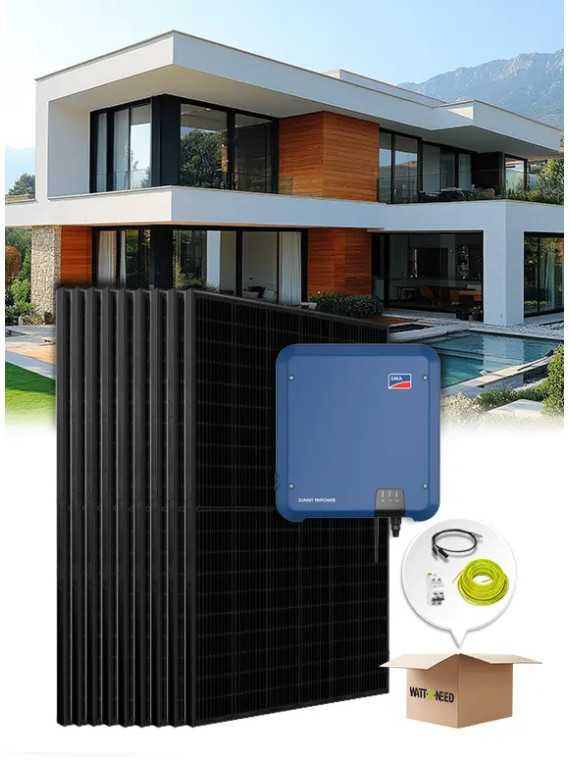

Kit 15 panels self-consumption / reinjection tri 5000W SMA without storage

€1,874.71
10233
0712971138025
100% secure payments

This kit includes

  • 15XSunpro Power M10 430Wp Solar Panel SPDG430-N108M10

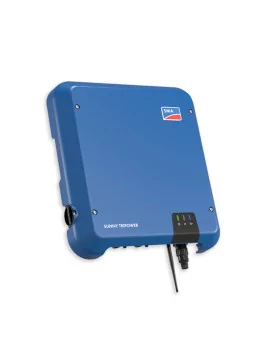

  • 1XThree-phase inverter SMA Sunny Tripower 5 kVA TL INT BLUE STP5.0-3AV-40
  • 1XSchneider 16A tetra circuit breaker

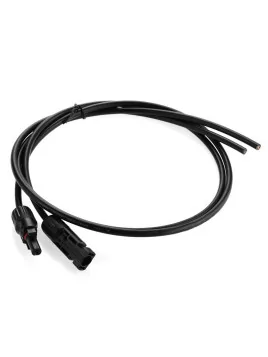

  • 2X2X4mm2 solar cable with Type MC4 (sold by the meter - 15m)
  • 1XEarth cable 1x6 mm2 20m

Select products from the sections below
Panneaux
info
JNL Solar Climax Solar Panel 400 Wp JLS108MFB
Sunpro Power M10 430Wp Solar Panel SPDG430-N108M10
Price per unit
€111.87  (Tax incl.)
Choix de l'onduleur
info
Choix du système de montage
info
No products selected
Price per unit
€0.00  (Tax incl.)
Protections et accessoires AC
info
Schneider Breaker tetra 16A
Schneider 16A tetra circuit breaker
Price per unit
€43.22  (Tax incl.)
Protections et accessoires DC
info
No products selected
Price per unit
€0.00  (Tax incl.)
Câblage et connectique
info
Câblage et connectique
info
Earth cable 1x6 mm2 10m
Earth cable 1x6 mm2 20m
Price per unit
€52.63  (Tax incl.)
FRAIS INSTALLATION - CLIENTS BELGES
info
No products selected
Price per unit
€0.00  (Tax incl.)
CHOIX MAIN D'OEUVRE - CLIENTS BELGES
info
No products selected
Price per unit
€0.00  (Tax incl.)

Kit 15 panels...

€1,874.71

All our kits are configurable. In the options you can click on the product to choose another model or change the quantities to adapt the kit to your needs. You can also see the details of the chosen products directly below the price.

This kit is sized with the general purpose of being installed with the public network.

The basic composition of the kit contains 15 solar panels, a SMA sunny three-phase STP 5.0 TL INT inverter, the solar cables to connect the panels to the inverter and from the inverter to your electrical panel, the panel mounting system is available as an option. (The mounting system as well as the wiring and protections can be modified to meet your needs).



SOLAR PANELS:

In its basic version, this photovoltaic system will bring you an average of 18Kwh per sunny day. The productions will depend on the seasons (summer/winter) on the geographical position and the inclination of the panels.

We invite you to consult Our solar production simulator to determine precisely what your solar production will be.

Warranty 25 years at 80% of the rated power.



NETWORK:

The SMA Sunny Boy 5.0 is ideal for solar energy production for single-family homes.

5-year warranty



CABLE AND CONNECTORS:

All cables and connections are pre-wired in our workshops. Our kits are very easily assembleable by 'beginners' in electricity. For those who have some reservations about the technical side, our technical team assists you and helps you every day from 8am to 5pm.



ASSEMBLY:

The installation of this kit is very simple. Our instructions are clear and allow easy assembly without special knowledge. We answer all your questions before, during and after the installation of your system.



GUARANTEE:

All products have an individual warranty.
Panels guaranteed 25 years at 80% of the rated power.
SMA inverter guaranteed for 5 years.

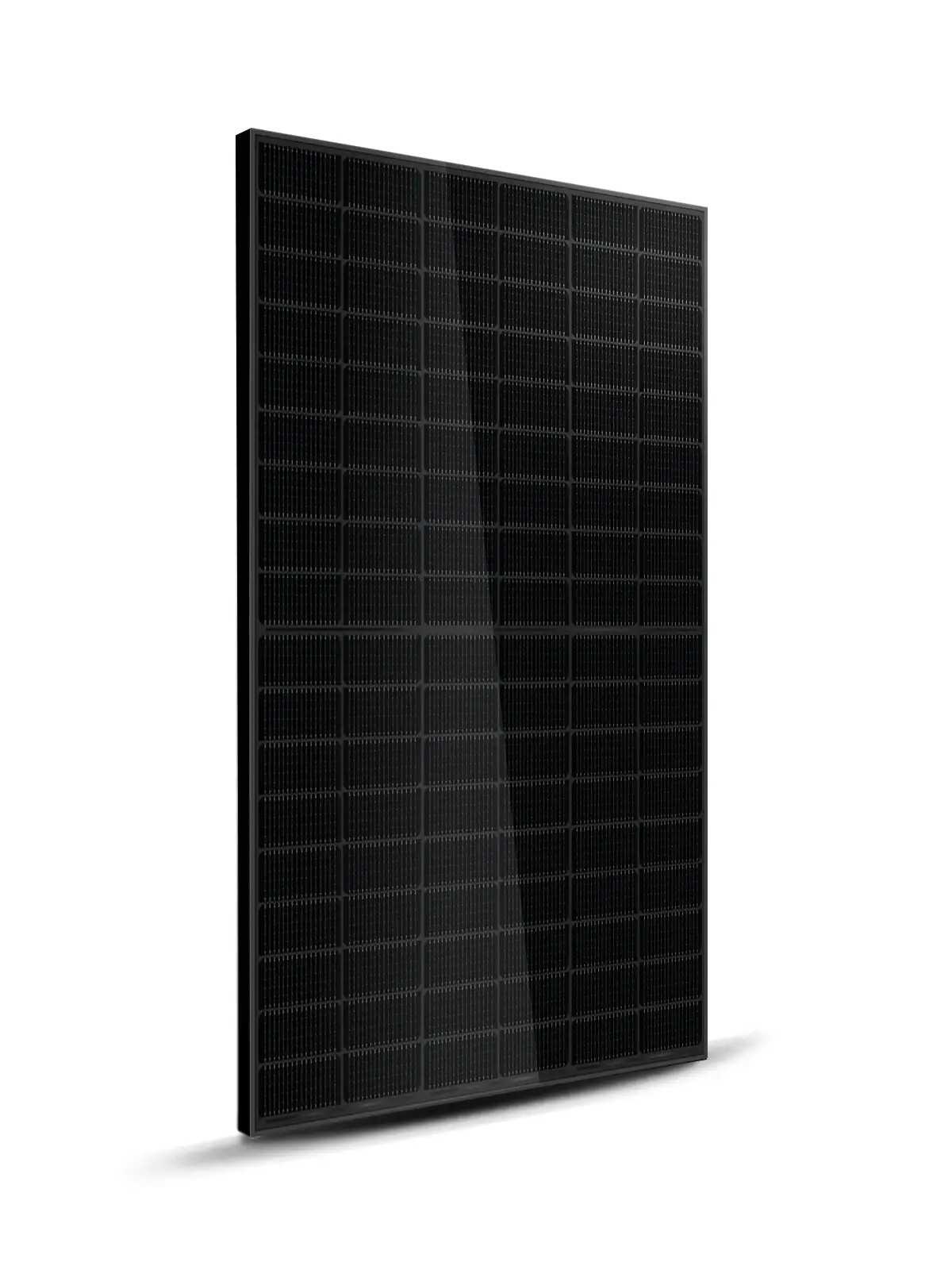

Panneau solaire Cortex Omnis 405





Solar panel



The basic selected panel in this kit has been chosen according to our supplies.
You will find the characteristics of the latter by going to see its product sheet in the panel category.

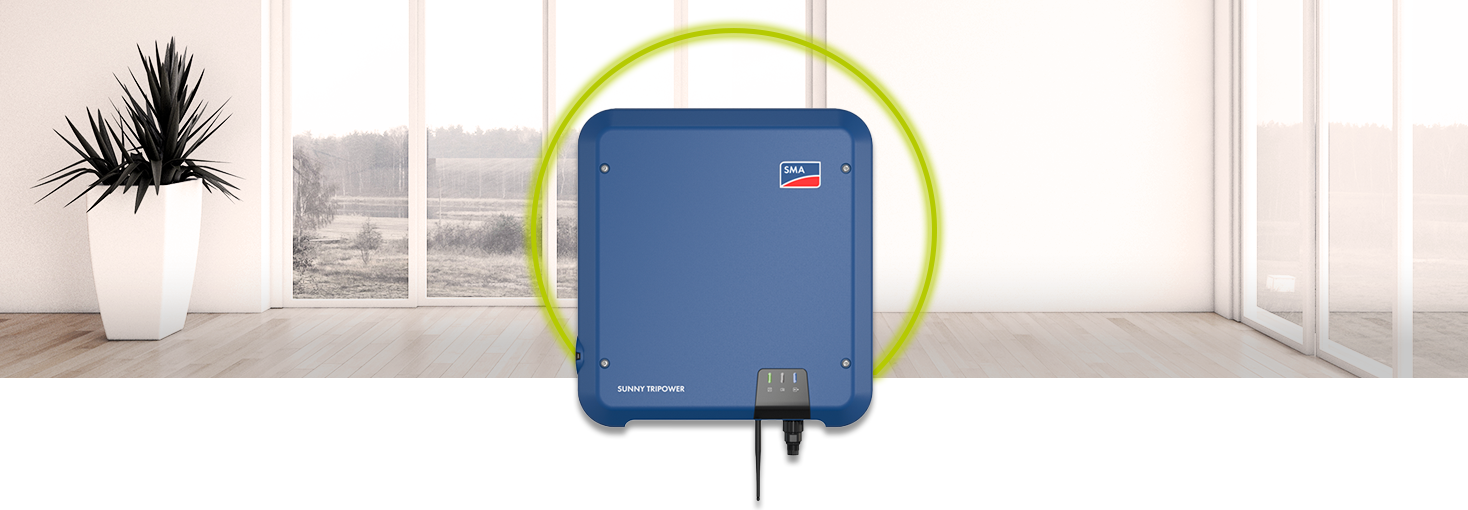

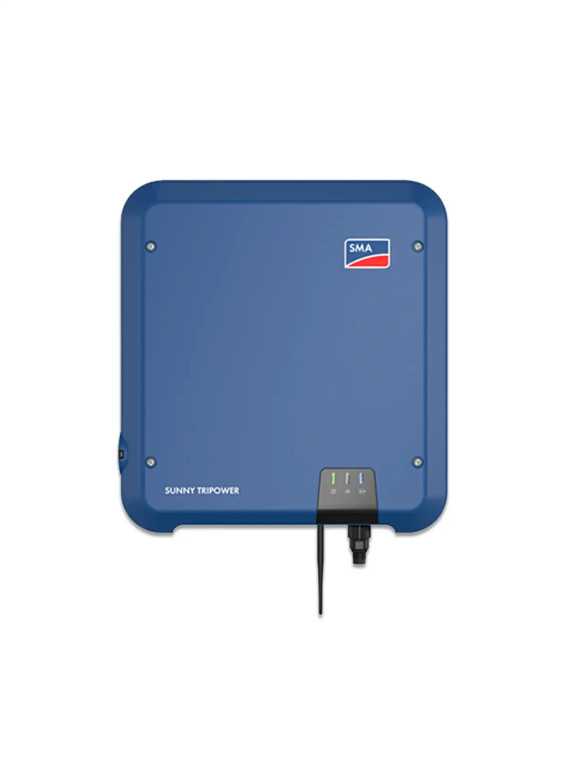

Onduleur SMA Sunny Tripower STP 5.0 TL INT Blue



SMA Sunny Tripower STP 5.0 TL INT Blue



SMA Sunny Tripower three-phase inverter - model: 5.0TL

This inverter is optimal for both traditional residential photovoltaic installations and much more powerful installations.

  • Maximum yield of 98%
  • Shading management with Opti-Trac Global Peak
  • Active temperature management with OptiCool











Characteristics



Specifications Sunny Tripower 5;0
Input (DC) 9000 Wp
Max. power of the photovoltaic generator 850 V
Max input voltage 215 V to 800 V
MPP voltage range 580 V
Rated input voltage 125 V / 150 V
Min. input voltage / starting input voltage Max. input current A / B input 12 A / 12 A
Short circuit current max. input A / input B 18 A / 18 A
Number of independent MPP inputs / strings per MPP Output (AC) input 2 / A:1; B:1
Rated power (for 230 V, 50 Hz) 5000 W
Apparent power AC max. 5000 VA
Rated AC voltage 3/N/PE; 220 V / 380 V 3/N/PE; 230 V / 400 V 3/N/PE; 240 V / 415 V
AC voltage range 180V to 280V
AC Network Frequency / Range 50 Hz / 45 Hz to 55 Hz 60 Hz / 55 Hz to 65 Hz
Rated network frequency / rated network voltage 50 Hz / 230 V
Max output current 3 x 7.6 A
Power factor at rated power / adjustable phase shift factor Injection phases / Connection phases 1 / 0.8 inductive to 0.8 capacitive
Yield
Max. yield / European yield 98,2 % / 97,4 %
General characteristics
Dimensions (W/H/D) 435 mm / 470 mm / 176 mm (17.1 inches / 18.5 inches / 6.9 inches)
Weight 17 kg (37.4 lb)
Operating temperature range −25 °C to +60 °C (−13 °F to +140 °F)
Noise emissions, typical 30 dB(A)
Self-consumption (night) 5.0 W
Topology / Cooling system Without transformer / Convection
Protection class (according to IEC 60529) IP65
Climate class (according to IEC 60721-3-4) 4K4H
Maximum allowable value for relative air humidity (non-condensing) Equipment 100,00%

Connection diagram



Schéma de connexion

10233
500 Items

Data sheet

Inverter power
5000VA
Kit output voltage
400V
Type of need
Self-consumption
Battery storage
Without storage
Wind turbine
Without
Number of panels
15 panels
Phase
Triphasé
Mains re-injection
With
