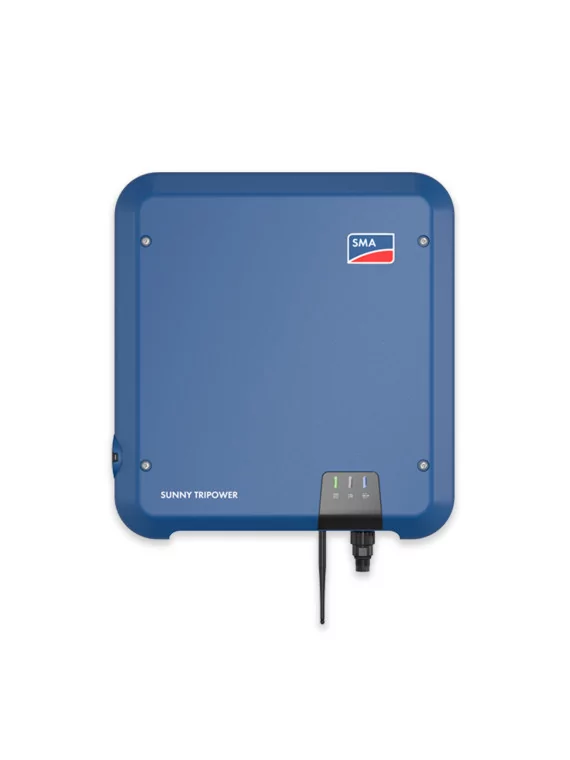

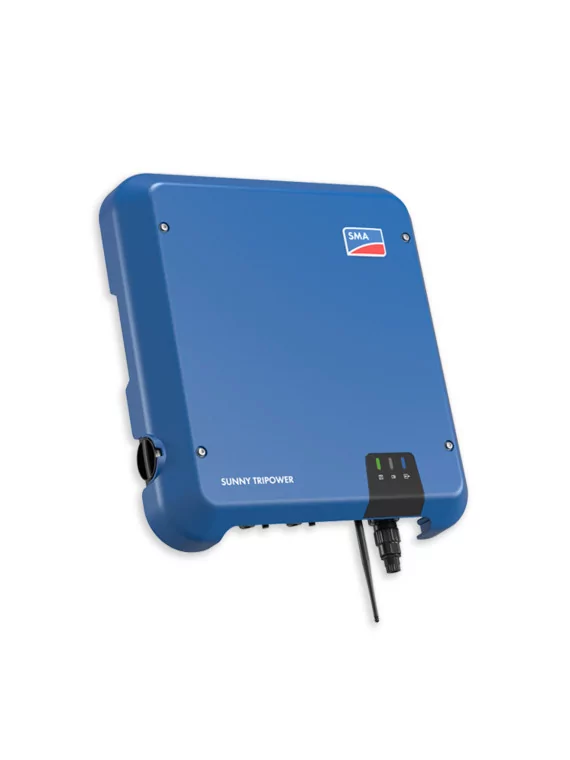

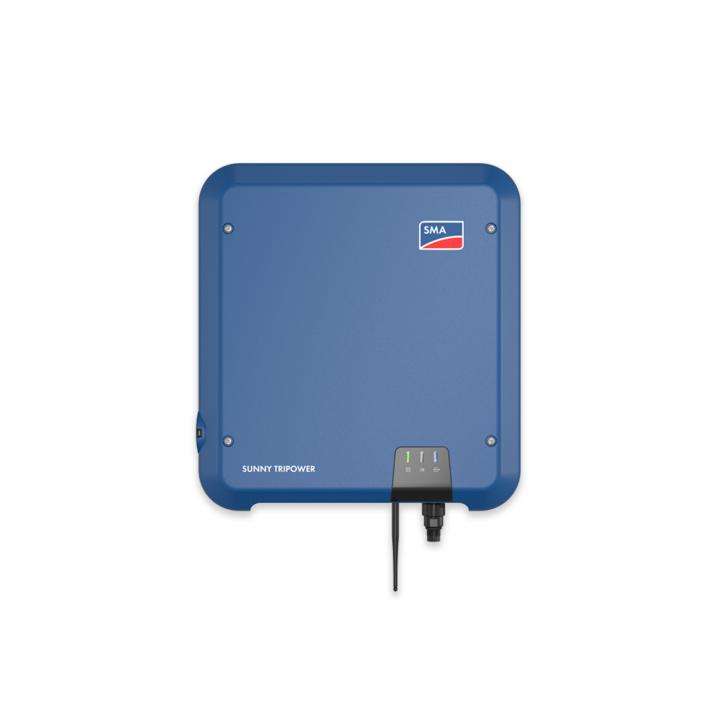

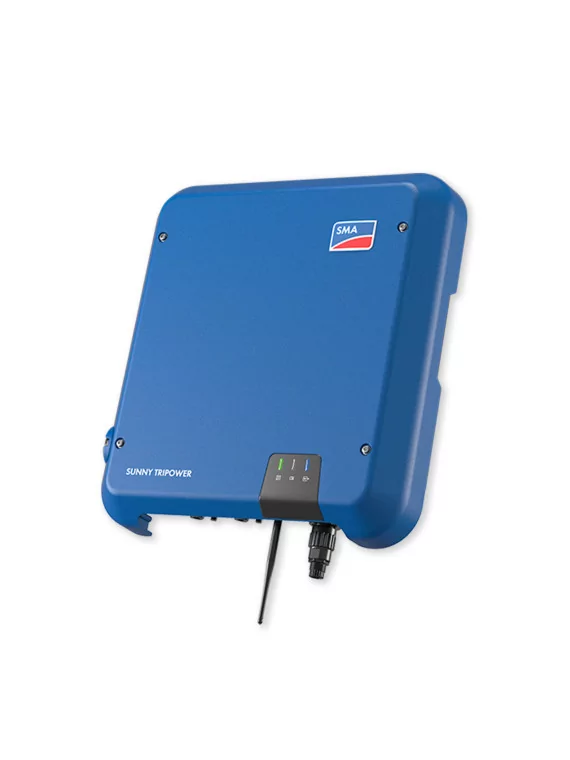

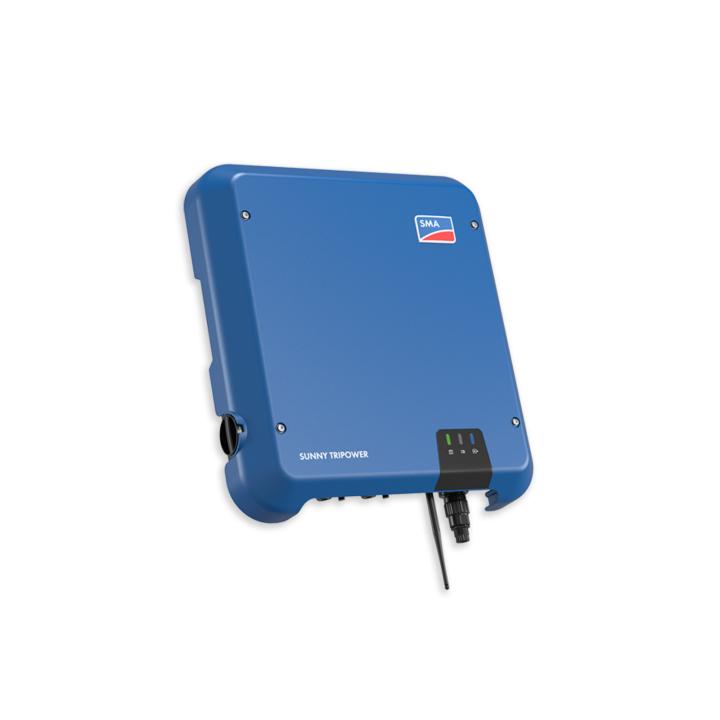

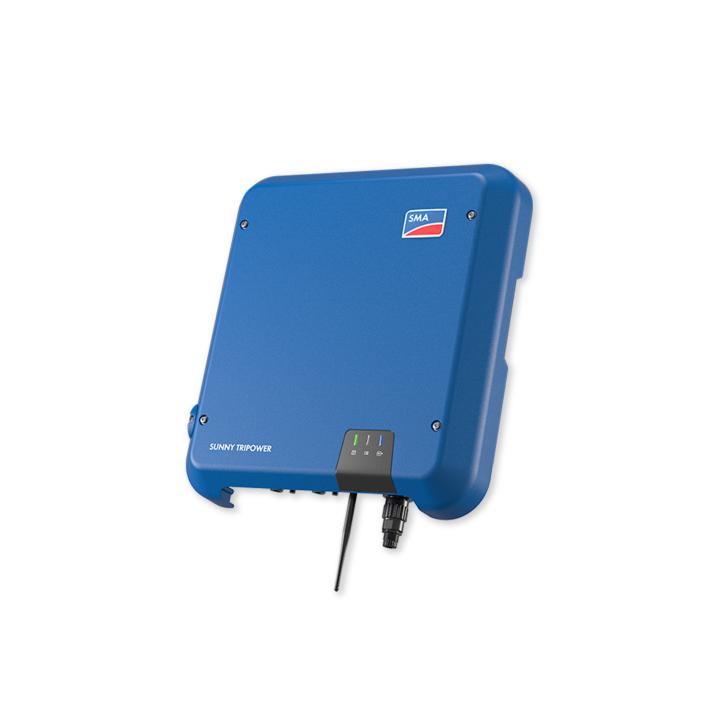

Three-phase inverter SMA Sunny Tripower 5 kVA TL INT BLUE STP5.0-3AV-40

€1,336.00
Tax included
STP5.0-3AV-40
0712971139473

Three-phase inverter SMA Sunny Tripower 5.0 TL INT BLUE: Efficiency at the heart of your solar installation

Maximize your renewable energy production with the three-phase inverter SMA Sunny Tripower 5.0 TL INT BLUE. Designed for residential and commercial photovoltaic installations, this premium inverter guarantees optimal performance and unmatched flexibility of use.

Advantages:

  • Exceptional efficiency: With an efficiency of up to 98%, this inverter optimizes your energy production and reduces your electricity bills.
  • Smart shading management: The Opti-Trac Global Peak technology adapts to variable sunlight conditions, maximizing your energy output even in shaded areas.
  • Installation flexibility: Compatible with a wide range of photovoltaic modules, this inverter fits all types of installations.

Why choose it?

  • Reliability and durability: SMA is a brand renowned for the quality and longevity of its products.
  • Cutting-edge technology: Benefit from the latest innovations in photovoltaic inverters for optimal performance.
  • Simplified installation: Thanks to its compact design and quick connectors, the installation of this inverter is made easy.

Specifications:

  • Nominal power: 5 kVA
  • Maximum DC input voltage: 1000 V
  • Features: Opti-Trac Global Peak, OptiCool, reactive power injection...

Ready to switch to solar energy?

SMA Sunny Tripower 5 kVA three-phase solar inverter: maximum yield and flexibility

Onduleur triphasé SMA Sunny Tripower STP 5.0 TL INT BLUE

Description

Economical

  • Maximum efficiency 98%
  • Shading management with Opti-Trac Global Peak
  • Active temperature management with OptiCool

Flexible

  • DC input voltage up to 1000 V
  • Integrated grid management functions
  • Reactive power injection
  • Precise sizing of system modules with Optiflex

Interactive

  • Easy adjustment of regional parameters
  • Multifunction relay as standard

Simple

  • Three-phase injection
  • Tool-free cable connection
  • SUNCLIX DC connection system
  • Integrated ESS DC switch-disconnector
  • Simple wall mounting
Optitrac de SMA

Optitrac

OptiTrac Global Peak is an additional MPP tracker function for operation in partially shaded PV systems.
This specialized operating management system ensures that the modules are constantly operated at maximum power, even in the presence of several maximum powers (in the case of partially shaded PV systems), with no measurable loss of yield (loss <0.2%), . In other words, even if the shading panels are operating correctly.

Features

Technical data Sunny Tripower 3.0 Sunny Tripower 4.0 Sunny Tripower 5.0 Sunny Tripower 6.0
Input (DC) 6000 Wp
Wp
Wp
Wp
Max. power of photovoltaic generator 850 V
Max. input voltage 140
V to 800 V 175 V to 800 V 215 V to 800 V 260 V to 800 V
MPP voltage range
V
Rated input voltage 125 V / 150 V
Input voltage min.
/ start-up input voltage Max. input current input A / input B 12 A / 12 A
Max. short-circuit current.
input A / input B 18 A / 18 A
Number of independent MPP inputs / strings per MPP input Output (AC)
/ A:1; B:1
Rated power (at 230 V, 50 Hz) 3000 W 4000 W 5000 W 6000 W
Max. apparent AC power 3000
VA 4000 VA 5000 VA 6000 VA
Rated AC voltage
; 220 V / 380 V 3/N/PE; 230 V / 400 V 3/N/PE;
240 V / 415 V
AC voltage range 180 V to 280 V
AC mains frequency / Range 50 Hz / 45 Hz to 55 Hz 60 Hz to 65 Hz
Rated mains frequency / Rated mains voltage 50 Hz / 230 V
Max. output current 3
x 4.5 A
x 5.8 A
x 7.6 A
x 9.1 A
Power factor at rated power / adjustable phase shift factor Injection phases / Connection phases
/ 0.8 inductive to 0.8 capacitive
Efficiency
Max. efficiency. / European efficiency 98.2 % / 96.5 % 98.2 % / 97.1 98.2 % / 97.4 % 98.2 % / 97,6 %
Protective devices
Input-side disconnection device ●
Ground fault monitoring / network monitoring ●/●
DC reverse polarity protection / AC short-circuit resistance / galvanic separation ●/●/-
Fault current monitoring unit,
sensitive to all currents Protection class (according to IEC 62103) / overvoltage category (according to IEC 60664-1) ●
Protection class (according to IEC 62103) / overvoltage category (according to IEC 60664-1)
/ III
General features
Dimensions (L/H/P)
mm / 470 mm / 176 mm (17,1 inches / 18.5 inches / 6.9 inches)
Weight 17 kg (37.4 lb)
Operating temperature range -25 °C to +60 °C (-13 °F to +140 °F)
Noise emissions, typical 30 dB(A)
Autoconsumption (night)
,0 W
Topology / Cooling system Transformerless / Convection
Protection class (to IEC 60529) IP65
Climatic class (to IEC 60721-3-4)
Maximum permissible value for relative air humidity (non-condensing) Equipment 100,00%
Equipment
DC
/ AC connection SUNCLIX / AC plug
Shade management :
OptiTrac Global Peak / TS4-R ●/○
Warranty :
5 / 10 / 15 years ●/○/○
Certifications and approvals (others on request) AS 4777, C10/11, CE, CEI 0-21, DIN EN 62109-1/IEC 62109-1, DIN EN 62109-2/IEC 62109-2, EN 50438, G59/3, G83/2, NEN-EN 50438, ÖVE / ÖNORM E 8001-4-712, PPDS, PPC, RD 1699, SI 4777, TR 3.2.1, UTE C15-712, VDE-AR-N 4105, VDE-0126-1-1, VFR 2014
Certifications and approvals (planned) DEWA 2016, EN 62116, IEC 61727, IE-EN 50438, NBR 16149, NRS 097-2-1
Type designation STP3.0-3AV-40 STP4.0-3AV-40 STP5.0-3AV-40 STP6.0-3AV-40
STP5.0-3AV-40

Data sheet

Inverter power
5000VA
Max. solar input voltage
1000 V
Phase
Triphasé
Number of MPPT
2 MPPT
Video Youtube 1 - ID
XrSVcrtJ2wA
Video Youtube 2 - ID
M6N79eT28WU
Video Youtube 3 - ID
zQH0cbvMwj8

Specific References

UPC
712971139473
EAN13
0712971139473
