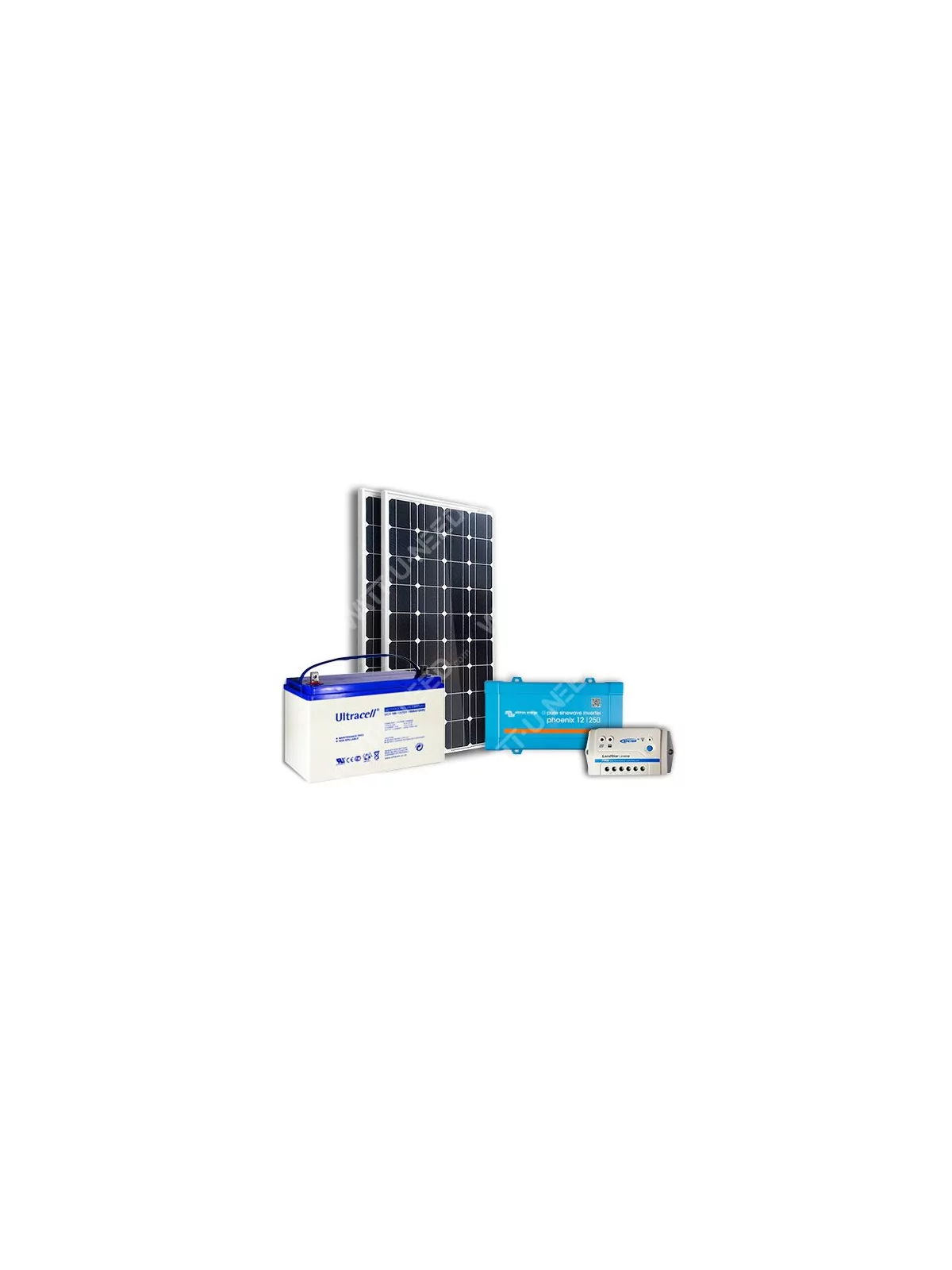

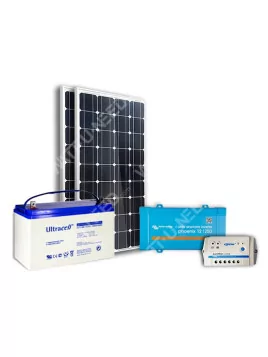

Kit solar 200Wc mono - 100Ah - 250VA

Wattuneed

590,87 € tax incl.

Add to cart

Solar Kit Nomad ready to use delivered 100% complete. Ideal for your consumer less than 250 Watts. It is suitable for food outside networks from:

  • mobile phones
  • laptops
  • lighting
  • small fridge etc

Thanks to its built-in battery, you have power even outside of daylight hours. The inverter transforms direct current from the battery in order tosupply consumers on plug 230V. Both 100pw panels can produce up to 1kw per sunny day.

More details

Équipements
Descriptions équipements
Customize

Choice of panels

93.91
Sélectionné

Monocrystalline solar panel 12V 100pw

321.46
Sélectionné

Panasonic HIT N335 Wc solar panel

441.65
Sélectionné

LG 365Wc NeON R monocrystalline solar panel

200
Sélectionné

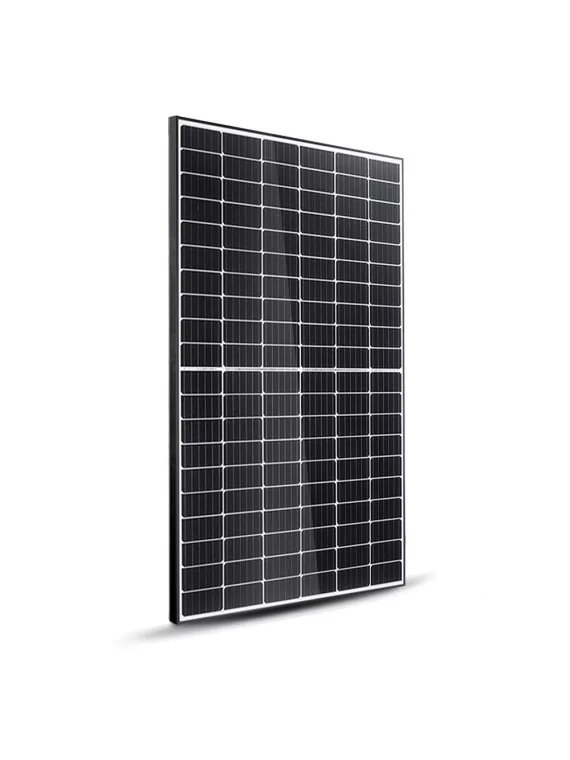

Solar panel Q.Cells DUO 360Wc G8 mono

See product
Monocrystalline solar panel 12V 100pw

config

93,91 €

QTT

See product
Panasonic HIT N335 Wc solar panel

config

321,46 €

QTT

See product
LG 365Wc NeON R monocrystalline solar panel

config

441,65 €

QTT

See product
Solar panel Q.Cells DUO 360Wc G8 mono

config

200,00 €

QTT

The choice of the regulator

See product
Epever LS2024 LandStar PWM 12V / 24V - 20 A
Out of stock

config

39,90 €

QTT

See product
Digital display for Epsolar LS and BN controllers

config

32,30 €

QTT

See product
Epsolar VS-A Serie with Digital Display PWM 12V / 24V- 10A
Out of stock

config

54,40 €

QTT

See product
Epsolar MPPT XTRA-N Serie 20A

config

115,00 €

QTT

See product
Solar Controller MPPT 20A SRNE

config

76,60 €

QTT

See product
Solar Controller SRNE PWM HP 12/24V 10A

config

16,13 €

QTT

See product
Solar Controller SRNE PWM HP 24V 30A

config

34,30 €

QTT

See product
Epever MPPT XTRA N Serie 10A

config

77,00 €

QTT

See product
Solar Controller MPPT 10A SRNE

config

54,50 €

QTT

See product
Solar Regulator MPPT 40A SRNE ML2440

config

133,10 €

QTT

See product
Solar controller SRNE PWM HC 12/24V 20A

config

38,30 €

QTT

The choice of the inverter

116.16
Sélectionné

Victron Phoenix 12V / 24V / 48V - 250VA

150.04
Sélectionné

Victron Phoenix 12V / 24V / 48V - 375VA

338.8
Sélectionné

Victron Phoenix VE converter. Direct 12/24/48V - 800VA

496.1
Sélectionné

Victron Phoenix VE converter. Direct 12/24/48V - 1200VA

496.1
Sélectionné

Victron Phoenix Converter 12V / 24V / 48V - 1200VA

765.93
Sélectionné

Victron Phoenix Inverter 1200 to 5000VA

2616
Sélectionné

Victron Phoenix Inverter 48V - 5000VA

See product
Victron Phoenix 12V / 24V / 48V - 250VA

config

116,16 €

QTT

See product
Victron Phoenix 12V / 24V / 48V - 375VA

config

150,04 €

QTT

See product
Victron Phoenix VE converter. Direct 12/24/48V - 800VA

config

338,80 €

QTT

See product
Victron Phoenix VE converter. Direct 12/24/48V - 1200VA

config

496,10 €

QTT

See product
Victron Phoenix Converter 12V / 24V / 48V - 1200VA

config

496,10 €

QTT

See product
Victron Phoenix Inverter 1200 to 5000VA

config

765,93 €

QTT

See product
Victron Phoenix Inverter 48V - 5000VA

config

2 616,00 €

QTT

Wiring and connectivity

See product

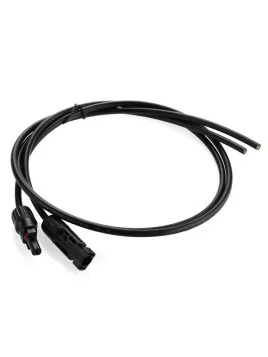

2X4mm2 solar cable with Type MC4 (sold by -5m)

config

13,80 €

QTT

See product
Double type MC4-like connector male & female

config

16,00 €

QTT

See product
2X4mm2 solar cable with MC4 type (sold per metre)

config

4,60 €

QTT

See product
XVB 3G2.5 mm - 1m electric cable

config

1,80 €

QTT

See product
XVB 3G4 mm - 1m electric cable

config

3,55 €

QTT

See product
Solar cable 1X6mm2 (sold per metre)

config

1,46 €

QTT

See product
1X4mm2 solar cable (sold per metre)

config

1,23 €

QTT

See product
Male and female MC4-like connectors

config

5,00 €

QTT

See product
Triple MC4-like connector male + female

config

24,00 €

QTT

Battery choice

199
Sélectionné

Ultracel GEL battery 12V 100Ah

139.37
Sélectionné

Ultracell 12V 55Ah GEL battery

294.43
Sélectionné

Ultracel GEL battery 12V 150Ah

397
Sélectionné

Ultracell GEL battery 12V 200Ah

534.4
Sélectionné

Ultracel GEL battery 12V 250Ah

134
Sélectionné

PowerBrick 12V 7.5Ah lithium battery

177.6
Sélectionné

PowerBrick Lithium Battery 12V 12Ah

264.85
Sélectionné

PowerBrick Lithium Battery 12V 20Ah

852.59
Sélectionné

PowerBrick Lithium Battery 12V 70Ah

1186.73
Sélectionné

PowerBrick Lithium Battery 12V 100Ah

2336.23
Sélectionné

PowerBrick+ 12V 250Ah lithium battery

1344
Sélectionné

PowerBrick Lithium Battery 48V 25Ah

1613.1
Sélectionné

RebelCell Battery Lithium 12V 140Ah

2273.9
Sélectionné

RebelCell Lithium Battery 24V 100Ah - 100AV

See product
Ultracel GEL battery 12V 100Ah

config

199,00 €

QTT

See product
Ultracell 12V 55Ah GEL battery

config

139,37 €

QTT

See product
Ultracel GEL battery 12V 150Ah

config

294,43 €

QTT

See product
Ultracell GEL battery 12V 200Ah

config

397,00 €

QTT

See product
Ultracel GEL battery 12V 250Ah

config

534,40 €

QTT

See product
PowerBrick 12V 7.5Ah lithium battery

config

134,00 €

QTT

See product
PowerBrick Lithium Battery 12V 12Ah

config

177,60 €

QTT

See product
PowerBrick Lithium Battery 12V 20Ah

config

264,85 €

QTT

See product
PowerBrick Lithium Battery 12V 70Ah

config

852,59 €

QTT

See product
PowerBrick Lithium Battery 12V 100Ah

config

1 186,73 €

QTT

See product
PowerBrick+ 12V 250Ah lithium battery

config

2 336,23 €

QTT

See product
PowerBrick Lithium Battery 48V 25Ah

config

1 344,00 €

QTT

See product
RebelCell Battery Lithium 12V 140Ah

config

1 613,10 €

QTT

See product
RebelCell Lithium Battery 24V 100Ah - 100AV

config

2 273,90 €

QTT

BATTERY ACCESSORIES

9.9
Sélectionné

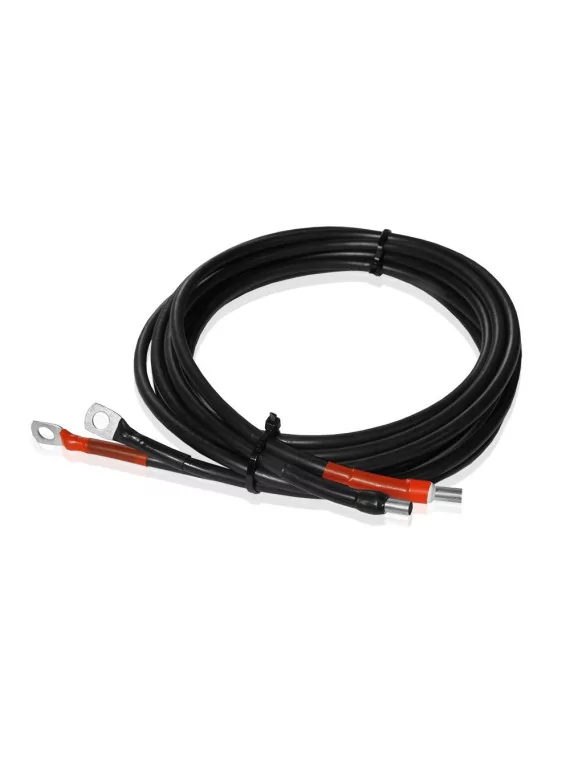

Battery cable 2x4mm2 - 2m

17.9
Sélectionné

Battery cable 2x16mm2 - 2m

30.3
Sélectionné

Battery cable 2x25mm2 - 2m

45.6
Sélectionné

Fuse box for battery - Coffret avec fusible pour batterie - 32A

61.23
Sélectionné

Fuse box for battery - Coffret avec fusible pour batterie -50A

67.28
Sélectionné

Fuse box for battery - Coffret avec fusible pour batterie -100A

5.8
Sélectionné

16mm² battery cable with pods

9
Sélectionné

25mm² battery cable with pods

12
Sélectionné

50mm² battery cable with pods

See product
Battery cable 2x4mm2 - 2m

config

9,90 €

QTT

See product
Battery cable 2x16mm2 - 2m

config

17,90 €

QTT

See product
Battery cable 2x25mm2 - 2m

config

30,30 €

QTT

See product
Fuse box for battery - Coffret avec fusible pour batterie - 32A

config

45,60 €

QTT

See product
Fuse box for battery - Coffret avec fusible pour batterie -50A

config

61,23 €

QTT

See product
Fuse box for battery - Coffret avec fusible pour batterie -100A

config

67,28 €

QTT

See product
16mm² battery cable with pods

config

5,80 €

QTT

See product
25mm² battery cable with pods

config

9,00 €

QTT

See product
50mm² battery cable with pods

config

12,00 €

QTT

More info

Composition of the Kit solar 100pw Mono - 100Ah - 250 will

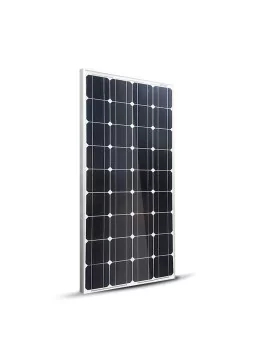

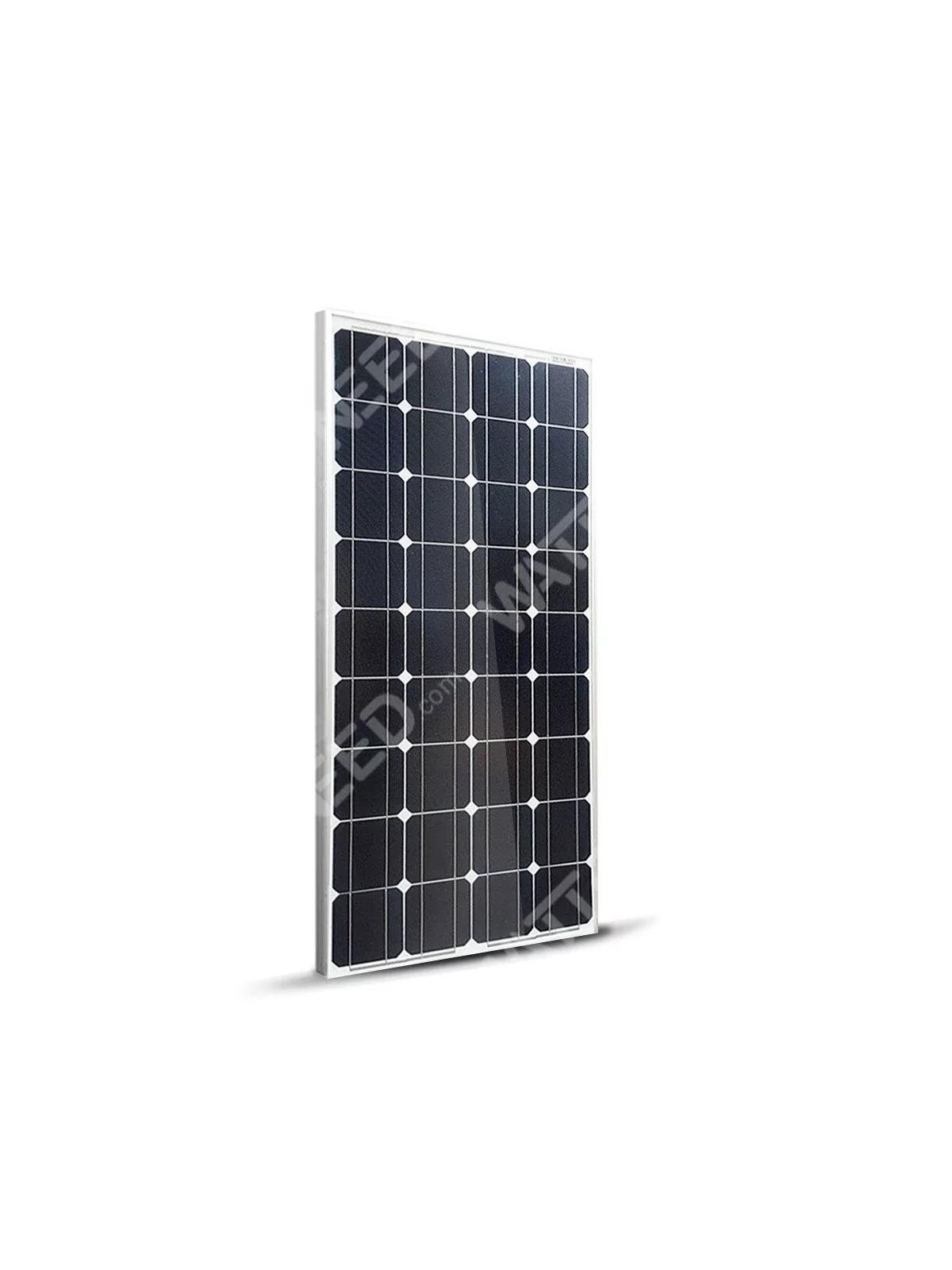

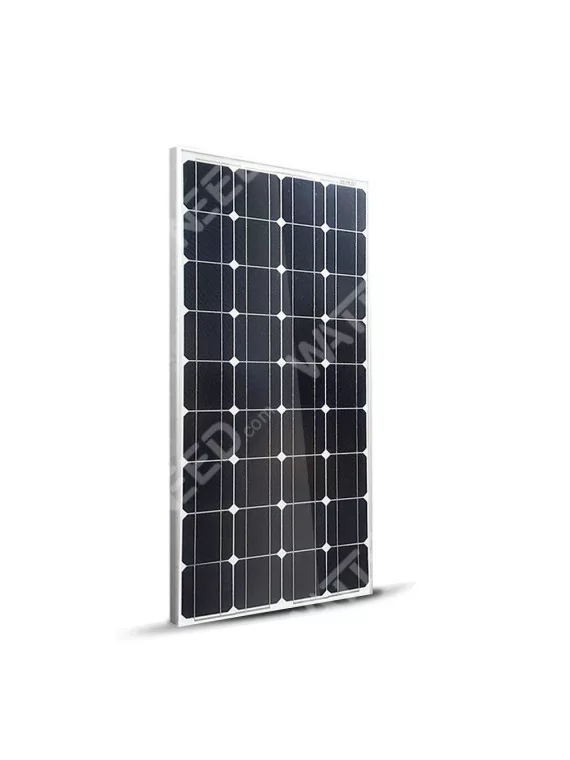

Monocrystalline solar panel 12V - 100pw



This module integrates discreetly and easily thanks to its small size

The small size of this Panel (54cm x 121cm) and weight make it ideal for mobile applications (camping, boat...).
It is suitable for installation on the roof of a vehicle, for example.
The frame is anodized weatherproof. The Panel provides a mechanical stability particularly strong to ensure ease of installation and transport.
The connection is simple and fast (60cm cable with MC4).









Features



Cells

Monocrystalline

Maximum power (Pmax) (W)

100 W

Maximum peak (Imp) current (A)

5.83 HAS

Maximum peak voltage (Vmpp) (V)

17.18 V

Voltage in open circuit (Voc) (V)

22.08 V

Short circuit (Isc) current (A)

6.03 HAS

Operating temperature (° C)

-40 to + 85

Max (A) inverse overcurrent protection

15

Output power tolerance (%)

0 + 3

Maximum system voltage (Vdc)

1000

Dimensions (mm)

1185 x 545 x 35

Weight (kg)

8

Performance of the cell

18.8%

Performance of the module

15.6%

Material

White Tedlar

Framework

Aluminum anodized

Thickness of the framework

35 mm




Charge controller Epever LS2024 Landstar PWM 12V / 24V - 20 Ah



> model 20A (LS2024B) can accommodate up to 500 watts of solar panels *.


-Capacity: 20 amps.
-Voltage: 12v or 24V
-Temperature compensation
-Guarantee 2 years.
-Technology: PWM.
-Fully programmable if used with its display

All charging voltages can be changed from 9 to 17V (X 2 for 24V), disconnection voltage also
Programming of output consumer according to a day/night or a time mode



* in a 24V system

Features



ModelLS2024B
Nominal voltage of the system24VDC12/12/24VDC
Nominal current from the battery20A
Maximum PV input voltage50V
Autocosommation8.4mA (12V)? 7.8mA (24V)
Temperature compensation-3mV /? / 2V? 25? REF?
Equalizing charge voltageSeal: 14.6V, open: 14.8V, user: 9 ~ 17V
Increase of the load voltageGel: 14.2V, sealed: 14.6V open: 14.8V, user: 9 ~ 17V
Floating charge voltageGel seal / open: 13.8V, user: 9 ~ 17V
Reconnection voltageGel seal / open: 12.6V, user: 9 ~ 17V
disconnect voltageGel seal / open: 11.1V, user: 9 ~ 17V
Dimensions159.6x81.4x47.8mm
Mounting holes147x50mm
Terminal10mm 2
Weight0.3 kg
Operating temperature-35? ~ + 55?
Storage temperature-35? ~ + 80?
Moisture? 95% (NC)
StandardIP30

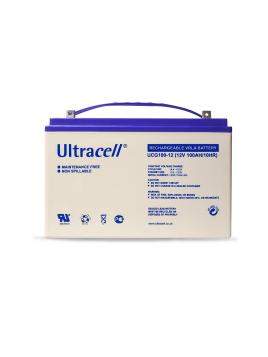

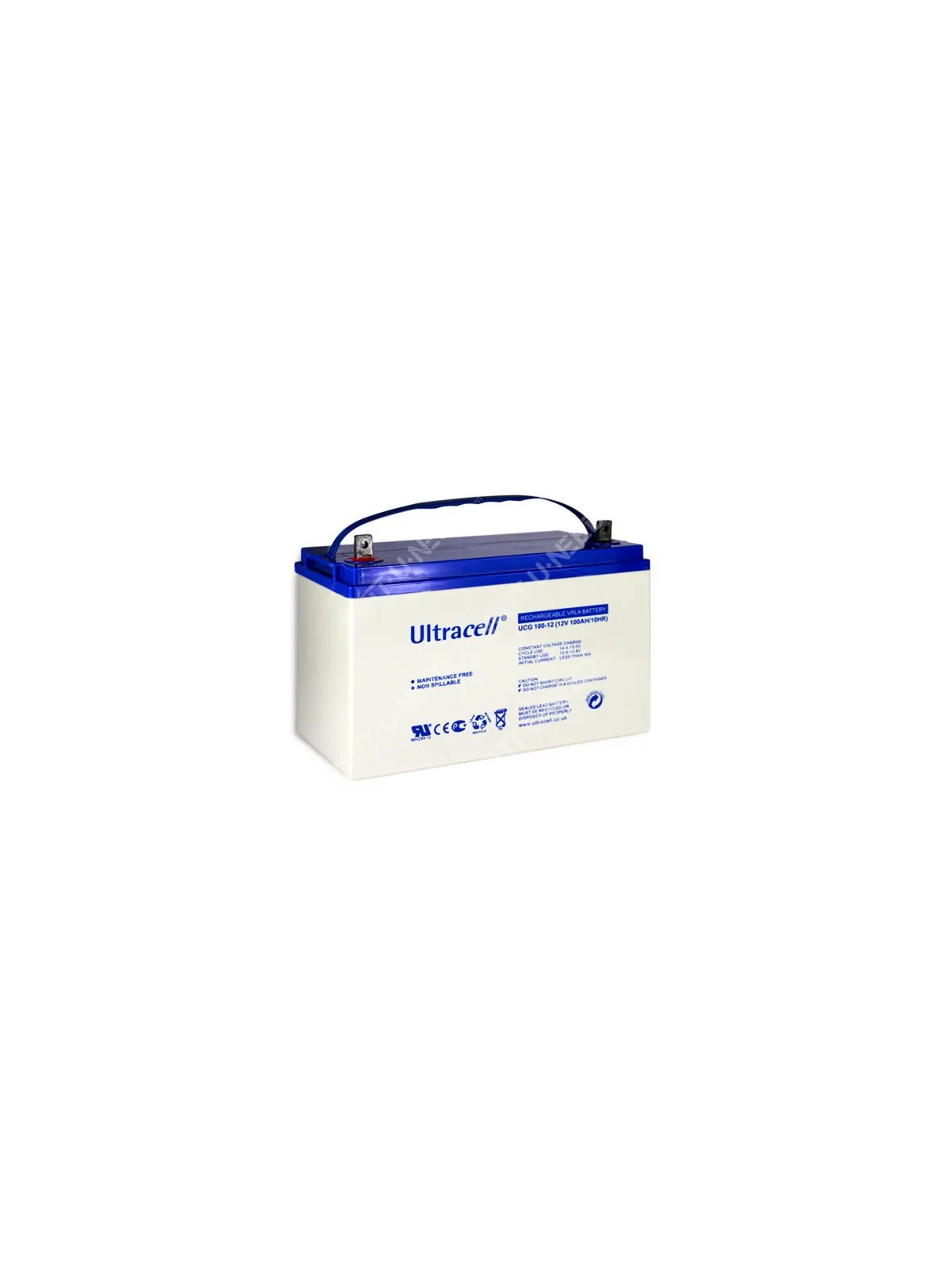

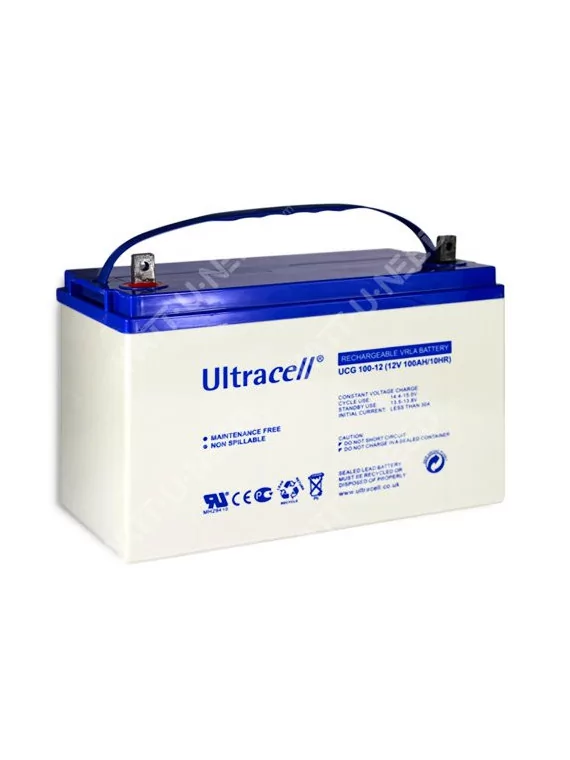

Ultracell Gel battery 12V 100Ah



Gel batteries are sealed batteries: no maintenance, no addition of distilled water. Strengthened compared to flooded batteries. Safety A gel battery to withstand the discharge to 100% and its rated capacity when discharged holding time is short. This series has a longer discharge time compared to other batteries. The special plate design increases the life of the battery and especially in warmer temperatures. A separator in the battery improves performance. It also has a longer retention time.





  • rated voltage: 12V
  • capacity : 100Ah
  • Dimensions : 327 x 173 x 212 mm
  • weight : 31 Kg

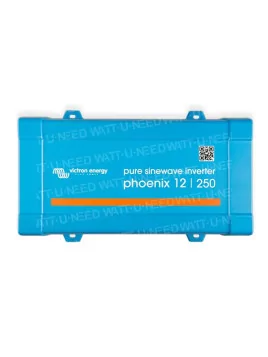

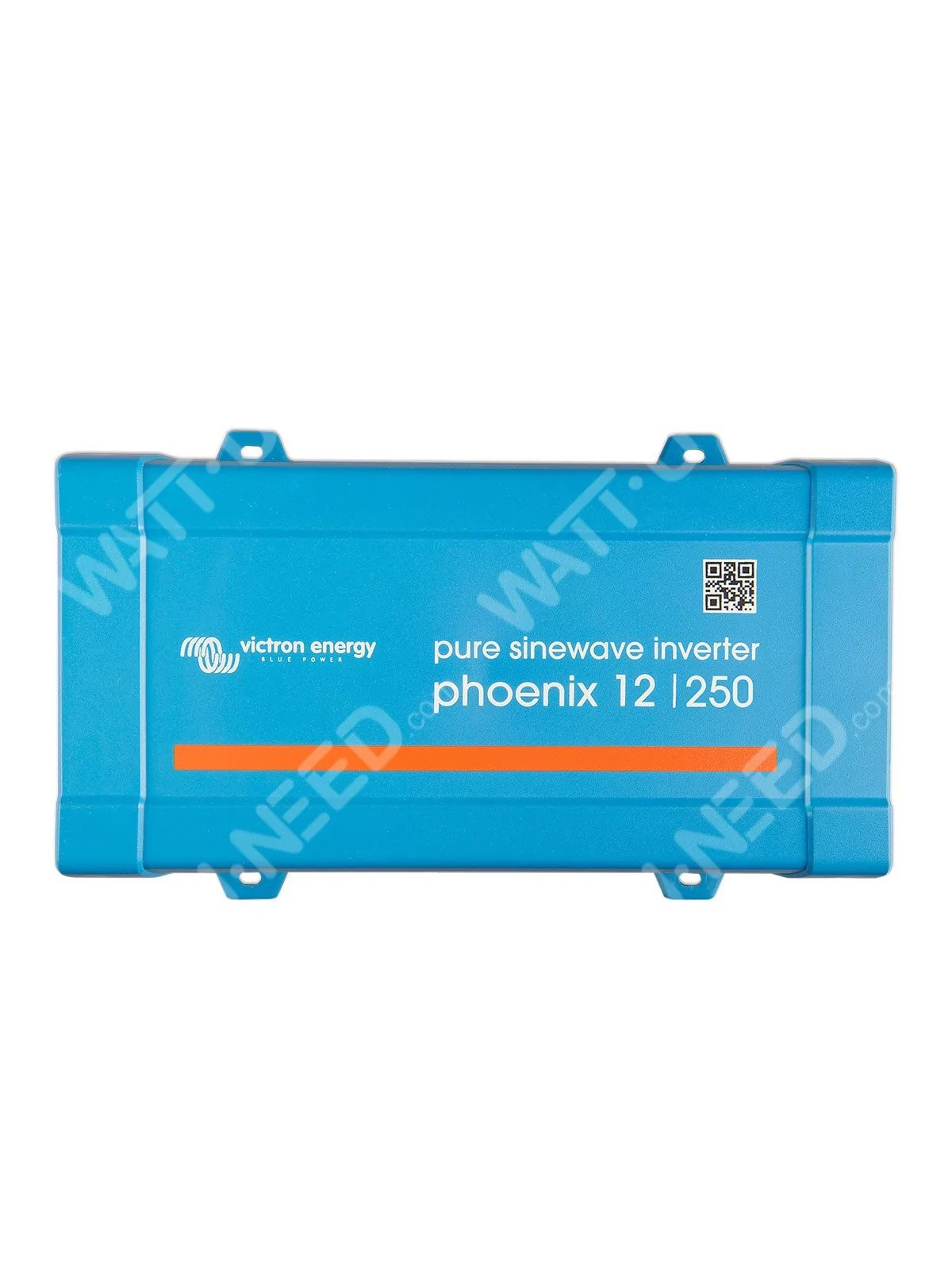

Victron 12V / 24V / 48V - 250VA



Developed for professional use, the range of the Phoenix converters is perfectly suited to applications the more various.



Completely configurable

• Levels of reset and the alarm in the event of low battery power

• Levels of restart and break in case of low battery power

• Output voltage 210 – 245V

• Frequency of 50 Hz or 60 Hz output

• Level of detection of the ECO mode and ECO-mode ignition/stop



Features



Converter Phoenix 12/250 24/250 48/250
Power CA of the converter to 25 ° C (VA) (3)250
Power of the converter to 25 ° C / 40 ° C (W)200 / 175
Peak power (W)400
Voltage / frequency AC (4) output230 v CA ±3% 50 Hz or 60 Hz ±0, 1%
Input voltage range (V DC)9.2-17 / 18,4-34.0 / 36.8-62.0 V
Alarm low battery (V DC)10.9 / 21.8 / 43.6
Stop low battery (V DC)9.3 / 18.6 / 37.2 V
Detection of battery (adjustable)14,0 / 28.0 / 56.0 V
Maximum effective 12 / 24 / 48 V (%)87 / 88 / 88%
Use empty4.2 / 5.2 / 7, 9W
Empty by default by ECO(intervalle de nouvel essai par défaut: 2,5 s,réglable) consumption0.8 / 1.3 / 2.5 W
Starting power setting and judgment in ECO modeAdjustable
Operating temperature-40 to + 65 ° C (cooling fan) (Reduction 1,25% per ° C above 25 ° C)
Humidity (without condensation)Max 95%



Digital display MT50



Digital display back-lit allowing you to have accurate information when the tension panels/batteries. Compatible with controllers EpSolar PWM LS1024B, LS2024B and LS3024B and the MPPT draw 1215BN, 2215BN and 3215BN as well as the MPPT Tracer1210A, Tracer2210A, Tracer3210A, Tracer4210A.









Features



  • Backlit digital display allowing you to have accurate information: tension panels / batteries, status and settings of the controller, error messages...
  • Compatible with the entire range of regulator PWM Epsolar LS and the range MPPT Epsolar draw BN.
  • Display form SOC (state load)
  • Display of tensions and intensities to all terminals of the regulator.
  • Select the type of battery and indicates its state of charge.
  • 2 m cable supplied to connect to the controller.
  • Choice of different modes of the 12/24V output control: manual ON / OFF light ON / OFF, ON light + Timer, only schedule
  • All the tension of charge may change
  • Real-time installation monitoring
  • Weight: 190 grams
  • Dimensions: 114mm x 114mm


Use

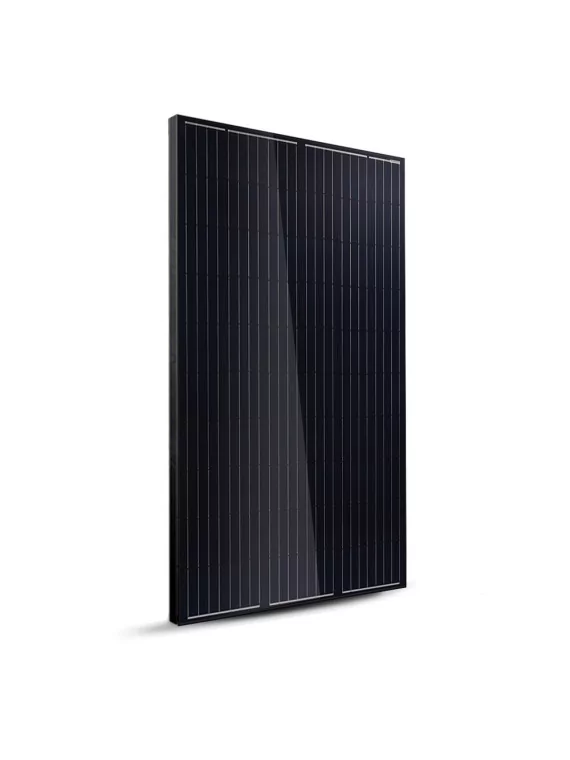

2 panels of 100pw of very small dimensions, allowing you to feed small electric equipment.
This kit will produce in Paris on average 800 Wh/day in July and 200 Wh in December.
The battery has a useful capacity of 390W/h (at 50% of discharge to maximize its life - 1200 cycles).



The opinion of Wattuneed



This complete kit is oriented for garden lighting, pumps pond or small consumers in 230V such as computer, small TV, radio...
The small panel can either be used as a mobile application (camping), or be mounted on a roof or a structure.

Product Reviews
  • Number of Reviews : 1
  • Average Grade : 5 /5
  • L. Benoit
  •  the 22/05/2021
  • 5/5
Toutes les pièces sont arrivées en bon état et bien colisée .maintenant en attente de les installer et de tester l'installation

Specifications

Output Kit voltage230V
Type of needGarden / Garden's hut
Wind TurbinWithout
Number of panels2 panels
Type of needOff-grid
Battery storageWith storage
Voltage230V
BatteryKit with battery
Inverter power- de 1000VA
Grid reinjectionoff-grid
