Kit solar 200Wc mono - 100Ah - 250VA

€ 458,57
Belasting inbegrepen
10081
0712971136441

Deze kit bevat

  • 2X12V 100Wp monokristallijn zonnepaneel
  • 1XZonnecontroller SRNE SHINER MPPT 12/24V 30A SHINER2430-B
  • 1XOmvormer Victron Phoenix VE. Direct 12V / 24V / 48V - 250VA
  • 1X2X4mm2 solar cable with Type MC4 (sold by -5m)
  • 1XDouble type MC4-like connector male & female
  • 1XGEL Ultracell 12V 100Ah batterij
  • 1XBattery cable 2x4mm² - 2m
Request a quote

Selecteer producten uit onderstaande secties
Choix du régulateur de charge
add
remove
info
Zonneregelaar SRNE 24V 30A SHINER2430-B
Zonnecontroller SRNE SHINER MPPT 12/24V 30A SHINER2430-B
Prijs per stuk
€ 120,49  (Incl. btw.)
Choix de l'onduleur
add
remove
info
Victron Phoenix VE. Direct 12V / 24V / 48V - 250VA
Omvormer Victron Phoenix VE. Direct 12V / 24V / 48V - 250VA
Prijs per stuk
€ 112,53  (Incl. btw.)

Victron Phoenix

Câblage et connectique
add
remove
info
2X4mm² Solar cable with MC4 (by the metre)
2X4mm2 solar cable with Type MC4 (sold by -5m)
Prijs per stuk
€ 21,67  (Incl. btw.)

Cable length

Câblage et connectique
add
remove
info
Double MC4-like connector male & female
Double type MC4-like connector male & female
Prijs per stuk
€ 16,48  (Incl. btw.)
Choix des batteries
add
remove
info
GEL Ultracell 12V 100Ah batterij
GEL Ultracell 12V 100Ah batterij
Prijs per stuk
€ 177,00  (Incl. btw.)
Accessoires batteries
add
remove
info
Battery cable 2x4mm2 - 2m
Battery cable 2x4mm² - 2m
Prijs per stuk
€ 10,40  (Incl. btw.)

Commentaar (0)

Geen klantenbeoordelingen op het moment.

Composition of the Kit solar 100pw Mono - 100Ah - 250 will

Monocrystalline solar panel 12V - 100pw



This module integrates discreetly and easily thanks to its small size

The small size of this Panel (54cm x 121cm) and weight make it ideal for mobile applications (camping, boat...).
It is suitable for installation on the roof of a vehicle, for example.
The frame is anodized weatherproof. The Panel provides a mechanical stability particularly strong to ensure ease of installation and transport.
The connection is simple and fast (60cm cable with MC4).









Features



Cells

Monocrystalline

Maximum power (Pmax) (W)

100 W

Maximum peak (Imp) current (A)

5.83 HAS

Maximum peak voltage (Vmpp) (V)

17.18 V

Voltage in open circuit (Voc) (V)

22.08 V

Short circuit (Isc) current (A)

6.03 HAS

Operating temperature (° C)

-40 to + 85

Max (A) inverse overcurrent protection

15

Output power tolerance (%)

0 + 3

Maximum system voltage (Vdc)

1000

Dimensions (mm)

1185 x 545 x 35

Weight (kg)

8

Performance of the cell

18.8%

Performance of the module

15.6%

Material

White Tedlar

Framework

Aluminum anodized

Thickness of the framework

35 mm



Charge controller Epever LS2024 Landstar PWM 12V / 24V - 20 Ah



> model 20A (LS2024B) can accommodate up to 500 watts of solar panels *.


-Capacity: 20 amps.
-Voltage: 12v or 24V
-Temperature compensation
-Guarantee 2 years.
-Technology: PWM.
-Fully programmable if used with its display

All charging voltages can be changed from 9 to 17V (X 2 for 24V), disconnection voltage also
Programming of output consumer according to a day/night or a time mode



* in a 24V system

Features



Model LS2024B
Nominal voltage of the system 24VDC12/12/24VDC
Nominal current from the battery 20A
Maximum PV input voltage 50V
Autocosommation 8.4mA (12V)? 7.8mA (24V)
Temperature compensation -3mV /? / 2V? 25? REF?
Equalizing charge voltage Seal: 14.6V, open: 14.8V, user: 9 ~ 17V
Increase of the load voltage Gel: 14.2V, sealed: 14.6V open: 14.8V, user: 9 ~ 17V
Floating charge voltage Gel seal / open: 13.8V, user: 9 ~ 17V
Reconnection voltage Gel seal / open: 12.6V, user: 9 ~ 17V
disconnect voltage Gel seal / open: 11.1V, user: 9 ~ 17V
Dimensions 159.6x81.4x47.8mm
Mounting holes 147x50mm
Terminal 10mm 2
Weight 0.3 kg
Operating temperature -35? ~ + 55?
Storage temperature -35? ~ + 80?
Moisture ? 95% (NC)
Standard IP30

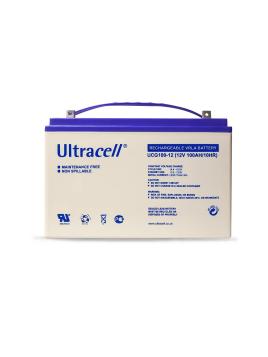

Ultracell Gel battery 12V 100Ah



Gel batteries are sealed batteries: no maintenance, no addition of distilled water. Strengthened compared to flooded batteries. Safety A gel battery to withstand the discharge to 100% and its rated capacity when discharged holding time is short. This series has a longer discharge time compared to other batteries. The special plate design increases the life of the battery and especially in warmer temperatures. A separator in the battery improves performance. It also has a longer retention time.





  • rated voltage: 12V
  • capacity : 100Ah
  • Dimensions : 327 x 173 x 212 mm
  • weight : 31 Kg

Victron 12V / 24V / 48V - 250VA



Developed for professional use, the range of the Phoenix converters is perfectly suited to applications the more various.



Completely configurable

• Levels of reset and the alarm in the event of low battery power

• Levels of restart and break in case of low battery power

• Output voltage 210 – 245V

• Frequency of 50 Hz or 60 Hz output

• Level of detection of the ECO mode and ECO-mode ignition/stop



Features



Converter Phoenix 12/250 24/250 48/250
Power CA of the converter to 25 ° C (VA) (3) 250
Power of the converter to 25 ° C / 40 ° C (W) 200 / 175
Peak power (W) 400
Voltage / frequency AC (4) output 230 v CA ±3% 50 Hz or 60 Hz ±0, 1%
Input voltage range (V DC) 9.2-17 / 18,4-34.0 / 36.8-62.0 V
Alarm low battery (V DC) 10.9 / 21.8 / 43.6
Stop low battery (V DC) 9.3 / 18.6 / 37.2 V
Detection of battery (adjustable) 14,0 / 28.0 / 56.0 V
Maximum effective 12 / 24 / 48 V (%) 87 / 88 / 88%
Use empty 4.2 / 5.2 / 7, 9W
Empty by default by ECO(intervalle de nouvel essai par défaut: 2,5 s,réglable) consumption 0.8 / 1.3 / 2.5 W
Starting power setting and judgment in ECO mode Adjustable
Operating temperature -40 to + 65 ° C (cooling fan) (Reduction 1,25% per ° C above 25 ° C)
Humidity (without condensation) Max 95%



Digital display MT50



Digital display back-lit allowing you to have accurate information when the tension panels/batteries. Compatible with controllers EpSolar PWM LS1024B, LS2024B and LS3024B and the MPPT draw 1215BN, 2215BN and 3215BN as well as the MPPT Tracer1210A, Tracer2210A, Tracer3210A, Tracer4210A.









Features



  • Backlit digital display allowing you to have accurate information: tension panels / batteries, status and settings of the controller, error messages...
  • Compatible with the entire range of regulator PWM Epsolar LS and the range MPPT Epsolar draw BN.
  • Display form SOC (state load)
  • Display of tensions and intensities to all terminals of the regulator.
  • Select the type of battery and indicates its state of charge.
  • 2 m cable supplied to connect to the controller.
  • Choice of different modes of the 12/24V output control: manual ON / OFF light ON / OFF, ON light + Timer, only schedule
  • All the tension of charge may change
  • Real-time installation monitoring
  • Weight: 190 grams

  • Dimensions: 114mm x 114mm

Use



2 panels of 100pw of very small dimensions, allowing you to feed small electric equipment.
This kit will produce in Paris on average 800 Wh/day in July and 200 Wh in December.
The battery has a useful capacity of 390W/h (at 50% of discharge to maximize its life - 1200 cycles).



The opinion of Wattuneed



This complete kit is oriented for garden lighting, pumps pond or small consumers in 230V such as computer, small TV, radio...
The small panel can either be used as a mobile application (camping), or be mounted on a roof or a structure.

10081

Gegevensblad

Omvormervermogen
- de 1000VA
Uitgangsspanning kit
230V
Type behoefte
Garden / Garden's hut
Off-grid
Batterijopslag
With storage
Windturbine
Without
Aantal panelen
2 panels
Spanning
230V
Batterij
Kit with battery
Netwerk herinjectie
off-grid

Specifieke referenties

upc
712971136441
ean13
0712971136441
