Solar Kit survivalist 200Wc

Wattuneed

679,52 € tax incl.

Add to cart

This kit contains:

  • 2x solar panels 50Wc
  • 1xsolar regulator MPPT 20A
  • 1x battery gel 12V 100A
  • 1 x Victron 12V/230V AC 250VA converter
  • Cables and connectors

More details

Équipements
Descriptions équipements
Customize

Choice of panels

93.91
Sélectionné

Monocrystalline solar panel 12V 100pw

55.99
Sélectionné

Solar panel 50Wp

130.72
Sélectionné

MX FLEX Protect Solar Panel Back Contact 50Wp

246.07
Sélectionné

Solar Panel 12V FLEX MX PROTECT 100pw

262
Sélectionné

Panasonic HIT 245Wc monocrystalline solar panel

190.58
Sélectionné

Solar panel Q.Cells DUO-G5 315Wc Full Black

See product
Monocrystalline solar panel 12V 100pw

config

93,91 €

QTT

See product
Solar panel 50Wp

config

55,99 €

QTT

See product
MX FLEX Protect Solar Panel Back Contact 50Wp

config

130,72 €

QTT

See product
Solar Panel 12V FLEX MX PROTECT 100pw

config

246,07 €

QTT

See product
Panasonic HIT 245Wc monocrystalline solar panel

config

262,00 €

QTT

See product
Solar panel Q.Cells DUO-G5 315Wc Full Black

config

190,58 €

QTT

The choice of the regulator

76.6
Sélectionné

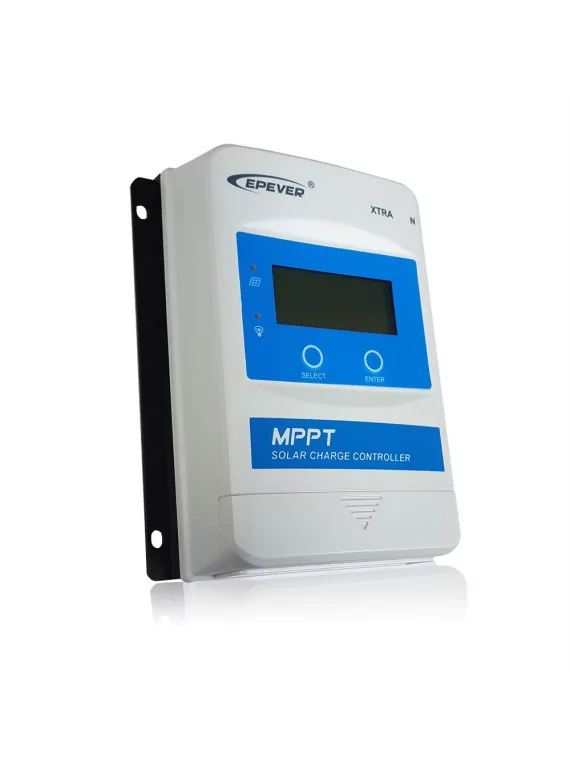

Solar Controller MPPT 20A SRNE

39.9
Sélectionné

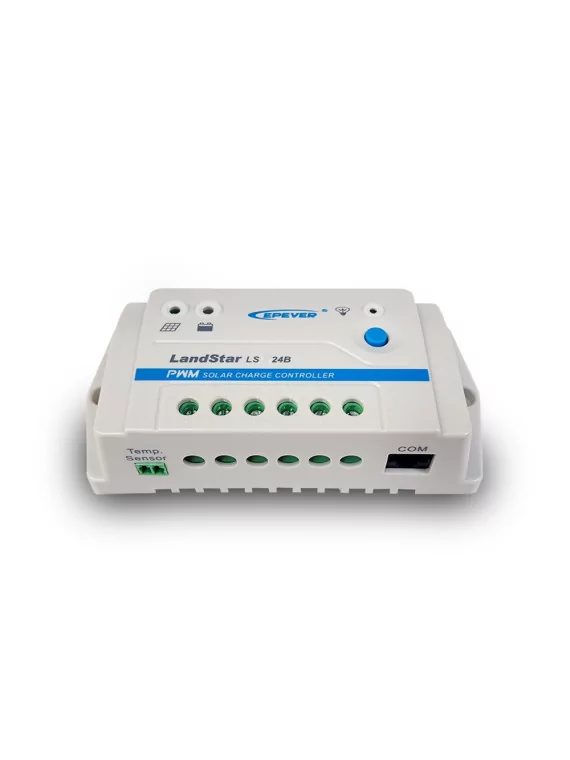

Epever PWM LandStar Serie 12V / 24V - 20 A

See product
Solar Controller MPPT 20A SRNE

config

76,60 €

QTT

See product
Epever PWM LandStar Serie 12V / 24V - 20 A

config

39,90 €

QTT

Choice battery

199
Sélectionné

Ultracel GEL battery 12V 100Ah

294.43
Sélectionné

Ultracel GEL battery 12V 150Ah

397
Sélectionné

Ultracel GEL battery 12V 200Ah

534.4
Sélectionné

Ultracel GEL battery 12V 250Ah

See product
Ultracel GEL battery 12V 100Ah

config

199,00 €

QTT

See product
Ultracel GEL battery 12V 150Ah

config

294,43 €

QTT

See product
Ultracel GEL battery 12V 200Ah

config

397,00 €

QTT

See product
Ultracel GEL battery 12V 250Ah

config

534,40 €

QTT

Choice of the converter

178.7
Sélectionné

Victron Phoenix 12V / 24V / 48V - 250VA

230.83
Sélectionné

Victron Phoenix 12V / 24V / 48V - 375VA

See product
Victron Phoenix 12V / 24V / 48V - 250VA

config

178,70 €

QTT

See product
Victron Phoenix 12V / 24V / 48V - 375VA

config

230,83 €

QTT

Choice cable battery

9.9
Sélectionné

Double 4mm² battery cable 2m

See product
Double 4mm² battery cable 2m

config

9,90 €

QTT

cable with solar connector MC4 2X4mm2

27.49
Sélectionné

2x4mm² Solar cable extension with 2xMC4 (by the meter)

See product
2x4mm² Solar cable extension with 2xMC4 (by the meter)

config

27,49 €

QTT

More info

Kit solaire nomad survivaliste




100Wc monocrystalline solar panel 12V



Technical data



  • Normal operating temperature NOCT: 45 °c
  • Wind resistance: 130 km/h
  • Maximum diameter of the hailstone: 25 mm
  • Impact speed of the haillon: 80 km/h
  • Light and reinforced anodized aluminium frame
  • High transmissivity of glass
  • Plug & play housing with 2 LEDs
  • 4mm thick toughness glass




Solar regulator MPPT 20A SRNE



With advanced dual-peak or multi-period tracking technology, when the solar panel is shaded or part of the Panel, resulting in multiple peaks on the I-V curve, the controller is always able to accurately track the maximum power point .

An integrated power point tracking algorithm dramatically improves the efficiency of energy use of photovoltaic systems and increases the load efficiency from 15% to 20% compared to the conventional PWM method.

A combination of several tracking algorithms allows accurate tracking of the optimal working point on the I-V curve in an extremely short time.

The product has an optimal MPPT tracking efficiency of up to 99.9%.

Advanced digital power technologies increase the power conversion efficiency of the circuit up to 98%.


100Ah gel batteries



Gel batteries are waterproof batteries: no maintenance, no addition of distilled water. Increased safety compared to open lead batteries.
A {linkpopup ID = ' batterieGel '} can withstand 100% discharge and regain its nominal capacity if the unloaded hold time is short. This series has a longer discharge time compared to other batteries. Its special design of the plate increases the lifespan of the battery and especially in warmer temperatures. A separator within the battery improves its performance. It also has a longer storage time.



  • Nominal voltage: 12V
  • Capacity: 100Ah
  • Dimensions: 327 "x 173" x 212 mm
  • Weight: 31 kg



Life cycle in relation to discharge depth

cycles de vie batterie gel 65Ah



Victron Phoenix 12/24/48V-250 VA



The Phoenix converter provides a high-quality energy supply in areas where there is no mains voltage supplied with 230V. The principle of the converter is simple. The voltage of a 12V, 24V or 48V battery is converted to a stabilized alternating voltage of 230V. This allows for the use on board a ship, in an ambulance, a service vehicle or in withdrawn areas, of equipment requiring a 230V supply. These converters are characterised by a pure sine-wave output voltage, high peak power and high efficiency. The hybrid HF technology has allowed to combine specificities and possibilities with light weight and reduced footprint.





Characteristics



Phoenix 12/250 24/250 48/250 converter
Converter AC power at 25 °c (VA) (3)250
Converter power at 25 °c/40 °c (W)200/175
Peak power (W)400
AC output voltage/frequency (4)230 V AC ± 3% 50 Hz or 60 Hz ± 0.1%
Input voltage range (V DC)9.2-17/18.4-34.0/36.8-62.0 V
Low battery alarm (V DC)10.9/21.8/43.6
Low battery stop (V DC)9.3/18.6/37.2 V
Charged battery detection (adjustable)14.0/28.0/56.0 V
Maximum efficiency 12/24/48 V (%)87/88/88%
Vacuum consumption4.2/5.2/7, 9W
Default idle consumption in ECO mode (default retry interval: 2.5 s, adjustable)0.8/1.3/2.5 W
Start and stop power setting in ECO modeAdjustable
Operating temperature-40 to + 65 °c (fan cooling) (reduction 1.25% per °c above 25 °c)
Humidity (non-condensing)Max 95%
Box
Material and colorSteel frame and plastic cover (blue RAL 5012)
Battery connectionScrew terminal
Standard AC outletsSCHUKO (CEE 7/4), IEC-320 (incl. plug) UK (BS 1363), AU/NZ (AS/NZS 3112)
Remote on/off switch

yes

Degree of protectionIP 21
Weight kg2.4
Dimensions (Hxwxd in mm)86x165x260
safetyEN/IEC 60335-1/EN/IEC 62109-1
Emission/immunityEN 55014-1/EN 55014-2/IEC 61000-6-1/IEC 61000-6-3

Specifications

Number of panels2 panels
Wind TurbinWithout
Output Kit voltage12V, 230V
Battery storageWith storage
Type of needOff-grid, Survivalisme
Inverter power- de 1000VA
Grid reinjectionoff-grid
