Boat off-grid solar kit MX FLEX Protect 30 to 50Wp - 12V

Wattuneed

155,43 € tax incl.

Add to cart

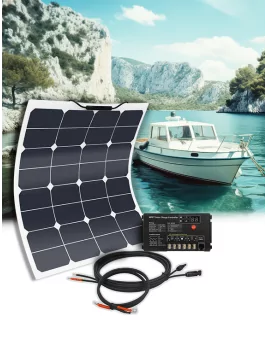

Solar kit for boat

  • Solar panel MX FLEX Protect 30Wp,
  • Solar cable 2x4mm²: 5m length,
  • Battery cable 4mm²- 2x 2m,
  • PWM regulator : 10A



More details

Équipements
Descriptions équipements
Customize

Choice of panels

See product
MX FLEX Protect Solar Panel Back Contact 30Wp

config

107,73 €

QTT

See product
MX FLEX XTD PROTECT 50pw 12V solar panel

config

155,28 €

QTT

See product

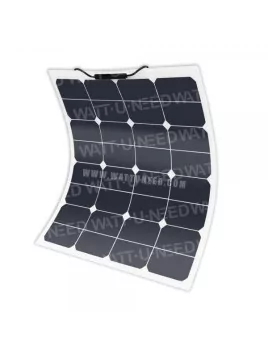

MX FLEX Protect Solar Panel Back Contact 50Wp

config

130,72 €

QTT

See product
Solar panel 50Wp

config

55,99 €

QTT

Choix du régulateur

See product
PWM Regulator SRNE 12 / 24V 10A

config

14,10 €

QTT

See product
Solar Controller SRNE PWM HP 24V 10A

config

16,13 €

QTT

See product

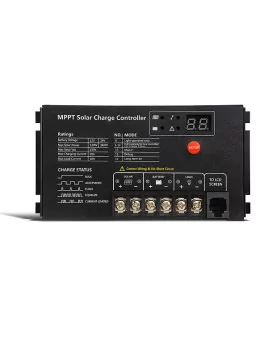

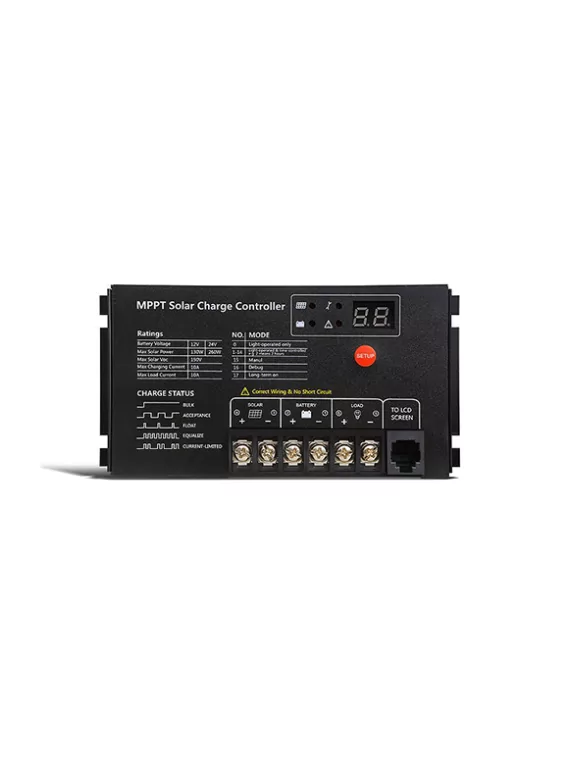

Solar Controller MPPT 10A SRNE

config

54,50 €

QTT

See product
Epsolar Duo Battery PWM 12V / 24V 10A

config

42,00 €

QTT

See product
EPEVER LS1024 LANDSTAR PWM 12V / 24V - 10A

config

24,60 €

QTT

See product
Epever MPPT XTRA N Serie 10A

config

77,00 €

QTT

CÂBLAGE ET CONNECTIQUE

See product
2X4mm² Solar cable with MC4 (by the metre)

config

13,80 €

QTT

See product
Double 4mm² battery cable 2m

config

9,90 €

QTT

See product
Double MC4 connector male & female

config

16,00 €

QTT

More info

" Autonomous premium kit 30 and 50Wc for boat "

Totaly Pre-wired kit.


COMPOSITION

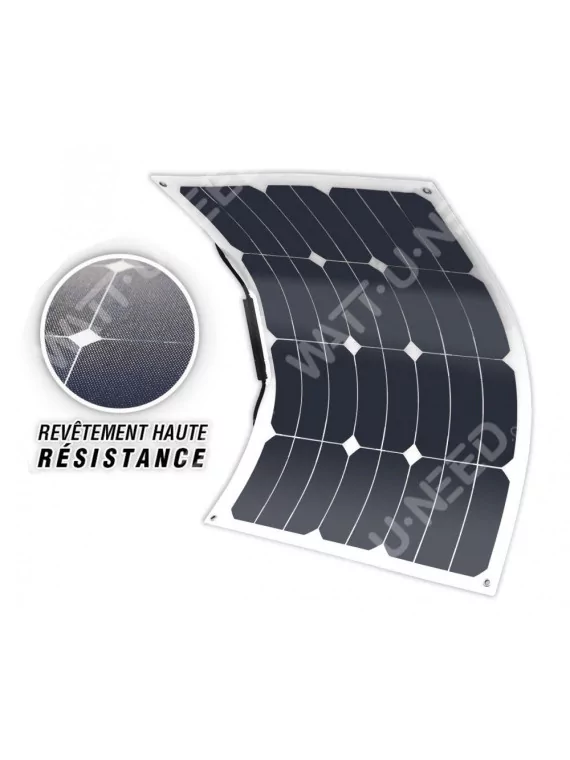

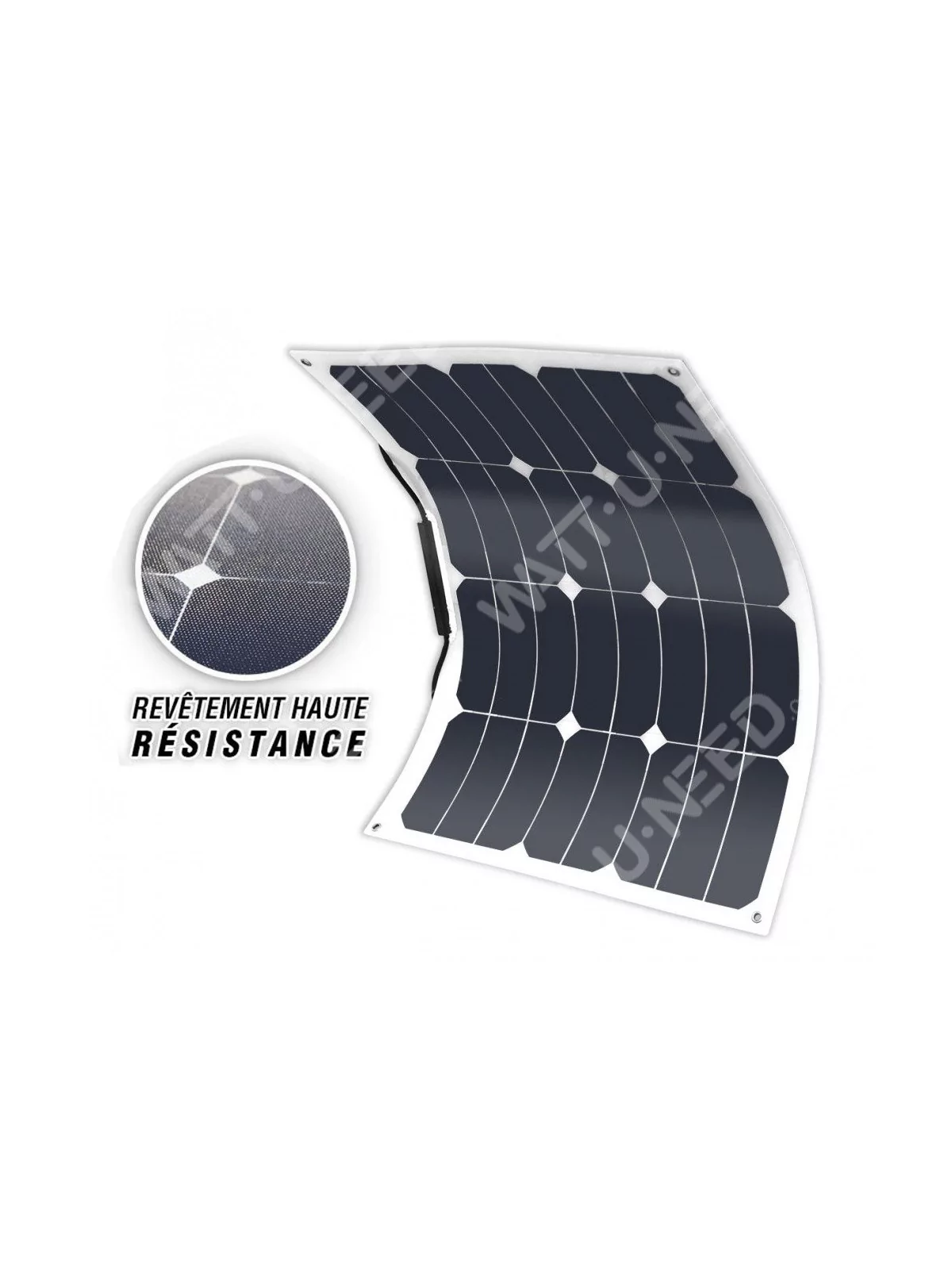

MX FLEX Solar Panel 30Wp



Flexible MX FLEX 30Wp solar panels are suitable for marine. Perfect for charging the batteries of your boat.

Ultra flexible and really light, they are highly resistant to saline environments, wet weather and even trampling! The MXFLEX panel adapt perfectly and easily to wherever you want to place them. Through its flexible and extremely lightweight weight (0.77 Kg), you can easily fix the roof of a boat.

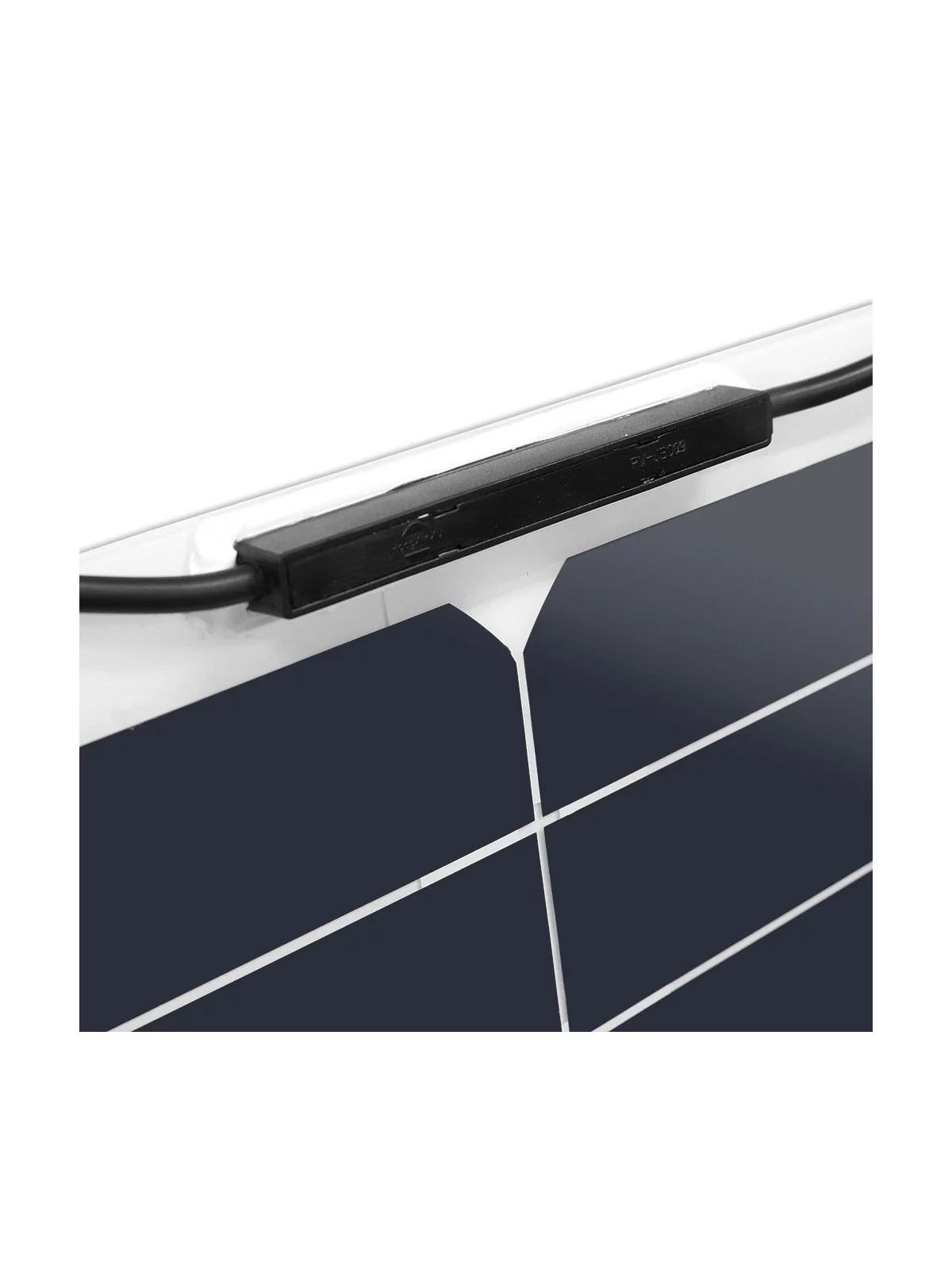

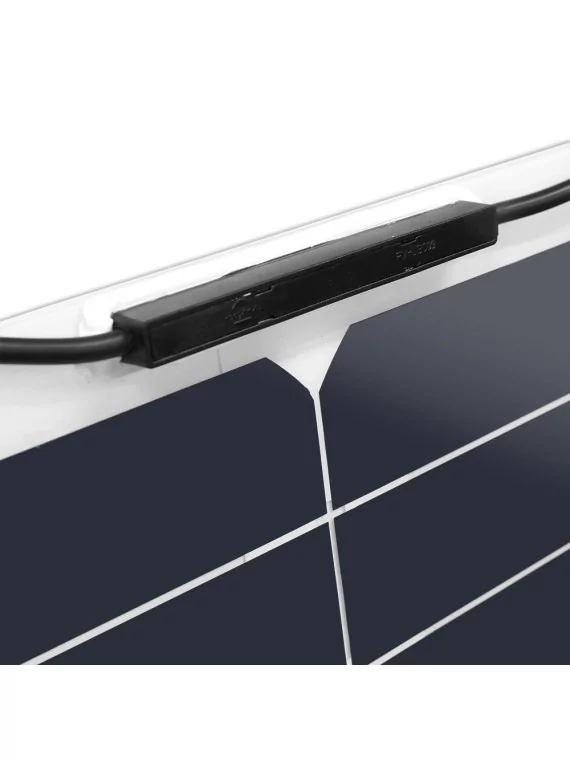

The waterproof junction box at the front of the panel and MC4 connectors allow you to connect quickly and easily.

With its back contact monocrystalline cells with high efficiency (22%), the FLEX MX panels integrate the best in terms of photovoltaic technology! The cells optimize the performance of the panel when it is in low light conditions, maximizing the performance of the panel by bad weather. The fastening points located on the four corners allow you to fix it easily everywhere.



 Technical characteristics



Peak power (Pmax)30W
Voltage (vmp)17,6V
Open circuit voltage(Voc)21,2V
Short circuit current (Isc)1,83A
Currant (Imp)1,70A
Tolerance+/-5%
Module efficiency19,00%
Cell efficiency22,00%
Dimensions395x535x3mm
Weight0,770Kg

regulateur de charge 10ARegulator PWM 10A - SRNE



Automatic identification of the voltage of the 12V / 24V system.

Digital LED display and single-touch operations, allowing for simple and convenient operation.

Adopts the ternary form charging algorithm, charges the storage battery in equalization charge mode once a week. It can prevent the unbalanced and vulcanization of the battery efficiently, thus prolonging the battery life.

Has the electrical data protection function. The settings can be stored during a power system failure. Even of this type of case, there is no need to reset the solar regulator. Simple and practical!





Protections:

  • against overload,
  • against landfills
  • against over-intensity
  • against short circuits
  • against polarity reversal

TVS protection against lightning (transient voltage suppression diode).



Characteristics


ModelLM 2410
Current system10A
Loss without charge10mA/12V;10mA/24V
Solar energy input tension55V
Solar energy input tension17.0V; 2/24V
Equal load voltage14.6V; 2/24V (25oC), duration:1h
Increasing load voltage14.4V; 2/24V (25oC), duration:2h
Float load voltage13.8V; 2/24V (25oC)
Tension return during charging13.2V; 2/24V (25oC)
Return tension for excessive discharge12.6V; 2/24V
Return tension for excessive discharge12.0V; 2/24V
Excessive discharge tension11.1V; 2/24V
Temperature compensation-4.0mv/C/2V;
Light control5V open light control near 6V light control
Light control judgment time10min
ProtectionsProtection against overloads, overloads, short circuits and overloads
Reverse-connection protection for solar and storage batteries.
Working temperature-35C to '65C;
Level of protectionIP30
Weight106g
Size124.7-69.4-34.0(mm) (L-W-H)

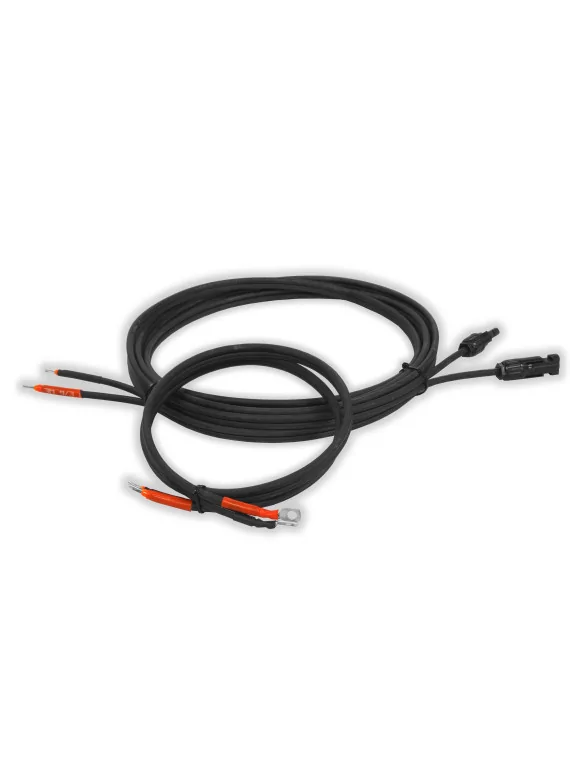

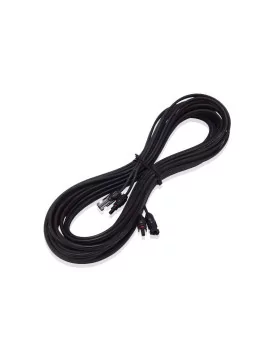

5m Solar cable 2X4mm2 and 2m cable for battery



MC4 crimped on cable

Long service life. Thanks to the double sheath, these cables are extremely resistant to UV, heat, cold and weather.




 Exemples





Data sheets and documentation

Product Reviews
  • Number of Reviews : 9
  • Average Grade : 4.6 /5
  • F. PATRICK
  •  the 08/08/2018
  • 4/5
parfait envoi rapide , rien à dire !
  • M. Élian
  •  the 04/06/2018
  • 4/5
produit satisfaisant et solide .
  • M. Christophe
  •  the 31/07/2016
  • 5/5
Nickel
  • G. Max
  •  the 07/04/2016
  • 5/5
Très bon produit
  • D. Michel
  •  the 22/01/2016
  • 5/5
tres bien
  • B. Francis
  •  the 29/12/2015
  • 4/5
pas encore installé
  • B. Georges
  •  the 18/11/2015
  • 5/5
TRES BIEN
  • M. Michel
  •  the 12/09/2015
  • 5/5
je ne peux noter que la commande livraison très bienpour le produit tout semble conforme à mon attente mais le vrai résultat sera à la longue cet hiver
  • M. Jean-Luc
  •  the 21/08/2015
  • 4/5
Conforme à la description, pas encore installé donc pas d'avis sur le fonctionnement.

Specifications

Number of panels1 panel
Output Kit voltage12V
Battery storageWithout storage
Type of needCamping-car / Boat
Wind TurbinWithout
Voltage12V
Batterykit without battery
Inverter power- de 1000VA
Grid reinjectionoff-grid
