DC fuse holder with cartridge from 16A to 32A

Wattuneed

10,92 € tax incl.

Options

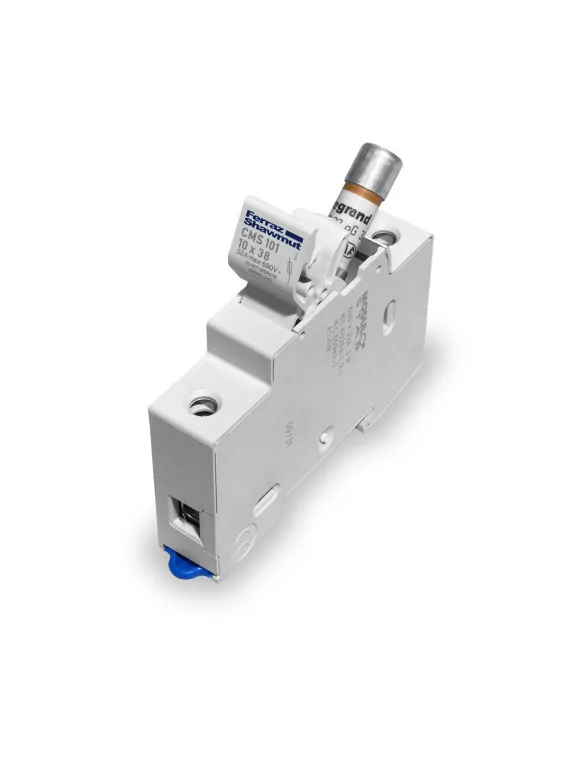

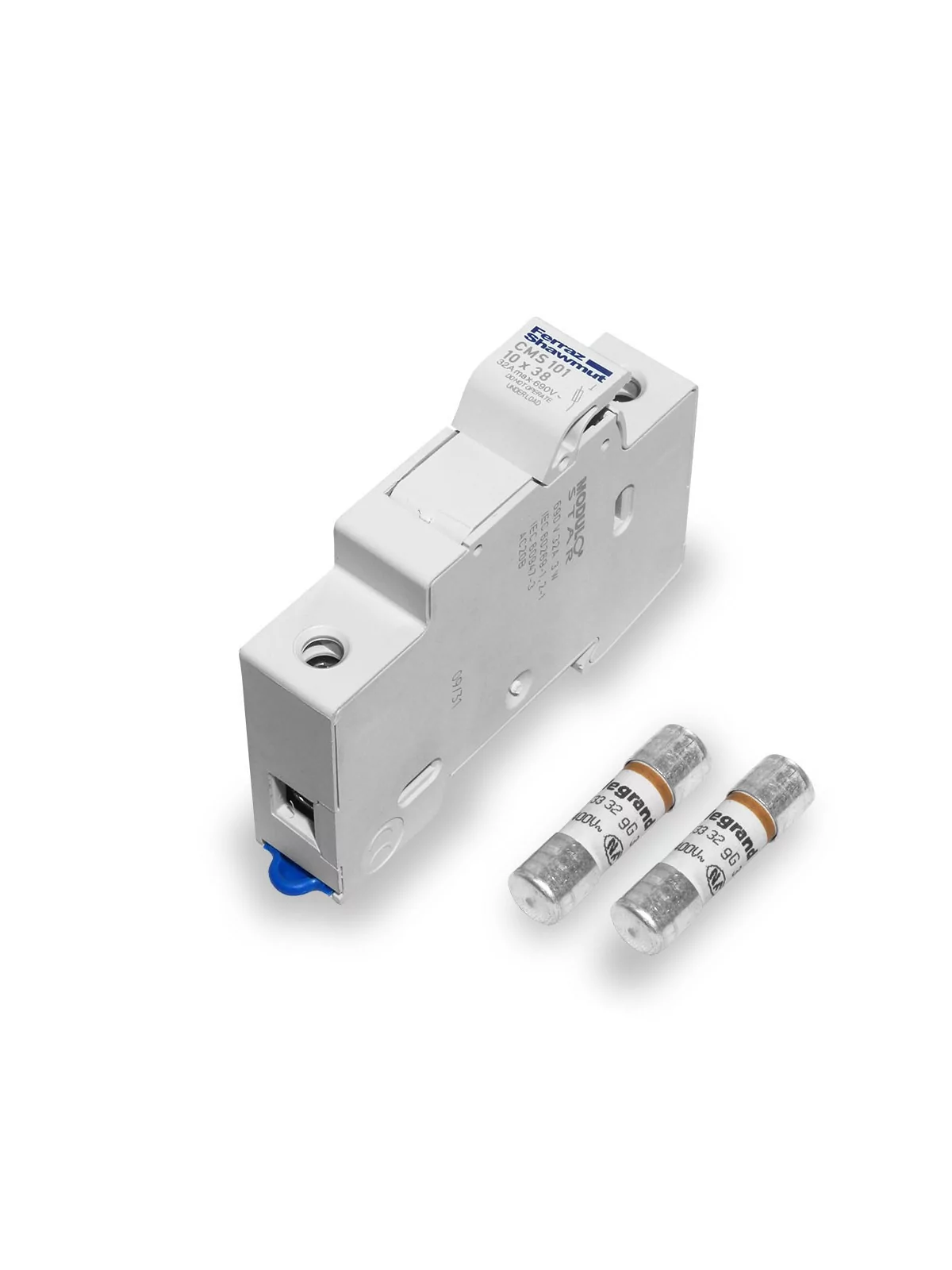

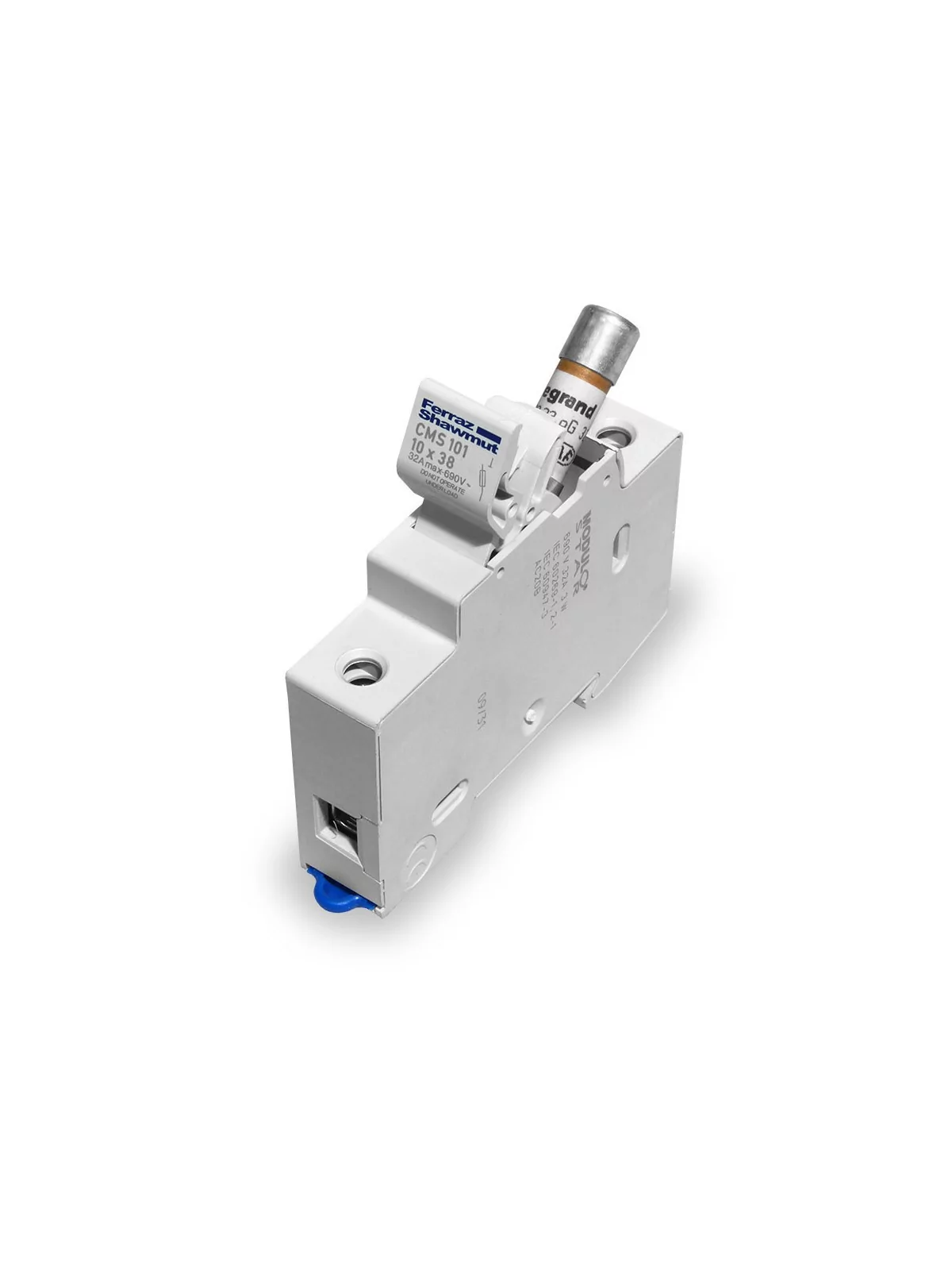

Fuse holder DC CMS 101 10x38 20A max 690V.

The fuse holder contains a 1 fuse from 16A to 32A (to choose from the options).

More details

More info

Protect your batteries very simply



Protect your batteries from short circuits with this ceramic fuse from 16A to 32A

Fuse door that can be attached very easily in a DIN rail

Thanks to its ease and speed of installation, this fuse holder is a safe and reliable solution for photovoltaic installations.



Description

 Benefits:

  • Spring terminals
  • Ease of wiring
  • Wago Cage Clamp connection technology
  • Quick fuse change without tools

Characteristics



 Model16A20A32A 50A100A
Max DC voltage690V690V690V 690V690V
Max AC voltage690V690V690V 690V690V
Fuse gauge16A20A32A 50A100A
Number of fuses111 11
Metric fuse size  10x38mm 22x58mm22x58mm
Series  CMS101 CMS141CMS221
Type of assemblyRail DINRail DINRail DIN Rail DINRail DIN
