SMA Cluster Controller

SMA Cluster Controller

€995.97
Tax included
0720
0712971128781

Professional communication interface to remotely monitor data and control large-scale PV installations.

Use combined with highly efficient SMA inverters. Accommodates up to 75 inverters.



This product is no longer available for sale. You will find its equivalent by clicking here.



SMA Cluster Controller

€995.97

" Professional communication interface to monitor and control large-scale PV installations data "



Description :

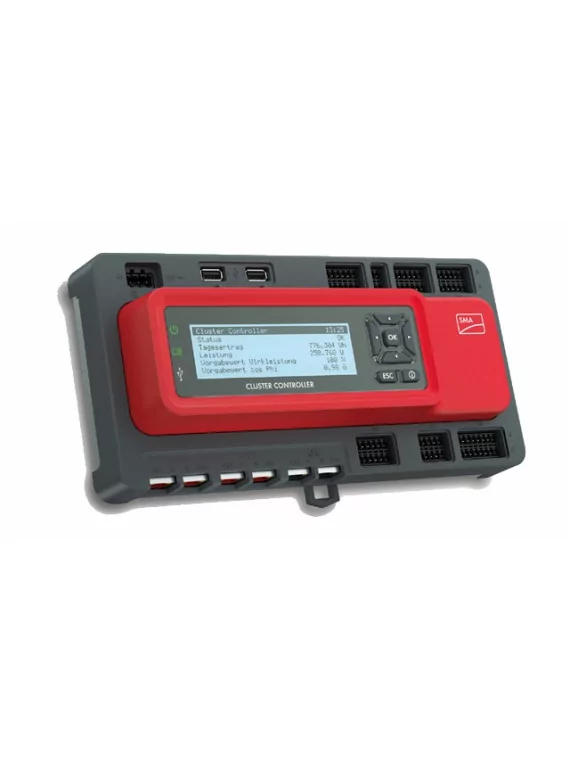

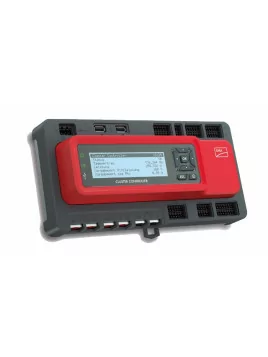

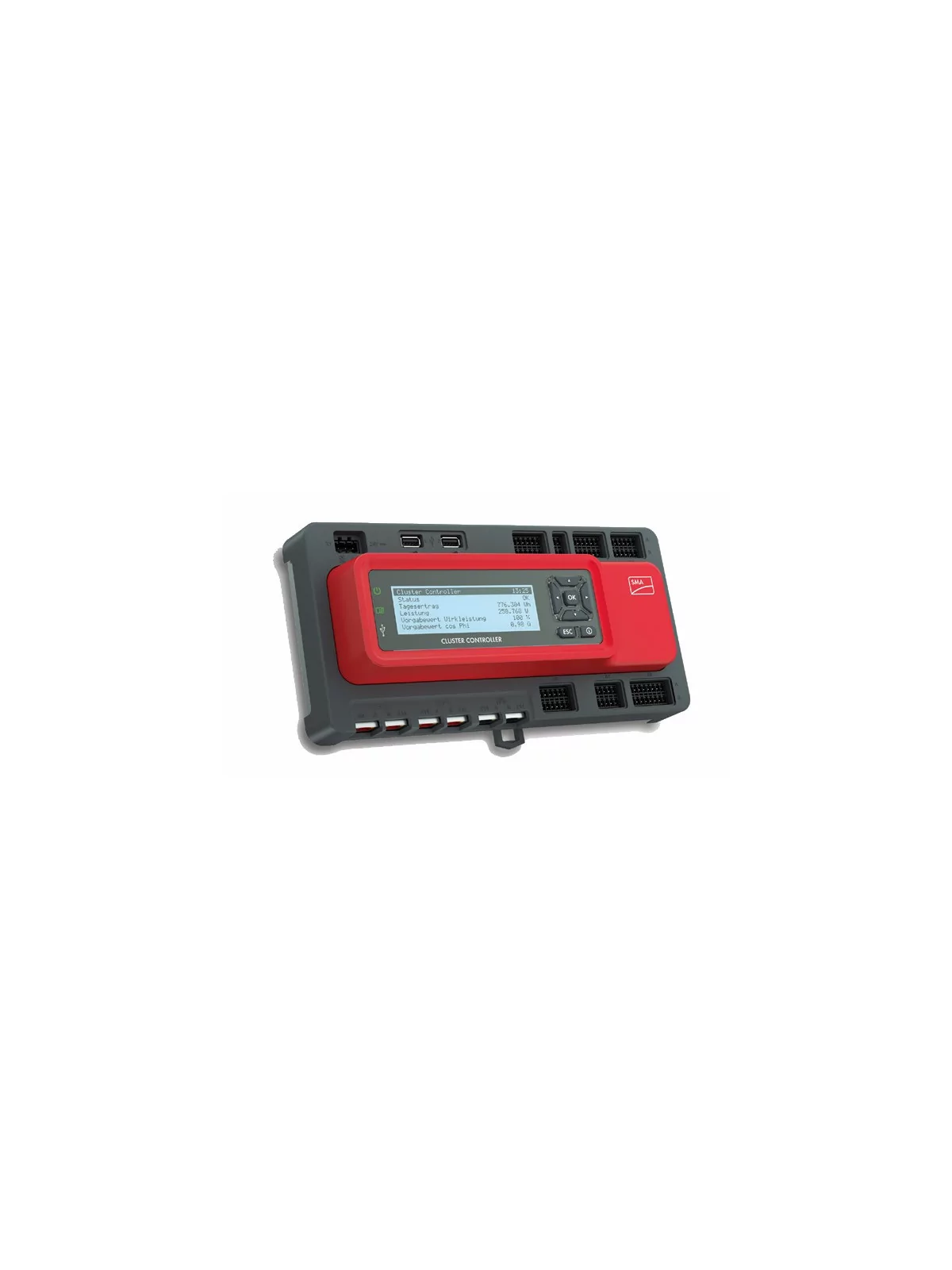

Cluster Controller

For management and remote monitoring of PV installations with SMA string inverters.

The Cluster Controller is suitable for large-scale installations up to 75 inverters.
Ideal for professional use: electricity distributors, installers, ...

Robust and professional

- Remote monitoring and control
- LCD display screen / backlight
- Robust and hight quality material: suitable for industrial use
- Notification by e-mail if failure happen on the system
- Monitoring and remote control with the software SMA Sunny Portal or the integrated web interface.
- Top-hat rail mounting - Indoor



Compatibility

Compatible with SMA inverters :

  • SUNNY BOY 240 with Sunny Multigate
  • SUNNY BOY 1300TL / 1600TL / 2100TL*
  • SUNNY BOY SINGLE TRACKER 2500TL / 3000TL*
  • SUNNY BOY 3000TL / 3600TL / 4000TL / 5000TL-21*
  • SUNNY TRIPOWER 5000TL / 6000TL / 7000TL / 8000TL / 9000 / 10000TL-20 / 12000TL-20
  • SUNNY TRIPOWER 20000/25000TL-30

*for inverters from October 2014



Example of application :

Exemple d’utilisation du Cluster Controller
A. PV modules
B. Module temperature sensor
C. Inverter
D. Outside temperature sensor
E. Irradiation sensor
F. Cluster Controller
G. Sunny Portal
H. Router






Technical Datas :


Product SMA Cluster Controller
Communications
      - Inverter Speedwire, 10/100 Mbit/s
      - Data network (LAN) Fast Ethernet, 10/100 Mbit/s
      - Data interfaces HTTP, FTP, Modbus TCP/UDP, SMTP, Sunny Portal
Maximum radio ranges. Speedwire/LAN 100 m (between two devices)
Voltage supply External power supply unit (available as an accessory)
      - Input voltage 18 V DC to 30 V DC
      - Power consumption Typ. 12 W/max. 30 W
Internal Battery 1.7 GB as ring buffer
External Battery USB mass storage (optional, available as an accessory
USB interfaces x2 / USB 2.0 High-Speed / type A
Digital inputs x8
     - Use Setpoints for active and reactive power
Analog inputs 3 x current signal, 1 x voltage signal
     - Measurement range 0 mA à 20 mA or 0 V to +10 V
     - Use Irradiation measurement, setpoints for active/reactive power or current/voltage measurement
Temperature measurement
     - Quantity/sensor type 2/PT100/PT1000 (two or four-cable connection)
     - Measurement range -40  °C to +85  °C (-40  °F to +185  °F)
     - Use Measurement of ambient and cell temperature
Digital outputs
     - Quantity/design 3/potential-free relay contacts
     - Max. load tolerance 48 V DC/30 W
     - Use Error message, warning and active power limitation
Analog outputs
     - Number/signal current 2/4 mA to 20 mA
     - Use Feedback of the active and reactive power setpoints
Dimensions (l x H x P)  275 x 133 x 71 mm
Weight  0,9 kg
Ambient temperature -25 °C to +60 °C (-13 °F to +140 °F)

0720

Specific References

New

Download

Datasheet Cluster Controller FR

Download (403.09KB)

Datasheet Cluster Controller EN

Download (396.86KB)
