SMA Energy Meter
SMA Energy Meter

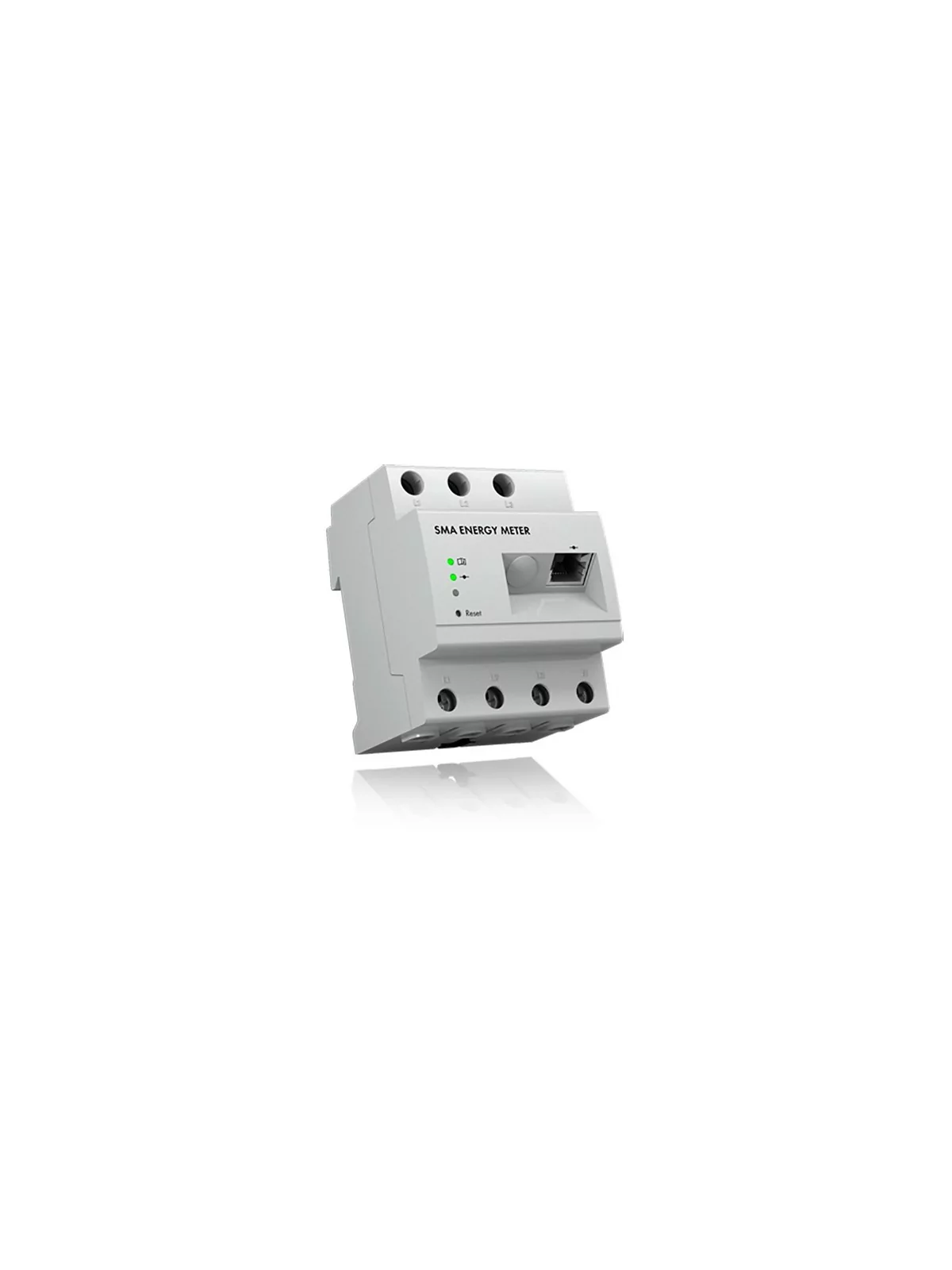

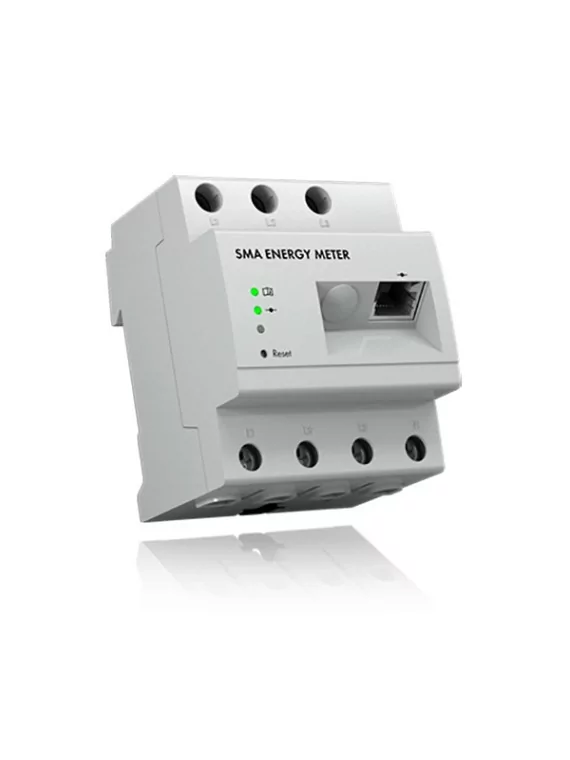

SMA Energy Meter EMETER-20

€500.10
Tax included
EMETER-20
0712971128484

The SMA energy meter is an ideal measurement solution for intelligent energy management as SMA Smart Home.

It takes electrical measured values and transmits them via Ethernet cable so the intelligent energy management can optimize the load/use of the battery, reliably limit active power at the grid feed-in point and take into account the self- consumption.

Due to the worldwide component crisis, the replenishment time for the SMA range is 7 to 9 months. For more precise delivery times, you can contact us by chat or by email.

" SMA Energy Meter "



Description :

SMA Energy meter

Easy to use

  • Easy "plug and play" installation
  • View measured values via Sunny Portal



Flexible

  • Top-hat rail mounting, takes up little room.
  • Speedwire communication with Ethernet cable
  • Universal deployment



Powerful measurement solution

  • Fast three-phase reading
  • Allows you to monitor and efficiency manage the use of energy






Storage application example :

Storage application example


Technical data :


  SMA Energy Meter
Communication
Fieldbus Speedwire, 10/100 Mbit/s
Max. radio range
Speedwire / Fast Ethernet 100 m (between two devices)
Inputs (voltage and current)
Nominal voltage 230 V / 400 V
Frequency 50 Hz, 60 Hz / ±5 %
Nominal current / limiting current per line conductor 5 A / 63 A
Start-up current < 25 mA
Connection cross-section 1,0 mm² – 25 mm²
Torque for screw terminals 2,0 Nm
Ambient conditions in operation
Ambient temperature –25 °C to +40 °C
Storage temperature range –25 °C to +70 °C
Protection class (according to IEC 62103) II
Degree of protection (according to IEC 60529) IP2X
Max. permissible value for relative humidity (non-condensing) 95%
General data
Dimensions (W / H / D)) 88 / 70 / 65 mm
Weight 0,3 kg
Individual units 4
Mounting Switch or meter cabinet / Top-hat rail mounting
Status display 2 DEL
Self-consumption < 2 W
Warranty 2 years







EMETER-20

Data sheet

Type of electrical equipment
Compteur d'énergie

Specific References

UPC
712971128484
EAN13
0712971128484
New
