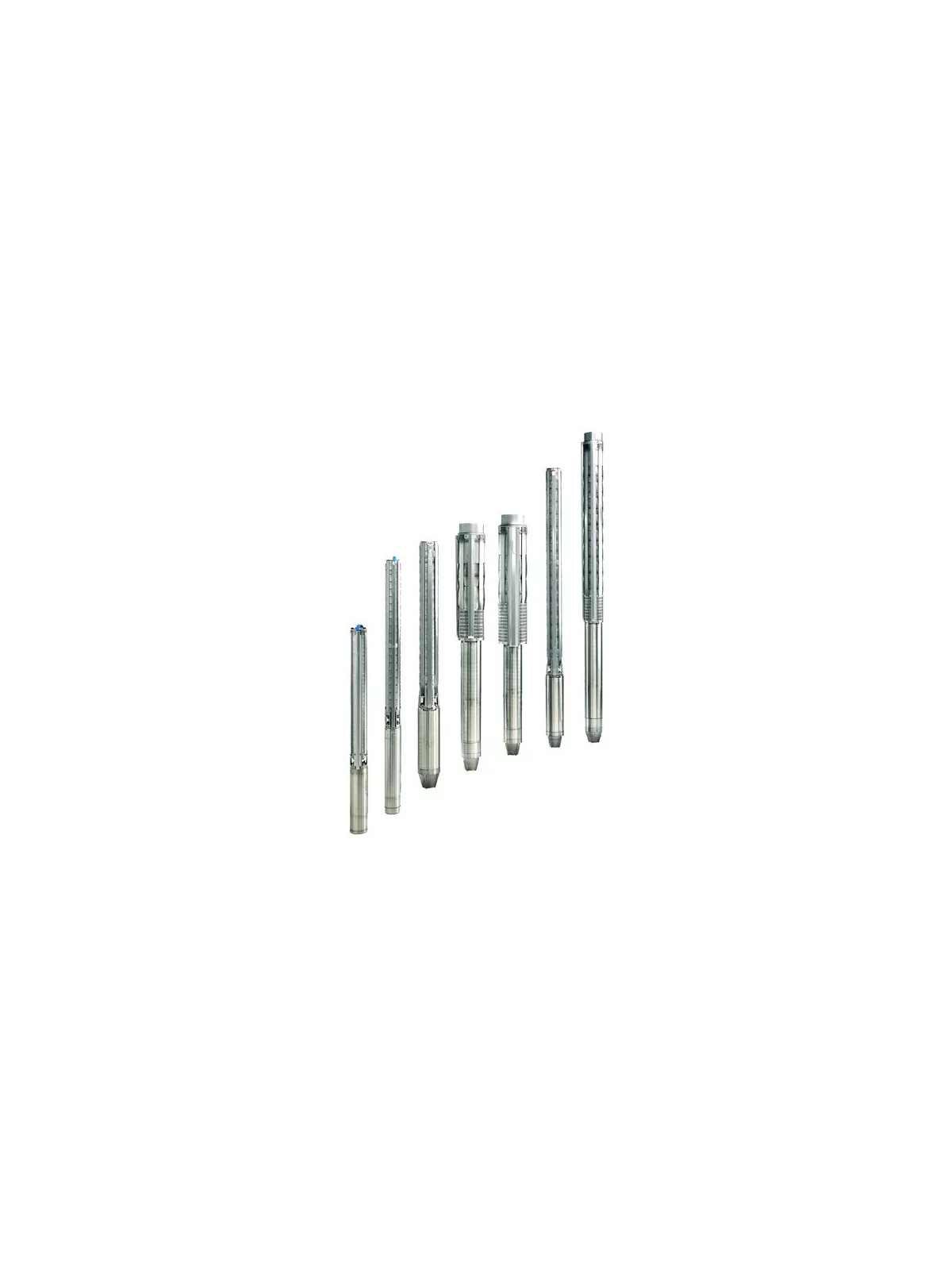

Immersed pump Grundfos SP 9

Grundfos

1 580,26 € tax incl.

Options

Grundfos SP submersible pumps are renowned for their high efficiency and reliability throughout the range.

The SP 7 pumps are recommended for a 65% efficiency at a height between 10m and 210m for a flow rate between 7m³/h and 10m³/h.

Logo Grundfos

More details

More info

Grundfos SP

" Reliable and robust, a pump for multiple applications "

Grundfos SP submersible pumps are renowned for their high efficiency and reliability throughout the range. Made entirely of corrosion-resistant stainless steel, SP pumps are ideal for a wide variety of applications.

Grundfos SP pumps represent state-of-the-art hydraulic design. Built to deliver optimum efficiency during periods of high demand, the SP pumps provide low long-term costs and high operating reliability regardless of the application.

The Grundfos SP range offers high efficiency, high resistance to sand and other abrasives, motor burnout protection, and easy maintenance. A complete monitoring and control system is available for constant optimisation of the pumping system.









The pumps are suitable for:

  • Groundwater supply to waterworks

  • Irrigation in horticulture and agriculture

  • Groundwater lowering

  • Pressure boosting

  • Industrial applications.





Features and benefits

  • State-of-the-art hydraulics provide high efficiency and low operating costs

  • 100 % stainless steel inside and outside

  • Sand resistant

  • Resistant to aggressive water

  • Motor burnout protection

  • Dry-running protection

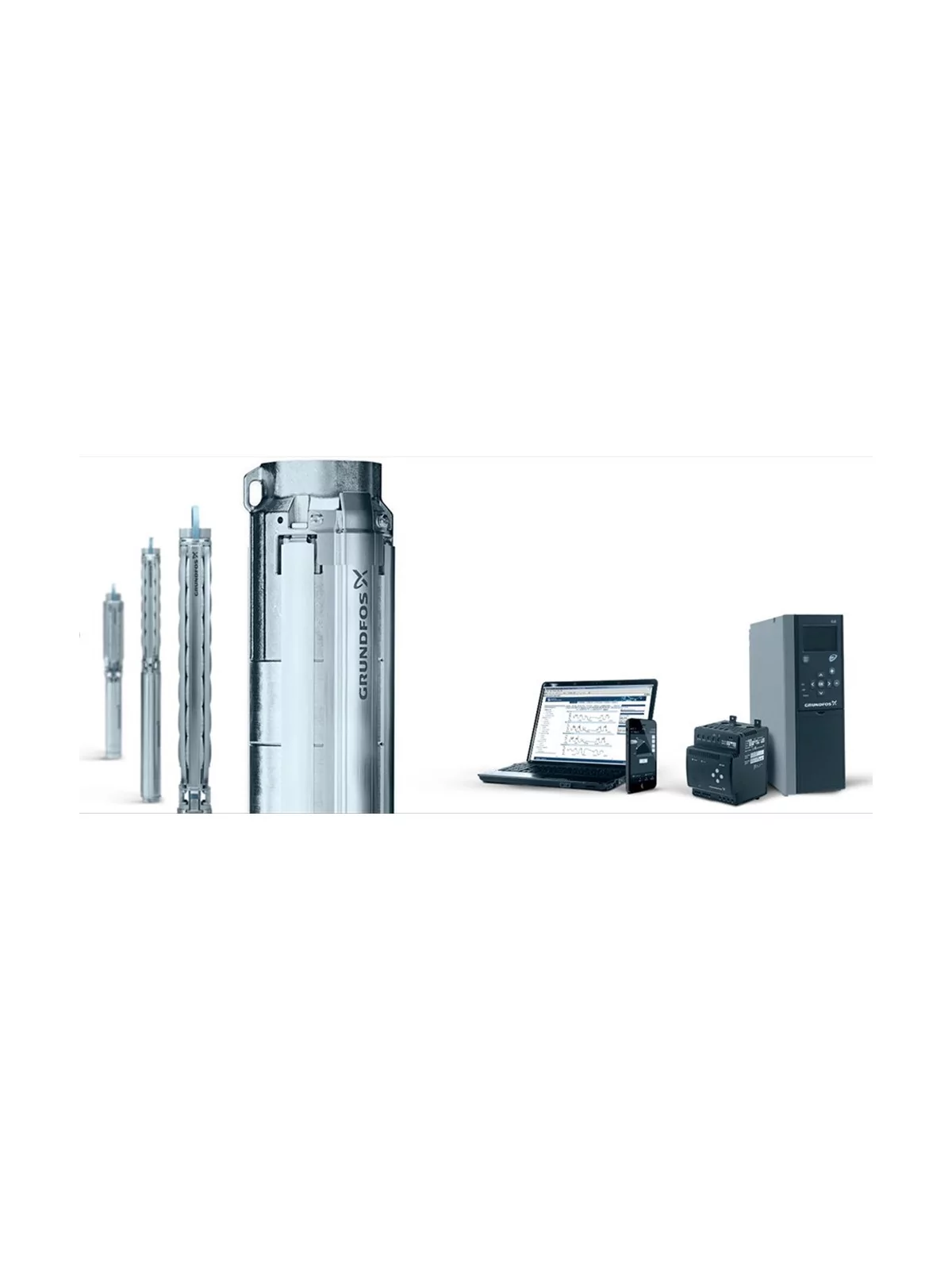

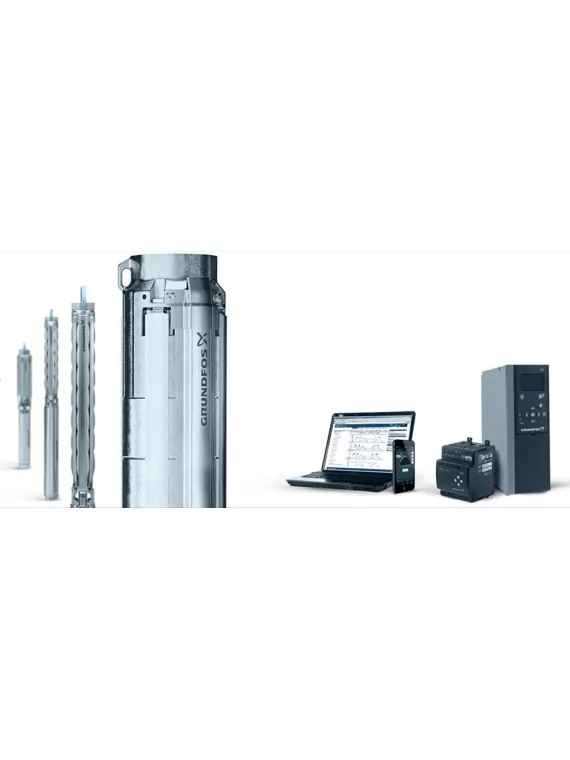

  • Monitoring, protection and communication via the MP 204 protection unit and the R100 remote control.









In short :

  • High efficiency

  • Corrosion-resistant

  • Complete range of pumps and motors SP System


Pump SP 9SP 9-5SP 9-8SP 9-11SP 9-13SP 9-16SP 9-18SP 9-21SP 9-23SP 9-25SP 9-29
Liquid temperature+40 °C max
Protection classIP 68
MEI≥ 0,7
MaterialStainless steel AISI 304
Stages9
Voltage3x 230V or 3x 400V
Pump diameter4"
ConnectionRp 2
Power (kW)1,101,502,2033445,55,55,5
In (A) 3x 400V3,44,25,57,97,99,69,613,613,613,6
Cable (m)1,72,5

Recommended Height and FlowSP 9-5SP 9-8SP 9-11SP 9-13SP 9-16SP 9-18SP 9-21SP 9-23SP 9-25SP 9-29
Height max (m)3045658090110125140150170
Height min (m)20305060708595110120135
Min flow (at the max. height recommended)7 m³/h
Max flow (at recommended height min)10 m³/h
Yield65%
