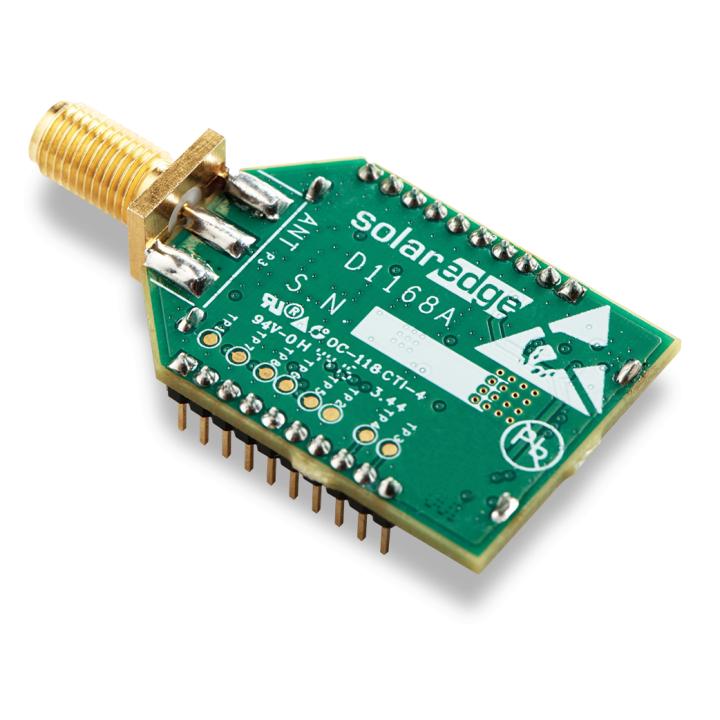

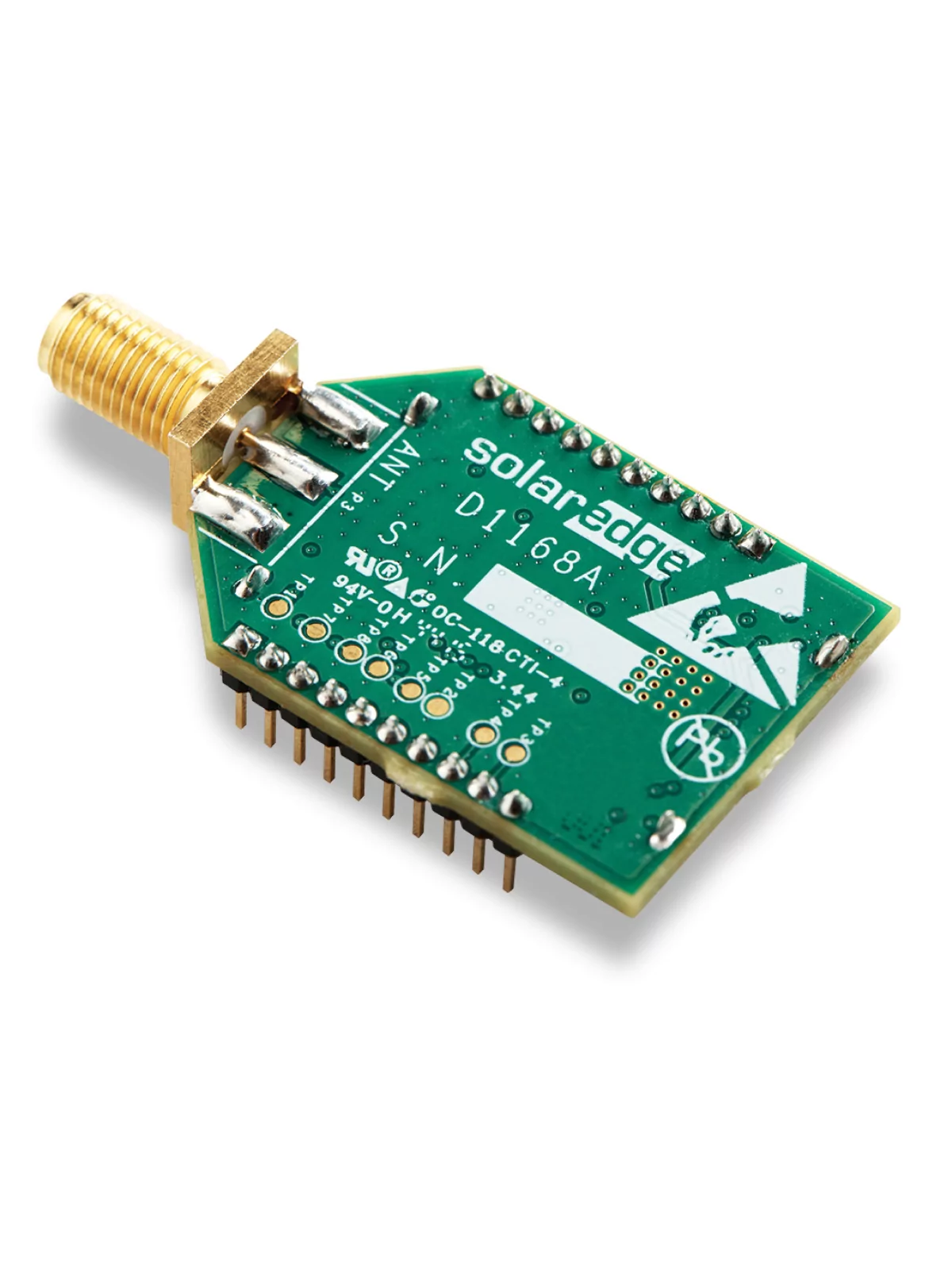

ZigBee module for SolarEdge home automation management
€117.10
Tax included
SE1000-RS485-IF
0712971134010
This small device enables intelligent management of consumption. It acts as a network manager for home automation. It is attached to the SolarEdge inverter. The ZigBee's external antenna extends the inverter's range.
8
"Wireless solution for home automation
- ZigBee module enabling home automation
- Acts as a network manager for home automation
- Can be mounted outdoors as it is integrated into the inverter
- External inverter antenna for greater range
- Increased self-consumption and lower energy costs
- Intelligent consumption management
- Intelligent network user management for secure communication
| SE1000-ZB06-MOD |
| FUNCTION |
| Number of devices in a device management network | Max. | |
| 10 | ||
| Communication with the supervision platform | Installation with one inverter - Ethernet / GSM* ; | |
| Installation with several inverters - RS485 and Ethernet / ZigBee / Wi-Fi / GSM* | ||
| RADIO FREQUENCY POWER |
| Transmitter power | dBm | 11,8 |
| Receiver sensitivity | dBm |
| Antenna gain | dBi |
| Operating frequency range | GHz |
| .4 - 2.5 |
| Outdoor range (unobstructed) |
| 400 |
| Indoor range* |
| 50 |
| Antenna, | ||
| mounting bracket and RF cable | Included in delivery | |
| Dimensions (H x W x D) | mm | 22.0 x 32.9 x 4,1 |
| Protection class | IP65 (IP20 / suitable for indoor installation within the control and communication gateway) | |
| STANDARDS RESPECTED |
| Safety | IEC60950, UL60950 | ||
| EMC approvals | |
| (Europe), ACMA (Australia), Telec (Japan) | |
* Not for use with SolarEdge data package
** Approximate values; may vary according to installation conditions
SE1000-RS485-IF
Data sheet
- Number of MPPT
- 1 MPPT
Specific References
- UPC
- 712971134010
- EAN13
- 0712971134010
New
ZigBee module for SolarEdge home automation management — On-grid PV inverters
ZigBee module for SolarEdge home automation management by SolarEdge is available in our On-grid PV inverters catalog. Technical specifications: number of mppt: 1 MPPT. Product weight: 0.2 kg. Reference: SE1000-RS485-IF.
