€5,065.02
Tax included
10071
0712971136274

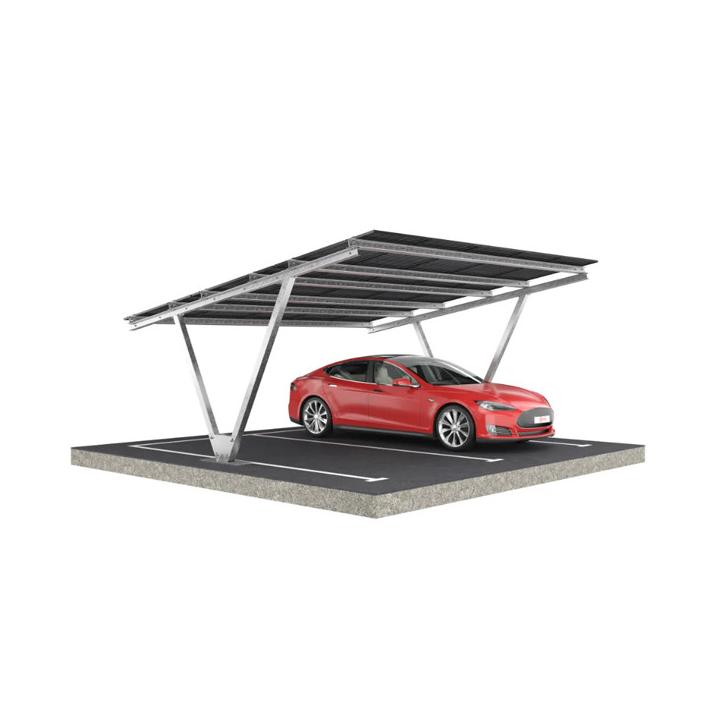

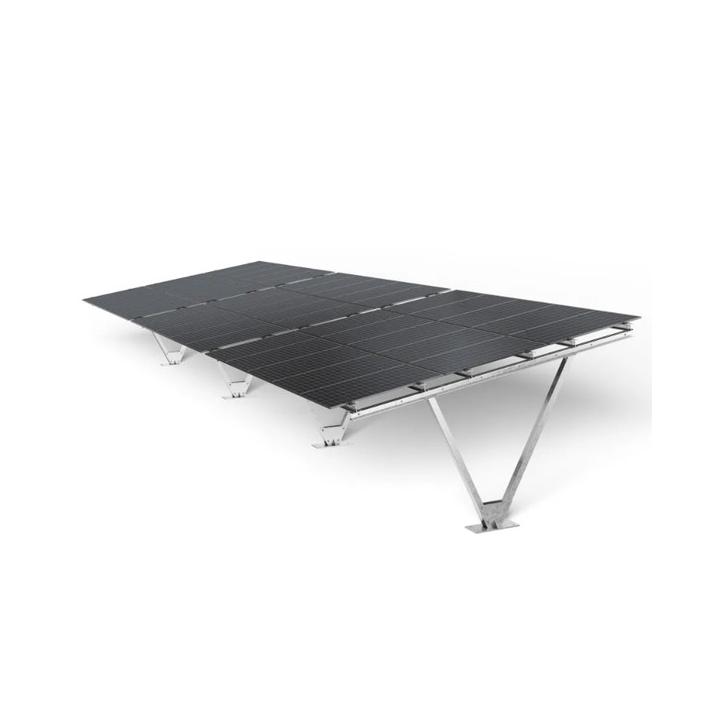

High-quality steel structure with magnesium and aluminum coating, quick and easy to assemble, to shelter your car. Number of photovoltaic modules: 15 modules, vertically oriented in 3 rows.

Carport includes structure only. Solar panels are not included.

Please note! Delivery charges are not included for carports. For a personalized quote, contact us at info@wattuneed.com. We'll make you the best possible offer!

Comments (0)

No customer reviews for the moment.

All products undergo rigorous testing. The highest manufacturing quality guarantees production under the ISO 9001: 2008 quality system and carries the TÜV Rheinland Polska Monitoring + mark . Testing


STRENGTHS

  • High-grade steel crown construction with magnesium and aluminum cladding

  • Modular system - expandable
  • for additional parking spaces
  • expandability for additional parking spaces

  • Quick and easy to assemble

  • High static strength

  • 10° panel tilt angle

  • Very high corrosion resistance

  • Self-regenerating crown coating

  • No electro-corrosive effects

TECHNICAL SPECIFICATIONS

  • System material: high-grade steel with special anti-corrosion coating
    , hot-dip galvanized steel

  • Panel orientation: vertical, 3 rows

  • Panel tilt angle: 10 °

  • System weight (15 modules): 618 kg

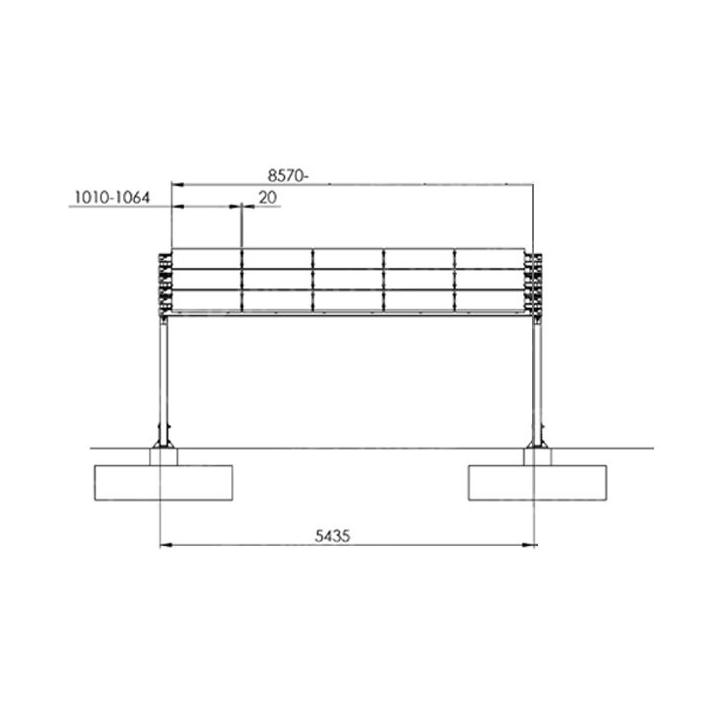

Dimensions carport double

Dimensions carport

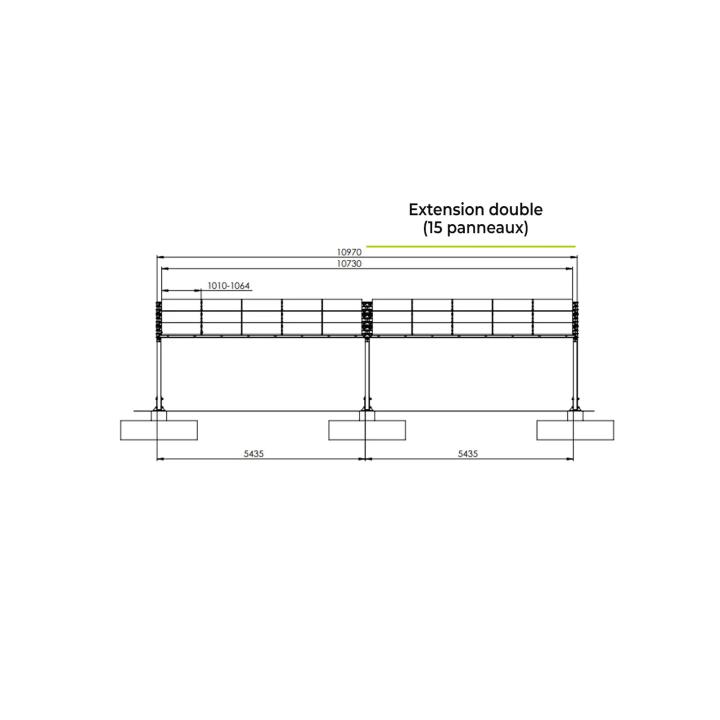

Dimensions carport double avec extension

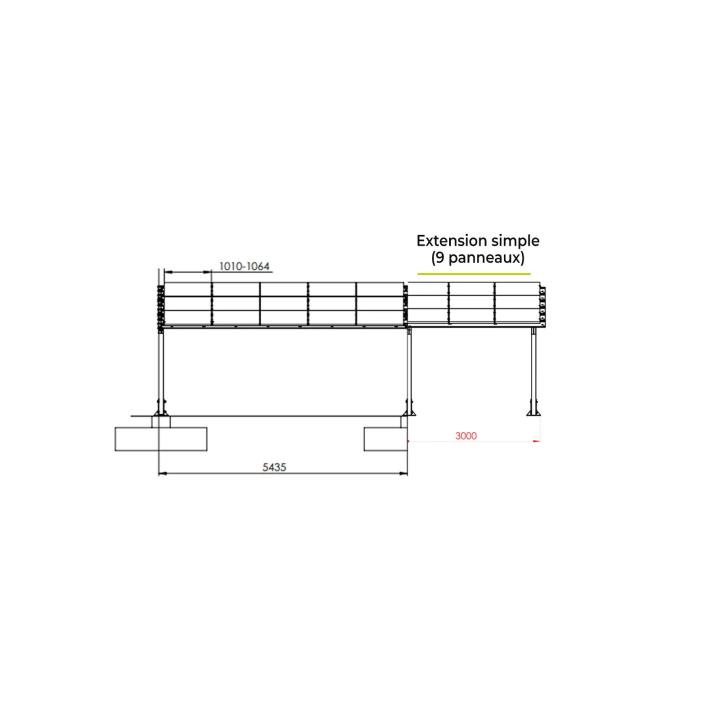

Dimensions carport simple avec extension


Information on the size and volume of concrete blocks required to secure the covers

Actual dimensions of concrete block:

  • Length: 3200 mm (3.2 m)
  • Width: 500 mm (0.5 m)
  • Height: 500 mm (0.5 m)

Calculation of corrected volume :

Calculation of corrected weight (with a density of 2400 kg/m³) :

Each concrete block therefore has :

  • A volume of 0.8 m³
  • A weight of approx. 1920 kg (1.92 tonnes)



10071

Data sheet

Mounting
Carport

Specific References

UPC
712971136274
EAN13
0712971136274
