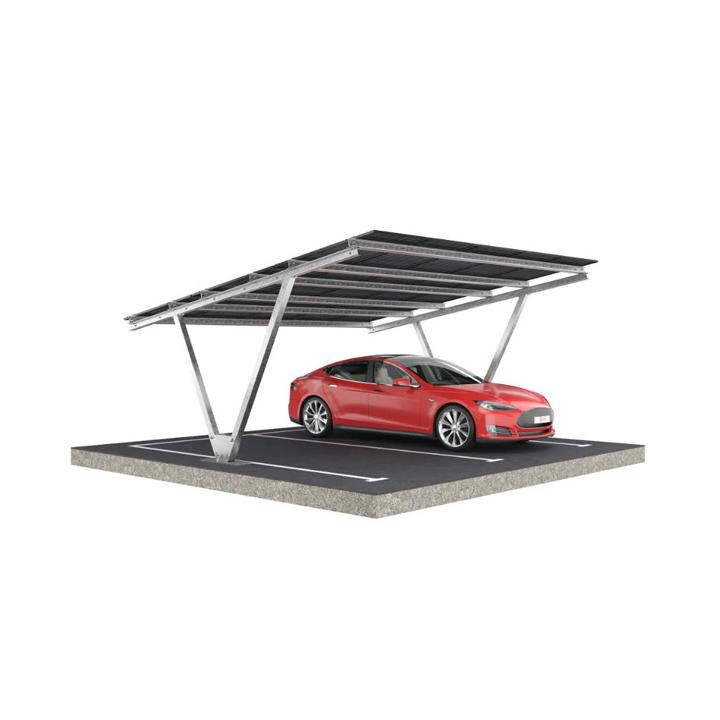

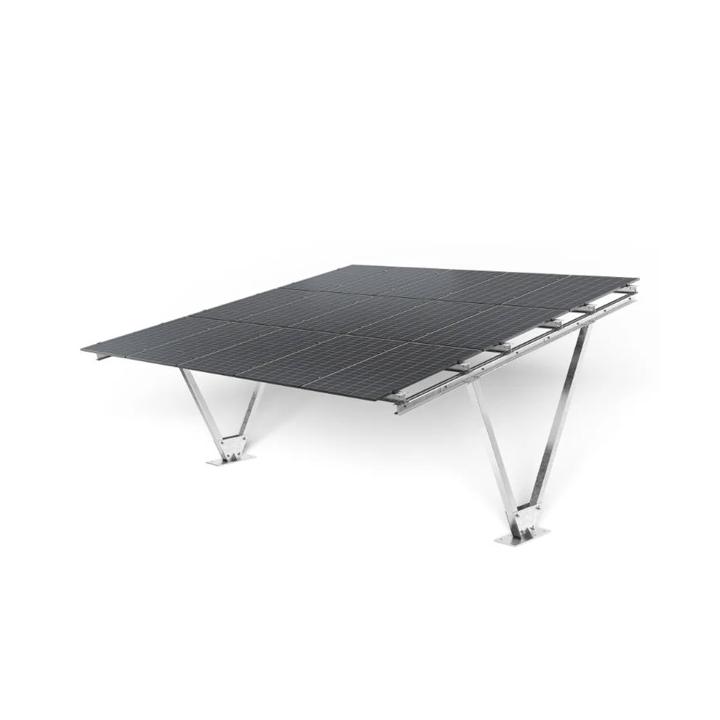

Simple photovoltaic carport

All products undergo rigorous testing. The highest manufacturing quality guarantees production under the ISO 9001: 2008 quality system and carries the TÜV Rheinland Polska Monitoring + mark . Testing

STRENGTHS

• High-grade steel crown construction with magnesium and aluminum cladding


• Modular system - expandable
for additional parking spaces
• expandability for additional parking spaces


• Quick and easy to assemble


• High static strength


• 10° panel tilt angle


• Very high corrosion resistance


• Self-regenerating crown coating


• No electro-corrosive effects

TECHNICAL SPECIFICATIONS

• System material: high-grade steel with special anti-corrosion coating, hot-dip galvanized steel

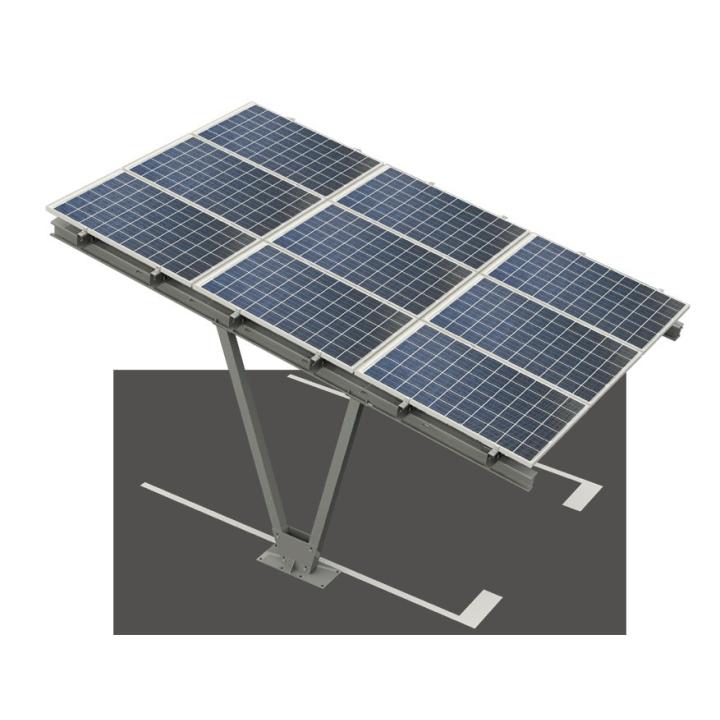

• Panel orientation: vertical, 3 rows


• Panel tilt angle: 10 °


• System weight (9 modules): 398 kg

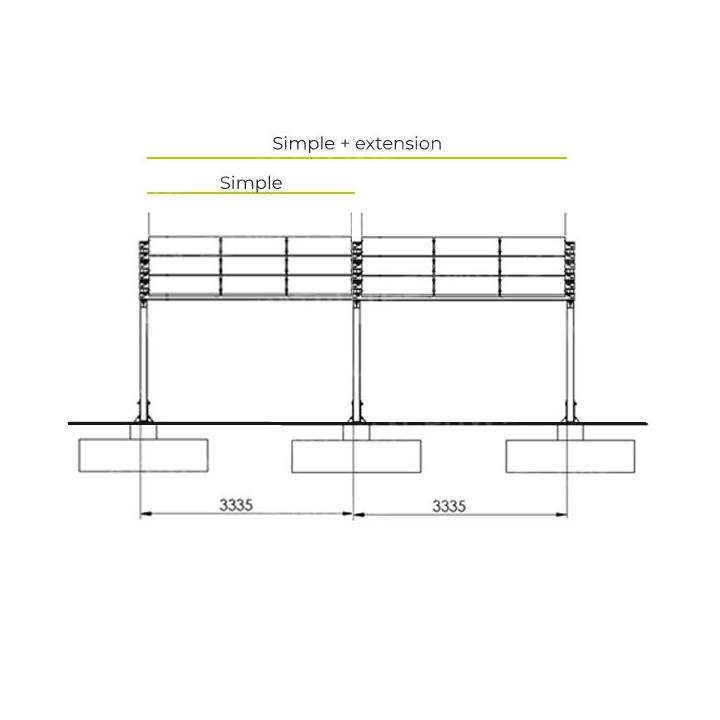

EXTENSION EXAMPLE

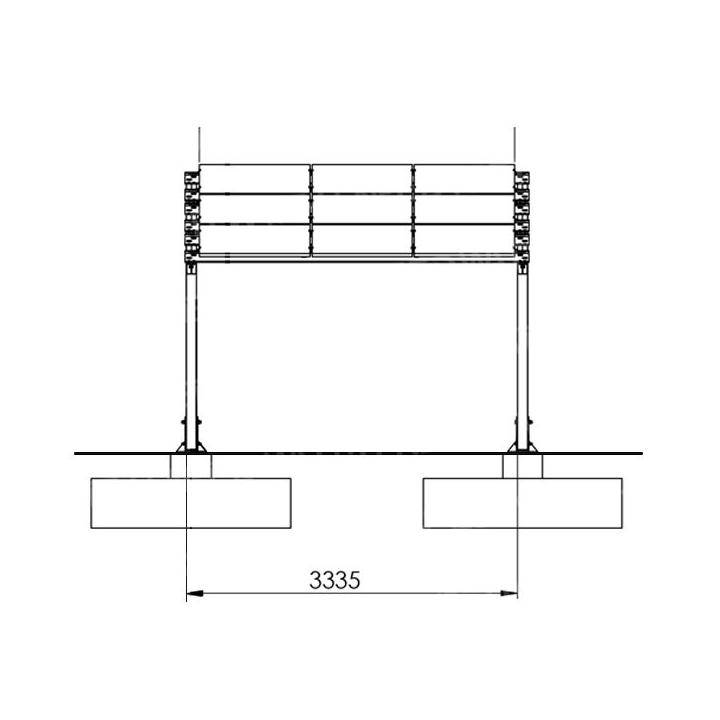

Information on the size and volume of concrete blocks required to secure the covers

Actual dimensions of concrete block:

• Length: 3200 mm (3.2 m)
• Width: 500 mm (0.5 m)
• Height: 500 mm (0.5 m)

Calculation of corrected volume :

Volume = 3, 2m× 0, 5m× 0, 5m= 0, 8m3

Calculation of corrected weight (with a density of 2400 kg/m³) :

0, 8m3× 2400kg/m3= 1920kg

Each concrete block therefore has :

• A volume of 0.8 m³
• A weight of approx. 1920 kg (1.92 tonnes)
