    GSE Ground System - Ground attachment system
    GSE Ground System - Ground attachment system
    GSE Ground System
    GSE Ground System
    GSE Ground System - Ground attachment system
    GSE Ground System - Ground attachment system
    GSE Ground System
    GSE Ground System
    GSE Ground System - Ground attachment system

    GSE Ground System - Ground attachment system

    €471.90
    Tax included
    10004
    0712971135581

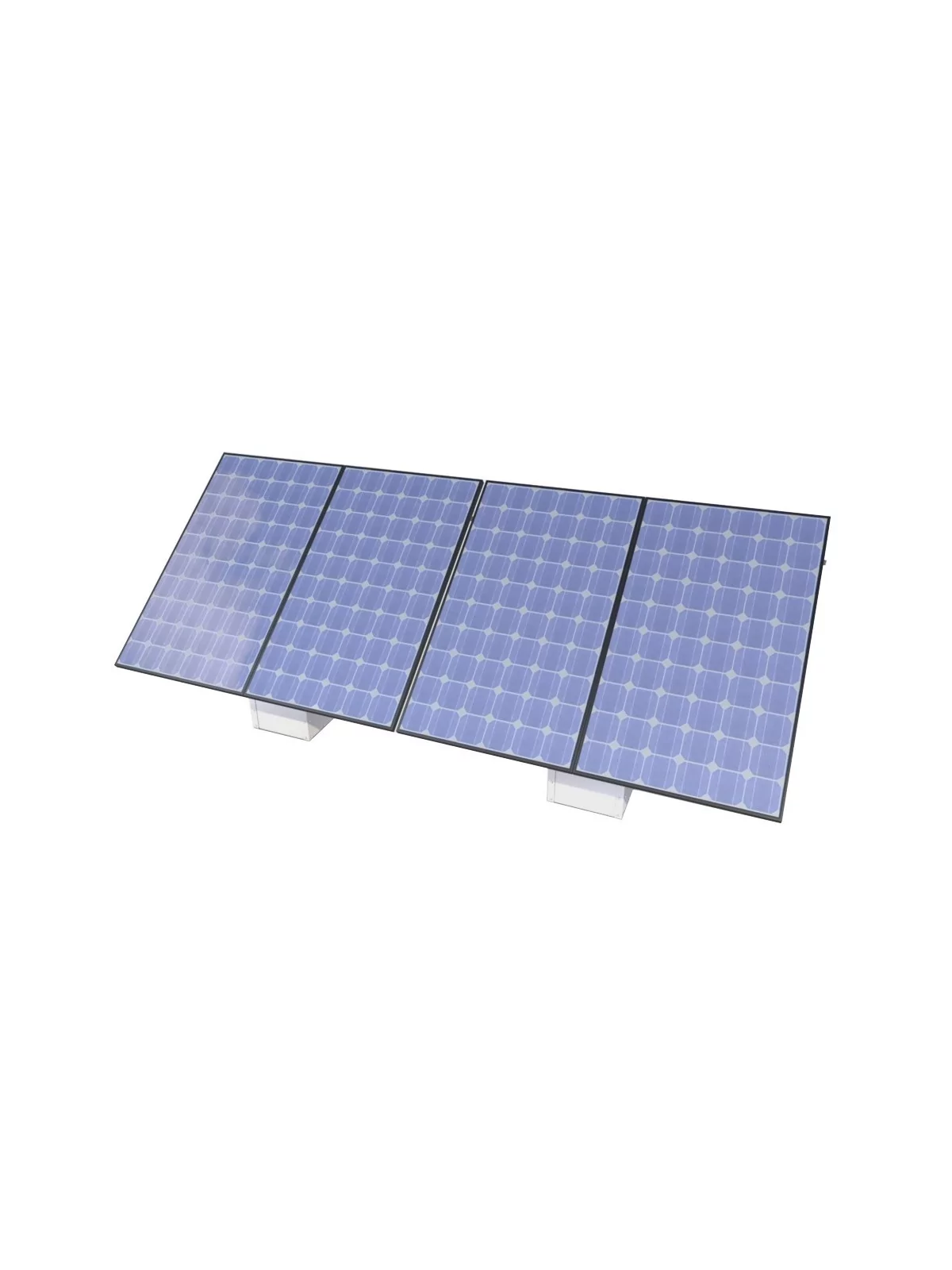

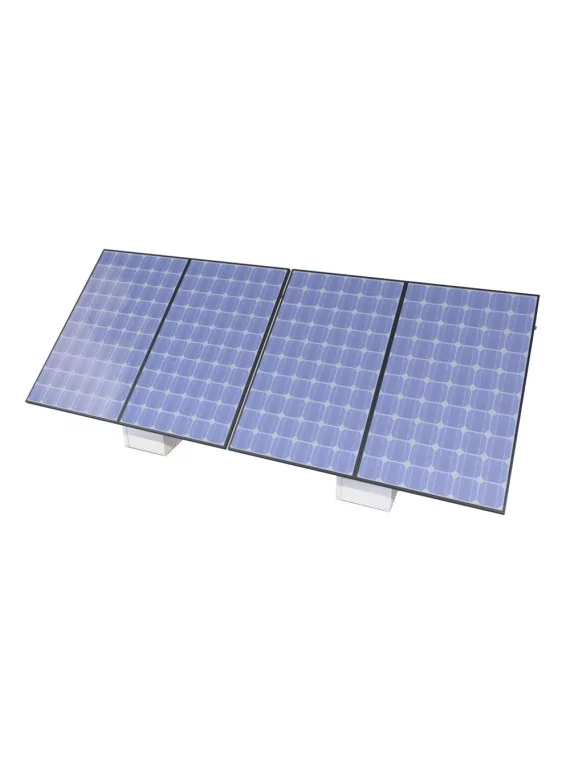

    Ground-fixing system for photovoltaic modules (framed PV). The Ground System adapts to 95% of the framed modules on the market.

    GSE options: Ground'System 2 panels

    Sorry, there are no more items in stock.

    GSE Ground System - Ground...

    €471.90

    Présentation GSE GROUND SYSTEM



    Functional, light, aesthetic, quick to install, simple and universal!

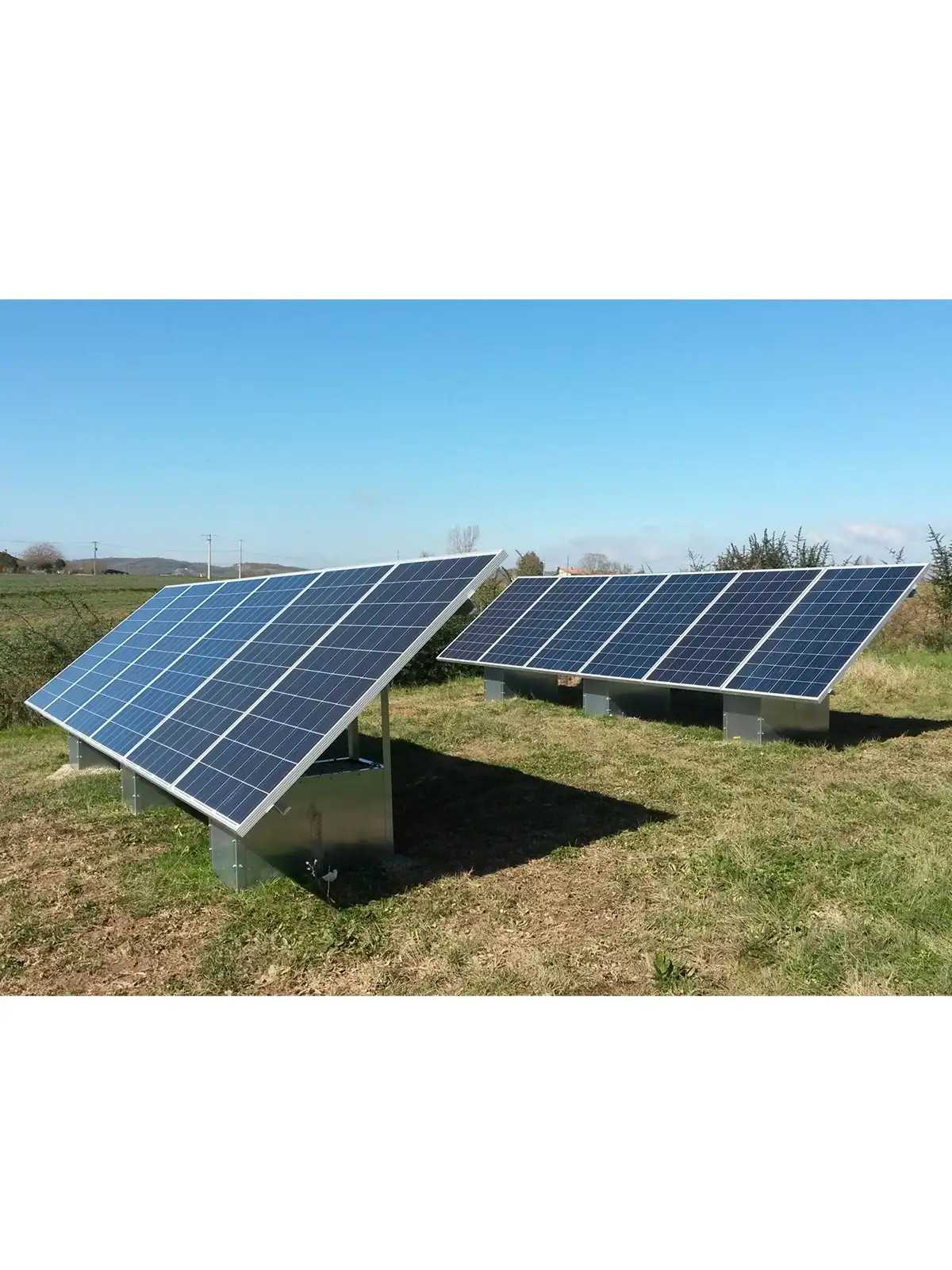

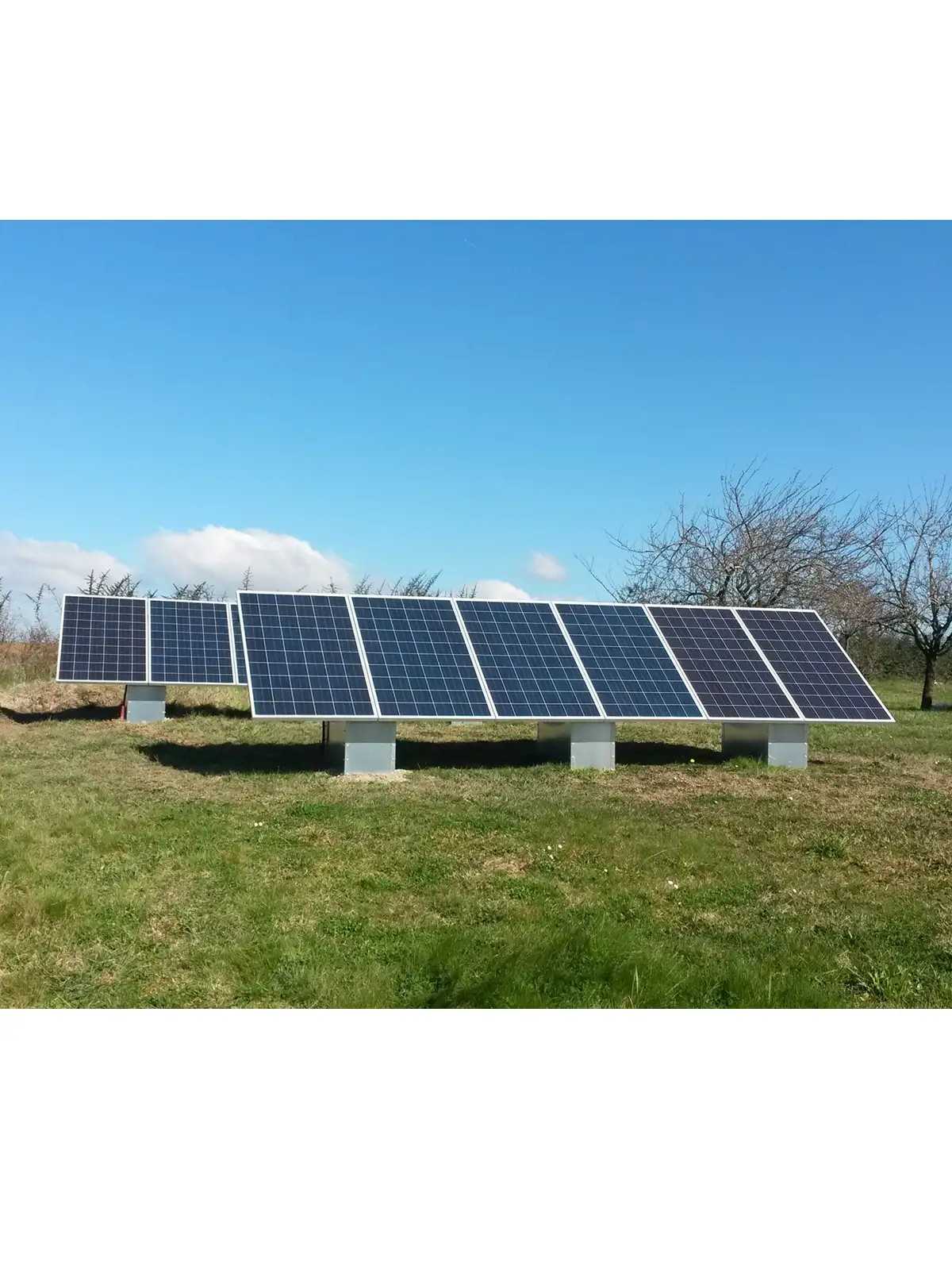

    The Kit GSE GROUND SYSTEM lets you ground-integrated photovoltaic modules. Specially designed for self-consumption, it offers many advantages:

    • The system is less than 1.80 m high and therefore no administrative formality is required for its implementation


    • Energy optimization of construction under the 2012 thermal regulations


    • Responds to problems of non-feasibility of roofing installation (lack of space, old roof, etc.)


    • Sold in a kit of 2 or 6 panels, it can meet several uses (PV installation supplement, self-consumption, flat roof, all gardens, etc.).

    Assets



    • Solves space problems: poses as a portrait for a small footprint

    • Reduced installation time and cost

    • Compatible with all gardens: no lawn height problem

    • Compatible with all panel sizes

    • Simple and safe to install: Lestage possible with all types of materials

    • Compact and lightweight: kit delivery (up to 3 4-panel/palette kits)

    • 100% Recyclable

    • No roofing work

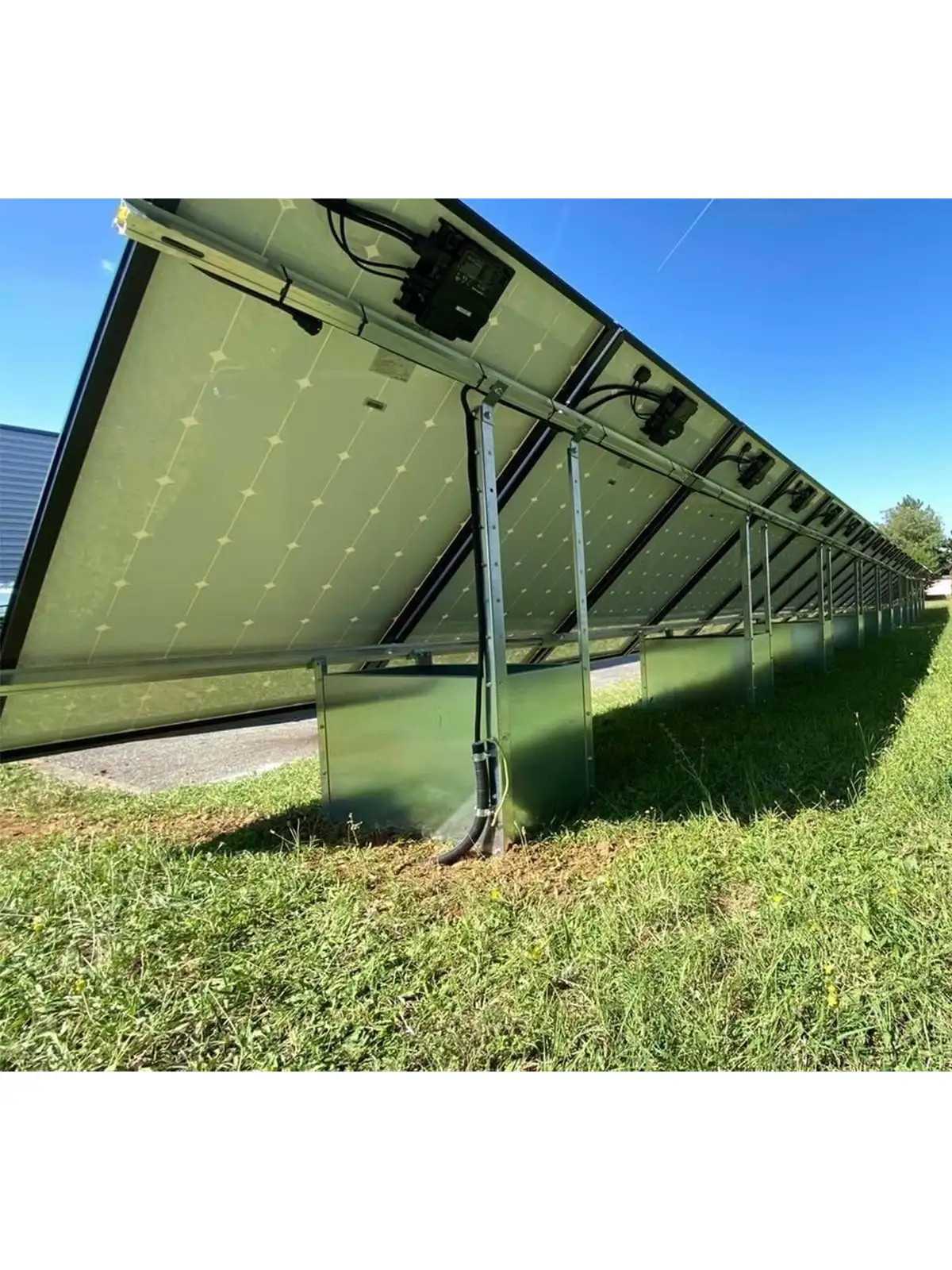

    • Easier fixing of micro-inverters

    • Plate for fixing: protective box at the back

     Characteristics



    Possible configurationsMultiple of 2 columns in PORTRAIT
    TiltAdjustable from 7 to 40 degrees at assembly
    ColorCrude steel
    MatterGalvanized steel
    Weight8 kg without weighting / module

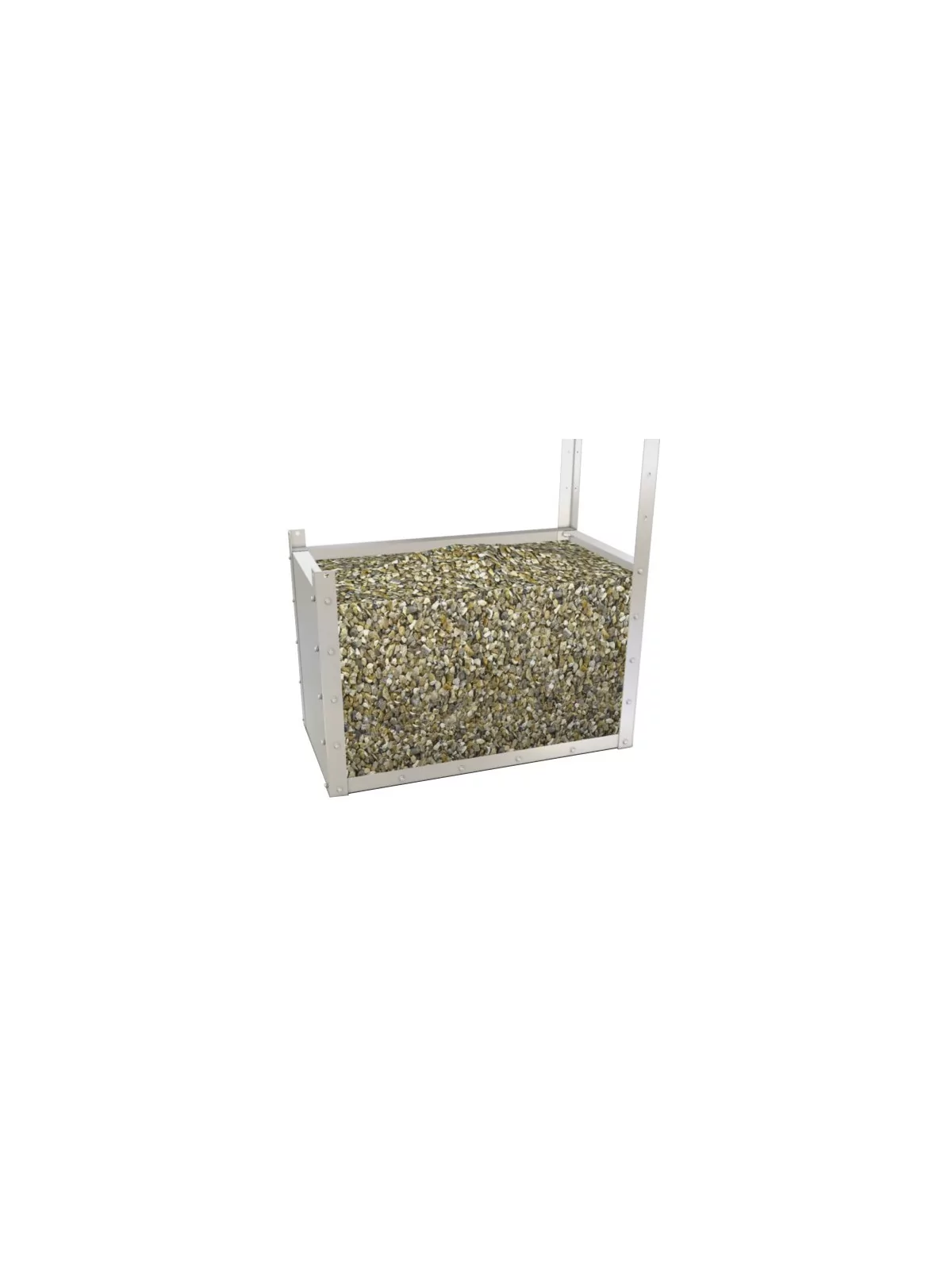

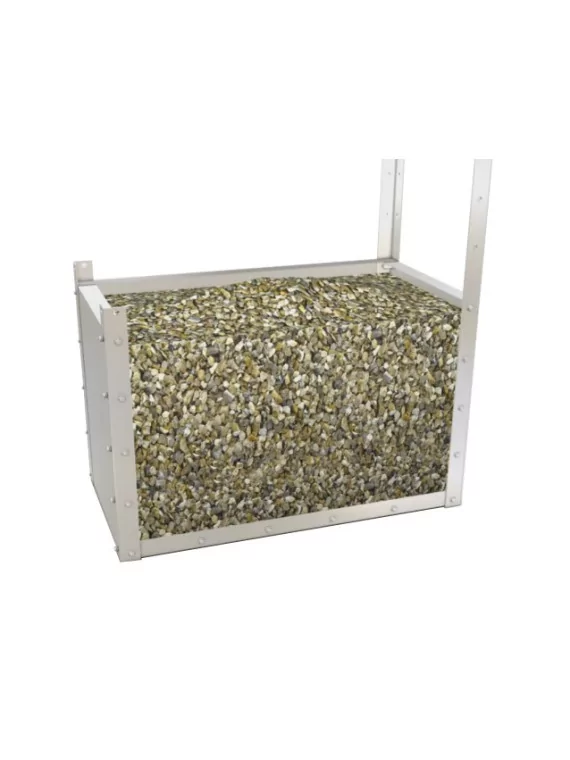

    Weighting systemSand, gravel, cement, concrete slabs...
    FixingLaying on the ground without drilling
    SecurityOpportunity to use micro-inverters: low voltage (v) in apparent cables
    Product and operating RC insuranceRSA Civil Responsibility and CHUBB
    10004

    Data sheet

    Mounting
    Flat roof - floor structure
    Video Youtube 1 - ID
    Dm2u-WsLX0A
    Video Youtube 2 - ID
    Vi9uvtjL8lM

    Specific References

    New

    Download

    Manuel GSE Ground System FR

    Download (1.36MB)
