The ClickFit Evo Installation Guide is an essential tool for any installer looking to combine speed with precision. Designed by Esdec, this template simplifies the marking out and installation of components on the roof, ensuring a perfectly aligned base for your solar panels.

  • Surgical precision: Ensures compliance with the system’s technical spacing requirements without measurement errors.
  • Versatility: Can be used for positioning brackets and checking rail distances.
  • Ergonomics: Compact and intuitive design, built for intensive use in the field.

Pro tip: Using the official guide not only saves time but also ensures that the installation complies with the manufacturer’s technical specifications.

20

ClickFit Evo Installation Guide – The essential assistant on the roof

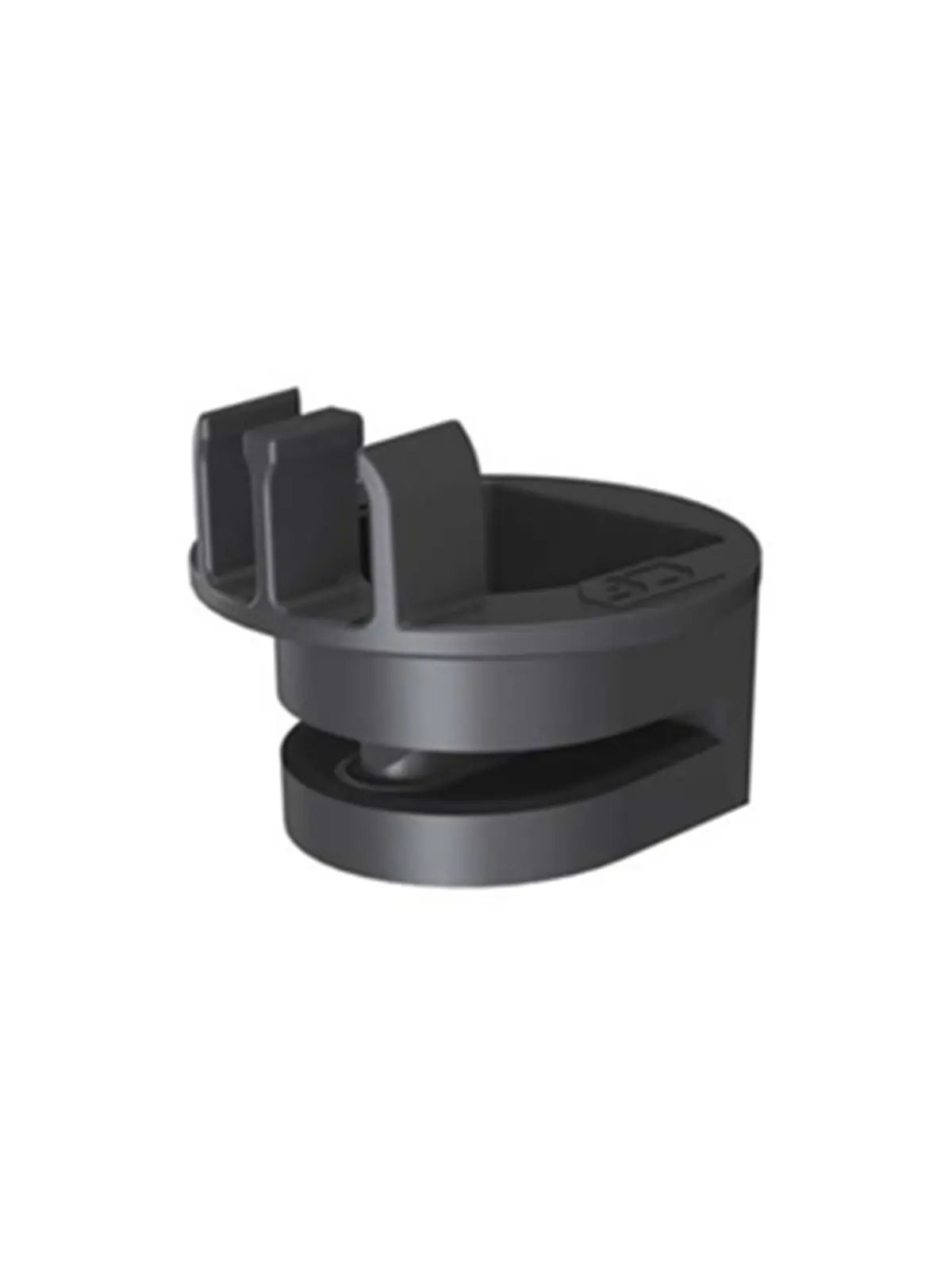

Work more efficiently and accurately with the ClickFit Evo Installation Guide. Acting as a real “third hand” for the installer, this clever accessory is designed to stabilise the photovoltaic modules and make it easier to align the components when mounting them on the rail.





Why use this installation guide?

  • Easier Installation: Holds the solar panel temporarily in position, preventing accidental slippage before the clamps are fully tightened.
  • Safe Solo Working: Essential for installers working alone, this guide ensures safe handling of the modules, even on steeply pitched roofs.
  • Time Saving: Optimises your workflow by enabling quick and precise alignment without the need for additional support.
  • Equipment Protection: Reduces the risk of scratches on panel frames or damage to rails during adjustment.





Compatibility and features

  • System: Exclusively compatible with the Esdec ClickFit Evo ecosystem.
  • Usage: Temporary support, positioning stop and alignment guide.
  • Durability: Robust material designed for repeated use on numerous construction sites.
  • Product reference: CIF1008064.





Instructions for use

Clip the installation guide onto the ClickFit Evo rail before positioning the panel. Once the module is in place and the fixing clamps are tightened, the guide can be removed and moved to the next panel. This tool is particularly recommended for portrait-oriented configurations to ensure perfect alignment of the panel line.





FAQ - ClickFit Evo Installation Guide

1. What is the main purpose of this guide during installation? +
This guide acts as a “third hand” for the installer. It is used to temporarily hold the solar panel in position on the rail, thereby preventing accidental slippage before the clamps are finally tightened. It is an essential accessory for ensuring precise and rapid alignment of the modules.
2. Is it possible to install panels on your own using this tool? +
Yes, this guide is particularly recommended for working alone. It ensures safe handling of the modules, even on steeply pitched roofs, by acting as a positioning stop. This allows a single installer to stabilise the panel before proceeding with its final fixing.
3. Does the guide need to remain on the rail after installation? +
No, it is a temporary support. Once the module is securely in place and the fixing clamps are tightened, you can remove the guide. Its robust design makes it a reusable tool that you can move from panel to panel throughout the installation.
4. Which systems is this guide compatible with? +
This installation guide is exclusively compatible with the Esdec ClickFit Evo ecosystem. It has been specifically designed to clip onto the rails in this range (reference CIF1008064) to ensure perfect compatibility when installing in portrait or landscape orientation.
