GSE Ground System - Ground attachment system

Ultraground System - Ground fastening system for two panels

€389.02

Tax included

Reference: Ultraground-system

EAN13: 0712971135581

• Portrait system in multiples of 2 modules
• 40 nuts and bolts, 1 single size of screws (For any system)
• Assembly in 10 minutes
• 1 Single assembly tool (key of 13)
• Made in France - Factory 4.0

100% secure payments

Customers who bought this product also bought:

AC connector for Hoymiles micro-inverter

€8.31

Pylontech US5000 Lithium Battery +300 - 14.4kWh

€4,760.30 €5,438.00

On sale!
-€677.70

Solar cable 1X4mm2 - 500m

€796.61

Hexagon head screw M10x25 100x

€19.38

Single-phase inverter Sofar Solar 4KTLM-G3

€755.79

Microinverter 400VA Hoymiles HM-400

€154.61

Plug electric 2 p + T 16 male has black

€2.32

WKS Evo MAX II 10kVA 48V hybrid inverter

€1,676.01

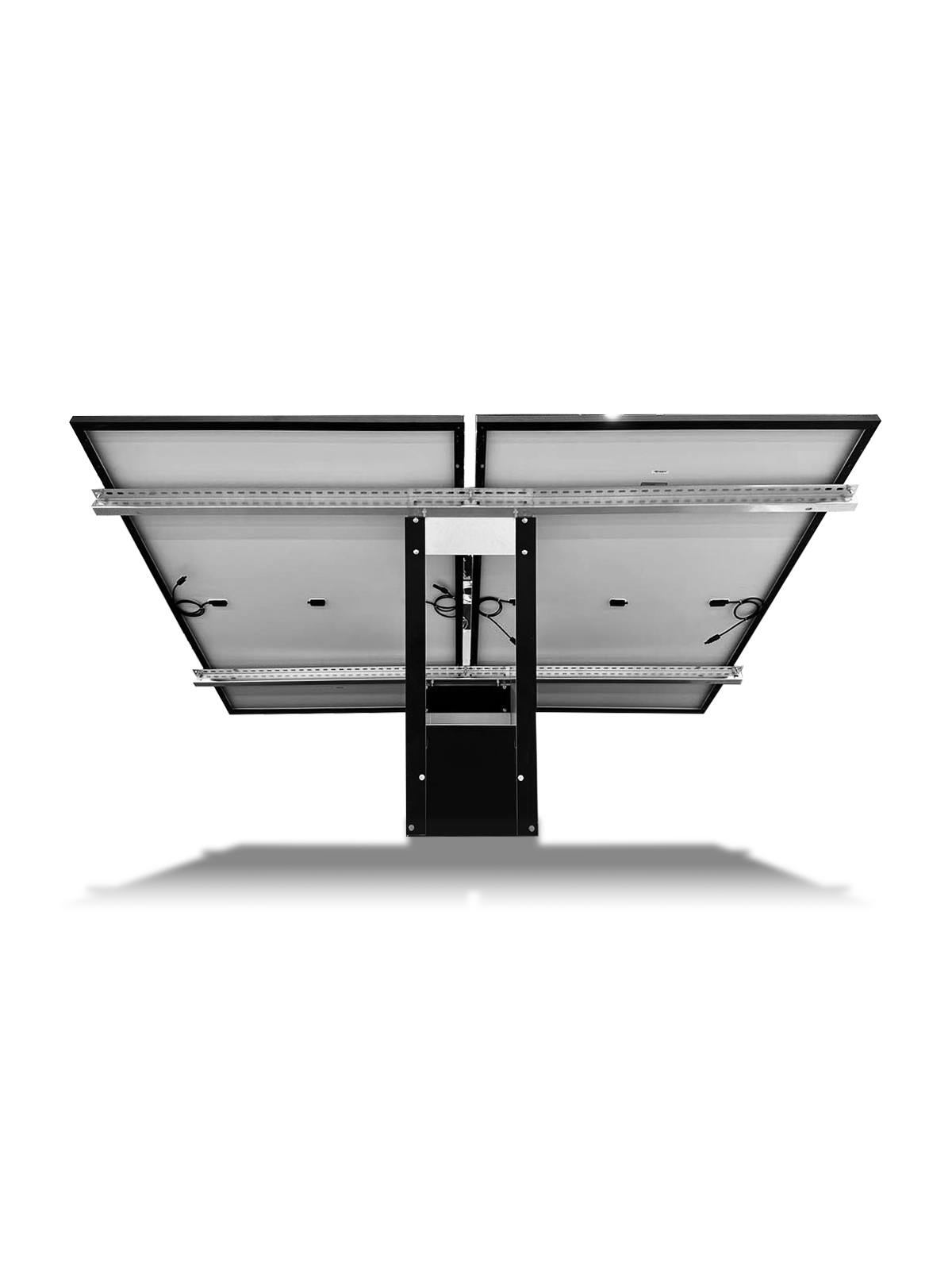

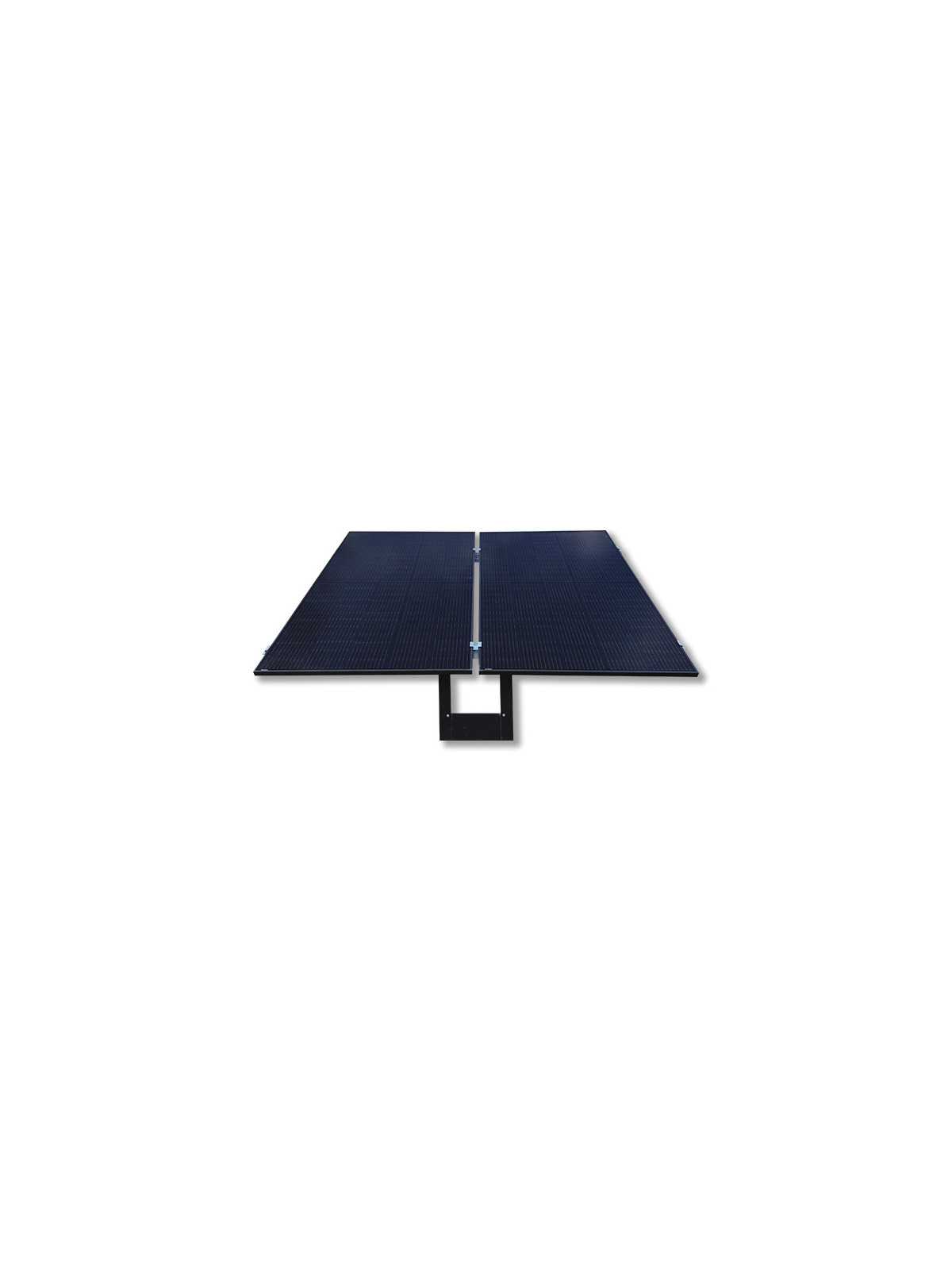

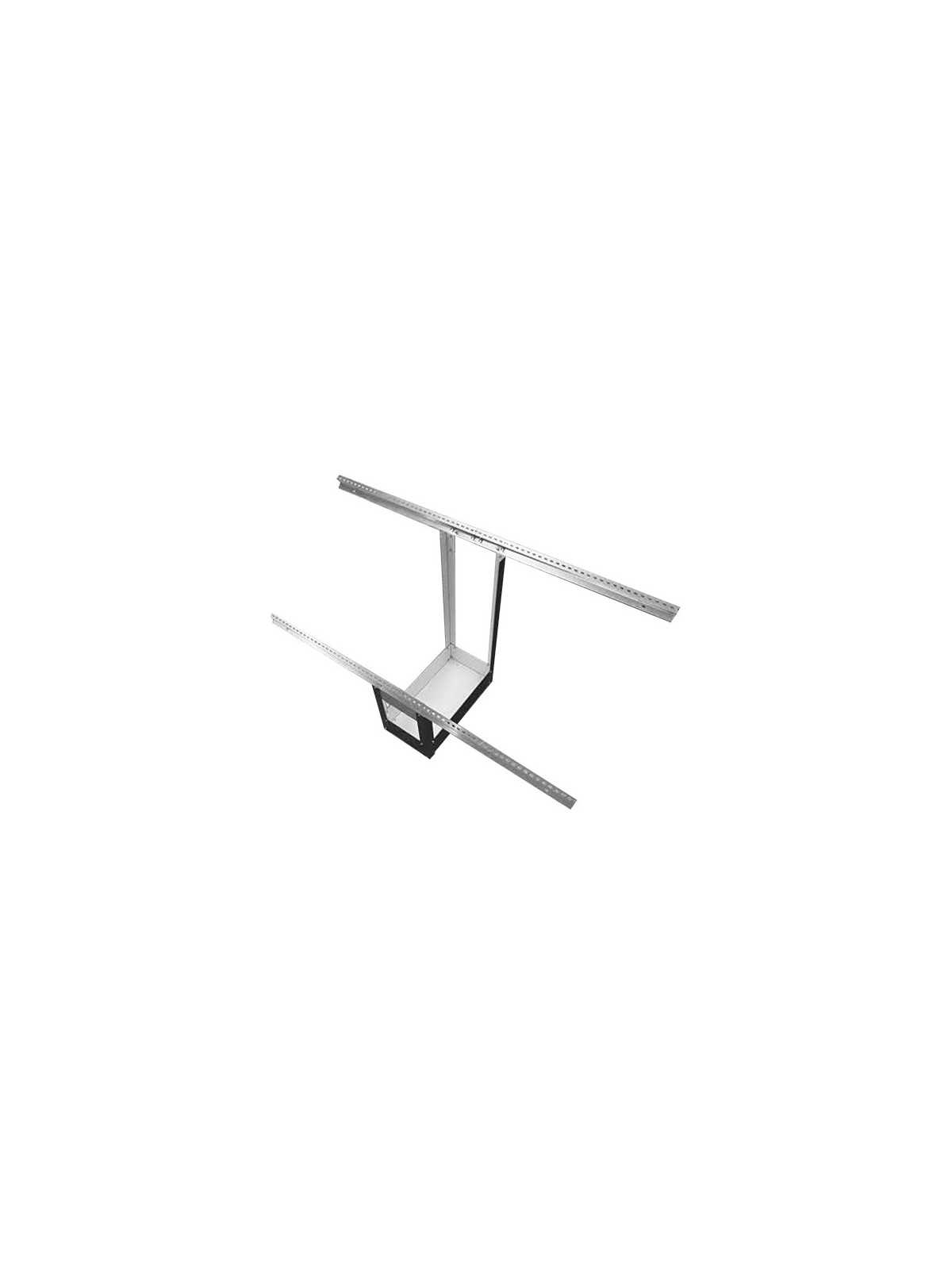

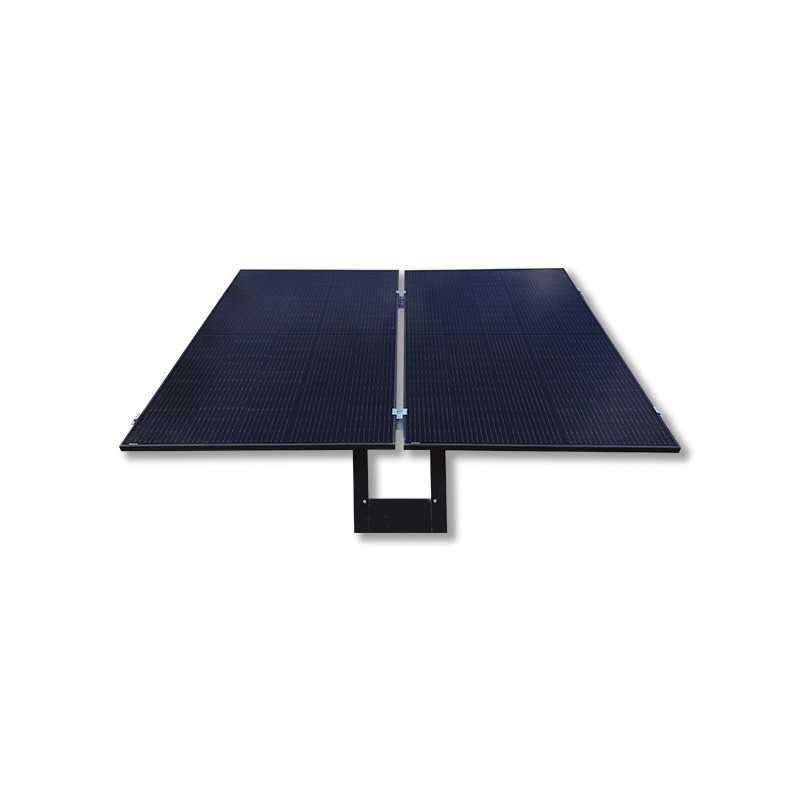

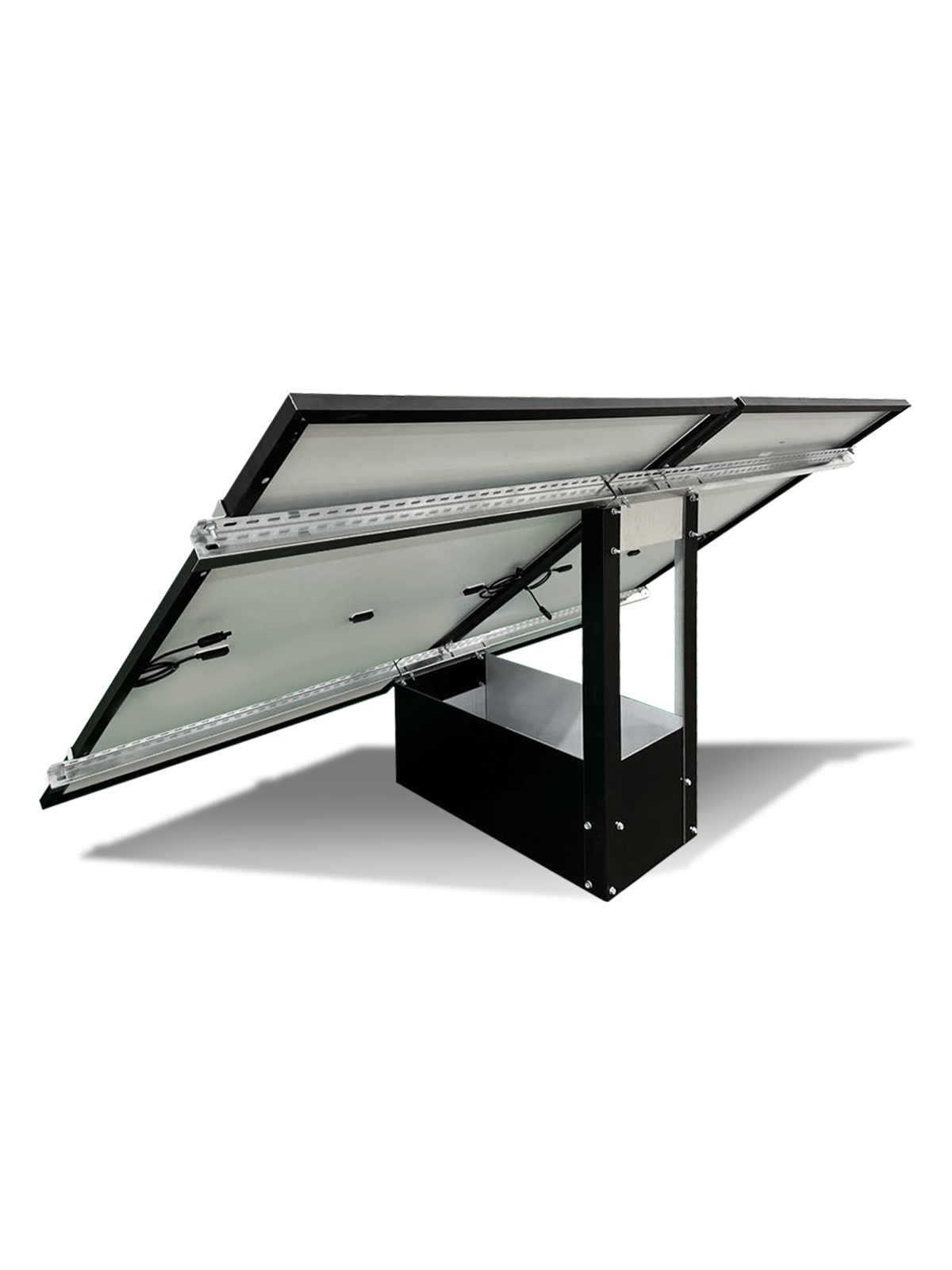

UltraGround System
Portrait floor mounting system for two panels

New floor mounting system to be weighted Ultra-fast (+- 10 minutes) and Ultra-simple (1 single assembly tool) with an Ultra-reduced.

• Compatible with all module sizes (max. width 1,150 mm)

• Do not require administrative formalities: (Ground height <1,80m)

• Space saving: Portrait pose for a small footprint

• Easy installation: without ground drilling or specific masonry

• Compatible with all types of soils

Lestage 64L

Sand = 102.4 kg
Concrete = 140.8 kg
Gravel = 96 to 108.8 kg
Slabs 40/40 x 10un = 140 kg

Characteristics

Configuration	In portrait by multiples of 2 modules
Inclination	Adjustable to mounting from 7.2° to 38°
Colour	Black 9005
Matter	Galvanized steel & composite aluminum
Weight without ballast	8kg / module
Ballast system	Sand, gravel, cement, slabs, concrete
Fasteners	Galvanized steel brackets supplied with Z bar
Security	Does not require working at heights
Bar size / Available rails	Z bar galvanized steel 2380 mm lagre Compatible with commercial rails
Compatible panels	Max width 1,150 mm Modules installed in portrait
