Ground mounting kit for photovoltaic panels

Floor structure mounting kit

Dhs1,717.62

Tax included

Reference: 08081

EAN13: 0712971131026

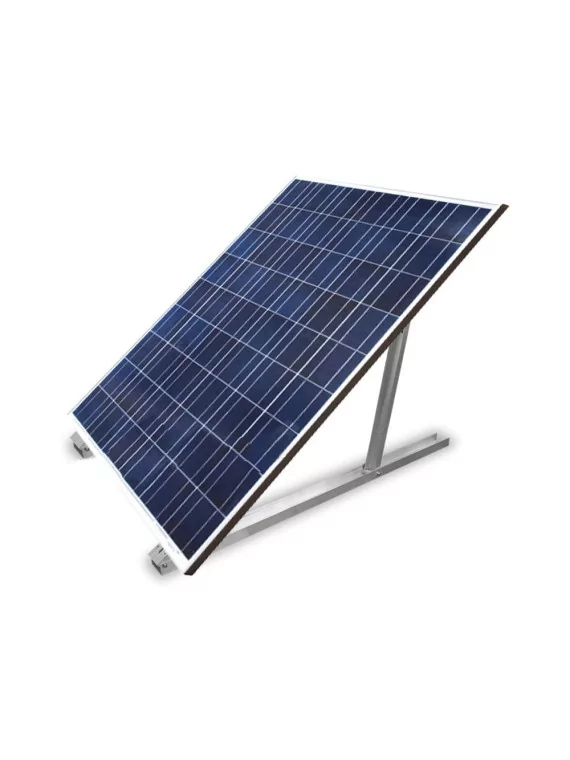

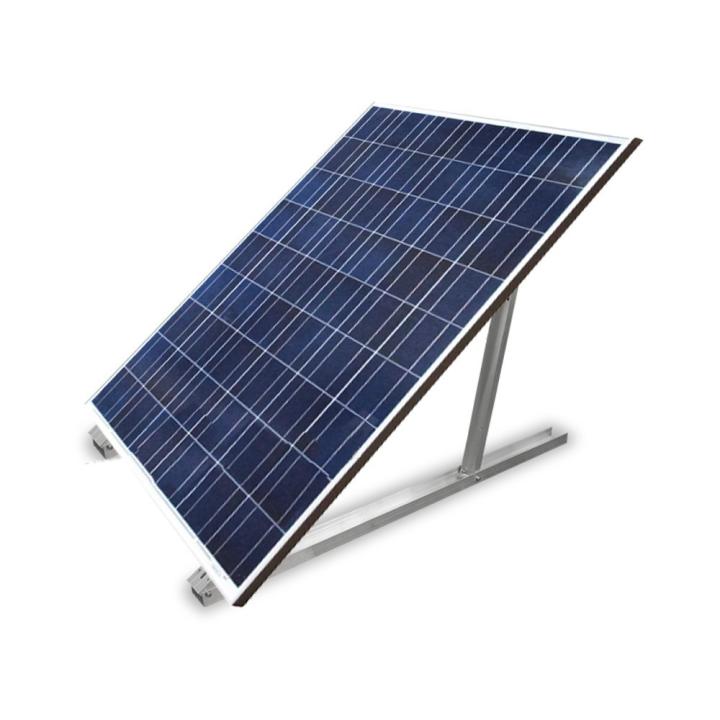

Discover our mounting kit for photovoltaic panels on ground structures, designed for safe, stable and durable installation. This kit is ideal for flat roofs, ground surfaces, houseboats or any other flat surface. It automatically adapts to the number of panels and their orientation (portrait or landscape) selected in the options.

The kit includes all the necessary equipment for a reliable and robust installation of your solar panels (except for ballast). The anodised aluminium structure guarantees optimal durability in all weather conditions and outdoor environments.

Main features:

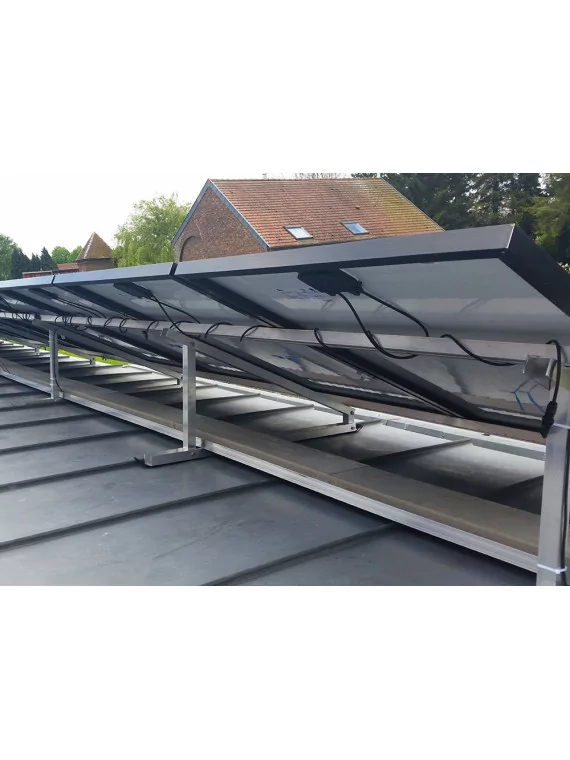

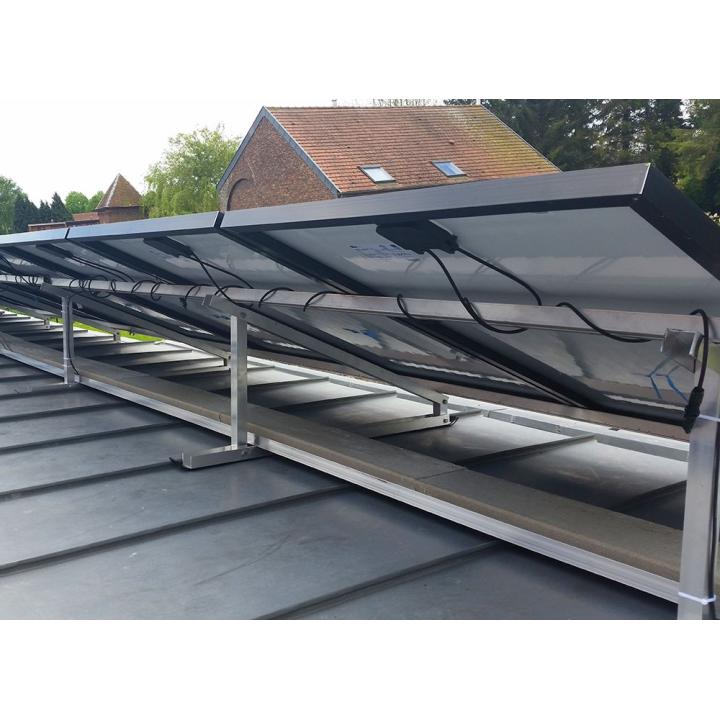

Compatible with ground structures, flat roofs, barges and other flat surfaces
Panels can be installed in portrait or landscape orientation
Weather-resistant anodised aluminium structure
Robust and durable mounting for solar panels
Suitable for standard photovoltaic panels
Complete ready-to-install kit

Customisable options: choose the number of panels and their layout according to your needs.

Please note: for installations with two or more rows of panels (e.g. 2 rows of 6 panels), two mounting kits must be ordered.

Clames: 28 mm

Number of panels per row: 1 panel portrait

Contents of the solar panel mounting kit – Ground structure

The components of the kit vary depending on the number of panels.Rail connectors are included for 2 landscape panels and 3 portrait panels (see table at the bottom of the page).

Included

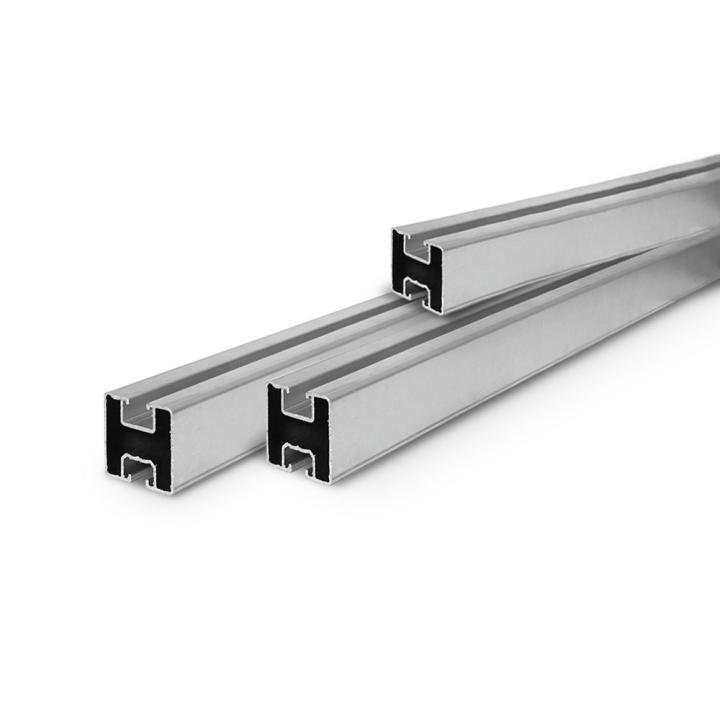

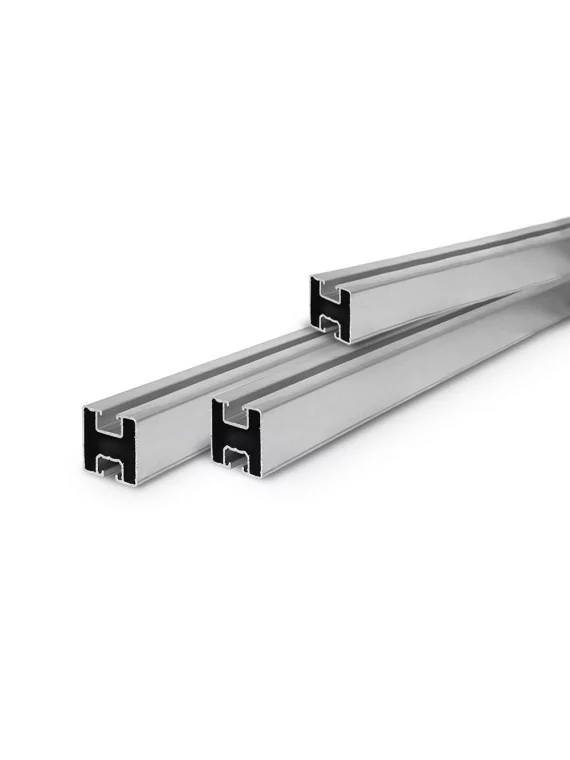

40×40 aluminium rail

Main support providing the structure for the photovoltaic installation.

Product details

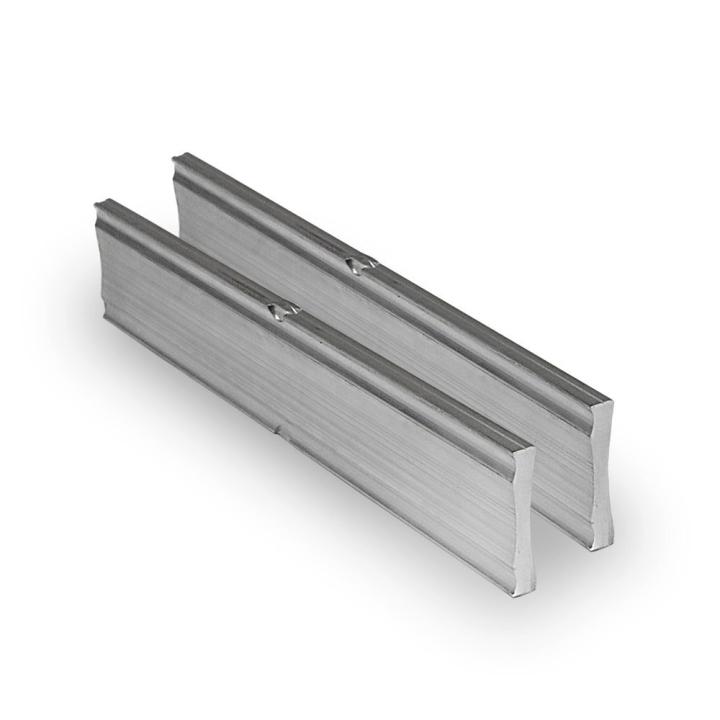

Included from 2 PV Jonctions de rails

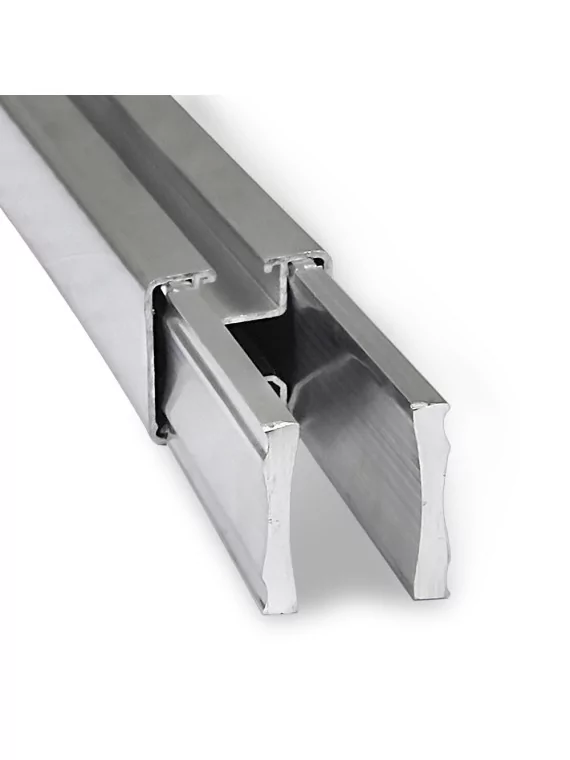

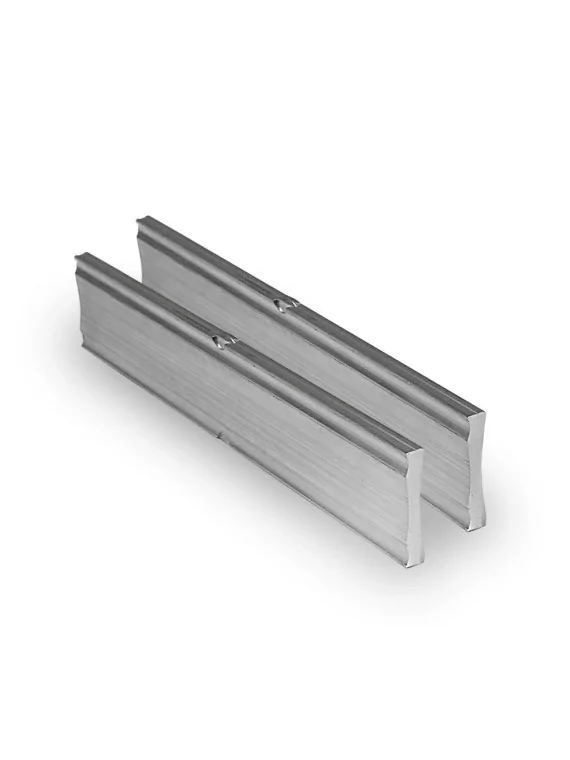

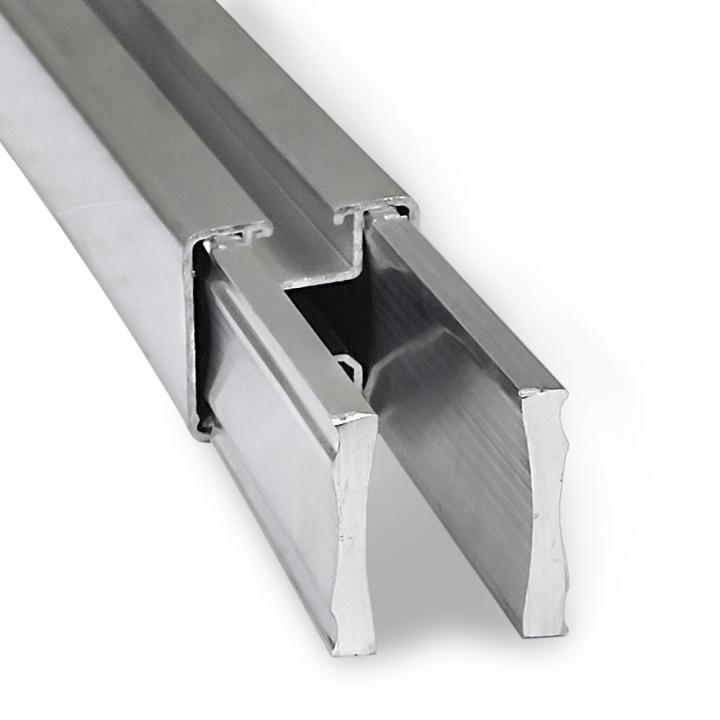

Rail joints

Rail assembly for longer rows. Included with two landscape panels and three portrait panels.

Product details

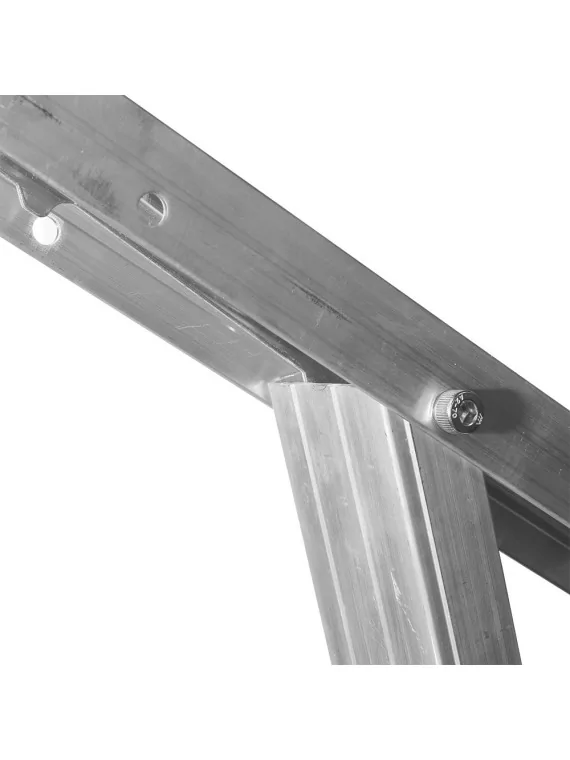

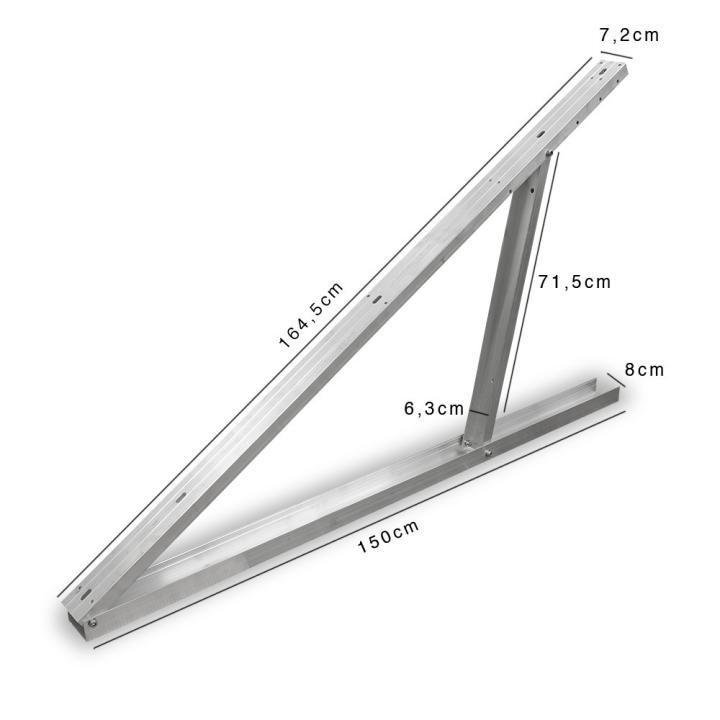

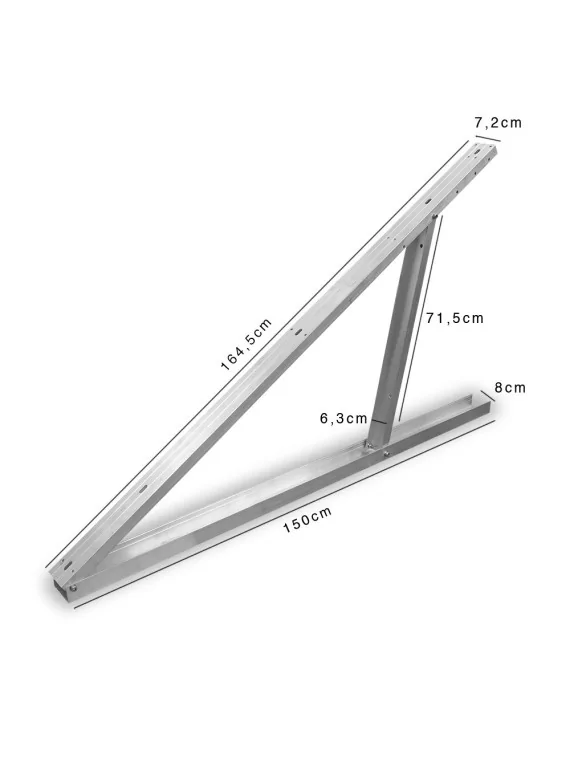

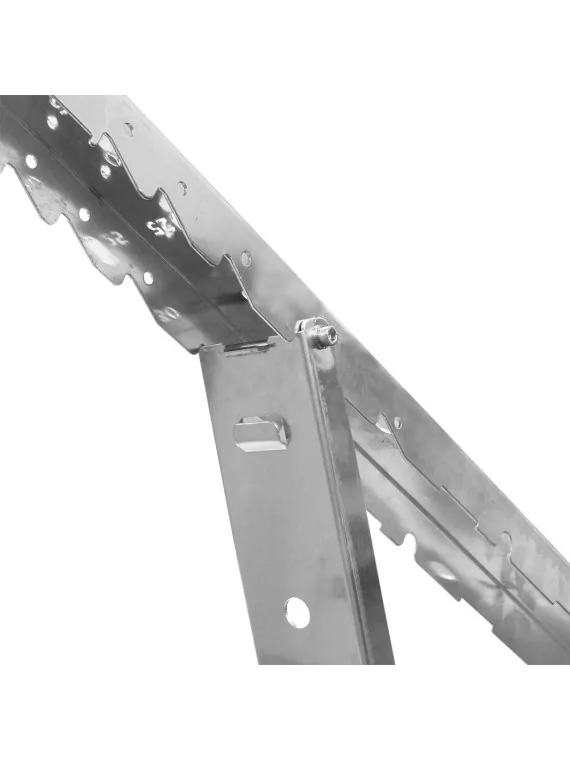

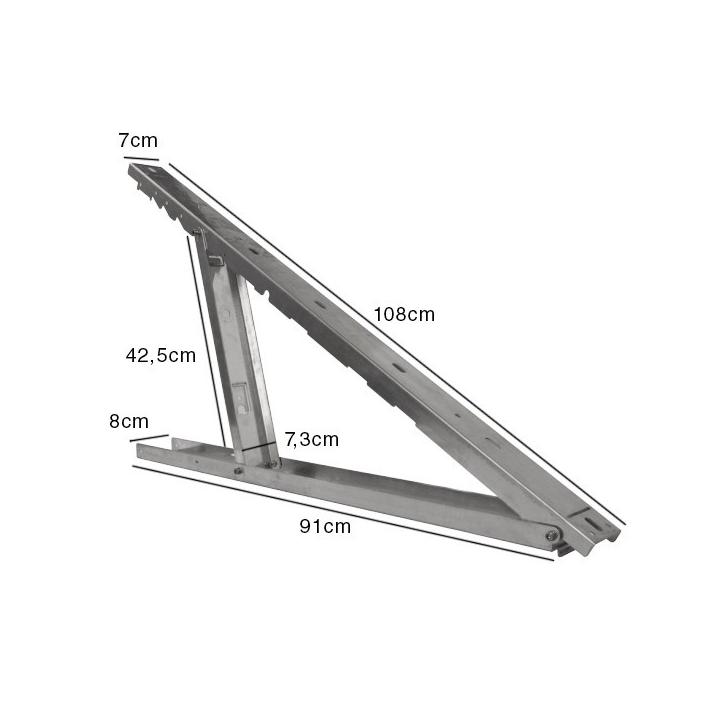

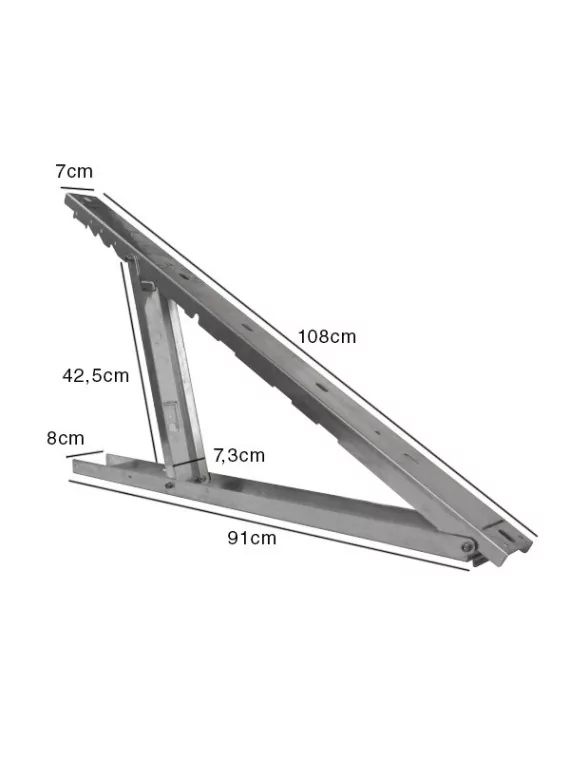

Included if portrait Grand support en alu

Large aluminium support (for portrait panels)

Triangular bracket supplied with the kit for portrait-oriented solar panels, allowing the aluminium rail to be fixed in place.

Product details

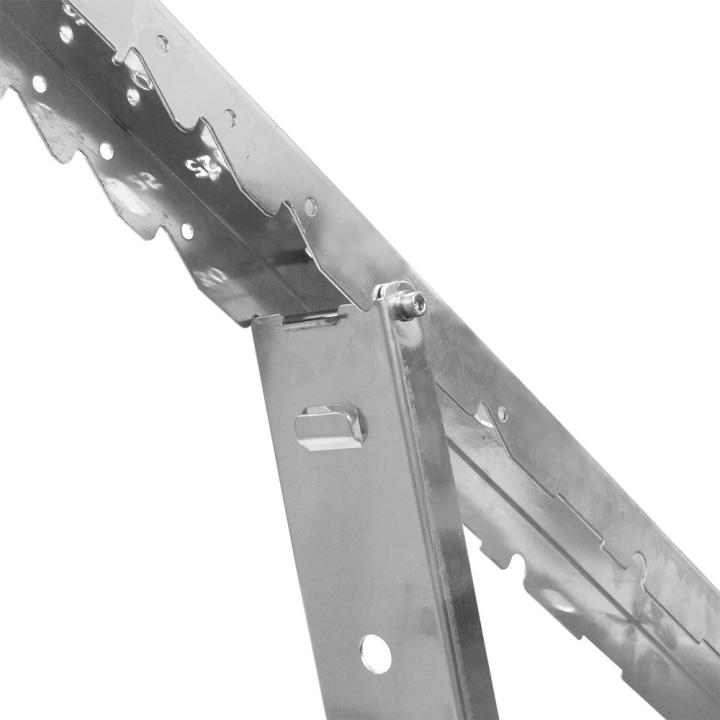

Included if landscape Petit support en alu

Small aluminium bracket (for landscape panel)

Enables quick manual tightening during installation.

Product details

Included

Écrou hexagonal à embase crantée DIN 6923 M10

M10 hexagonal nuts with serrated flange

Enable quick manual tightening during installation.

Product details

Included

Rayvolt grounding clips

Ensure electrical continuity and grounding.

Product details

Included

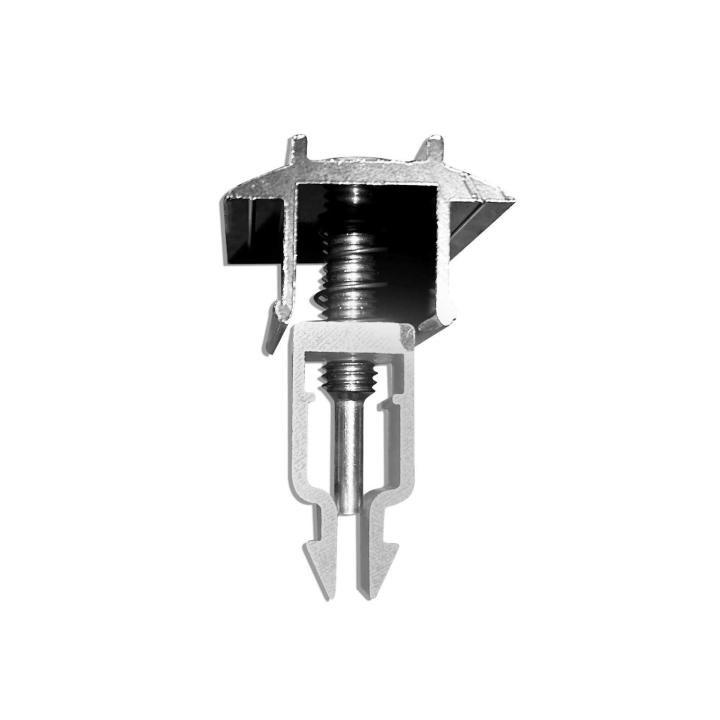

Quick middle clamps

Quick fastening between each panel.

Product details

Included

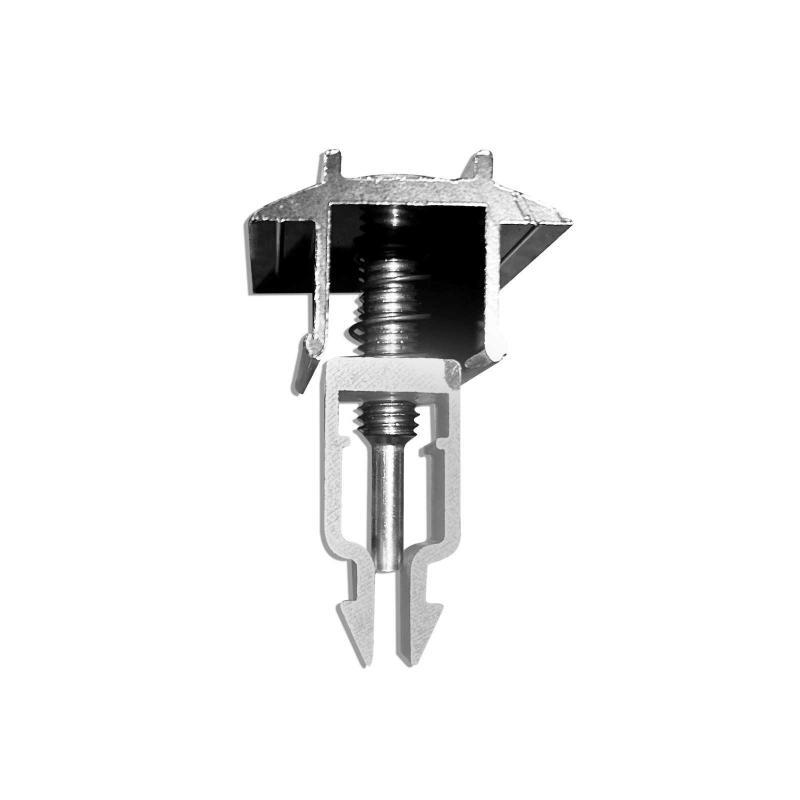

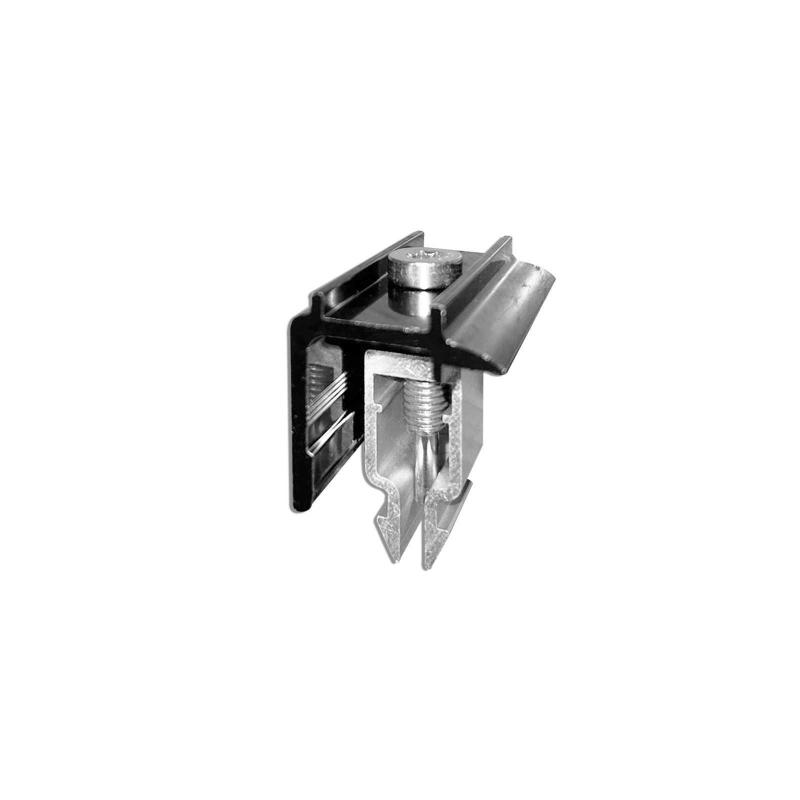

Quick end clips

Securely holds panels at the end of the structure.

Product details

Included

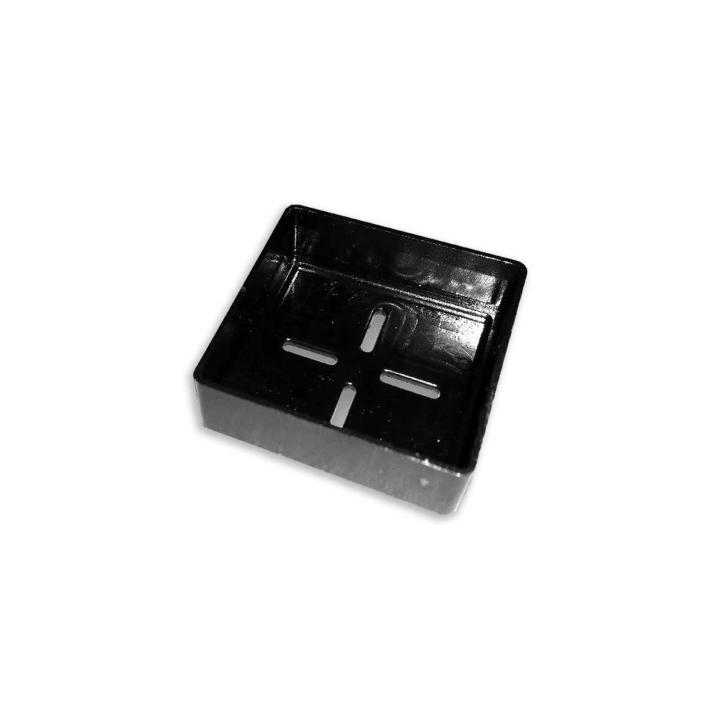

40x40 mm black rail end caps

For an attractive finish and durable protection of mounting rails.

Product details

Included

M10 hammerhead bolts

Ideal for reliable and easy fastening.

Product details

How do I choose the right kit for my panels?

The mounting kit is suitable for all tiled roofs. Thanks to its options, it can be adapted to the layout of your panels.

The fixings are compatible with standard-sized panels (approximately 1.60 m x 1 m).

1. Select the number of portrait or landscape panels

Choose the number of panels arranged in portrait or landscape format per row.

Example: the layout shown opposite requires 3x the Mounting Kit product:

1st kit for row 1: 3 panels in portrait orientation
2nd kit for row 2: 2 landscape panels
3rd kit for row 3: 2 landscape panels

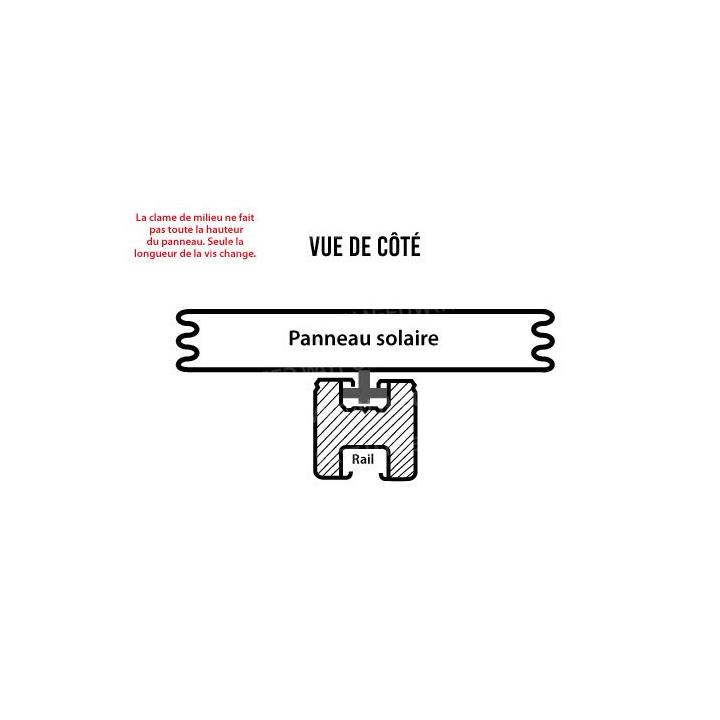

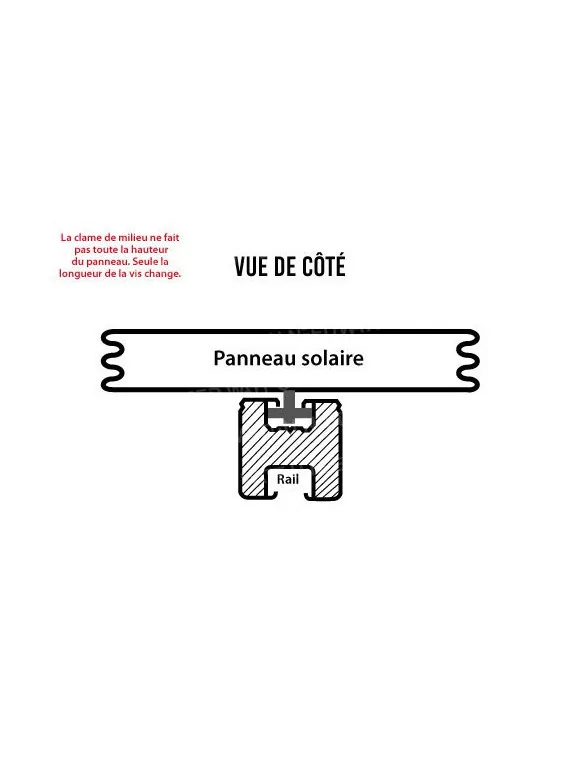

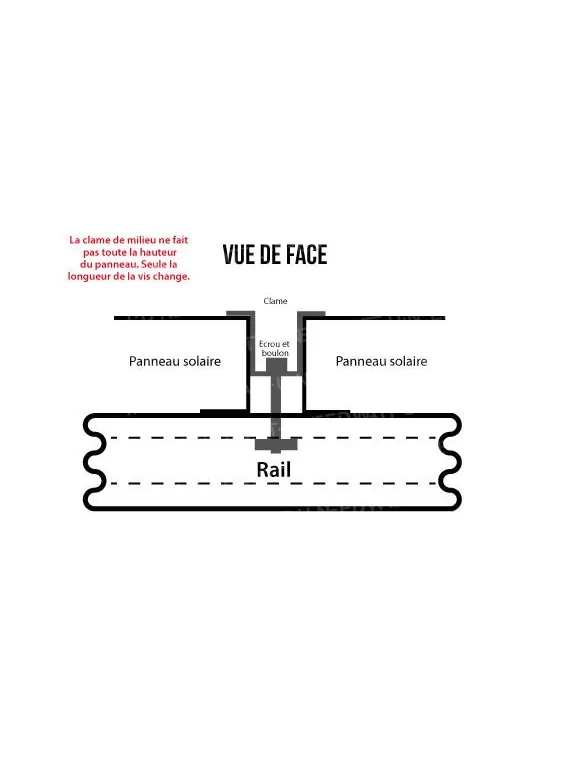

2. Select the clamp that is suitable for your panel

The clamp is used to fix the panel to the aluminium rail. Its height must correspond to the thickness of your panel frame to ensure a secure hold.

Available heights: 28 - 30 - 35 - 40 - 45 - 50 mm

Details of the equipment supplied depending on the number of panels

Portrait panels

Number of panels	Rail (m)	Details of rails*	Junction	Large aluminium support	Middle clamp	End clamp	M10 hammer head bolt	M10 hexagonal nuts	Rayvolt	Rail plug
1 panel	2.4	(2 x 1.20 m)	0	2	0	4	4	4	1	4
2 panels	4.8	(2 x 2.40 m)	0	2	2	4	6	6	2	4
3 panels	7.2	(4 x 1.80 m)	2	3	4	4	8	8	3	4
4 panels	9.6	(4 x 2.40 m)	2	4	6	4	10	10	4	4
5 panels	12.0	(4 x 2.40 m and 2 x 1.20 m)	4	5	8	4	12	12	5	4
6 panels	14.4	(6 x 2.40 m)	4	5	10	4	14	14	6	4
7 panels	16.8	(6 x 2.40m and 2 x 1.20m)	6	6	12	4	16	16	7	4
8 panels	19.2	(8 x 2.40 m)	6	6	14	4	18	18	8	4
9 panels	21.6	(8 x 2.40 m and 2 x 1.20 m)	8	7	16	4	20	20	9	4
10 panels	24.0	(10 x 2.40 m)	8	8	18	4	22	22	10	4
11 panels	26.4	(10 x 2.40 m and 2 x 1.20 m)	10	8	20	4	24	24	11	4
12 panels	28.8	(12 x 2.40 m)	10	9	22	4	26	26	12	4
13 panels	31.2	(12 x 2.40 m and 2 x 1.20 m)	12	10	24	4	28	28	13	4
14 panels	33.6	(14 x 2.40 m)	12	11	26	4	30	30	14	4
15 panels	36.0	(14 x 2.40m and 2 x 1.20m)	14	11	28	4	32	32	15	4
16 panels	38.4	(16 x 2.40 m)	14	12	30	4	34	34	16	4
17 panels	40.8	(16 x 2.40 m and 2 x 1.20 m)	16	13	32	4	36	36	17	4
18 panels	43.2	(18 x 2.40 m)	16	13	34	4	38	38	18	4
19 panels	45.6	(18 x 2.40 m and 2 x 1.20 m)	18	14	36	4	40	40	19	4
20 panels	48.0	(20 x 2.40 m)	18	15	38	4	42	42	20	4

* Rail details are provided for information purposes only and depend on the size of the panels.

Panels in landscape format

Number of panels	Rail (m)	Rail details*	Junction	Small aluminium support	Middle clamp	End clamp	M10 hammer head bolt	M10 hexagonal nuts	Rayvolt	Rail plug
1 panel	3.6	(2 x 1.80 m)	0	2	0	4	4	4	1	4
2 panels	7.2	(4 x 1.80 m)	2	3	2	4	6	6	2	4
3 panels	10.8	(6 x 1.80 m)	4	4	4	4	8	8	3	4
4 panels	14.4	(8 x 1.80 m)	6	5	6	4	10	10	4	4
5 panels	18	(10 x 1.80 m)	8	6	8	4	12	12	5	4
6 panels	21.6	(12 x 1.80 m)	10	7	10	4	14	14	6	4
7 panels	25.2	(14 x 1.80 m)	12	8	12	4	16	16	7	4
8 panels	28.8	(16 x 1.80 m)	14	9	14	4	18	18	8	4
9 panels	32.4	(18 x 1.80 m)	16	10	16	4	20	20	9	4
10 panels	36	(20 x 1.80 m)	18	11	18	4	22	22	10	4
11 panels	39.6	(22 x 1.80 m)	20	12	20	4	24	24	11	4
12 panels	43.2	(24 x 1.80 m)	22	13	22	4	26	26	12	4
13 panels	46.8	(26 x 1.80 m)	24	14	24	4	28	28	13	4
14 panels	50.4	(28 x 1.80 m)	26	15	26	4	30	30	14	4
15 panels	54	(30 x 1.80 m)	28	16	28	4	32	32	15	4
16 panels	57.6	(32 x 1.80 m)	30	17	30	4	34	34	16	4
17 panels	61.2	(34 x 1.80 m)	32	18	32	4	36	36	17	4
18 panels	64.8	(36 x 1.80 m)	34	19	34	4	38	38	18	4
19 panels	68.4	(38 x 1.80 m)	36	20	36	4	40	40	19	4
20 panels	72	(40 x 1.80 m)	38	21	38	4	42	42	20	4

* Rail details are provided for information purposes only and depend on the size of the panels.

FAQ - Ground structure mounting kit

1. Can I install this kit myself?

Yes, this kit is designed to be easily installed by anyone with some DIY skills.

2. Is the kit weather-resistant?

Yes, all components are made of stainless steel with an anti-corrosion coating, ensuring optimal resistance to rain, wind and UV rays.

3. Is this kit compatible with solar panels?

Yes, the kit is compatible with most standard solar panels, providing stable and secure mounting for ground-mounted or flat roof installations.

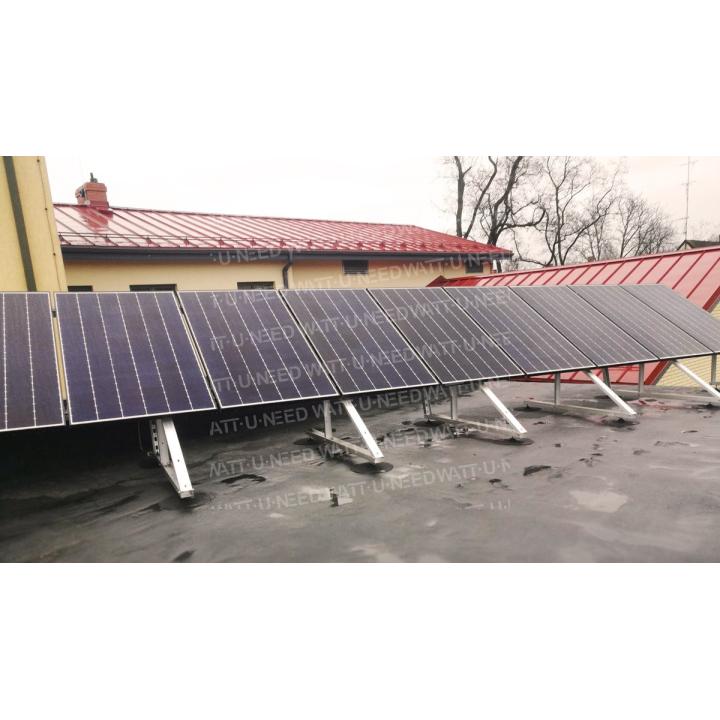

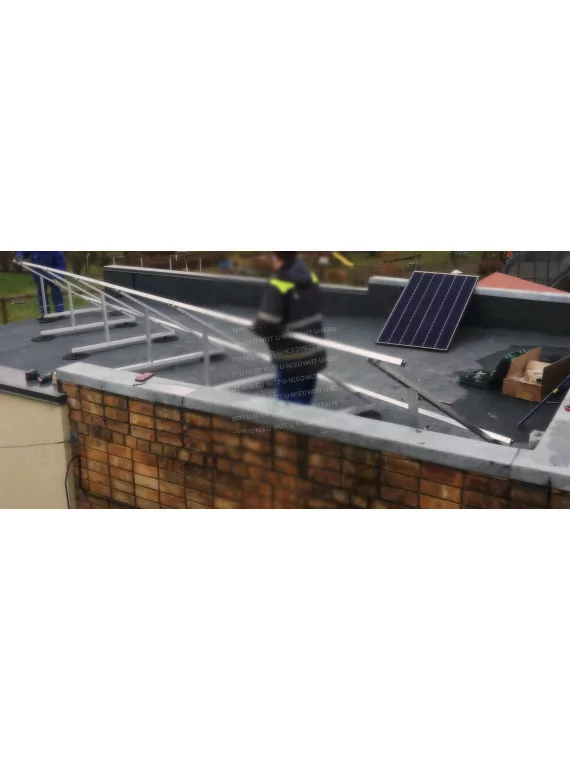

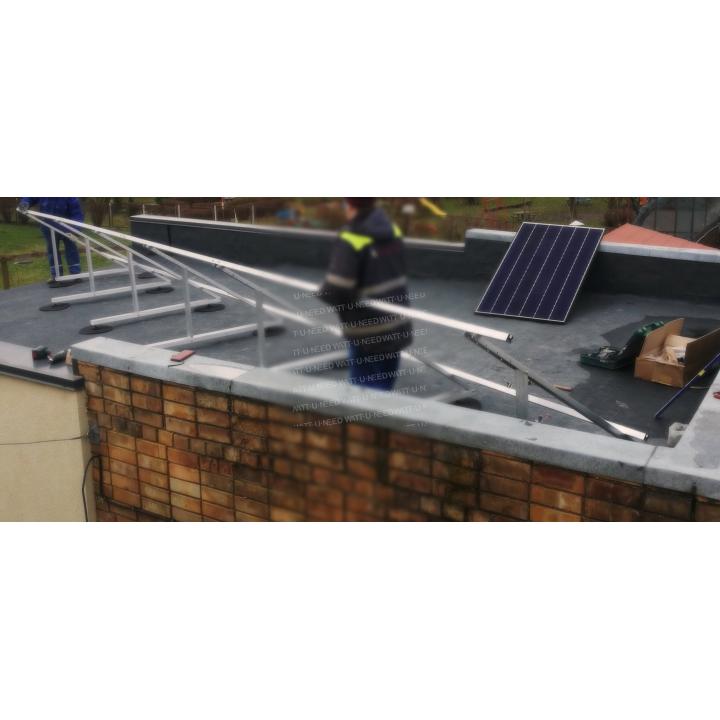

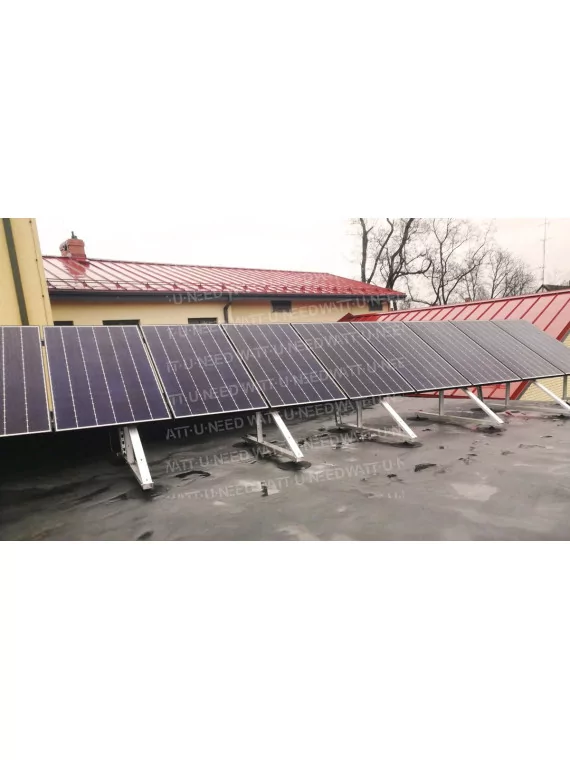

4. Can I install this kit on a flat roof?

Yes, this kit can be installed on a flat roof, following the ballast recommendations to ensure the stability and safety of the structure.

5. Is ballasting required for the structure?

Yes, ballast is necessary depending on the surface area, type of soil or flat roof, and local wind strength. The guide provided indicates the recommended weight and how to attach the ballast.

6. Does the kit allow the angle of the solar panels to be adjusted?

Yes, it is possible to adjust the angle to optimise sun exposure and energy production, whether on the ground or on a flat roof.

7. Is this kit suitable for all types of ground?

It is suitable for stable, flat surfaces (concrete, compacted gravel, stabilised soil). For loose or unstable surfaces, additional reinforcement or ballasting may be necessary.

8. What tools are needed for installation?

The tools required are standard: drill, spanner, screwdriver and possibly pliers. No special tools are required.

Reference 08081

Data sheet

Mounting: Flat roof - floor structure

Specific References

UPC: 712971131026
EAN13: 0712971131026

Condition New

Download

Support réglable paysage FT-FR

Download (1.54MB)

Montage install triangle-FR

Download (692.09KB)

Installation guide Ground-mounted photovoltaic mounting kit

Step-by-step instructions for ground-mounted installation

? Before you start

This guide takes you through the complete installation of your photovoltaic mounting kit. Follow each step methodically to ensure a safe and long-lasting installation.

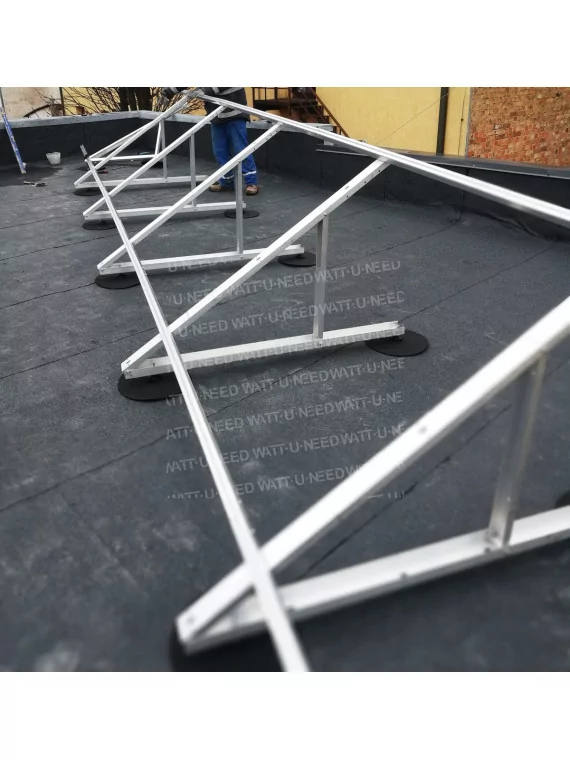

1 SETTING UP THE TRIANGLES

Choice of triangular support

PORTRAIT Panels: Large aluminum supports

PAYSAGE panels : Small aluminum supports

?️ Installation

1. Marking: Mark the location according to your configuration and spacing requirements.

2. Positioning: Place the triangles at the locations, opening to the south

3. Tilt: Adjust the angle according to your latitude (30-35° in France).

4. Fixing: Anchor firmly to the ground and check stability

✅ Controls

Perfect alignment

Uniform angle

Stability

Correct spacing

2 FITTING THE M10 NUTS

? Hardware

M10 sliding nuts, M10 bolts, washers, springs

?️ Installation

1. Insertion: Slide M10 nuts into grooves, position facing holes

2. Alignment: Align nuts, check horizontality and spacing

3. Fixing: Add washer, screw on nut, tighten loosely

4. Check: Check rigidity, absence of play, horizontality

⭐ Advantages of sliding system

Flexibility: Precise position adjustment
Ease: No drilling, self-centering system
Strength: Robust connection, excellent resistance

✅ Controls

Nuts well positioned

Bolts evenly tightened

Rigid structure

Parallel rails

3 FASTENING CLAMPS AND PANEL

?Material

End clamps (4), middle clamps (depending on config.), M8 bolts

? Cam configuration

1 panel: 4 end slats at 4 corners

Multiple panels: 4 end clamps + middle clamps between panels

?️Installation

1. Positioning: Place the panel on the rails, center perfectly

2. Clamps: Position end and middle clamps, check that they enclose the frame.

3. Fixing: Insert M8 bolts, screw into sliding nuts, tighten gradually.

4. Adjustment: Check horizontality, absence of play, solidity

Available heights

28mm, 35mm, 40mm, 45mm, 47mm, 50mm (depending on frame thickness)

Benefits

Safety: firm hold, weather-resistant
Flexibility: modular system, can be disassembled
Precision: exact positioning, perfect alignment

✅ Controls

Correctly positioned clamps

Bolts tight

Horizontal panel

Stable installation

? Installation complete!

Your photovoltaic system is now ready. Please make a final check of all fastenings and panel alignment before commissioning.

⚠️ For your own safety, have your system checked by a qualified professional.

2025 WattUNeed - Photovoltaic Installation Guide
