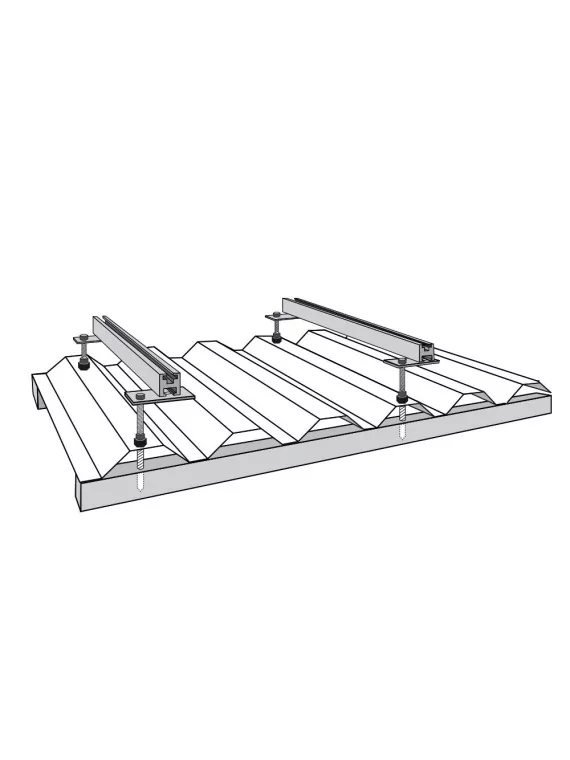

Assembly diagram
1
Tin roof attachment kit
€32.04
0806
0712971129474
Fixing kit for photovoltaic panels.
Suitable for tin roofs.
Choose the number of panels and the layout (portrait/landscape) in the options.
Be careful, only on wooden frame.
100% secure payments
Customers who bought this product also bought:
This kit contains the necessary equipment to attach your photovoltaic panels to sheet metal roof.
Simply select in the options the number of panels arranged in portrait or the number of panels arranged in landscape on your roof >> the contents of the attachment kit automatically adapts.
Be careful, only on wooden frame.
Attachment kit content

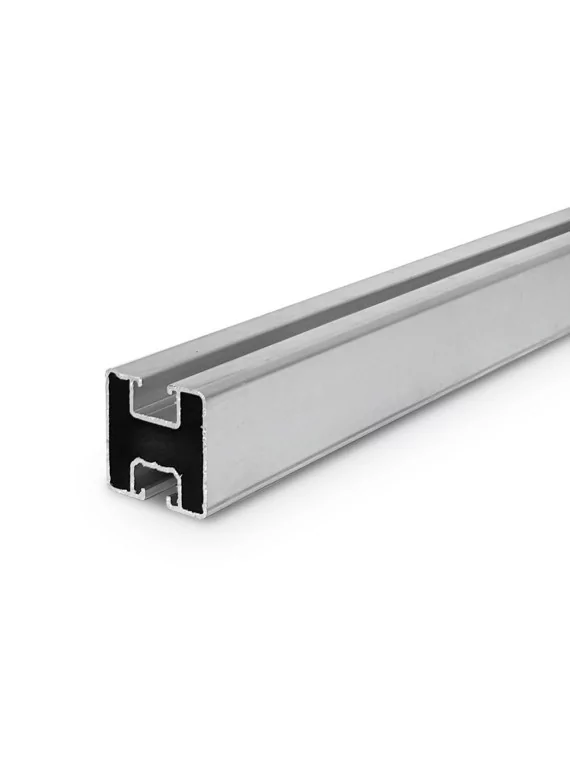

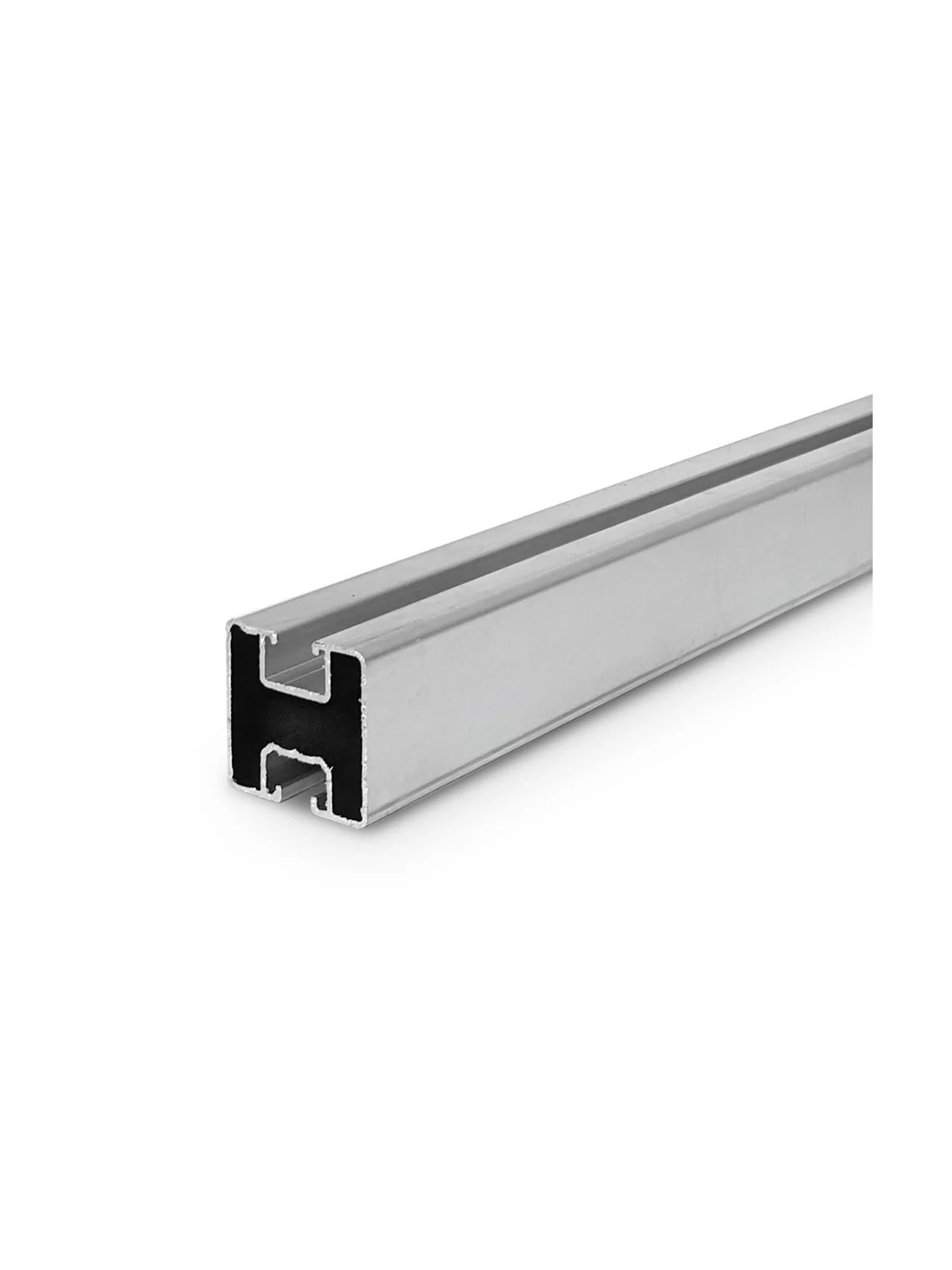

40x40 mm aluminum rail
Aluminium rail on which the solar panel is positioned. Custom rail available on request.
>> Learn more about the 40x40 rail

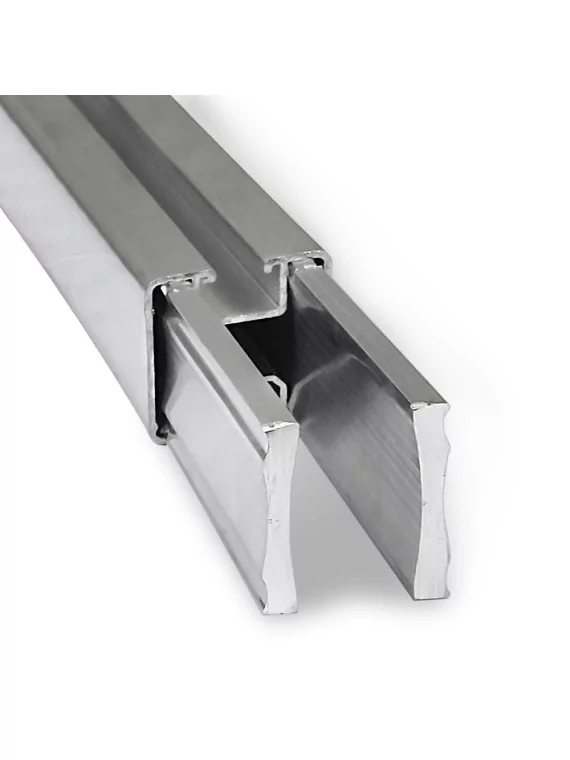

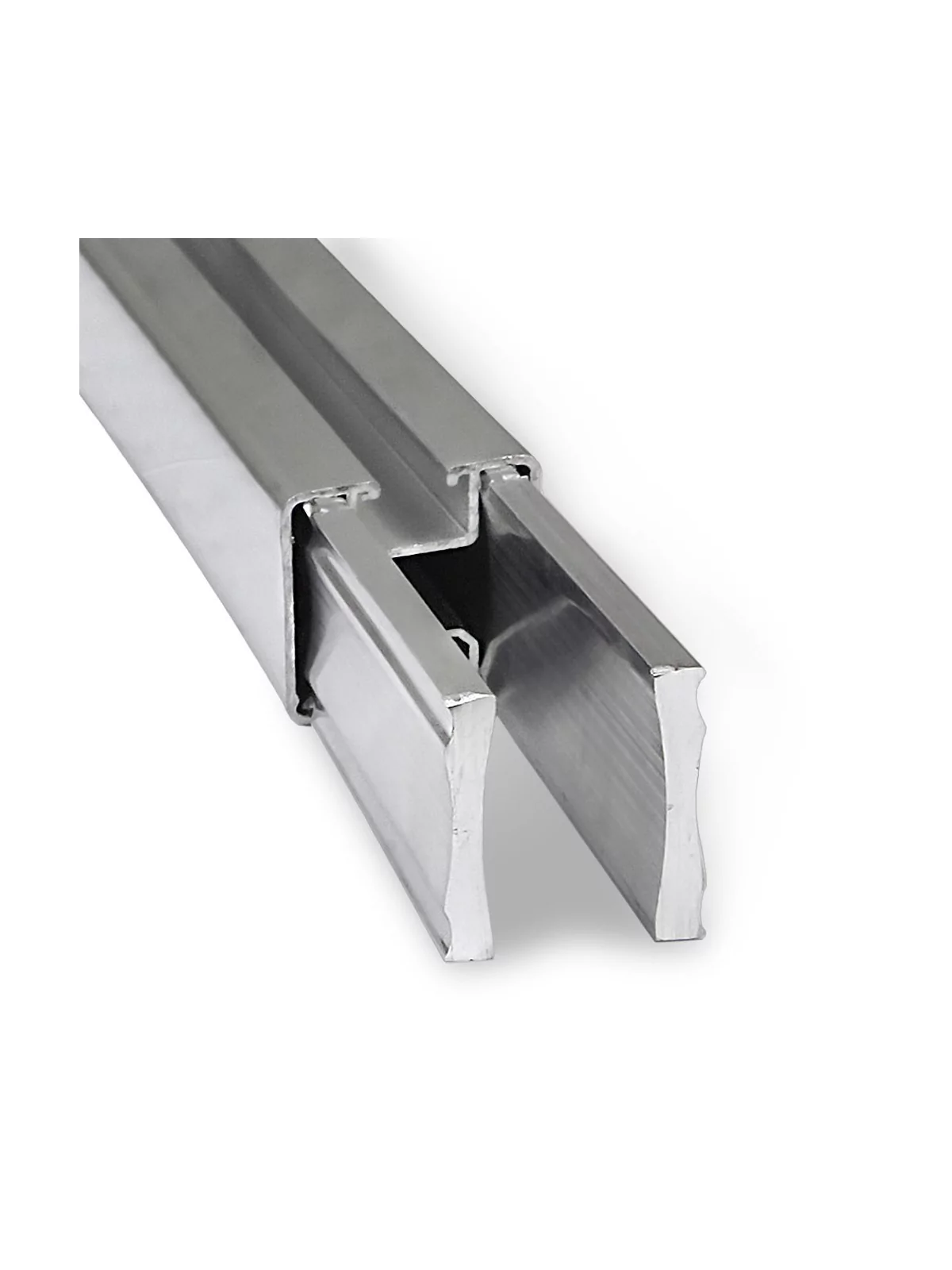

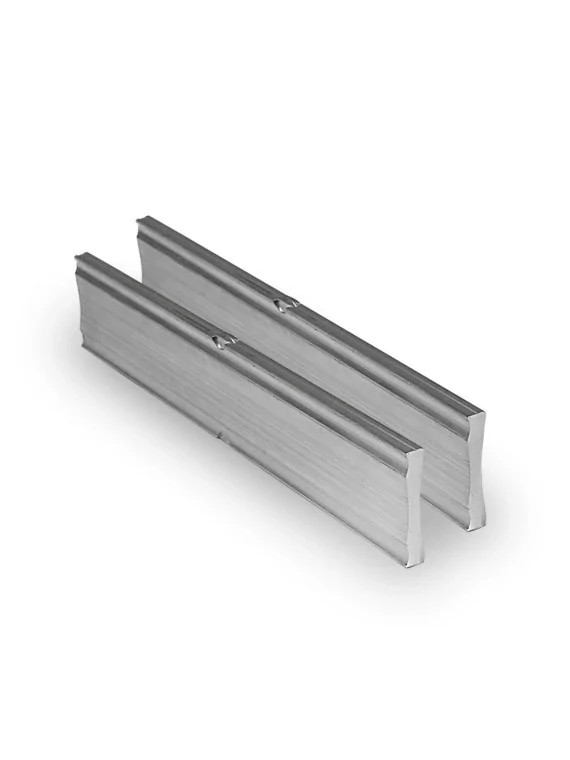

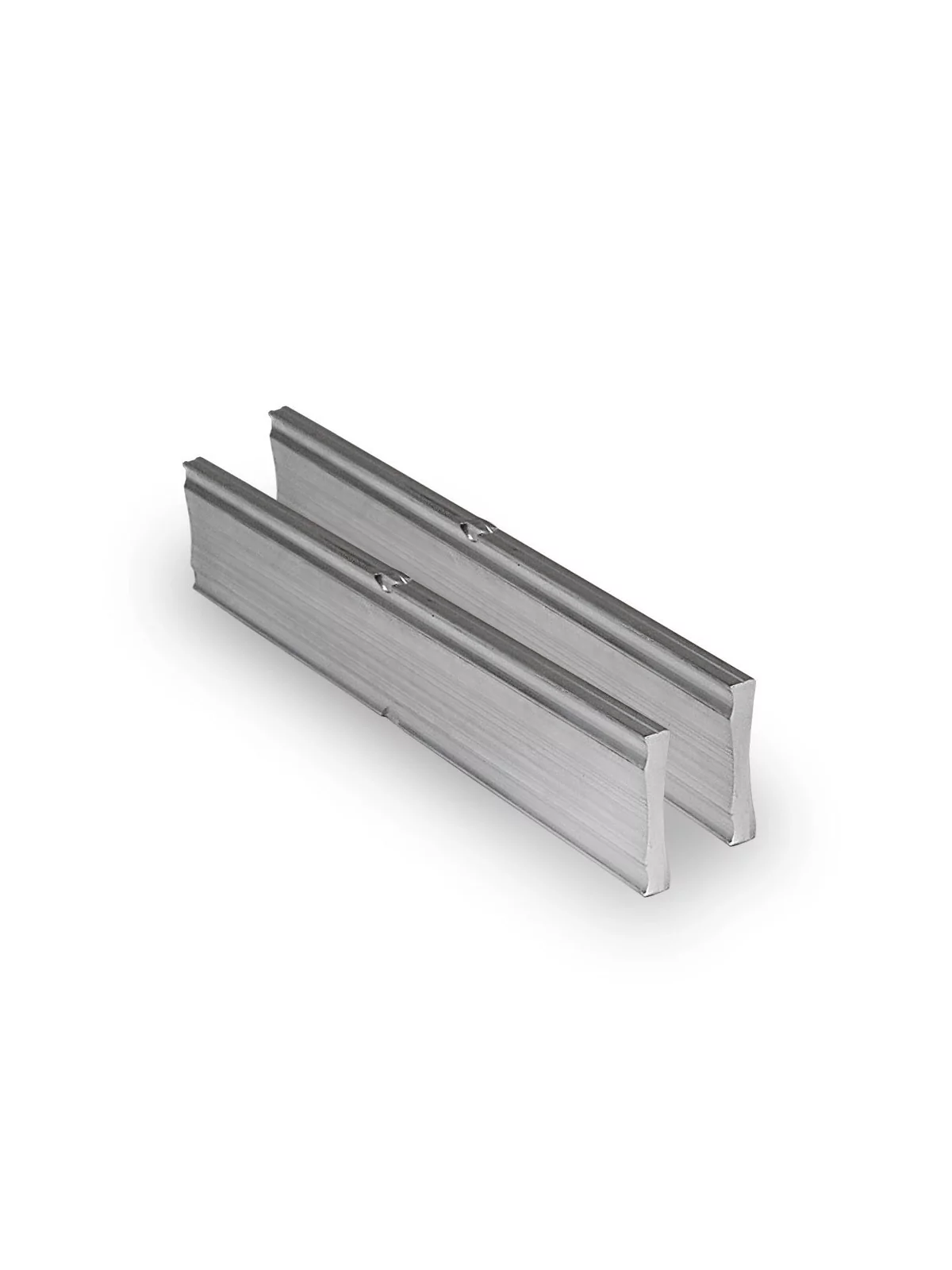

Junction for rail - 2 fastening bars
These 2 bars are used to solidly assemble 2 pieces of rail together without screws or tools! Simply insert the junction bars into the two pieces of rail to be assembled.
>> Learn more about the junction room

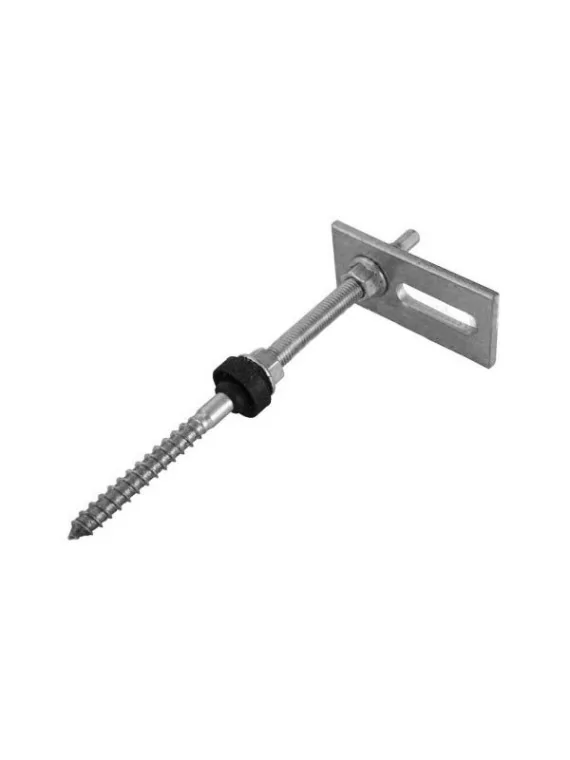

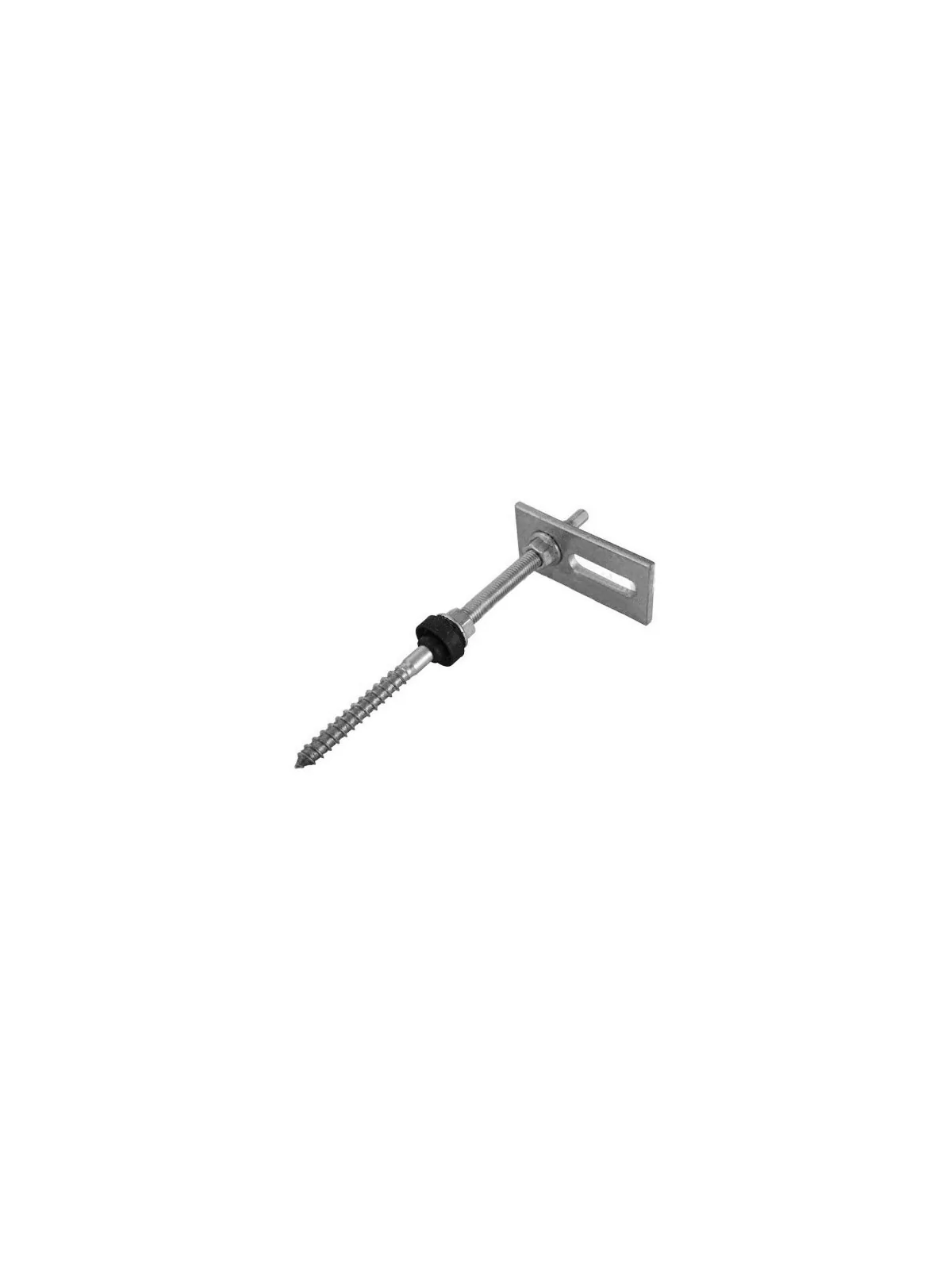

Screws for sheet metal
Solar panel attachment screw on sheet metal roof, with mounting pad.
This fastener can also be used on a wavy Eternit roof
Size: M10X200mm
>> Learn more about the Tin Roof Attachment Hook

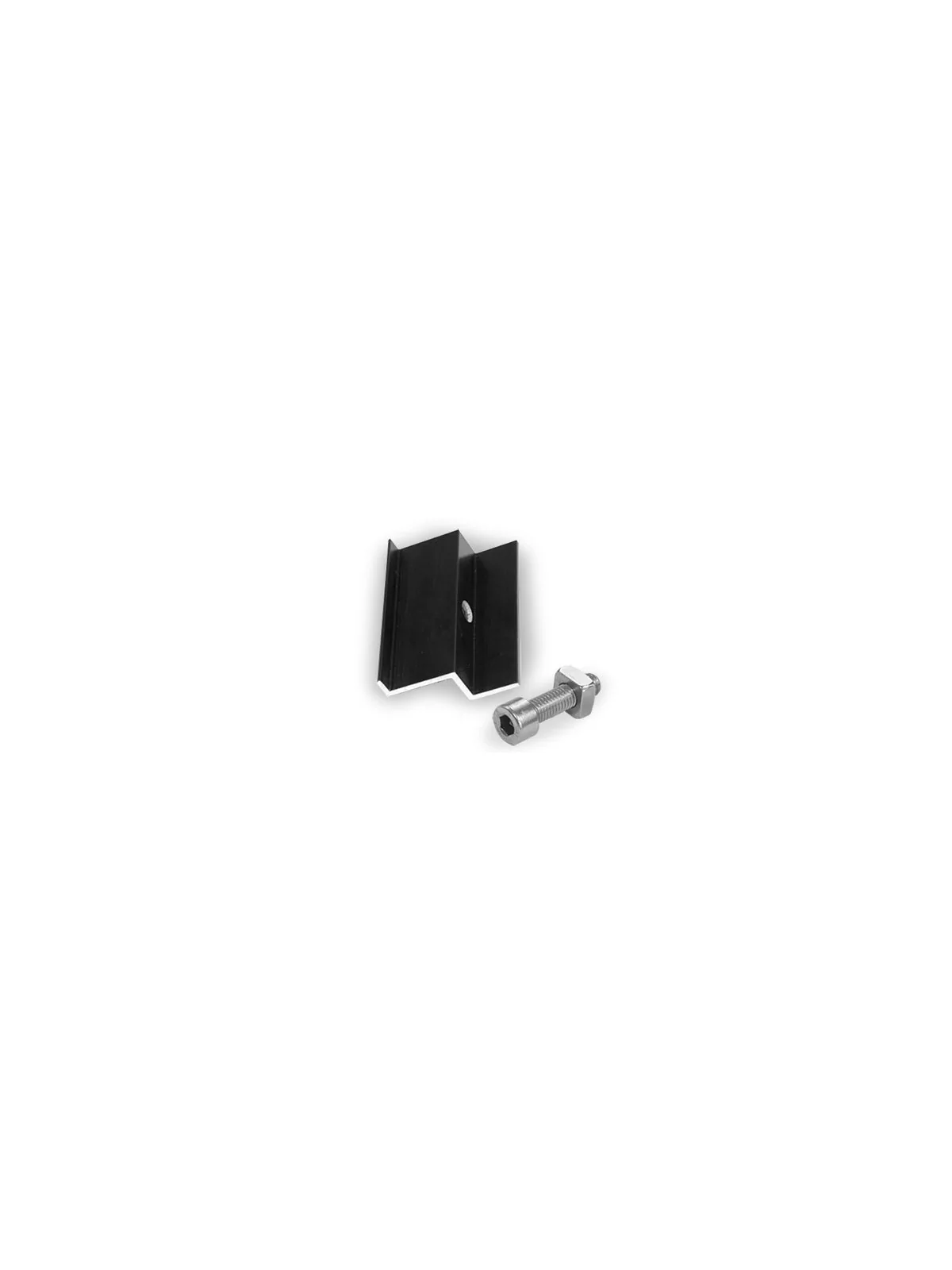

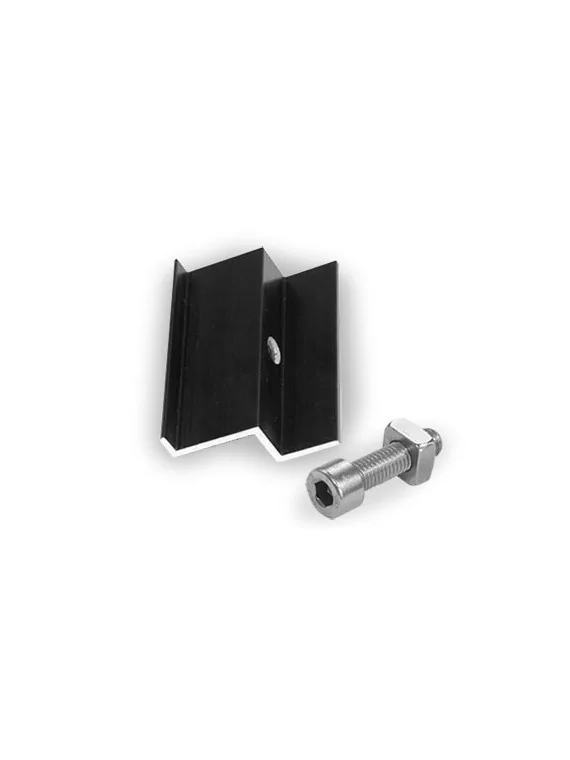

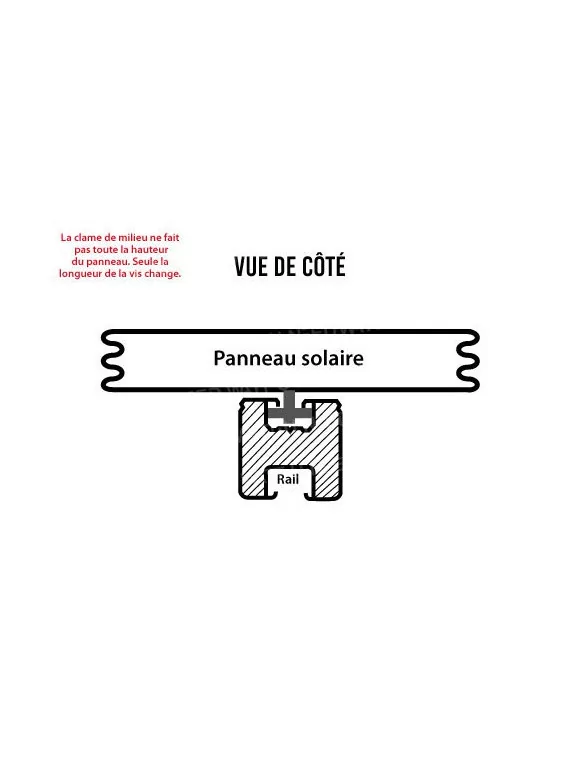

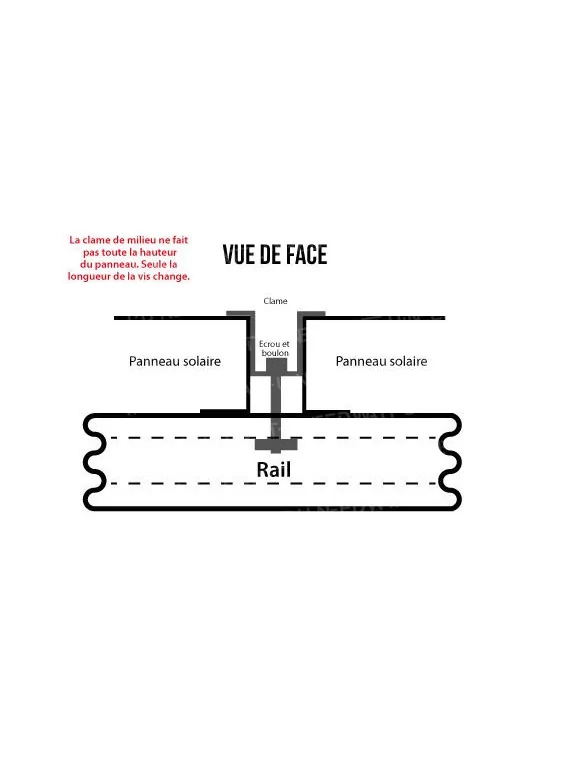

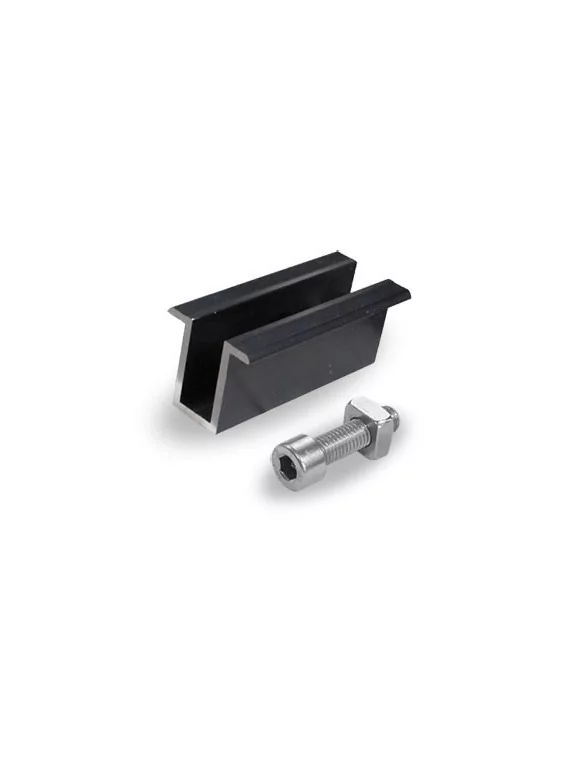

Middle clame - panel attachment
Clame for the interior fixing of photovoltaic panels. Height adjustable to the height of the frame of the solar panel: 35 - 50mm. Fixes on the aluminum rail with bolt and stainless steel nut (supplied).
option Height to choose depending on the height of the panel frame.
>> Read more about the middle clam

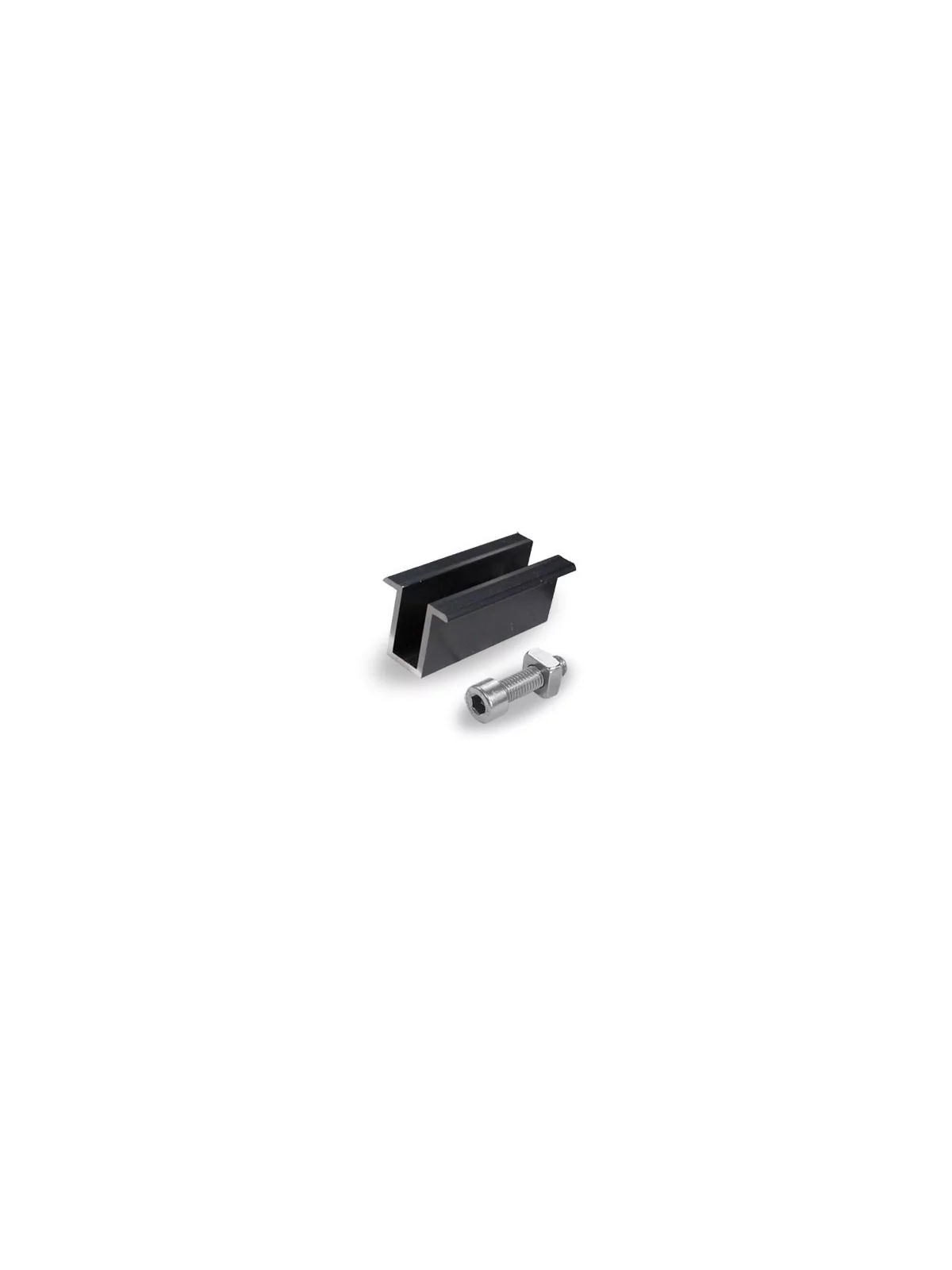

End clame - panel attachment
Clam for the exterior attachment of the panel. Available heights: 35mm - 40mm - 45mm - 47mm - 50mm. This clam is fixed on the aluminum rail with bolt and nut (supplied)
>> Read more about the end clam
How do I choose a kit that fits my panels?
The fastening kit is suitable for all slate roofs. Thanks to its options, it adapts to the layout of your panels.
The fasteners are compatible with conventional panels.
1. Select the amount of portrait or landscape panels
Choose, by row, the amount of panels arranged in portrait or landscape.
Like what, the provision opposite requires 3x the Attachment Kit product:
> 1st kit for row 1: 3 portrait panels
> 2nd kit for row 2: 2 landscape panels
> 3rd kit for row 3: 2 landscape panels
2. Select the right clam for your panel
The clam is used to attach the panel to the aluminum rail. Its height must correspond to the thickness of the frame of your panel for it to be securely attached to the rail.
The heights of clams available: 35 - 40 - 45 - 47 - 50 mm

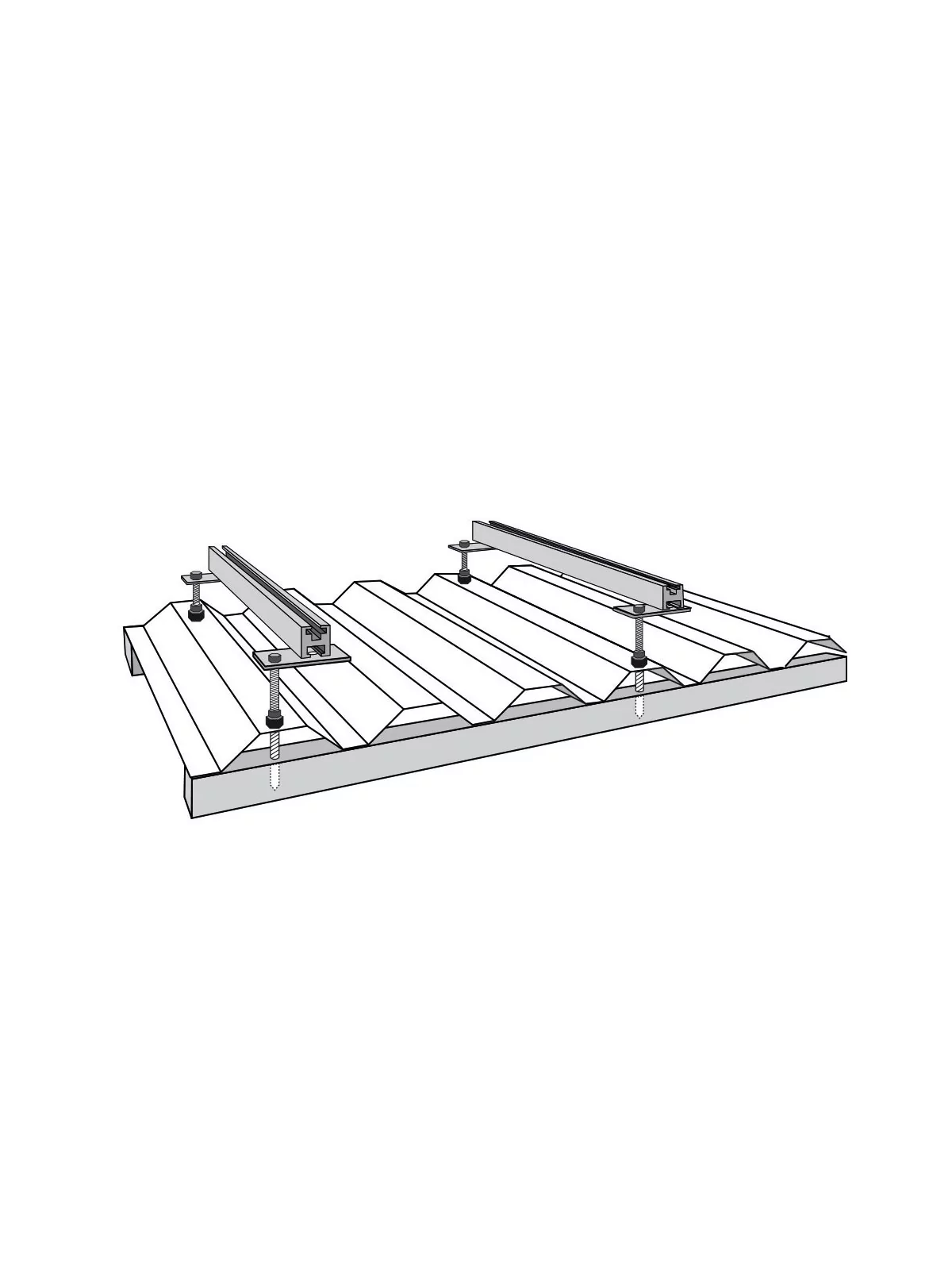

Editing scheme
Detail of material provided based on the amount of panel
| Portrait panels | ||||||
| Number of panels | Rail (m) | Rail detail | junction | Screw fixing | Middle clame | End Clame |
| 1 panel | 2 | (2 x 1.04m) | 0 | 4 | 0 | 4 |
| 2 panels | 4 | (2 x 2.10m) | 0 | 6 | 2 | 4 |
| 3 panels | 6 | (2 x 2.10m and 2 x 1.04m) | 2 | 6 | 4 | 4 |
| 4 panels | 8 | (4 x 2.10m) | 2 | 8 | 6 | 4 |
| 5 panels | 10 | (4 x 2.10m and 2 x 1.04m) | 4 | 10 | 8 | 4 |
| 6 panels | 12 | (6 x 2.10m) | 4 | 10 | 10 | 4 |
| 7 panels | 14 | (6 x 2.10m and 2 x 1.04m) | 6 | 12 | 12 | 4 |
| 8 panels | 16 | (8 x 2.10m) | 6 | 14 | 14 | 4 |
| 9 panels | 18 | (8 x 2.10m and 2 x 1.04m) | 8 | 14 | 16 | 4 |
| 10 panels | 20 | (10 x 2.10m) | 8 | 16 | 18 | 4 |
| 11 panels | 22 | (10 x 2.10m and 2 x 1.04m) | 10 | 16 | 20 | 4 |
| 12 panels | 24 | (12 x 2.10m) | 10 | 18 | 22 | 4 |
| 13 panels | 26 | (12 x 2.10m and 2 x 1.04m) | 12 | 18 | 24 | 4 |
| 14 panels | 28 | (14 x 2.10m) | 12 | 20 | 26 | 4 |
| 15 panels | 30 | (14 x 2.10m and 2 x 1.04m) | 14 | 20 | 28 | 4 |
| 16 panels | 32 | (16 x 2.10m) | 14 | 22 | 30 | 4 |
| 17 panels | 34 | (16 x 2.10m and 2 x 1.04m) | 16 | 26 | 32 | 4 |
| 18 panels | 36 | (18 x 2.10m) | 16 | 26 | 34 | 4 |
| 19 panels | 38 | (18 x 2.10m and 2 x 1.04m) | 18 | 28 | 36 | 4 |
| 20 panels | 40 | (20 x 2.10 m) | 18 | 28 | 38 | 4 |
| Landscape panels | ||||||
| Number of panels | Rail (m) | Rail detail | junction | Screw fixing | Middle clame | End Clame |
| 1 panel | 3,4 | (2 x 1.80m) | 0 | 4 | 0 | 4 |
| 2 panels | 6,8 | (4 x 1.80m) | 2 | 6 | 2 | 4 |
| 3 panels | 10,2 | (4 x 1.80m and 2 x 1.60m) | 4 | 8 | 4 | 4 |
| 4 panels | 13,6 | (6 x 1.80m and 2 x 1.60m) | 6 | 10 | 6 | 4 |
| 5 panels | 17 | (8 x 1.80m and 2 x 1.60m) | 8 | 12 | 8 | 4 |
| 6 panels | 20,4 | (10 x 1.80m and 2 x 1.60m) | 10 | 14 | 10 | 4 |
| 7 panels | 23,8 | (10 x 1.80m and 4 x 1.60m) | 12 | 16 | 12 | 4 |
| 8 panels | 27,2 | (12 x 1.80m and 2 x 1.60m) | 14 | 18 | 14 | 4 |
| 9 panels | 30,6 | (14 x 1.80m and 4 x 1.60m) | 16 | 20 | 16 | 4 |
| 10 panels | 34 | (16 x 1.80m and 4 x 1.60m) | 18 | 22 | 18 | 4 |
| 11 panels | 37,4 | (18 x 1.80m and 4 x 1.60m) | 20 | 24 | 20 | 4 |
| 12 panels | 40,8 | (20 x 1.80m and 4 x 1.60m) | 22 | 26 | 22 | 4 |
| 13 panels | 44,2 | (22 x 1.80m and 4 x 1.60m) | 24 | 28 | 24 | 4 |
| 14 panels | 47,6 | (24 x 1.80m and 4 x 1.60m) | 26 | 30 | 26 | 4 |
| 15 panels | 51 | (26 x 1.80m and 4 x 1.60m) | 28 | 32 | 28 | 4 |
| 16 panels | 54,4 | (28 x 1.80m and 4 x 1.60m) | 30 | 34 | 30 | 4 |
| 17 panels | 57,8 | (30 x 1.80m and 4 x 1.60m) | 32 | 36 | 32 | 4 |
| 18 panels | 61,2 | (32 x 1.80m and 4 x 1.60m) | 34 | 38 | 34 | 4 |
| 19 panels | 64,6 | (34 x 1.80m and 4 x 1.60m) | 36 | 40 | 36 | 4 |
| 20 panels | 68 | (36 x 1.80m and 4 x 1.60m) | 38 | 42 | 38 | 4 |
The details of the rails are given as an indication and depend on the size of the panels (which varies the lengths of the rails).
