Sheet metal roof mounting kit
$64.8
0806
0712971129474
Fastening kit for photovoltaic panels.
Suitable for sheet-metal roofs.
Choose number of panels and layout (portrait/landscape) in the options.
Please note: for wooden roofs only.
This kit contains all you need to mount your photovoltaic panels on sheet metal roofs.
Simply select in the options the number of panels in portrait or landscape arrangement on your roof >> the contents of the fixing kit are automatically adapted.
Please note: only for wooden roofs.
Fastening kit contents

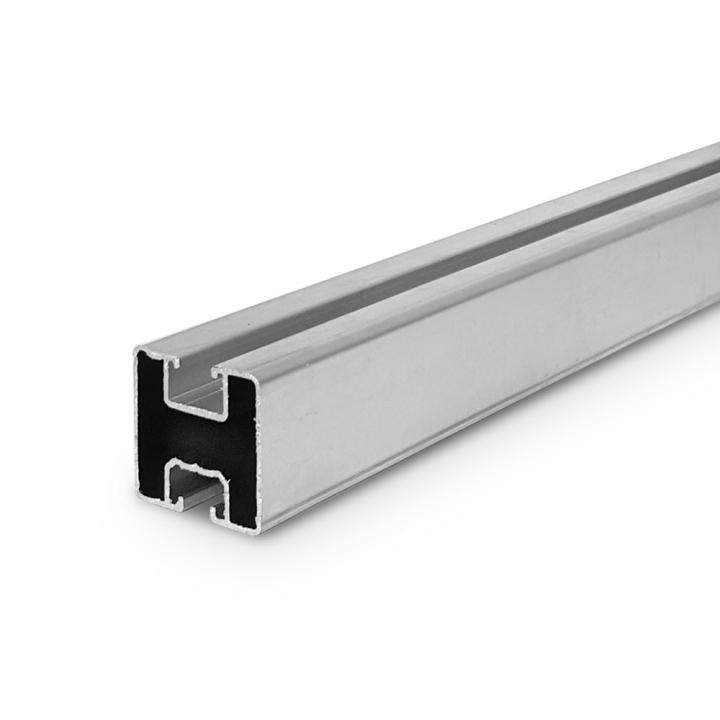

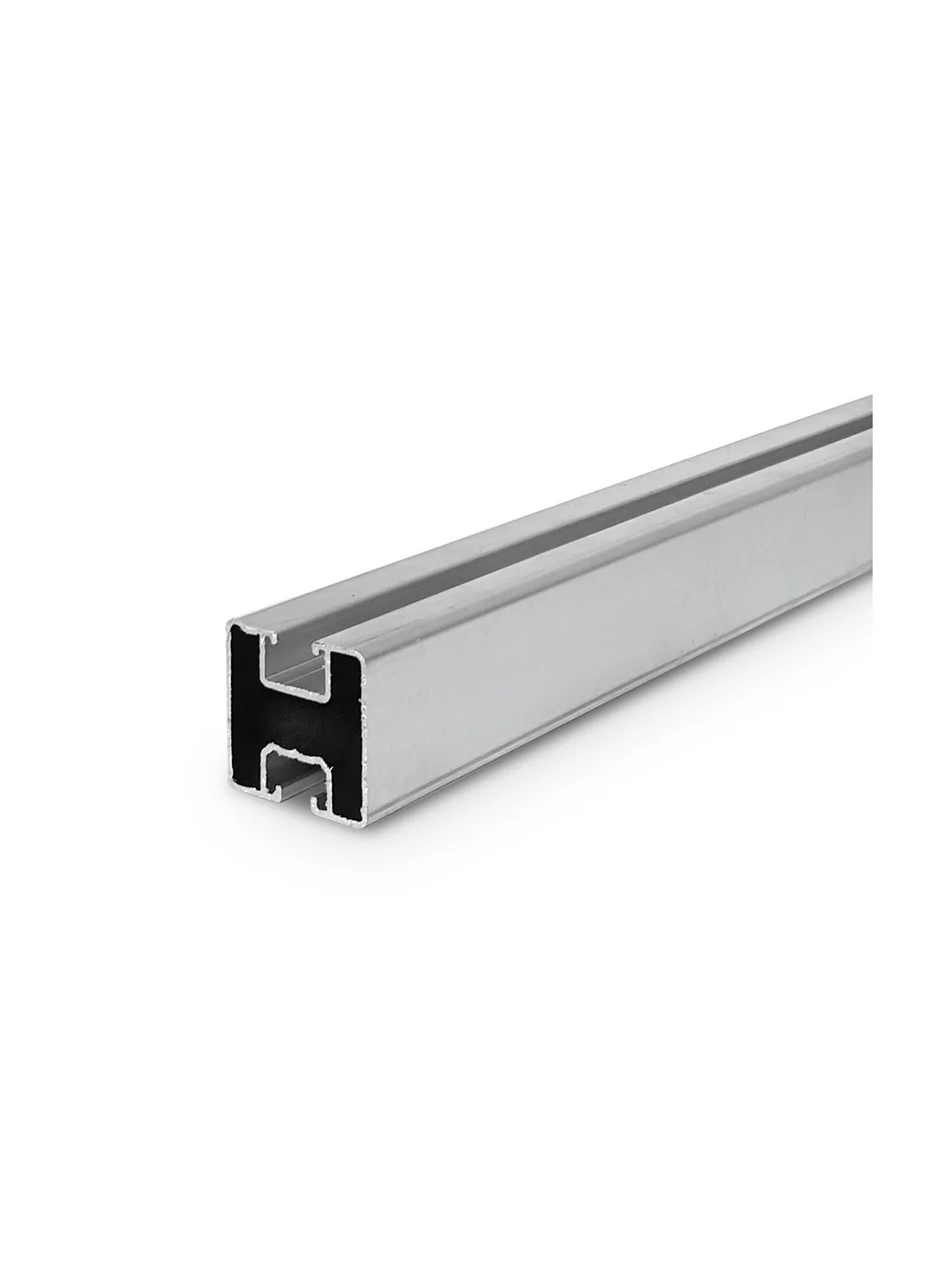

40x40 mm aluminum rail
Aluminum rail for mounting the solar panel. Custom rail available on request.
>> Find out more about 40x40 rail

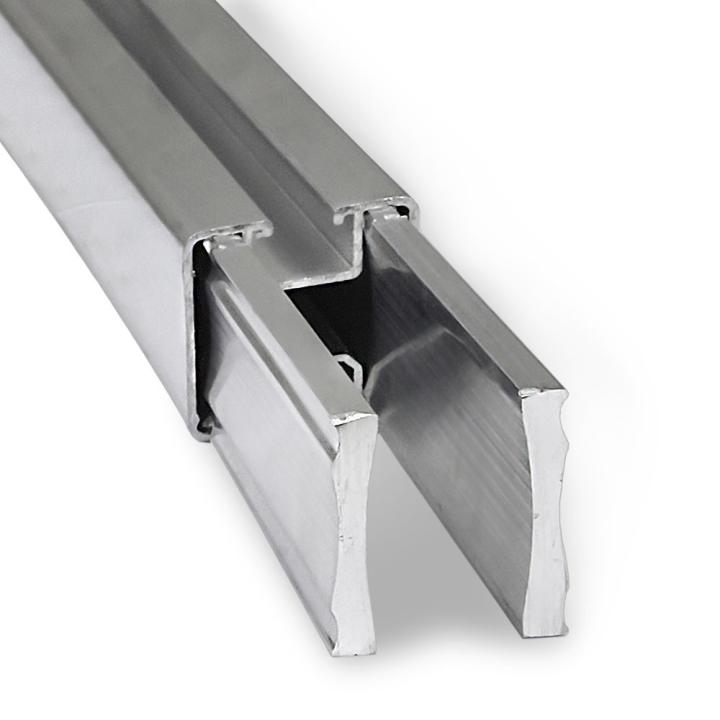

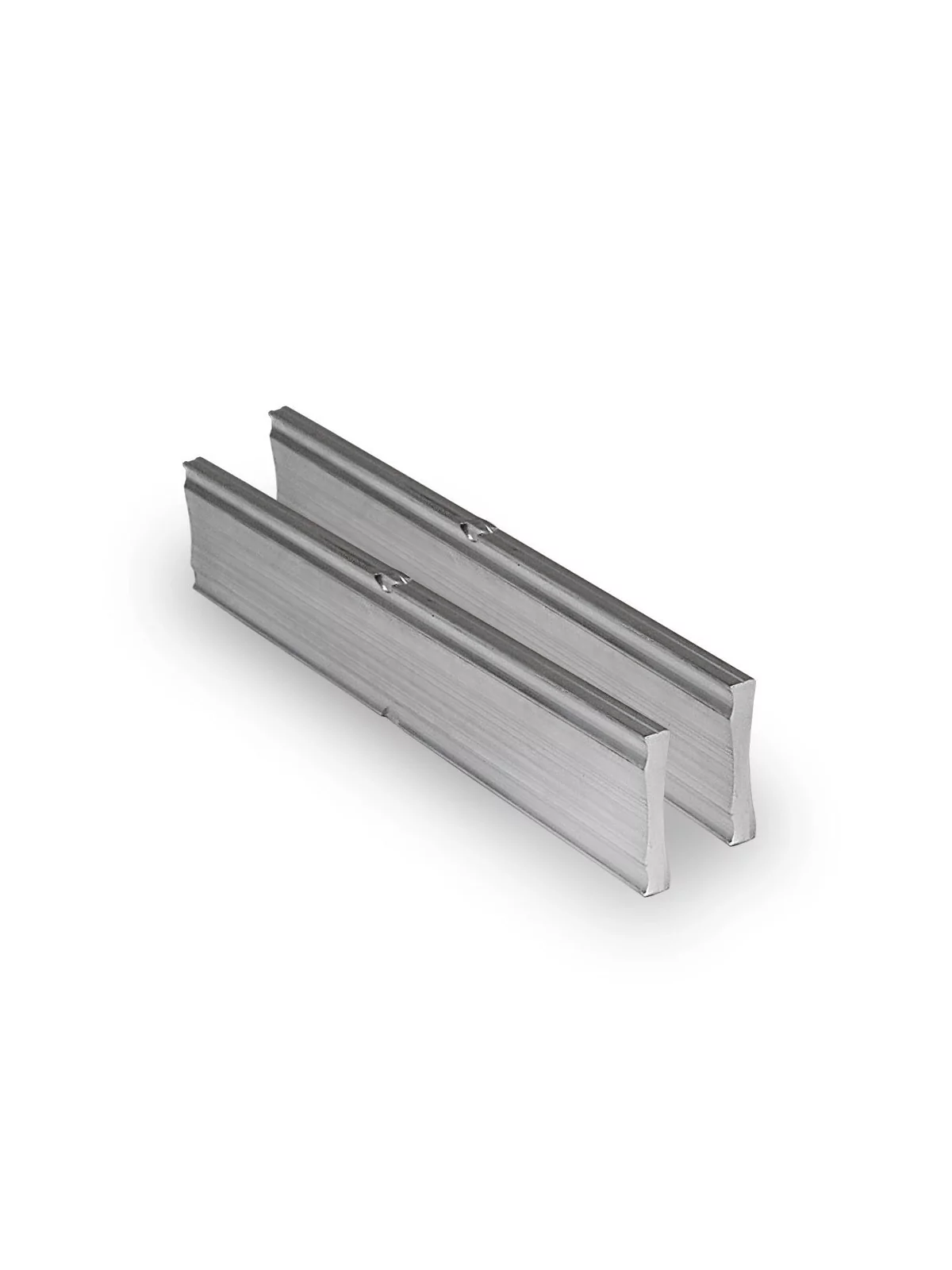

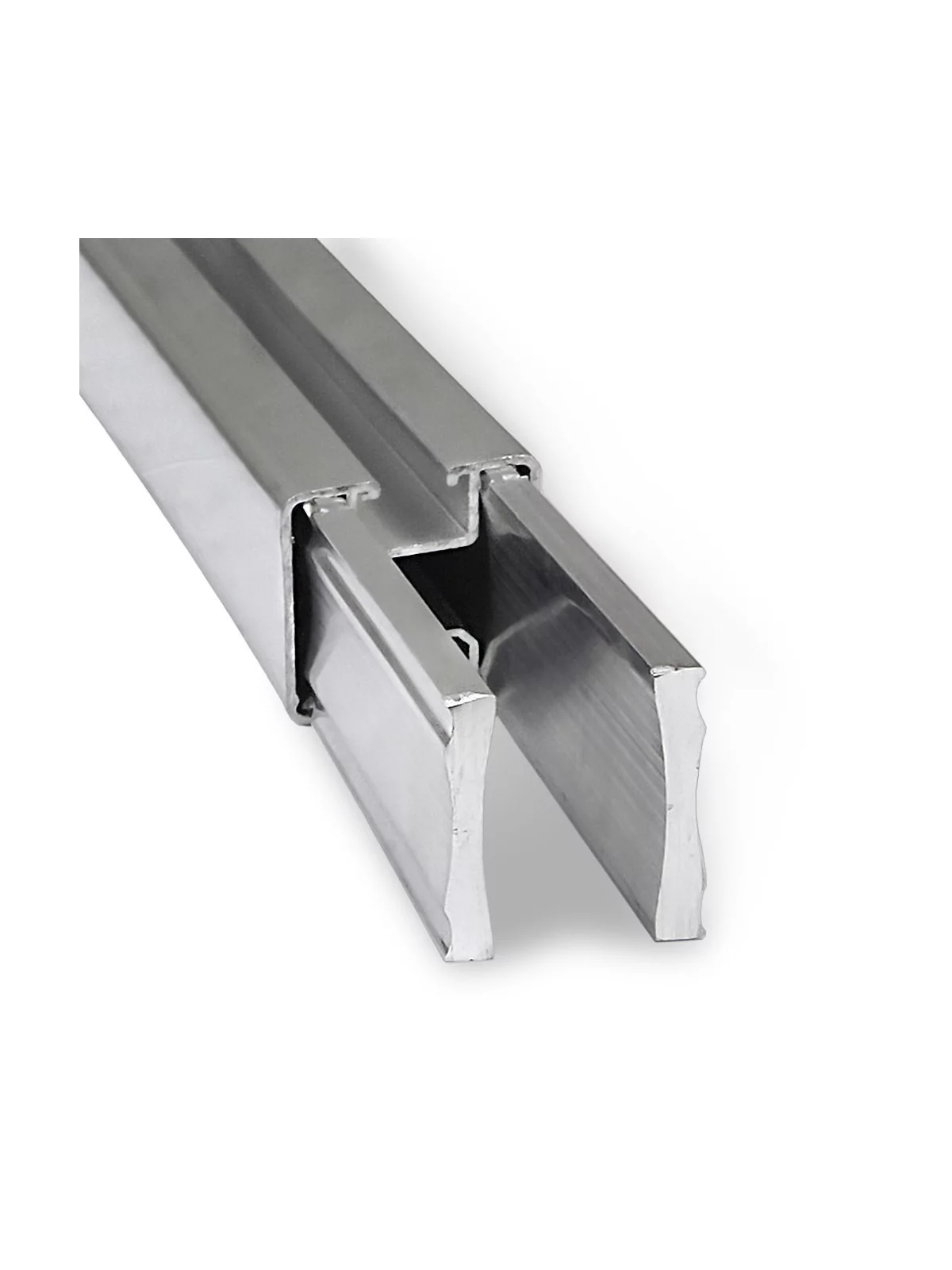

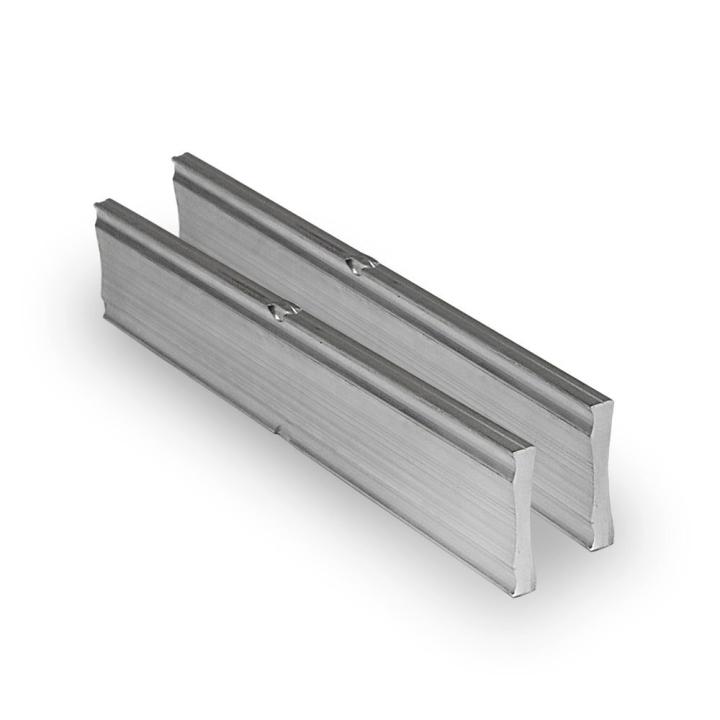

Rail connector - 2 fastening bars
These 2 bars are used to securely join 2 pieces of rail together without screws or tools! Simply insert the connecting bars into the two pieces of rail to be joined.
>> Find out more about the rail connector

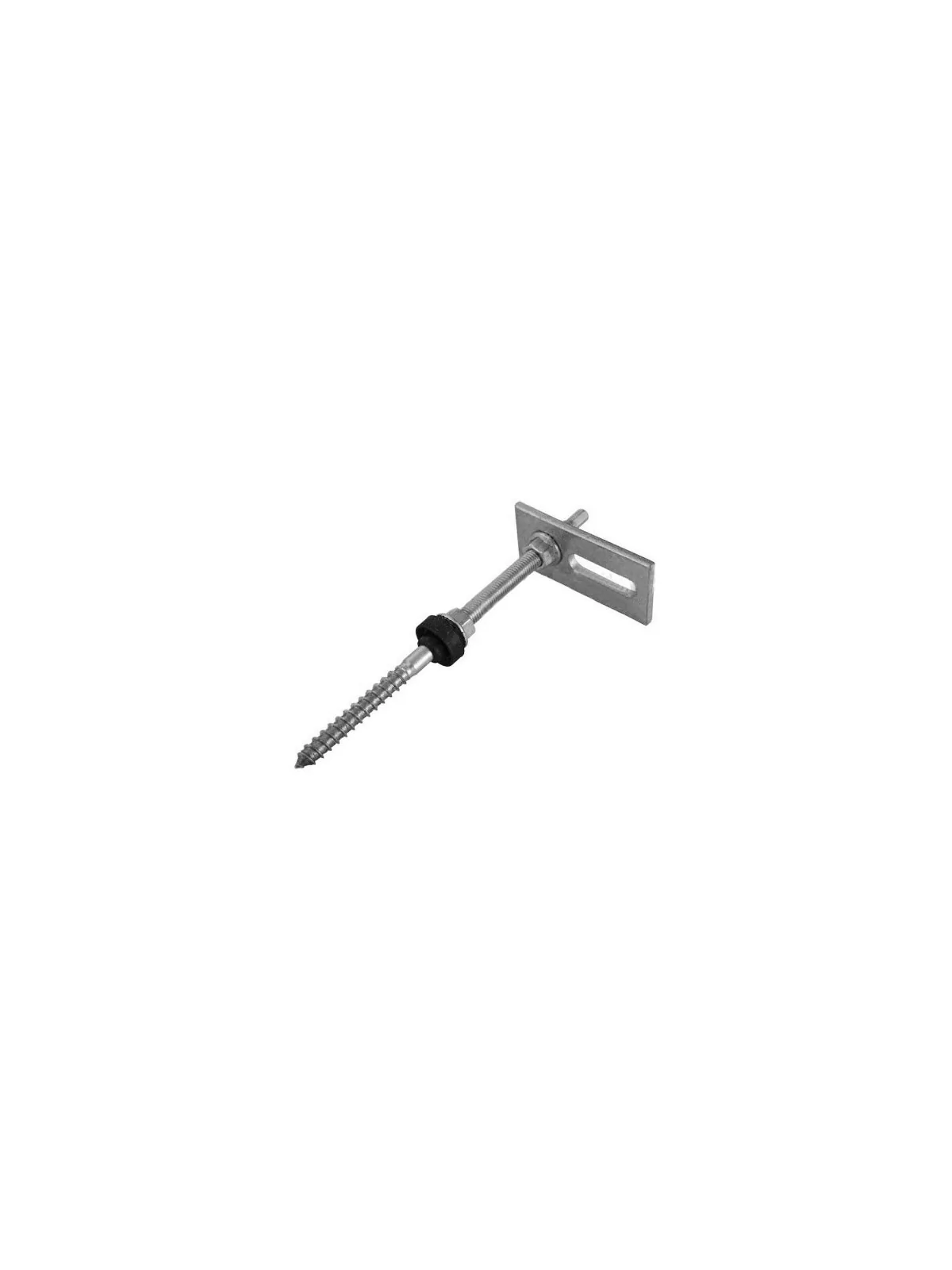

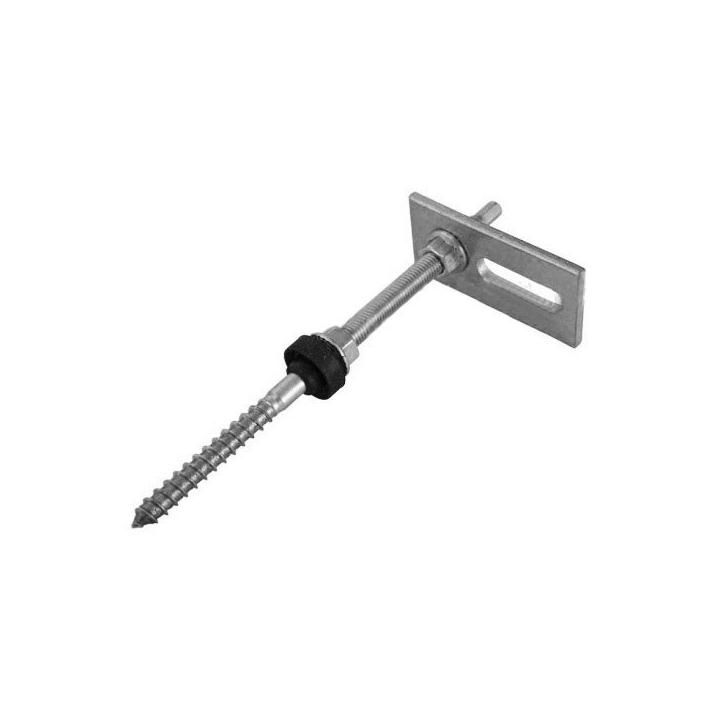

Fastening screws for sheet metal
Screw for fastening solar panels to sheet metal roofs, with mounting plate.
Can also be used on corrugated Eternit roofs.
Dimensions: M10X200mm
>> Find out more about Tin roof hooks

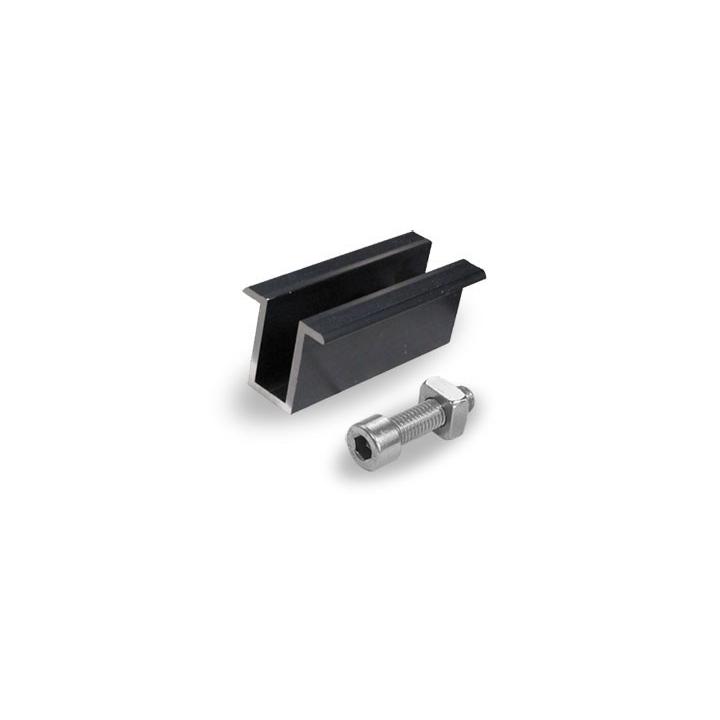

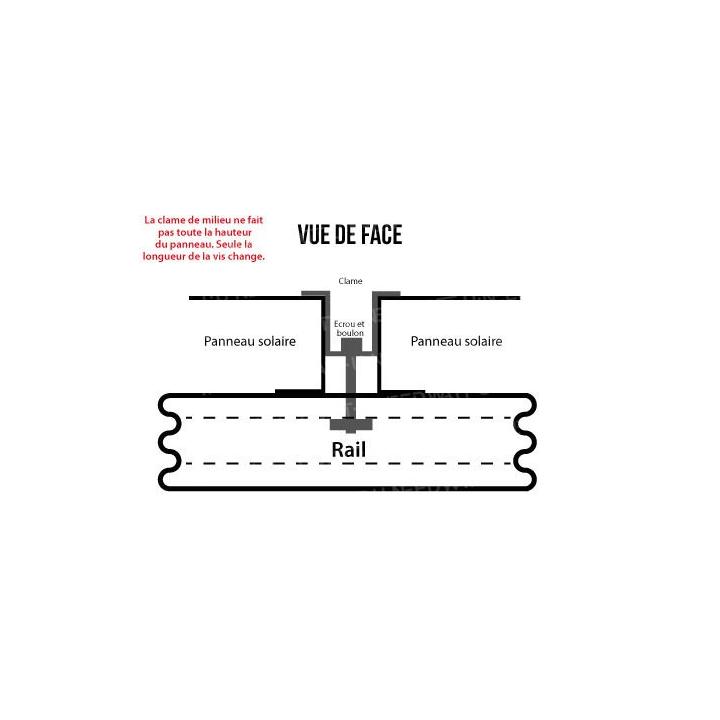

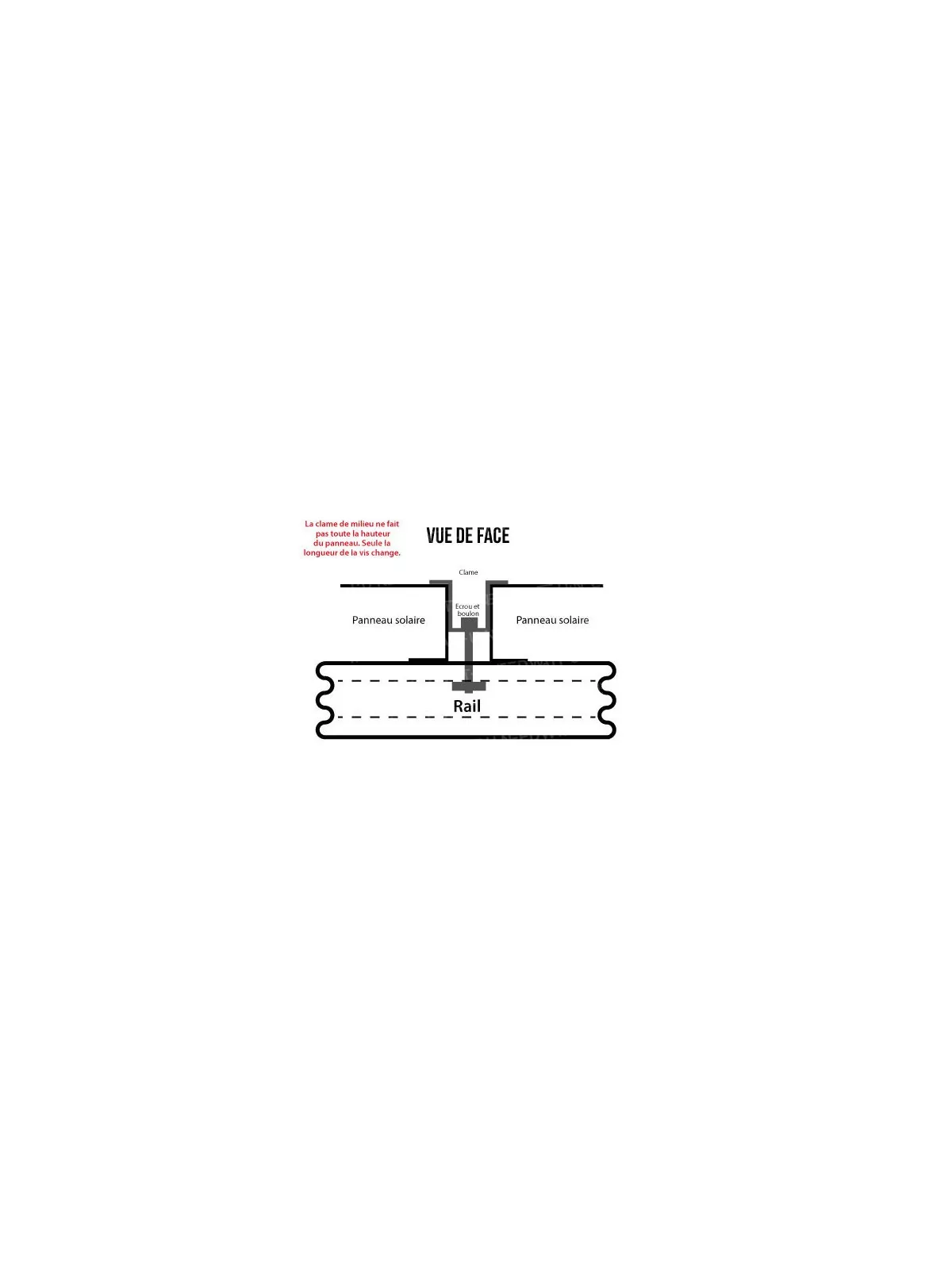

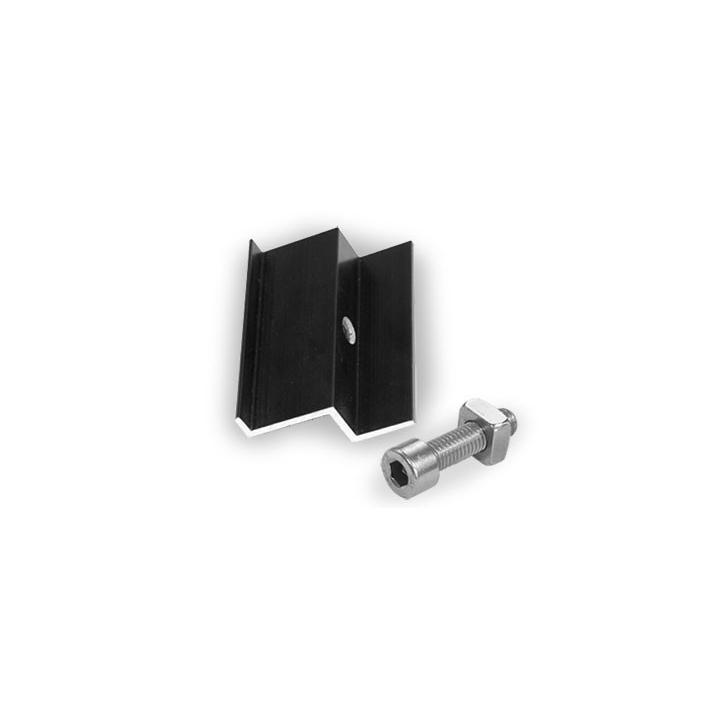

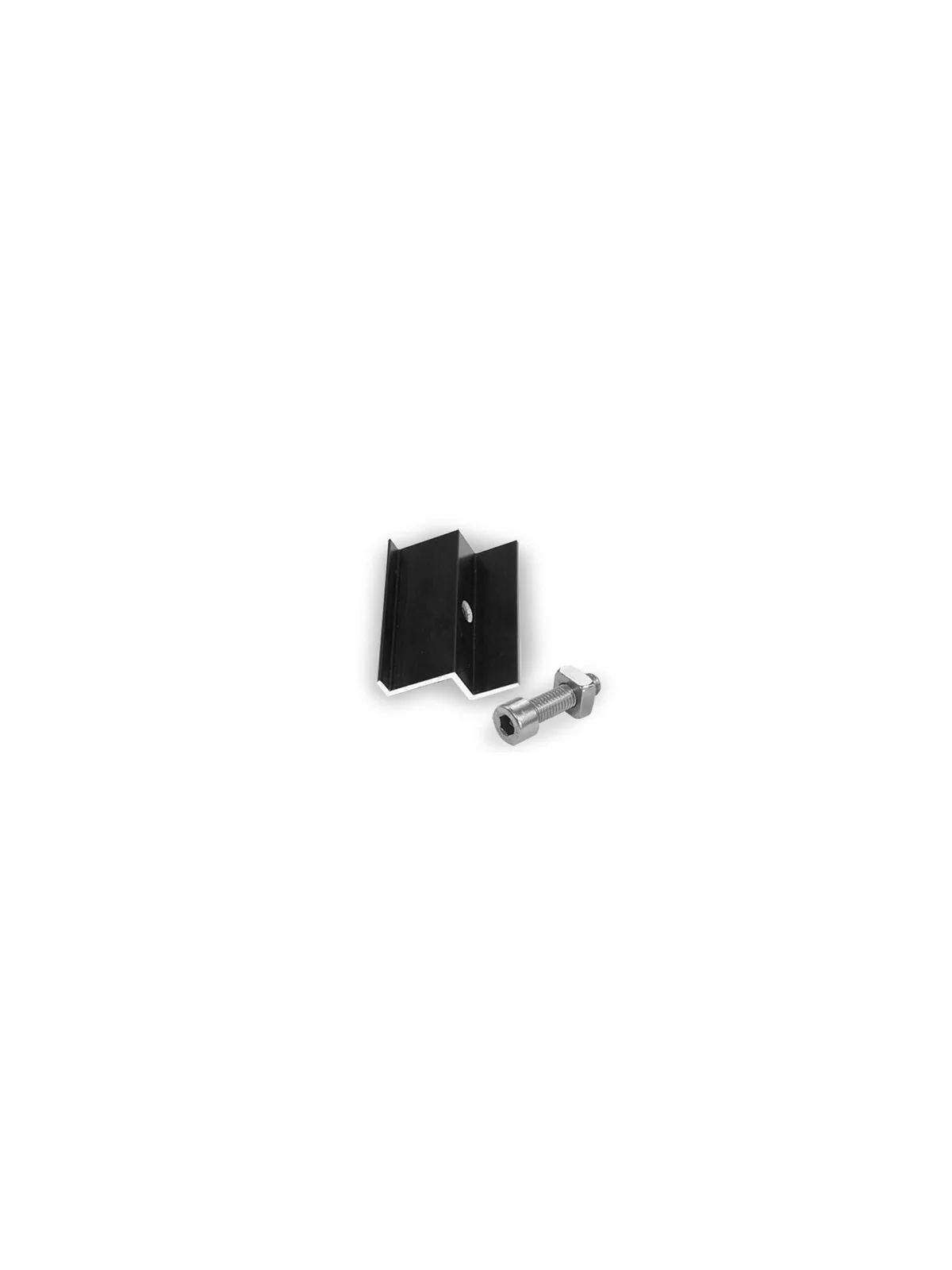

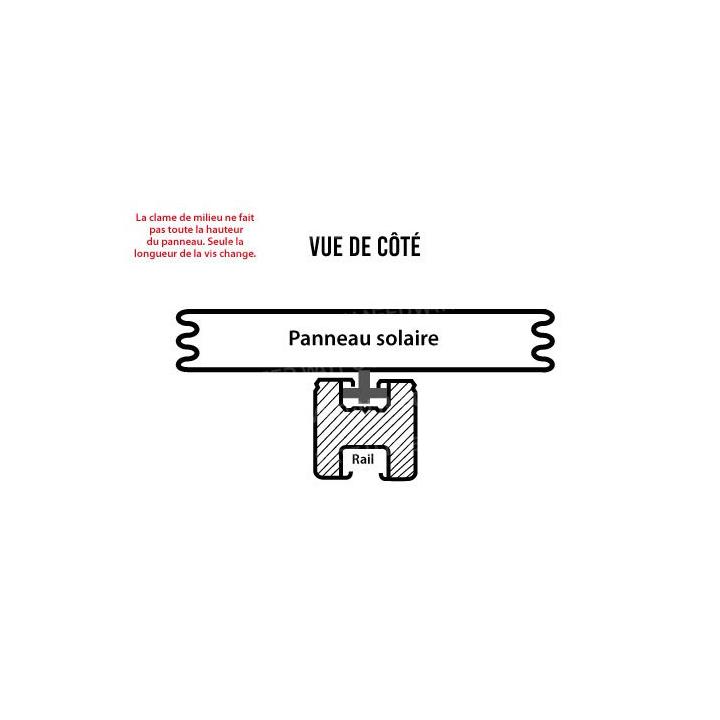

Middle clamp - panel fastening
Clame for inside fastening of photovoltaic panels. Height adjustable to suit solar panel frame height: 35 - 50mm. Fixes to aluminum rail with stainless steel bolt and nut (supplied).
Option: Height to be chosen according to panel frame height.
>> Find out more about the middle clamp

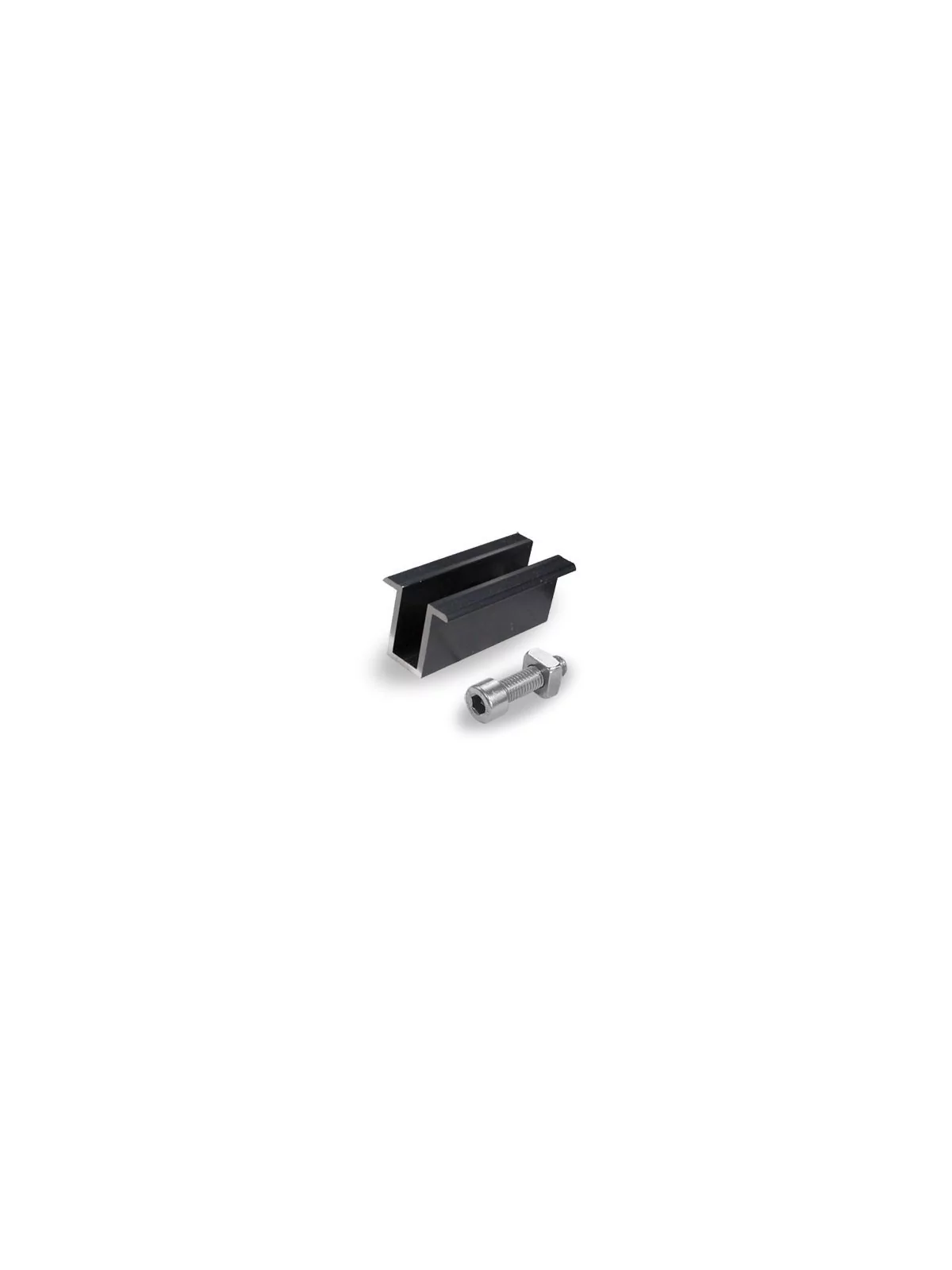

End clame - panel fastening
Clame for external panel fastening. Available heights: 35mm - 40mm - 45mm - 47mm - 50mm. Fixes to aluminum rail with bolt and nut (supplied).
>> Find out more about the end clam
How do I choose the right kit for my panels?
The fixing kit is suitable for all slate roofs. Thanks to its options, it can be adapted to the layout of your panels.
Fasteners are compatible with standard panel sizes.
Choose the number of panels per row, arranged in portrait or landscape.
For example, the layout shown here requires 3x Fastener Kits:
> 1st kit for row 1: 3 portrait panels
> 2nd kit for row 2: 2 landscape panels
> 3rd kit for row 3: 2 landscape panels

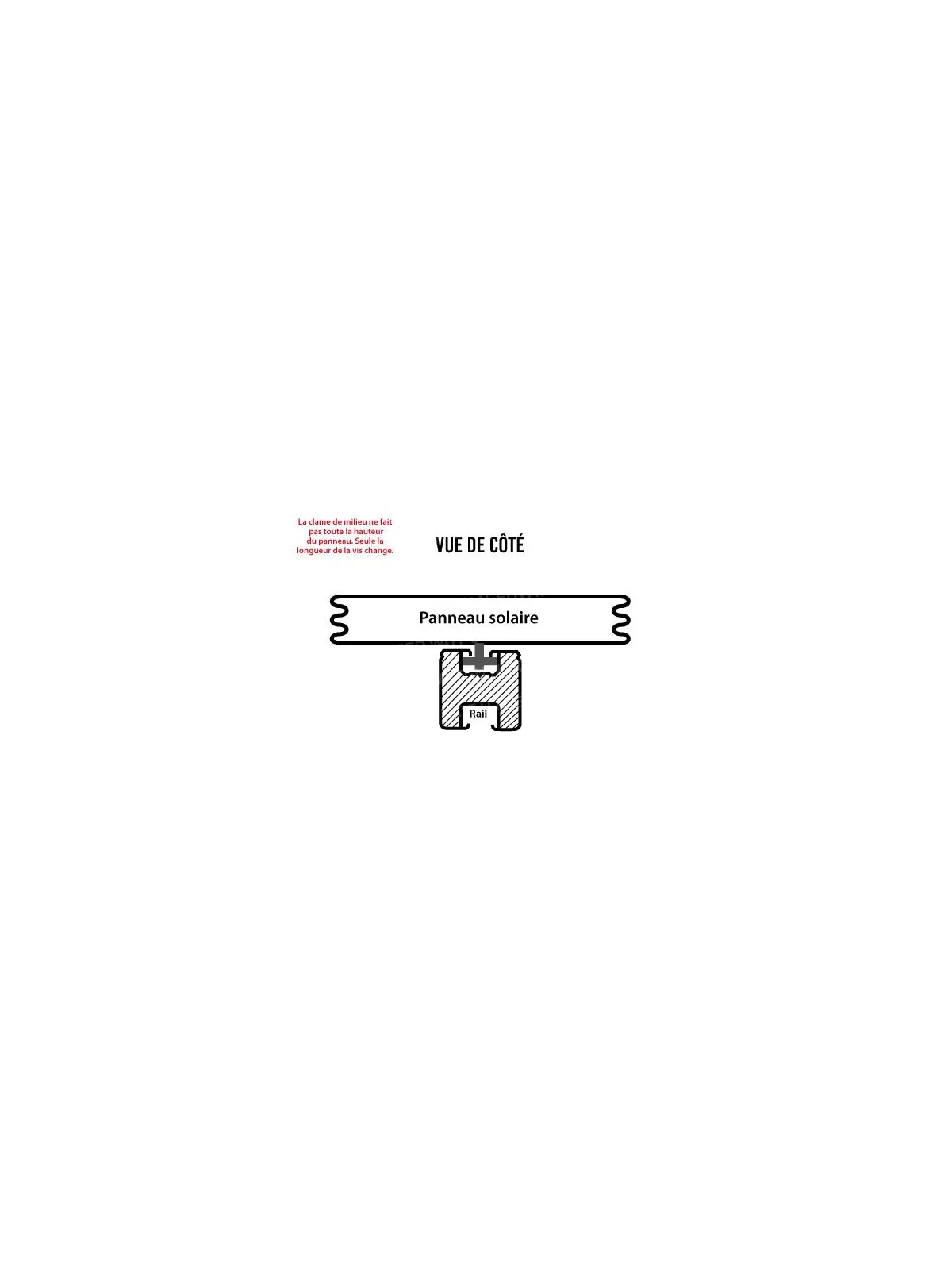

2. Select the right clame for your panel
The clamp is used to secure the panel to the aluminum rail. Its height must correspond to the thickness of your panel's frame, so that it can be securely fastened to the rail.
Available panel heights: 35 - 40 - 45 - 47 - 50 mm

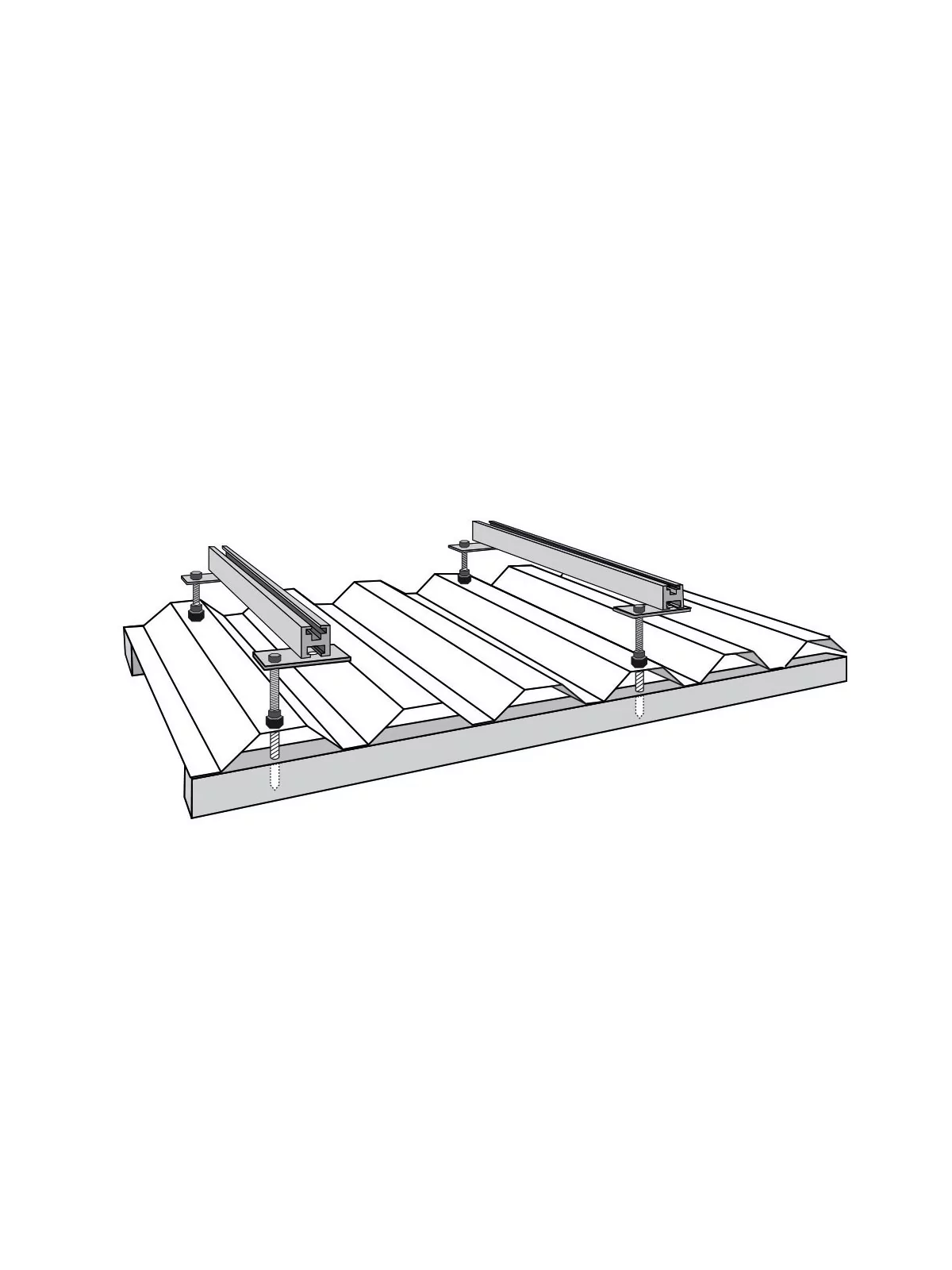

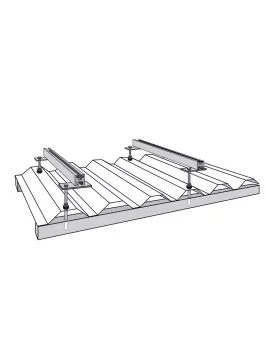

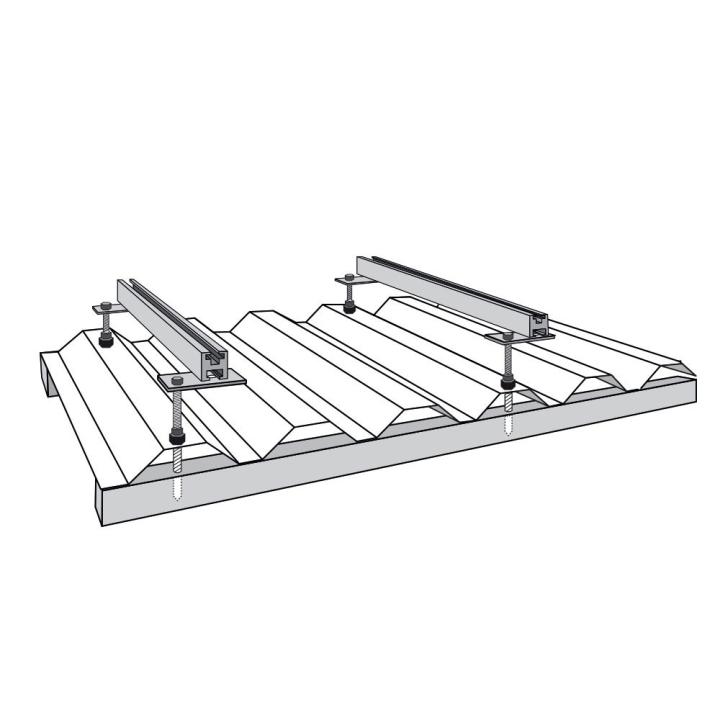

Assembly diagram
Details of materials supplied according to panel quantity
| Portrait panels | ||||||
| Number of panels | Rail (m) | Rail detail* | Junction | Fixing screws for sheet metal | Middle clamp | End clamp |
| 1 panel | 2,4 | (2 x 1,20m) | 0 | 4 | 0 | 4 |
| 2 panels | 4,8 | (2 x 2,40m) | 0 | 6 | 2 | 4 |
| 3 panels | 7,2 | (4 x 1,80m) | 2 | 8 | 4 | 4 |
| 4 panels | 9,6 | (4 x 2,40m) | 2 | 10 | 6 | 4 |
| 5 panels | 12 | (4 x 2,40m et 2 x 1,20m) | 4 | 12 | 8 | 4 |
| 6 panels | 14,4 | (6 x 2,40m) | 4 | 14 | 10 | 4 |
| 7 panels | 16,8 | (6 x 2,40m et 2 x 1,20m) | 6 | 16 | 12 | 4 |
| 8 panels | 19,2 | (8 x 2,40m) | 6 | 18 | 14 | 4 |
| 9 panels | 21,6 | (8 x 2,40m et 2 x 1,20m) | 8 | 20 | 16 | 4 |
| 10 panels | 24 | (10 x 2,40m) | 8 | 22 | 18 | 4 |
| 11 panels | 26,4 | (10 x 2,40m et 2 x 1,20m) | 10 | 24 | 20 | 4 |
| 12 panels | 28,8 | (12 x 2,40m) | 10 | 26 | 22 | 4 |
| 13 panels | 31,2 | (12 x 2,40m et 2 x 1,20m) | 12 | 28 | 24 | 4 |
| 14 panels | 33,6 | (14 x 2,40m) | 12 | 30 | 26 | 4 |
| 15 panels | 36 | (14 x 2,40m et 2 x 1,20m) | 14 | 32 | 28 | 4 |
| 16 panels | 38,4 | (16 x 2,40m) | 14 | 34 | 30 | 4 |
| 17 panels | 40,8 | (16 x 2,40m et 2 x 1,20m) | 16 | 36 | 32 | 4 |
| 18 panels | 43,2 | (18 x 2,40m) | 16 | 38 | 34 | 4 |
| 19 panels | 45,6 | (18 x 2,40m et 2 x 1,20m) | 18 | 40 | 36 | 4 |
| 20 panels | 48 | (20 x 2,40 m) | 18 | 42 | 38 | 4 |
| Landscape panels | ||||||
| Number of panels | Rail (m) | Rail detail* | Junction | Fixing screws for sheet metal | Middle clamp | End clamp |
| 1 panel | 3,6 | (2 x 1,80m) | 0 | 4 | 0 | 4 |
| 2 panels | 7,2 | (4 x 1,80m) | 2 | 6 | 2 | 4 |
| 3 panels | 10,8 | (6 x 1,80m) | 4 | 10 | 4 | 4 |
| 4 panels | 14,4 | (8 x 1,80m) | 6 | 12 | 6 | 4 |
| 5 panels | 18 | (10 x 1,80m) | 8 | 16 | 8 | 4 |
| 6 panels | 21,6 | (12 x 1,80m) | 10 | 18 | 10 | 4 |
| 7 panels | 25,2 | (14 x 1,80m) | 12 | 22 | 12 | 4 |
| 8 panels | 28,8 | (16 x 1,80m) | 14 | 24 | 14 | 4 |
| 9 panels | 32,4 | (18 x 1,80m) | 16 | 28 | 16 | 4 |
| 10 panels | 36 | (20 x 1,80m) | 18 | 30 | 18 | 4 |
| 11 panels | 39,6 | (22 x 1,80m) | 20 | 34 | 20 | 4 |
| 12 panels | 43,2 | (24 x 1,80m) | 22 | 36 | 22 | 4 |
| 13 panels | 46,8 | (26 x 1,80m) | 24 | 40 | 24 | 4 |
| 14 panels | 50,4 | (28 x 1,80m) | 26 | 42 | 26 | 4 |
| 15 panels | 54 | (30 x 1,80m) | 28 | 46 | 28 | 4 |
| 16 panels | 57,6 | (32 x 1,80m) | 30 | 48 | 30 | 4 |
| 17 panels | 61,2 | (34 x 1,80m) | 32 | 52 | 32 | 4 |
| 18 panels | 64,8 | (36 x 1,80m) | 34 | 54 | 34 | 4 |
| 19 panels | 68,4 | (38 x 1,80m) | 36 | 58 | 36 | 4 |
| 20 panels | 72 | (40 x 1,80m) | 38 | 60 | 38 | 4 |
* The details of the rails are given as an indication and depend on the size of the panels (which varies the lengths of the rails).
