• New

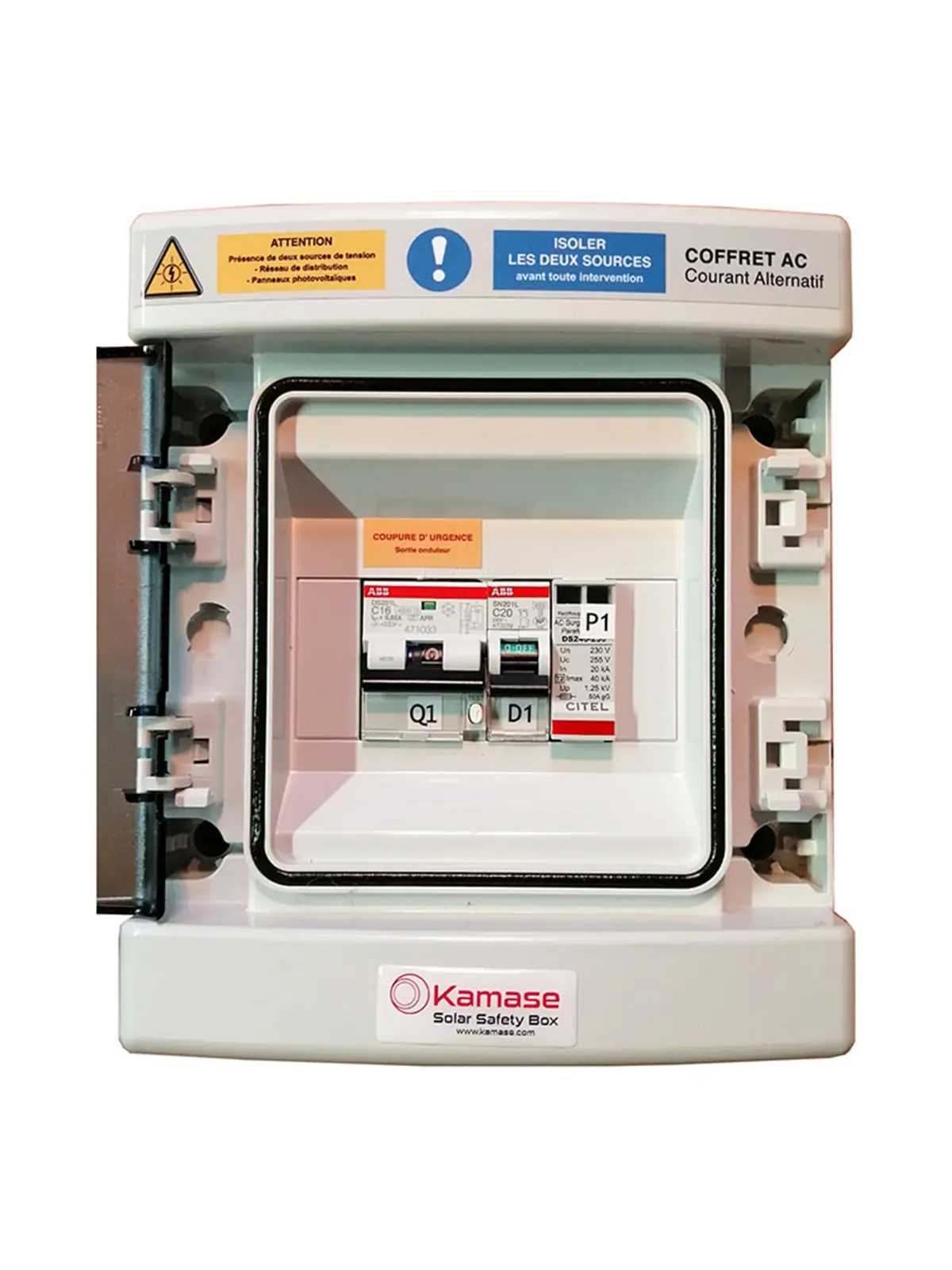

Kamase AC 63A Single-Phase Protection Box
Kamase AC 63A Single-Phase Protection Box

Kamase AC 63A Single-Phase Protection Box

€506.20
Tax included
AC-ID-63-300mA AC
0768563824104

This Kamase AC protection box, designed for photovoltaic installations, ensures the safety of the inverter line with high-quality equipment. It consists of an ABB residual current device (63A - 300mA), an ABB inverter protection circuit breaker (63A) and a lightning protection kit including a Phoenix Contact T2 surge arrester with its dedicated circuit breaker. The assembly is mounted in an IP65 waterproof enclosure (12 modules).

Kamase AC Protection Box - 63A (300mA)


This electrical protection box, assembled by French specialist Kamase, is the ideal solution for securing the output line of your photovoltaic inverter. Robust and ready to use, it guarantees optimal protection for your installation while strictly complying with current safety standards.





The key element of your solar installation

In a photovoltaic installation, this box fulfils three vital functions:

  • Protection of the inverter: The high-performance ABB 63A circuit breaker specifically protects your inverter line against overloads and short circuits.
  • Personal safety: The 300mA type AC residual current device detects current leaks and protects users against insulation faults.
  • Lightning protection: The integrated Phoenix Contact surge arrester protects your inverter and domestic appliances against atmospheric overvoltage.





Technical specifications & performance

Robust design: IP65 plastic housing (dustproof and waterproof), ideal for installation in a technical room or outdoors.

Premium equipment: Incorporates components from leading brands such as ABB and Phoenix Contact for maximum reliability.

Regulatory compliance: Meets the strict requirements of the UTE C15-712-1 Guide, essential for the certification of your installation.





Component details

  • Residual current device: ABB F202 2P 63A-300mA
  • Line circuit breaker: ABB S202L 2P 63A Curve C.
  • Surge protection: Dedicated ABB 20Acircuit breaker and Phoenix Contact T2 surge arrester.
  • Dimensions: 248 x 310 x 148 mm (12 modules).





FAQ - Kamase 63A AC Protection Box

1. Why choose a box equipped with a 300mA residual current device? +
The ABB 300mA AC residual current device has been specifically chosen to prevent frequent false trips with photovoltaic inverters, while providing effective protection against insulation faults. It guarantees personal safety in accordance with the UTE C15-712-1 guide.
2. Does this box provide effective protection against lightning? +
Yes, this box incorporates a Phoenix Contact Type 2 surge arrester protected by its own 20A circuit breaker. This "lightning shield" is essential for protecting the sensitive electronics of your inverter and your domestic appliances against atmospheric surges and mains voltage spikes.
3. Can this box be installed outdoors? +
Absolutely. The box has an IP65 protection rating, which means it is completely dustproof and protected against water splashes. This robustness allows for safe installation in a technical room or on an exposed exterior wall.
4. Which inverters is this box compatible with? +
Equipped with premium 63A ABB equipment, this box is ideal for high-power single-phase inverters. Its design complies with French quality standards (assembled by Kamase), ensuring maximum reliability to secure the long-term performance of your solar installation.
AC-ID-63-300mA AC

Data sheet

Type of electrical equipment
Coffret

Specific References

UPC
768563824104
EAN13
0768563824104
MPN
AC-ID-63-300mA AC
New

Kamase AC 63A Single-Phase Protection Box — Mounting and accessories

Kamase AC 63A Single-Phase Protection Box is available in our Mounting and accessories catalog. Technical specifications: type of electrical equipment: Coffret. Product weight: 3.0 kg. Reference: AC-ID-63-300mA AC.
