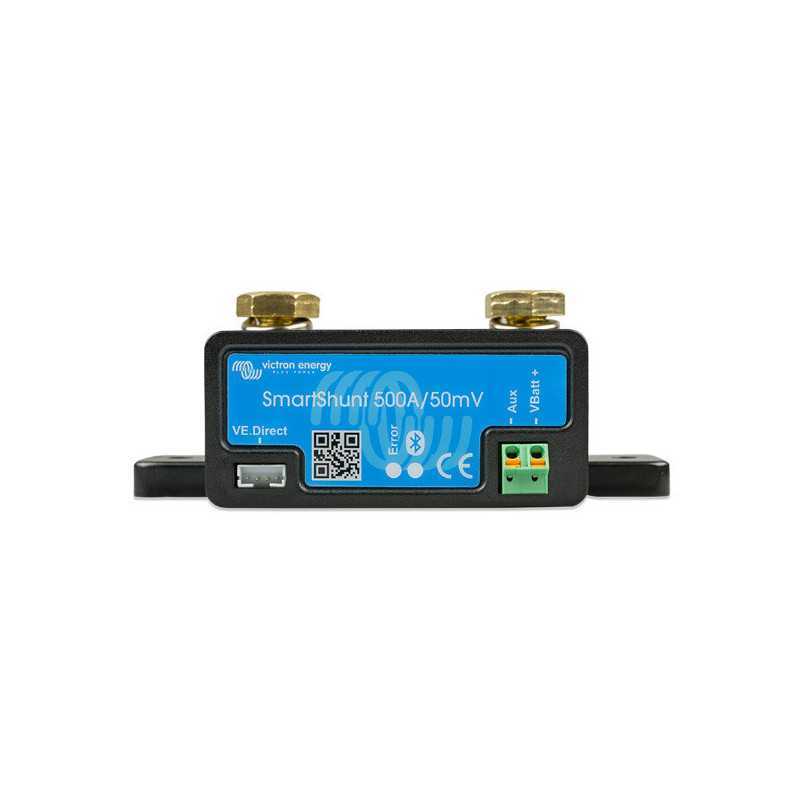

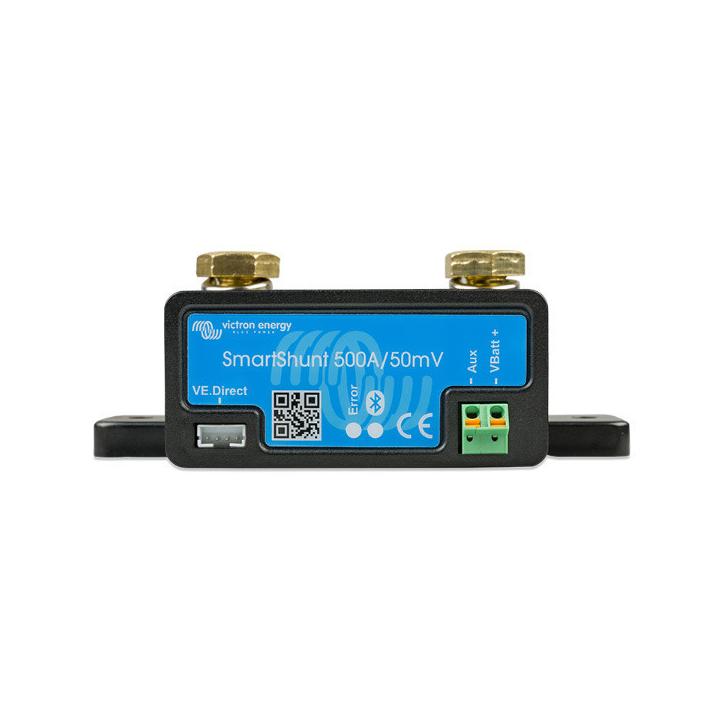

Victron Energy SmartShunt 500A / 50mV intelligent battery monitor
€129.47
Tax included
SHU050150050
0768563817632
The Victron SmartShunt 500A is a high-precision, all-in-one battery monitor without a display that uses your smartphone as its interface. With built-in Bluetooth connectivity and the VictronConnect app, you can monitor the state of charge, remaining range and historical consumption of your battery bank in real time, providing a powerful and discreet monitoring solution for solar systems.
This device is a compact alternative to the popular BMV-712. It integrates seamlessly into the Victron Energy ecosystem by connecting via a VE.Direct cable to monitoring devices such as the Cerbo GX orEkrano GX. The SmartShunt allows you to centralise data from your lithium, AGM or gel batteries and synchronise this information with the VRM Cloud portal for complete remote monitoring.
The SmartShunt 500A offers cutting-edge features:
- Accurate measurement of current, voltage and ampere-hours consumed.
- Auxiliary input for monitoring a second battery (engine), midpoint or temperature sensor.
- Full compatibility with MultiPlus inverters and SmartSolar MPPT controllers.
Its robust design and ease of installation make it the ideal choice for securing power for your motorhome, boat or off-grid site.
EAN: 0768563817632
The smart battery shunt
The SmartShunt is an all-in-one battery controller, but without a screen. Your phone serves as the screen. The SmartShunt connects via Bluetooth to the VictronConnect app on your phone (or tablet), and you can easily read all the battery parameters being monitored, such as state of charge, remaining autonomy, history information and much more.
Alternatively, the Smartshunt can also be connected to and read by a GX device. The SmartShunt can be connected using a VE.Direct cable.
The SmartShunt represents a good alternative to the BMV battery controller, particularly for systems where you want to supervise a battery, but with fewer cables and less clutter.
The SmartShunt is equipped with Bluetooth, a VE.Direct port and a connection that can be used to monitor a second battery, a midpoint or a temperature sensor.
Features
| SmartShunt | 500A |
| Supply voltage range |
| .5 - 70 VDC |
| Current draw | < |
| 1 mA |
| Input voltage range, auxiliary battery |
| .5 - 70 VDC |
| Battery capacity (Ah) |
| - 9999 Ah |
| Operating temperature range |
|
+50 ºC (-40 - 120 ºF)
|
| Measures the voltage of a second battery, |
|
| or temperature, or midpoint |
Yes |
| Temperature measurement range |
| +50℃ |
| VE communication port.Direct | Yes |
| RESOLUTION AND ACCURACY |
| Current | ± 0.1 A |
| Voltage | ± 0.01 V |
| Ampere-hours | ± 0.1 Ah |
| State of charge (0 - 100 %). | ± 0.1 % |
| Time to go (remaining autonomy) | ± 1 min |
| Temperature (if the optional temp. |
s
| is connected) |
|
± 1 °C/°F
(0 - 50°C or 30 - 120°F) |
| Current measurement accuracy | ± 0.4 % |
| Offset |
|
Less than 20/40/80 mA
|
| Voltage measurement accuracy ± 0.3 % | ± 0.3 % |
| INSTALLATION and DIMENSIONS |
| Dimensions (h x w x d) |
|
500 A :
|
|
46 x 120 x 54 mm
|
| Degree of protection | IP21 |
| STANDARDS |
| Safety | EN 60335-1 |
| Emission/Immunity |
|
EN-IEC 61000-6-1 - EN-IEC 61000-6-2
EN-IEC 61000-6-3 |
| Automotive | EN 50498 |
SHU050150050
Specific References
- UPC
- 768563817632
- EAN13
- 0768563817632
New
Victron Energy SmartShunt 500A / 50mV intelligent battery monitor — Made in Europa
Victron Energy SmartShunt 500A / 50mV intelligent battery monitor by Victron Energy is available in our Made in Europa catalog. Product weight: 0.2 kg. Reference: SHU050150050.
