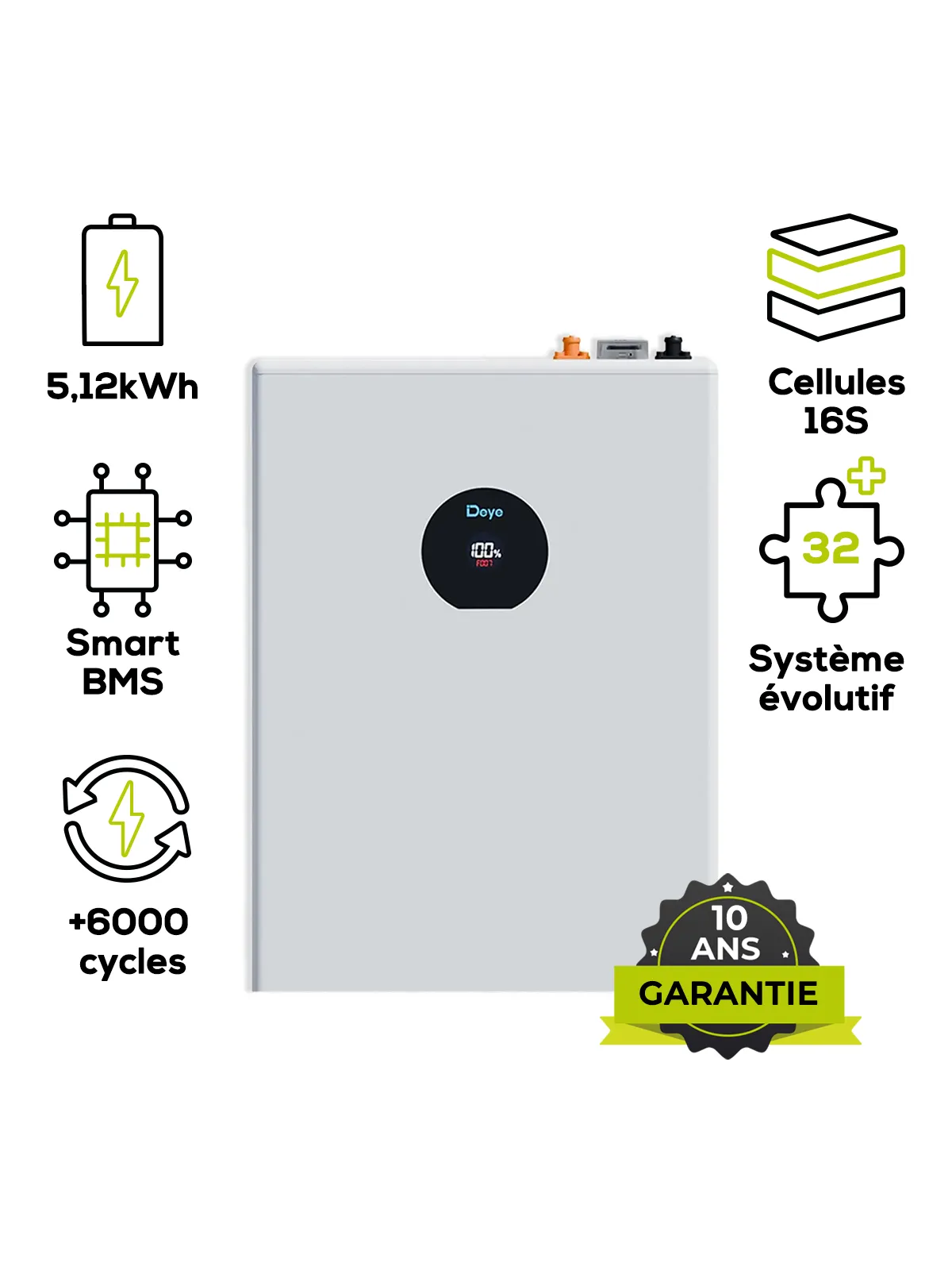

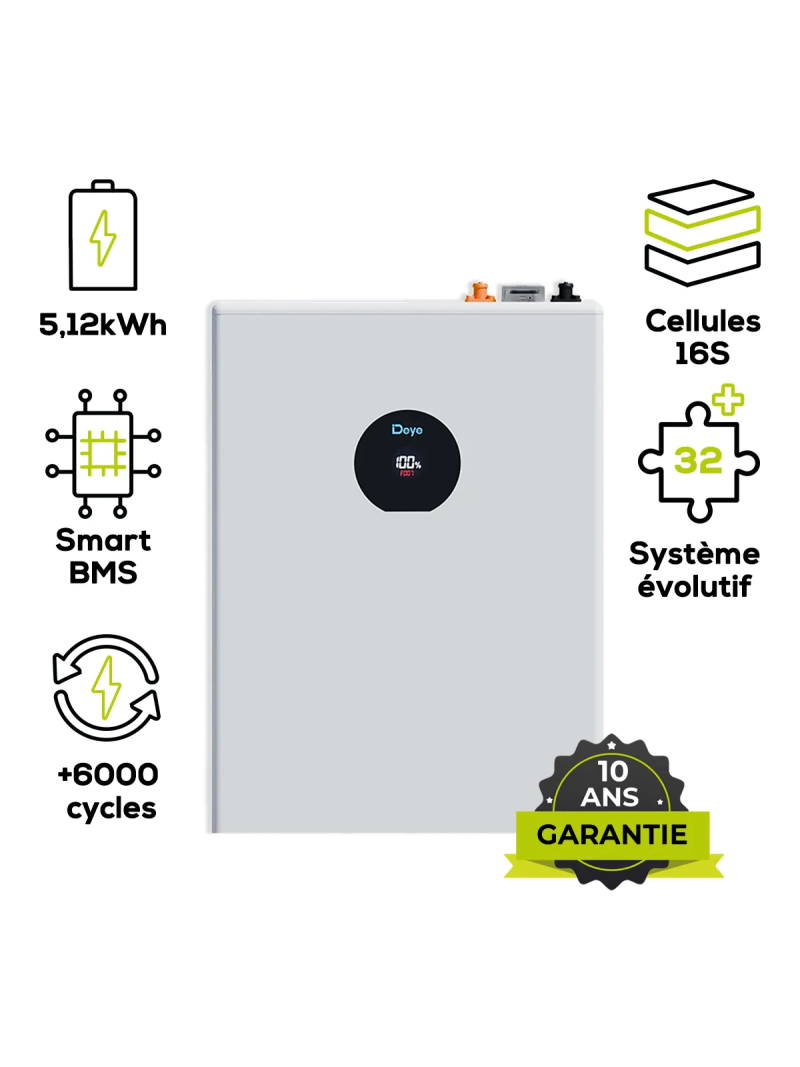

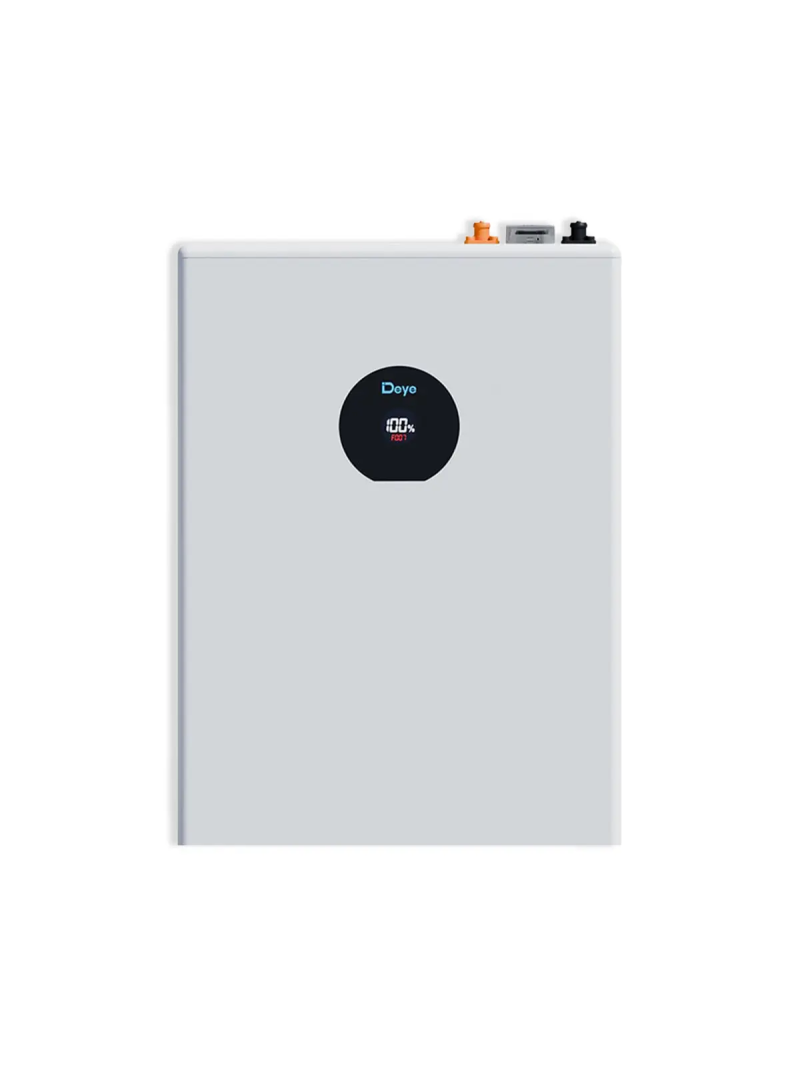

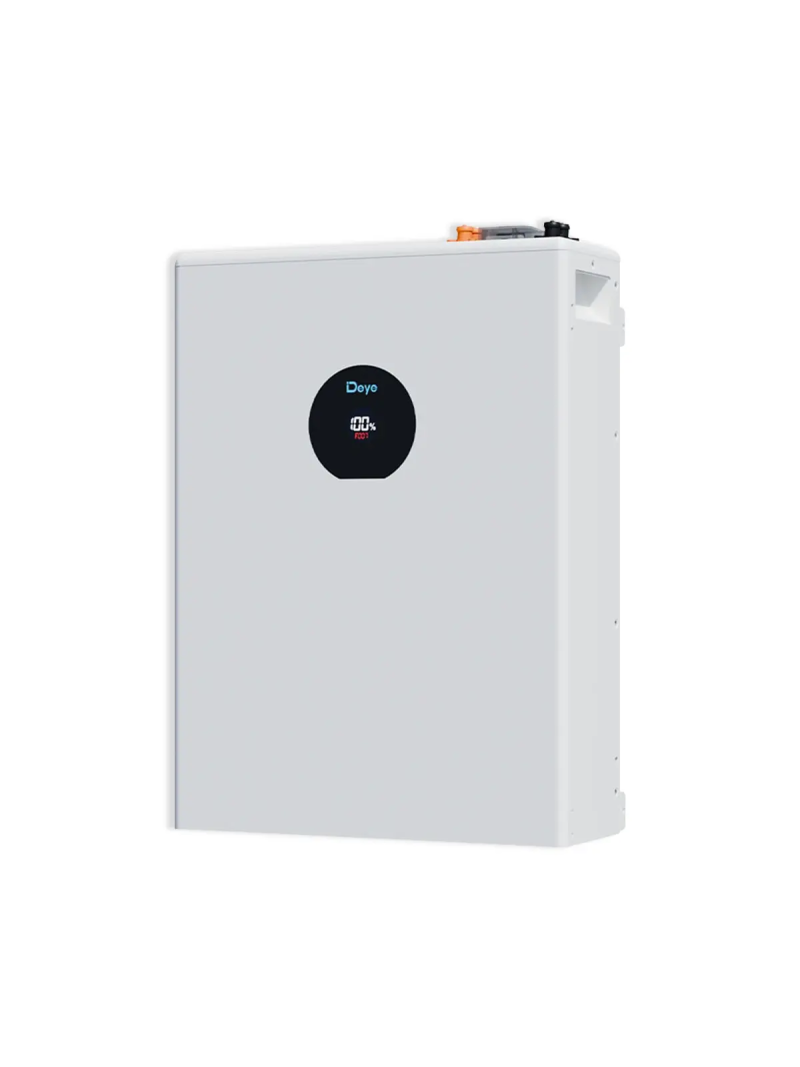

Deye SE-F5 Pro-C Lithium Battery - 5.12 kWh
€1,157.97
Tax included
Not sure what you need?
Three simple questions, and we tell you what suits you.
Let us guide you →
SE-F5 Pro-C
8436531217990
The Deye SE-F5 Pro-C is a 5.12 kWh low-voltage LiFePO4 lithium battery, supplied as a complete, ready-to-install unit: monitoring display, wall brackets and cables included (with the exception of the communication cable).
🔋 5.12kWh⚡ 51.2V🛡️ 10-year warranty
- ✅ LED display, built-in circuit breaker & WiFi/Bluetooth dongle
- ✅ Quick-plug terminals — wall-mounted, floor-standing or stacked installation
- ✅ Supplied with all necessary cables (excluding the communication cable)
- ✅ Scalable up to 32 batteries in parallel (64 with CAN-Bridge)
- ✅ Integrated automatic protective fuse for optimal safety.
23
🔋
Cette batterie est-elle faite pour vous ?
Vérifiez que
5.12 kWh
correspond à vos besoins
Étude personnalisée
Faites valider la composition de ce kit
Nos conseillers reprennent les panneaux, l'onduleur, la batterie et les accessoires sélectionnés pour préparer un devis adapté à votre projet.
📦 Disponible en kit complet
Victron 10 kVA inverter pack – 15 kWh battery — €7,992.14
⭐ Souvent choisi avec
 – BHS-2/2.jpg)
 – BHS-1/1.jpg)
✅
Compatibilités vérifiées
▼
Compatible avec :
Deye 10 kW Three-Phase Hybrid Inverter –...
€2,114.17
Voir le produit →
Deye 12 kW Three-Phase Hybrid Inverter –...
€2,232.22
Voir le produit →
Deye 3.6 kW 48V single-phase hybrid inverter –...
€988.13
Voir le produit →
Deye 5 kW Mono Hybrid Inverter –...
€1,043.93
Voir le produit →
Deye 6 kW Mono Hybrid Inverter –...
€1,061.47
Voir le produit →
Deye 6 kW Three-Phase Hybrid Inverter –...
€2,150.17
Voir le produit →
Affichage de 6 sur 20 produits compatibles
ℹ️ Cette liste est non exhaustive. Contactez-nous pour vérifier une combinaison.
Delivered complete & ready to install
Deye SE-F5 Pro-C
Next-generation residential LiFePO4 lithium storage: powerful, safe and factory-equipped — display, automatic protective fuse, wall mounts and power cables included.
5,12 kWh51,2 V10-year warranty
5,12 kWh
Nominal capacity
4,6 kWh
Usable energy (90% DoD)
≥6000
Charge cycles
16 MWh
Guaranteed energy
32→64
Batteries in parallel
Ready to install, no surprises
Unlike most batteries sold bare, the SE-F5 Pro-C arrives factory-equipped. You save time on installation, with nothing extra to order:
- 🖥️ Built-in monitoring display (state of charge, operation)
- 🔩 Wall mounts and screws included
- 🔌 Power and communication cables supplied
- 🛡️ Smart BMS: overcharge, deep-discharge & short-circuit protection
- ⚡ Automatic protective fuse: includes an automatic fuse for total protection of your equipment

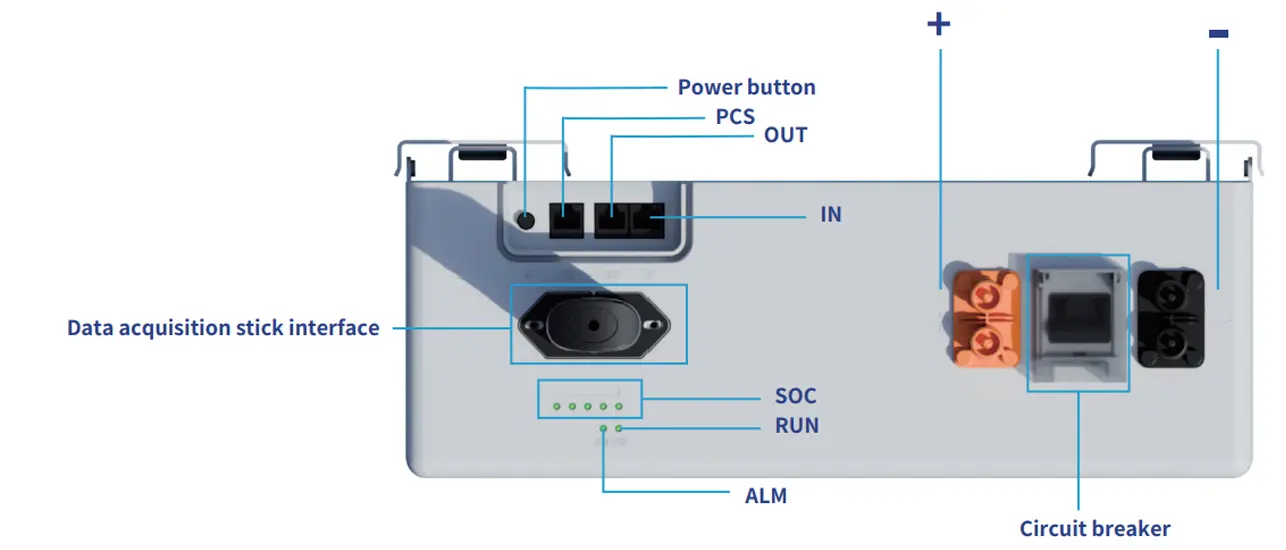

Designed for the installer
A design that simplifies commissioning and maintenance:
- ⚡ Built-in circuit breaker to safely isolate the battery
- 🔗 Quick-plug terminals: fast connect / disconnect
- 📡 CAN 2.0 / RS485 communication (compatible with 48 V hybrid inverters)
- 🧱 Wall, floor or stacked installation
Remote monitoring
Optional WiFi / Bluetooth dongle: track production, charge and consumption in real time from the Deye app.
Scales with your needs
Start with one module, add more anytime: up to 32 batteries in parallel (64 with CAN-Bridge), over 160 kWh.
Technical specifications
| Chemistry | Lithium iron phosphate LiFePO4 (cobalt-free) |
| Energy / capacity | 5,12 kWh · 100 Ah |
| Nominal voltage | 51,2 V (44,8 – 57,6 V) |
| Charge / discharge current | 50 A recommended · 100 A max continuous · 150 A peak |
| Depth of discharge (DoD) | 90 % |
| Cycle life | ≥ 6000 (25 °C, 70% EOL) |
| Scalability | Up to 32 units in parallel (64 with CAN-Bridge) |
| Communication | CAN 2.0, RS485, WiFi/Bluetooth (optional module) |
| Dimensions (W × H × D) | 404 × 547 × 141 mm |
| Weight | 44 kg |
| Protection rating | IP21 (indoor) |
| Mounting | Wall, floor or stacked |
| Warranty | 10 years · 16 MWh guaranteed energy |
| Certifications | UN38.3, MSDS, CE, CB, VDE2510-50, CEC |
❗ Belgian customers: Bebat environmental contribution
In accordance with Belgian environmental law, a mandatory Bebat contribution (battery collection and recycling body) applies to the purchase of this battery and must be added to your order.
➕ Add the Bebat contributionSecure your energy independence
A reliable, complete battery backed by a 10-year warranty. Need help sizing your system?
Request advice or a quoteFAQ - Deye SE-F5 Pro-C Lithium Battery (5.12 kWh)
SE-F5 Pro-C
Data sheet
- Storage temperature
- 0 ~ 35°C
- Voltage
- 48V
- Technology
- LFP (LiFePO4)
- Battery capacity
- 100Ah
- Width
- 404 mm
- Height
- 547 mm
- Thickness
- 141 mm
- Certification
- UN38.3, MSDS, CE, CB, VDE2510-50, CEC
- Standard warranty (years)
- 10 years
- Humidity
- 5 % à 95 %
- Protection Degree
- IP21
- Rated load current
- 100 A
- Weight
- 44 kg
- Communication
- RS485/CAN
- Service life
- 6000 cycles
- Rated voltage
- 51,2 V
- Altitude
- 3000m
- DOD
- 90 %
- Recommended charge/discharge current
- 50 A
- Battery Capacity (kWh)
- 5,12 kWh
Specific References
- EAN13
- 8436531217990
- MPN
- SE-F5 Pro-C
New
You might also like
Deye SE-F5 Pro-C Lithium Battery - 5.12 kWh — Lithium battery
Deye SE-F5 Pro-C Lithium Battery - 5.12 kWh by Deye is available in our Lithium battery catalog.
Technical specifications:
- storage temperature: 0 ~ 35°C
- voltage: 48V
- technology: LFP (LiFePO4)
- battery capacity: 100Ah
- width: 404 mm
- height: 547 mm
- thickness: 141 mm
- certification: UN38.3, MSDS, CE, CB, VDE2510-50, CEC
- standard warranty (years): 10 years
- humidity: 5 % à 95 %
- protection degree: IP21
- rated load current: 100 A
- weight: 44 kg
- communication: RS485/CAN
- service life: 6000 cycles
- rated voltage: 51,2 V
- altitude: 3000m
- dod: 90 %
- recommended charge/discharge current: 50 A
- battery capacity (kwh): 5,12 kWh
Product weight: 44.0 kg. Reference: SE-F5 Pro-C.
