- New

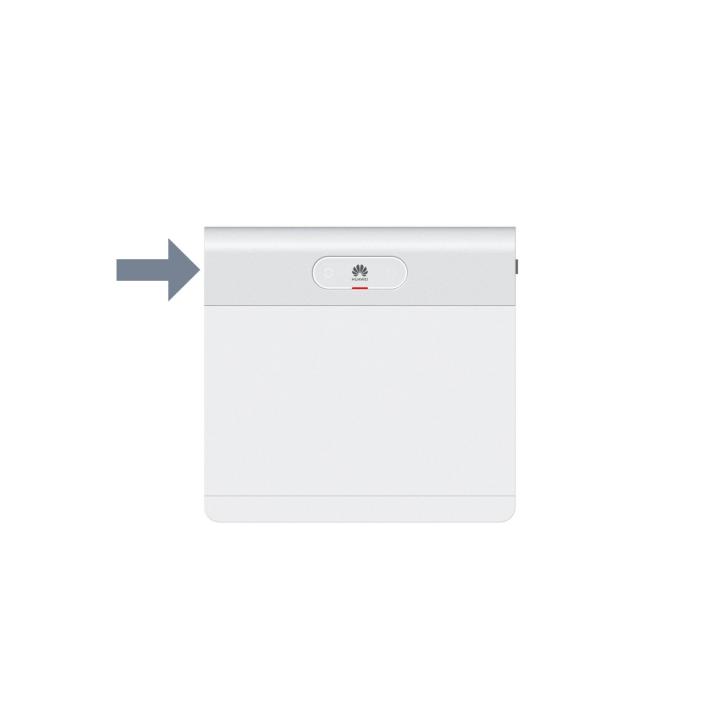

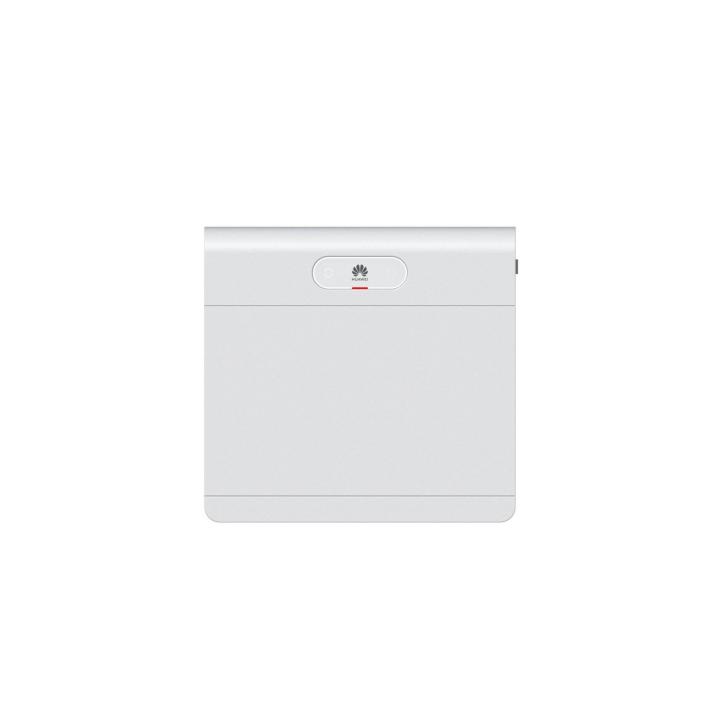

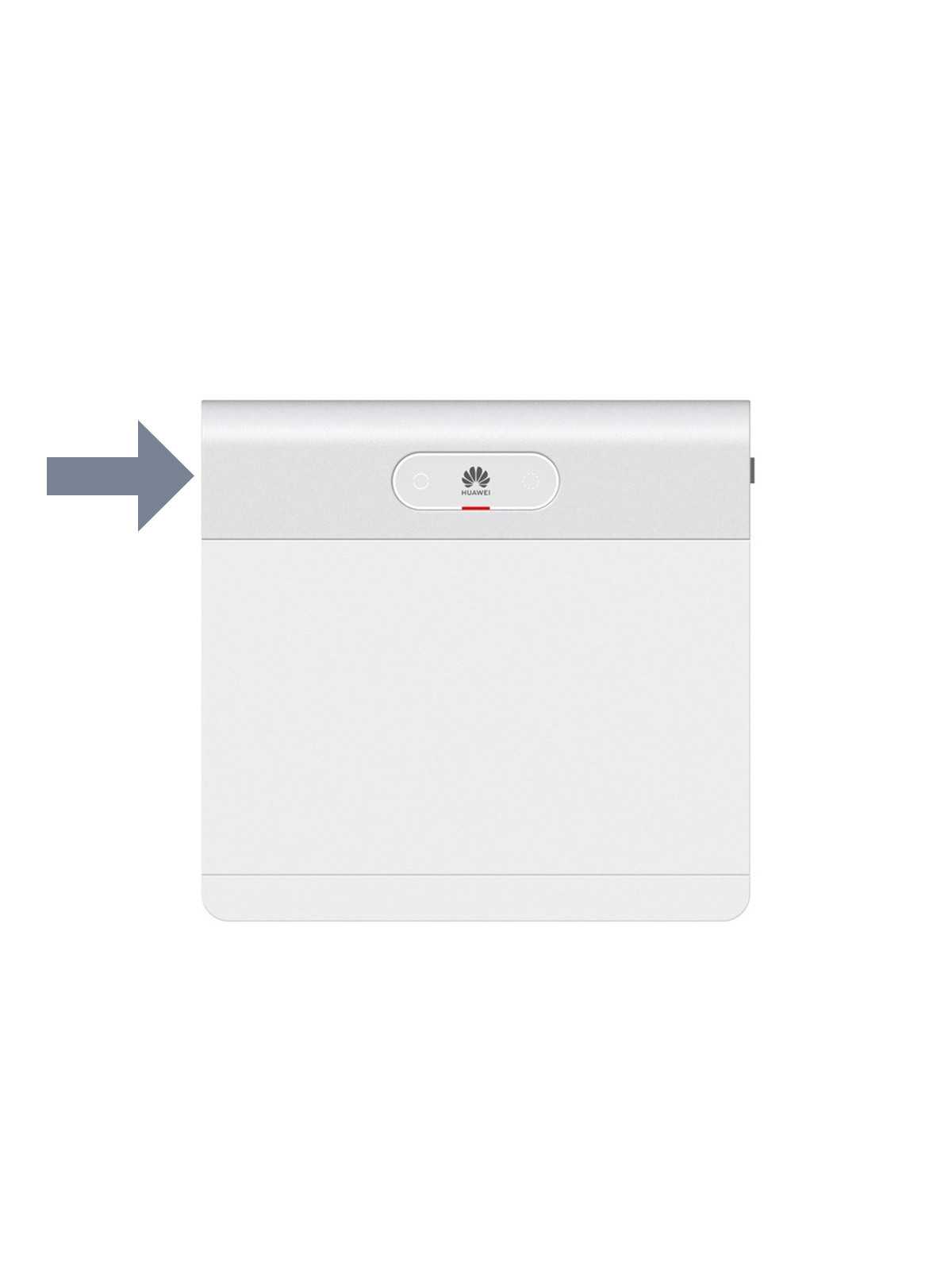

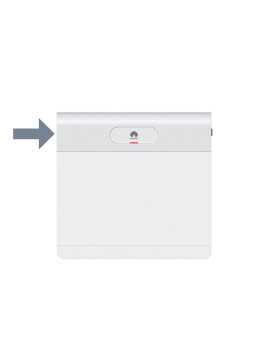

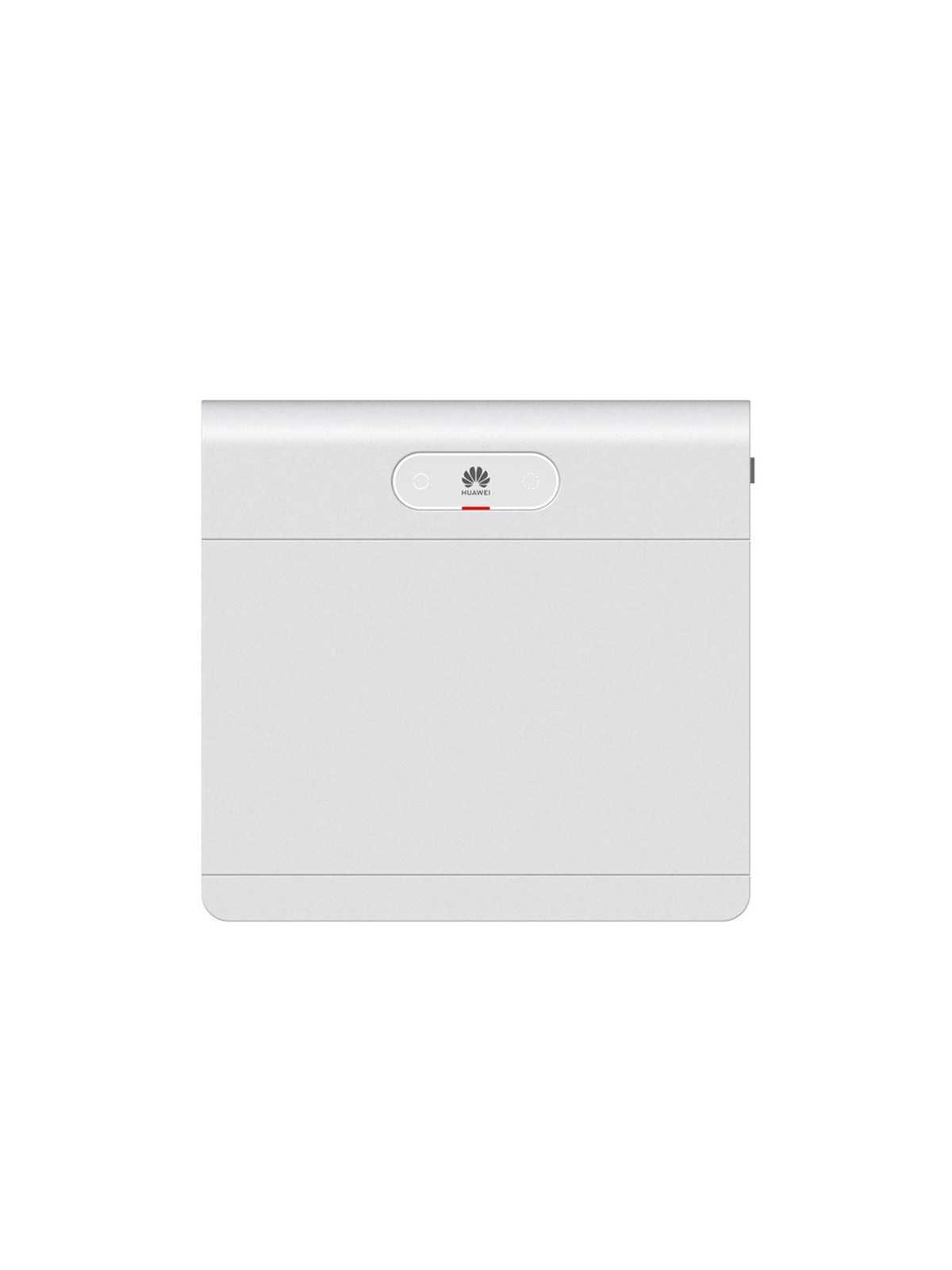

Huawei LUNA2000-10KW-C1 power module for Luna2000 7-E1
Optimize your solar system with the Huawei LUNA2000-10KW-C1 power module
Designed to integrate seamlessly with your photovoltaic system, this state-of-the-art product offers you a reliable, scalable energy storage solution. Benefit from simplified installation, enhanced security and extended compatibility with Huawei inverters.
Why choose LUNA2000-10KW-C1?
- Infinite flexibility: Expand your storage capacity to infinity by adding additional modules.
- Quick installation:
- The new connection system greatly simplifies installation, reducing time and costs.
- Certified safety: Benefit from maximum safety thanks to VDE 2510-50 certification, guaranteeing optimum protection for your installation.
- Extensive compatibility: Compatible with a wide range of Huawei inverters, for easy integration into your existing system.
Features :
- Maximum capacity per tower: 41.4 kWh
- Dimensions: 150 x 590 x 255 mm
- Weight: 12 kg
- Protection class: IP66
- Cooling : Passive
Ready to take solar energy to the next level? Contact our experts for a personalized study of your project and find out how the Huawei LUNA2000-10KW-C1 power module can meet your needs.

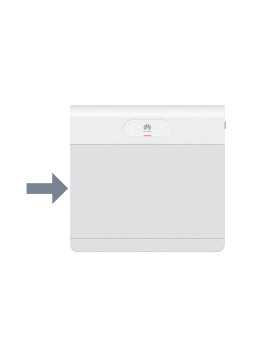

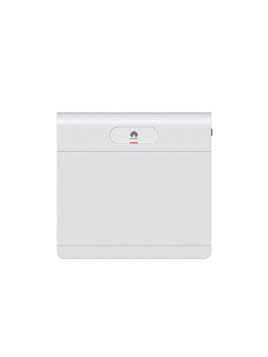

Sold without Huawei Luna 2000 7kWh lithium battery(this product is available in related products).
Huawei LUNA2000-10KW-C1 storage module: Autonomous and scalable solar power
More energy, longer life
Module+ architecture enables LUNA S1 to adopt the integrated energy optimizer, improving energy throughput by over 40%* and extending the warranty to 15 years**.
Module-level optimization guarantees plug-and-play capacity extension. Each new battery is always ready for use, with no need to precharge or calibrate the SOC.
More than 40% | 15 years |
Higher energy throughput* | Longer service life** |
*Theoretical values from HUAWEI's internal laboratories in specific test environments.
**Warranty conditions may vary according to region and temperature. Please refer to the warranty letter for more information.
Unique performance in unrivalled silence
A separate temperature control system, with thermal insulation material, ensures that the cells and energy optimizers operate reliably in the cold and hot compartments respectively, guarding against excessive heat and eliminating the need for a noisy fan. Quiet operation at 29 dB* gives you peace of mind
*Measured at a distance of 1 m under typical operating conditions. For a good night's sleep, noise levels in bedrooms should not exceed 30 dB.
Faster charging and discharging than you'd expect
Independent module-level management enables rapid charging and discharging at 3.5 kW for each battery module, and maximum input and output power of 10.5 kW for each energy storage system. An upgrade from performance to efficiency.
3.5kW | 10.5kW |
Fast charge and discharge power per battery module | Max. input and output power per string |
Best cells guaranteed
Top-quality LFP cells have passed a series of rigorous tests, such as 1/8 life cycle tests, puncture tests, etc. The LUNA S1 system guarantees outstanding reliability.
Active insulation protection
Three levels of protection, from intelligent overcurrent protection to short-circuit protection at chain and module level, avoiding external short-circuit and overcurrent risks for total safety.
Water protection
Enhanced IP66 waterproof protection ensures that the system remains protected up to 40 cm under water*, and continues to operate with unrivalled safety in the event of flooding, rain or snowmelt.
*The LUNA S1 is not designed for long-term immersion. It cannot be immersed beyond the specified water depth or for more than 72 hours.
Please keep it away from water sources during daily use.
High crush and impact resistance
The high-strength cabinet withstands pressure of up to 5 tons. It is strong enough to withstand crushing or unexpected external impact in a garage. It is remarkable from both inside and out.
Cell-level management
Real-time temperature and voltage management with 4 sensors for 8 cells promises 4-fold accuracy for stable operation, and active protection thanks to instant analysis of battery data and 24/7 early warning.
Protection by active pressure release
Active pressure release technology is an enhanced emergency protection that reduces oxygen concentration and eliminates combustion aids for fire prevention, protecting your solar energy storage system from the very first second.
Intelligent fire extinguishing kit
The intelligent fire extinguishing kit detects and extinguishes fires within 15 seconds, if necessary, eliminating the risk of fire from the outset and protecting the home energy storage system like a real firefighter.
In the know, even on the move
Real-time energy flow and centralized energy management
Discover Emma, your intelligent energy management assistant and intuitive data analysis
Easy to install
The design has been thought out with our installers in mind: no communication or power cables are required, simply plugging in the battery modules. Intelligent port detection with integrated temperature sensors saves effort and cuts installation time in half.
