€164.11
Tax included
IQ7PLUS-72-2-INT I
0712971131248

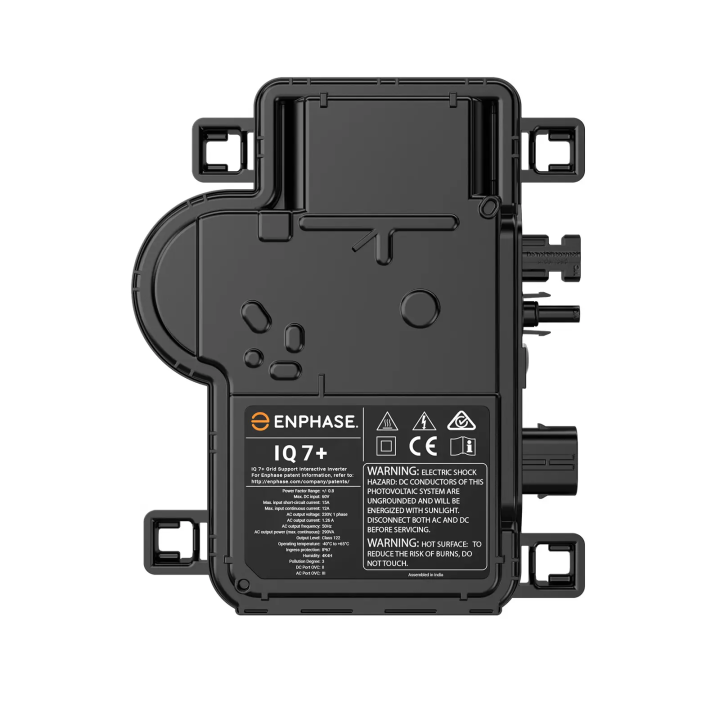

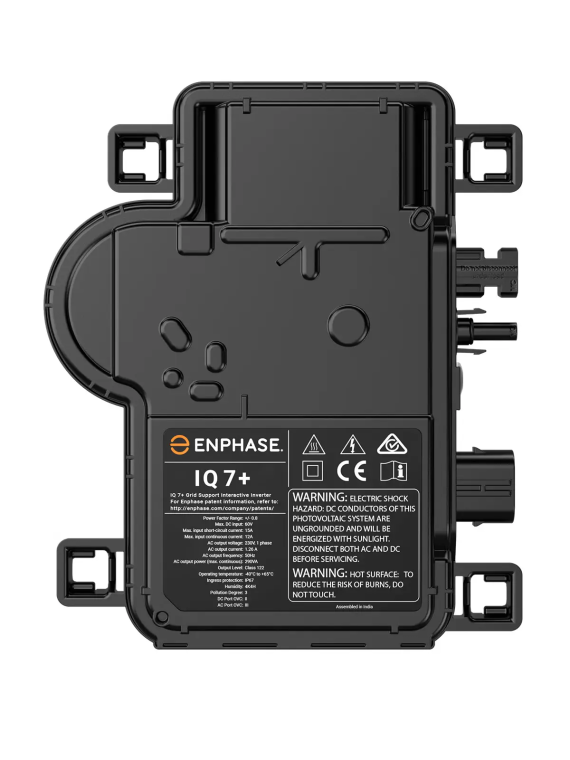

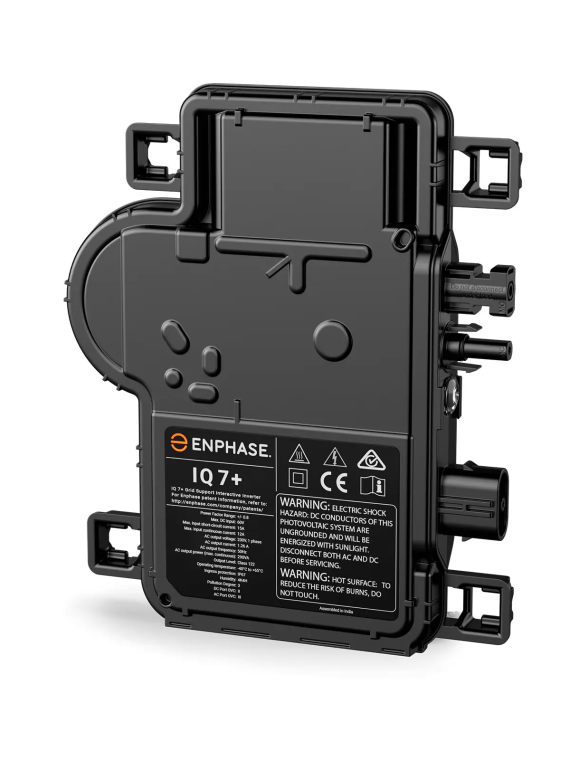

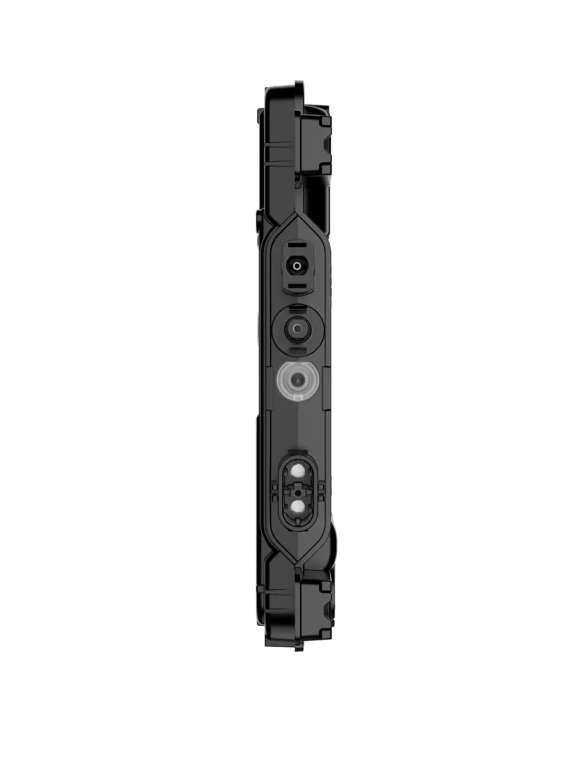

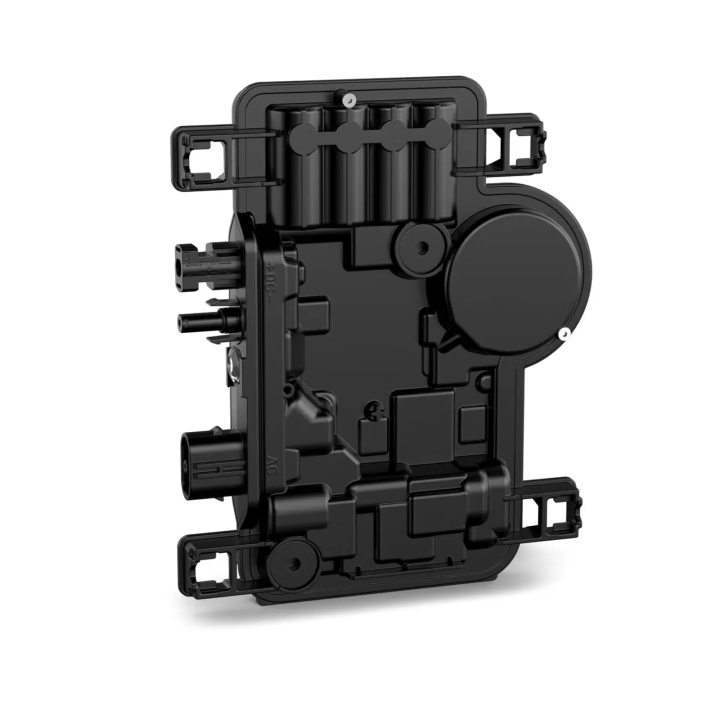

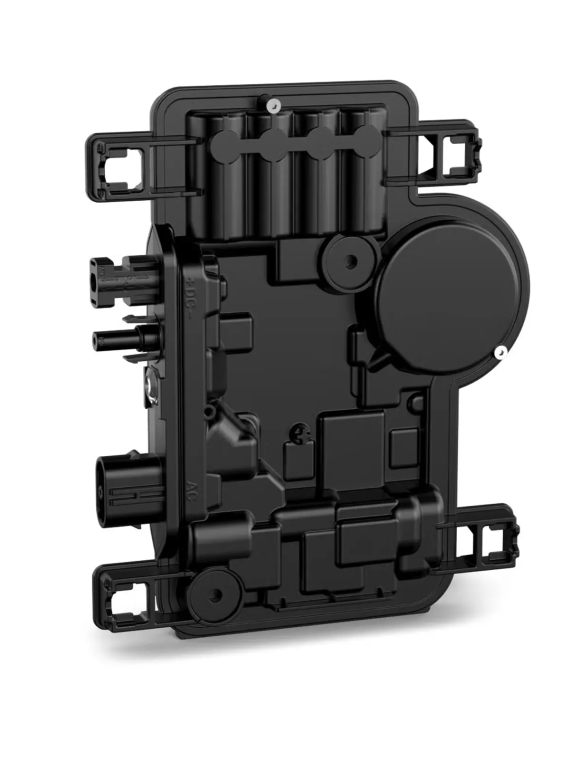

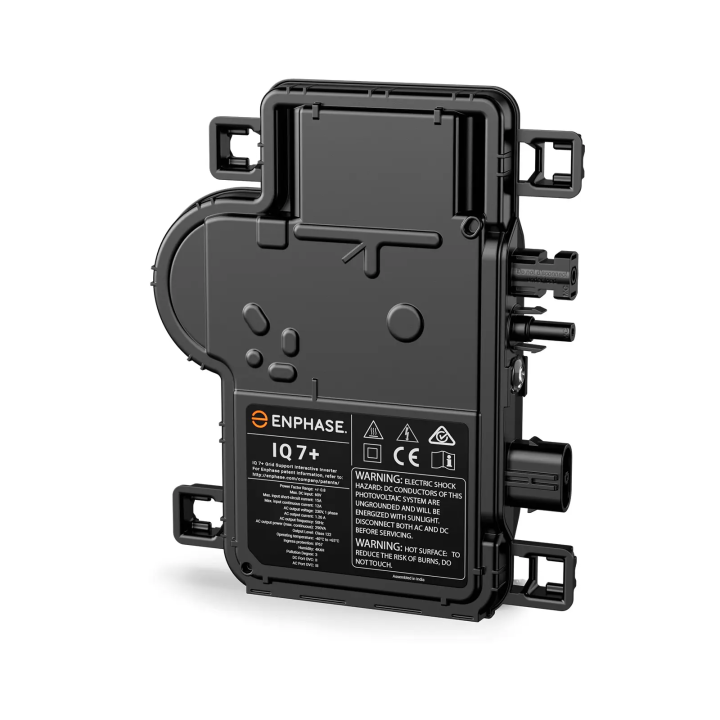

The Enphase IQ7+ microinverter is the benchmark in performance and reliability for residential and commercial solar installations. With an exceptional efficiency of 96.5%, the Enphase IQ7+ efficiently converts the solar energy from each panel into usable electricity, guaranteeing optimal production even in shaded conditions. Based on advanced Enphase technology, it has undergone over a million hours of testing to offer unrivalled reliability and a 25-year warranty. Compact, lightweight and with simplified wiring, the IQ7+ can be installed quickly and safely. Smart Grid compatible, it meets the most stringent network standards and receives remote software updates. Thanks to the Enphase Enlighten application, production can be monitored in real time, panel by panel. With its class II double-insulated polymer casing and IP67 protection, the Enphase IQ7+ microinverter ensures robustness, safety and sustainable performance for all modern photovoltaic installations.

Limited stock, with more parts available on order only.

3 item(s) left in Stock!

Comments (0)

No customer reviews for the moment.

Enphase IQ7+ microinverter


The Enphase IQ7+™ microinverter is part of the Enphase IQ platform. Designed to meet the requirements of Smart Grids, it integrates seamlessly with theEnvoy-S™ and the Enphase Enlighten™ monitoring and analysis application.
With over one million hours of real-world testing, it offers exceptional reliability and is backed by a 25-year warranty.


Simplified installation

  • Compact and lightweight design
  • Optimised two-conductor wiring for quick installation


Performance and reliability

  • Optimised for high-power modules
  • Over one million cumulative test hours
  • Double-insulated polymer housing (Class II)


Smart Grid compatible

  • Complies with the most demanding grid standards (voltage, frequency, decoupling, reactive power, power limiting, etc.)
  • Remote software updates
  • Wide choice of configurable network profiles

Enphase IQ7+

Micro onduleur Enphase IQ7+

  • Compatible with 60-cell / 120-half-cell and 72-cell / 144-half-cell modules
  • European efficiency: 96.5
  • Rated output power: 290 VA
  • Ideal for residential and commercial installations


Tracking and monitoring

Enphase Enlighten application (Web)

  • Production monitoring
  • Check that the system is operating correctly
  • Share data via a simple and intuitive interface

Enphase Enlighten mobile application

  • Instantly view system status
  • Monitor energy production globally and by panel
  • Access to consumption and storage data (if available)
  • Available on App Store and Google Play

Technical data

Data IQ7+
Recommended module power 235 - 440 W+
Nominal output power 290 VA
Max. output power 295 VA
EU efficiency 96,5 %
Input voltage range 16 - 60 V
Max. input voltage 60 V
Start-up voltage 22 V
Max. short-circuit current 15 A
Dimensions 212 × 175 × 30.2 mm
Weight 1.08 kg
Cooling Natural convection (without fan)
Protection class IP67
Enclosure Double-insulated polymer (Class II), corrosion-resistant
Operating temperature range -40°C to +65°C
Warranty 25 years



The Enphase IQ7+ microinverter combines ease of installation, proven robustness, Smart Grid compatibility and intelligent monitoring, making it ideal for all residential or commercial solar installations.





FAQ - Enphase IQ7+ microinverter

1. What is an Enphase IQ7+ microinverter?
The IQ7+ microinverter converts the electricity produced by each solar panel (direct current) into electricity that can be used on the grid (alternating current). Installed behind each module, it ensures independent operation and better overall production.

2. Which solar panels are compatible with the IQ7+?
The Enphase IQ7+ is optimised for 60-cell / 120-half-cell and 72-cell / 144-half-cell modules. It is recommended for power ratings from 235 W to 440 W+.

3. Is the IQ7+ suitable for Smart Grids?
Yes, the IQ7+ complies with the most demanding grid standards (voltage, frequency, reactive power, power limitation) and can receive remote software updates to keep pace with changes in the grid.

4. How can I monitor my installation's production?
With the MyEnlighten web application and the Enlighten mobile application, you can monitor total production and production per panel, check the status of the system in real time and view your consumption if a meter is installed.

5. What is the warranty on the IQ7+ microinverter?
The Enphase IQ7+ comes with a 25-year warranty, backed by over a million hours of testing, guaranteeing robustness and reliability.

IQ7PLUS-72-2-INT I

Data sheet

Inverter power
- de 1000VA
Phase
Monophasé
Number of MPPT
1 MPPT
Inverter type
Micro-inverter

Specific References

UPC
712971131248
EAN13
0712971131248
