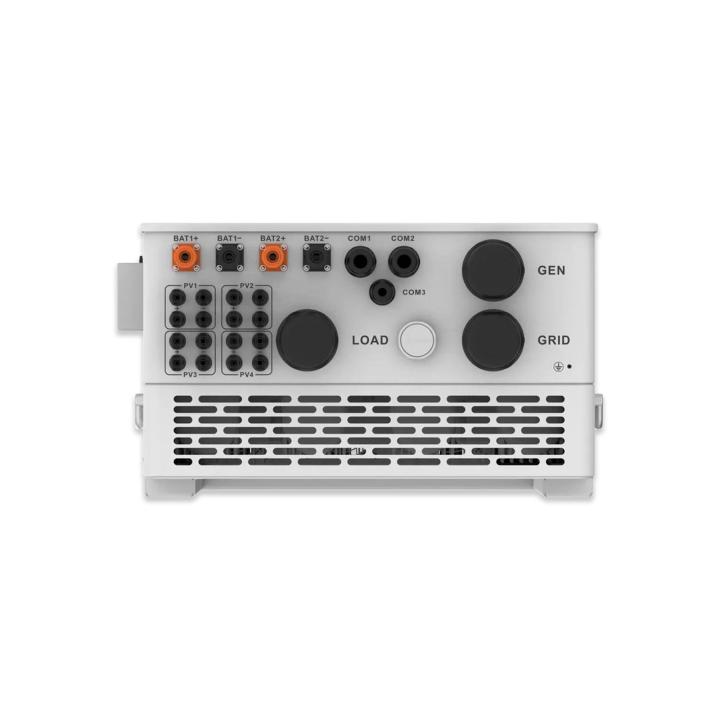

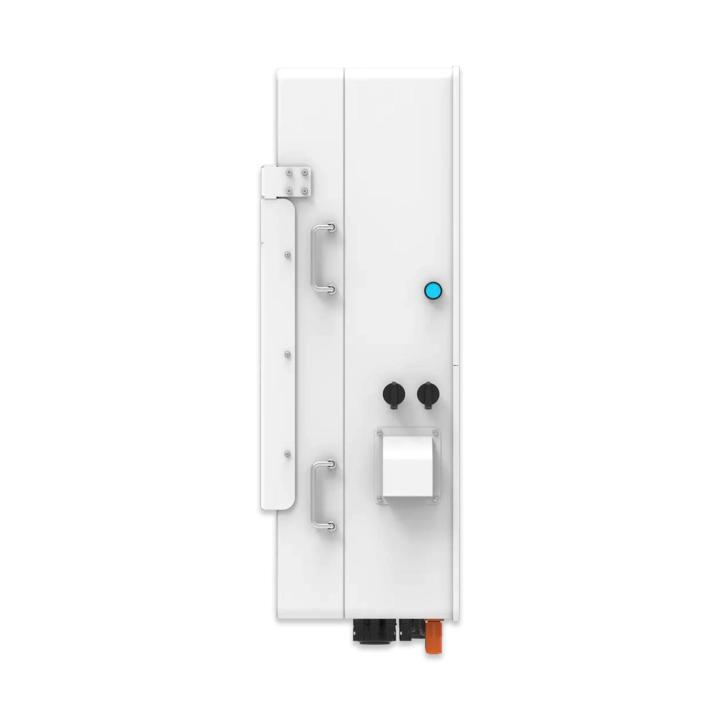

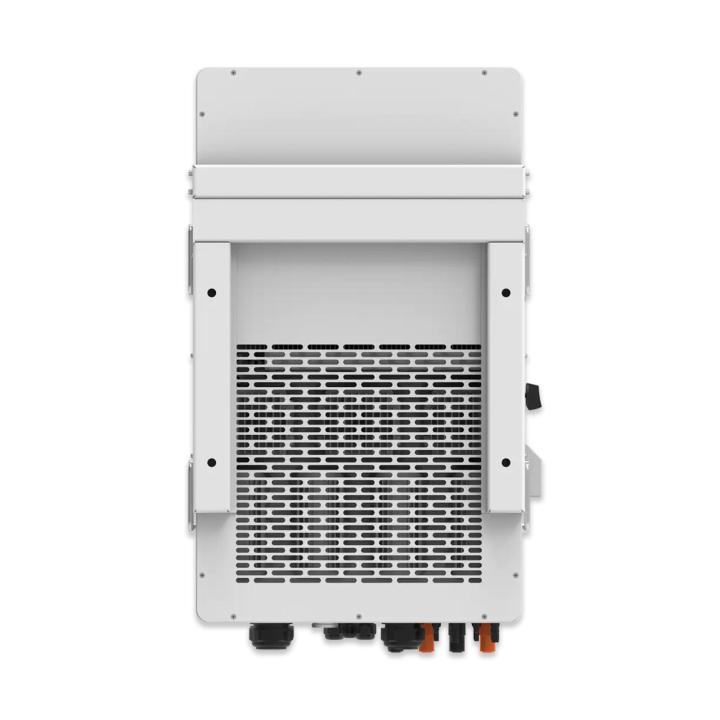

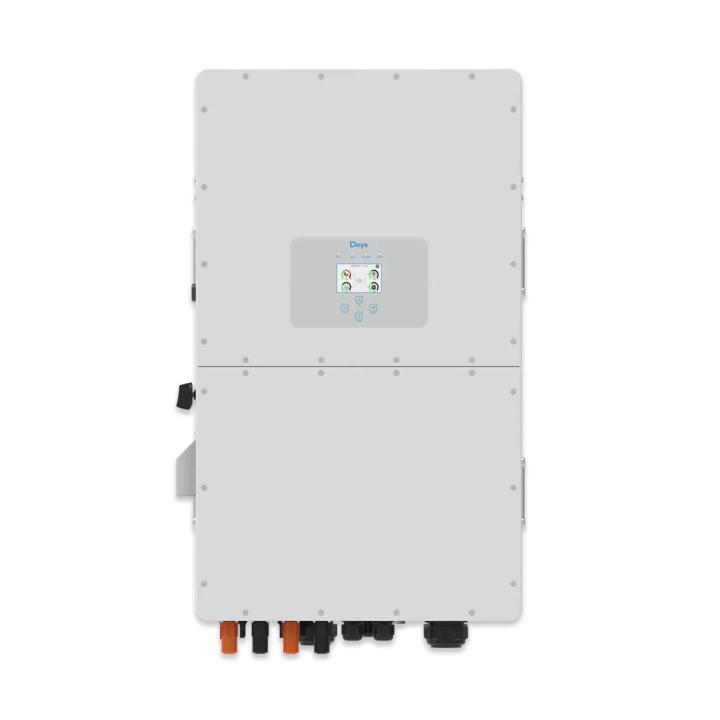

The Deye 50kVA three-phase hybrid inverter - SG01HP3-EU-BM4 is the ideal solution for demanding professional and industrial solar installations. Powerful, intelligent and flexible, it combines solar production, the public grid and high-voltage batteries for complete, autonomous energy management.
Key benefits :
High power of 50 kVA: perfect for large commercial, industrial or community installations.
Hybrid technology: can operate with the grid, solar and batteries, with automatic switchover.
Quadruple independent MPPT: maximum optimisation of production even in the event of partial shading or different orientations.
Compatible with high-voltage batteries (160-800V): long autonomy and improved service life.
Off-grid mode: guaranteed power supply in the event of a power cut.
Intelligent monitoring: remote control via Wi-Fi, Ethernet or mobile application.
Easy installation and high efficiency (>97%).
Why choose the Deye 50kVA?
Because it combines reliability, performance and scalability. It reduces your energy bills, protects your installations against power cuts and makes the most of your solar production. Deye, world leader in hybrid inverters, offers a robust, scalable solution designed for professionals.
Ready to make the leap to energy autonomy?
Only on order
You are about to create a quotation for the kit Deye 50kVA three-phase hybrid inverter - SG01HP3-EU-BM4.
This action will open the quotation app in a new tab.
The Deye SUN-50K-SG01HP3-EU-BM4 three-phase hybrid inverter is designed for residential, commercial and industrial installations. With its 50 kVA output, it combines high efficiency, flexibility and reliability, while incorporating full compatibility with high-voltage batteries (160-800 V), generators and three-phase public networks.
Dual HV battery input (up to 100 A total)
Compatible with off-grid, on-grid, AC-coupling and gensets
Up to 10 inverters in parallel for large installations
Ideal for installations with high peak loads or isolated areas
Ultra-fast switching < 4 ms to protect sensitive loads (UPS mode)
Programming of 6 battery charge/discharge time slots
Local & remote monitoring via Wi-Fi / 4G / Deye web portal
Compatible with all major brands of HV batteries via CAN/RS-485
Integrated protections: overvoltage, short-circuit, reverse polarity, overcharge, anti-islanding
Certifications: VDE-AR-N 4105, EN50549, IEC 62116, G99, AS4777, etc.
Operating temperature: -40 to +60°C
Protection rating: IP65 - outdoor installation possible
The Deye 50 kVA hybrid three-phase inverter is the ideal solution for large-scale solar projects requiring performance, flexibility and autonomy. It meets the requirements of complex sites: industrial buildings, farms, isolated residences, or installations with optimised self-consumption. This model stands out for its total compatibility with high-voltage batteries, its multiple operating modes (grid/off-grid/UPS), its intelligent management and its robustness in demanding environments.
Industrial & commercial sites
High power consumption spread over 3 phases
Optimised self-consumption with HV batteries
Integration with back-up generator
Homes & isolated buildings
100% autonomous power supply on off-grid sites
High-performance energy back-up with battery + PV + genset
Protection against grid outages
Agricultural facilities & farms
Supply high-powered equipment: pumps, motors, machinery, etc.
Optimise autonomy with local solar production
Existing solar installations to be upgraded
The LCD screen is touch-sensitive and displays general information about the UPS.
1 - The icon in the centre of the home screen indicates that the system is operating normally. If it displays "comm./F01~F64", it means that the inverter has communication errors or other errors. The error message will be displayed below this icon (errors F01-F64, error details can be viewed in the System Alarms menu).
2 - At the top of the screen is the time.
3 - System configuration icon. Press this button to access the system configuration screen, which includes basic configuration, battery configuration, network configuration, system operating mode, generator port usage, advanced functions and Li-Ion battery information.
4 - The main screen displays solar, grid, load and battery information. It also shows the direction of power flow using arrows. As power approaches a high level, the colour of the panels changes from green to red, providing a clear view of the system information on the main screen.
- PV power and charging power always remain positive.
- Negative grid power means selling to the grid, positive means receiving from the grid.
- Negative battery power means charging, positive means discharging.
Thanks to the intelligent monitoring platform, the inverter products in the Deye complete series support remote shutdown immediately in the event of an accident. Parameters can be set and firmware updated remotely, making it easier to operate and maintain photovoltaic installations.
Measures 527 mm × 894 mm × 294 mm.
Weighs 80 kg
Intelligent air cooling for efficient thermal management.
IP65 protection, suitable for various indoor and outdoor installations.
5-year warranty for peace of mind and reliability.
The Deye SG01HP3-EU-BM4 50 kVA three-phase hybrid inverter is the ideal solution for powerful, scalable and intelligent solar installations. Its high-voltage battery compatibility, advanced energy management and robustness make it a strategic choice to guarantee performance, autonomy and reliability, whatever the type of site.
