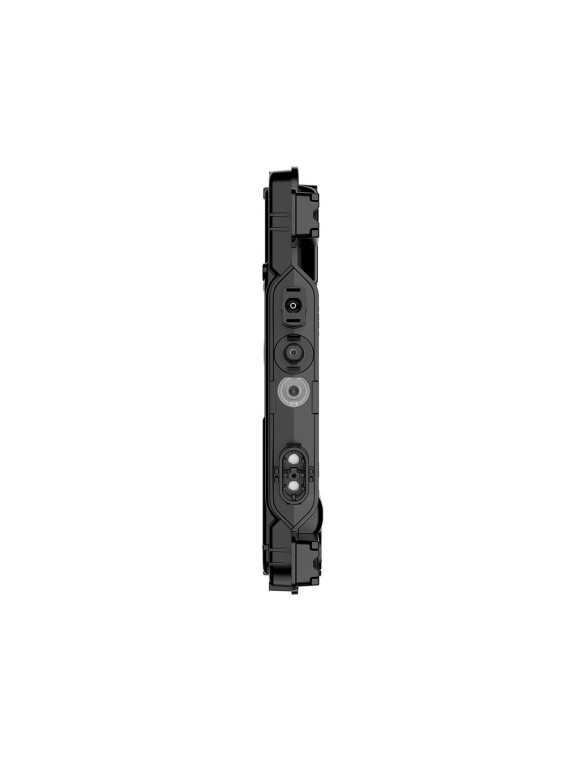

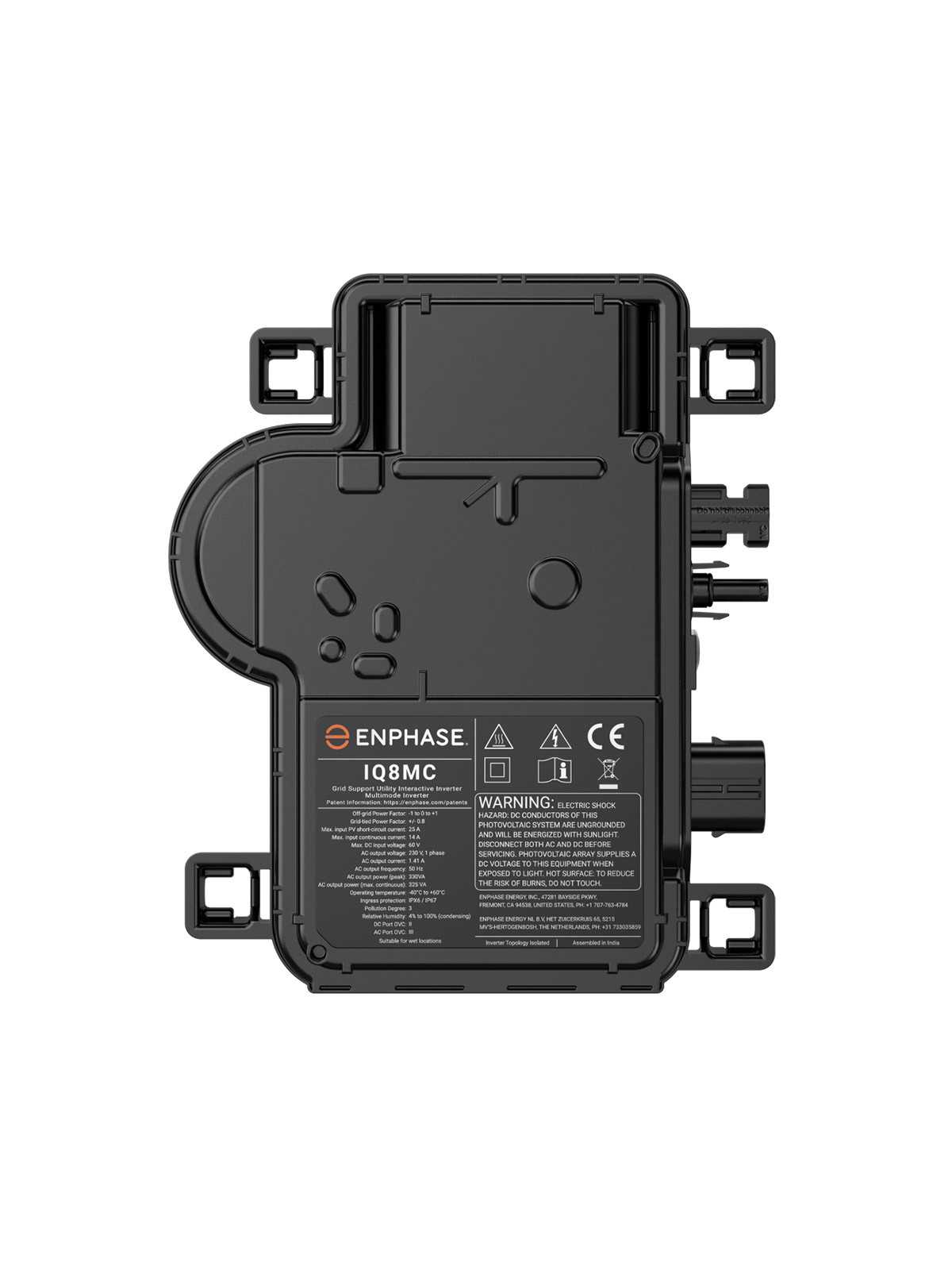

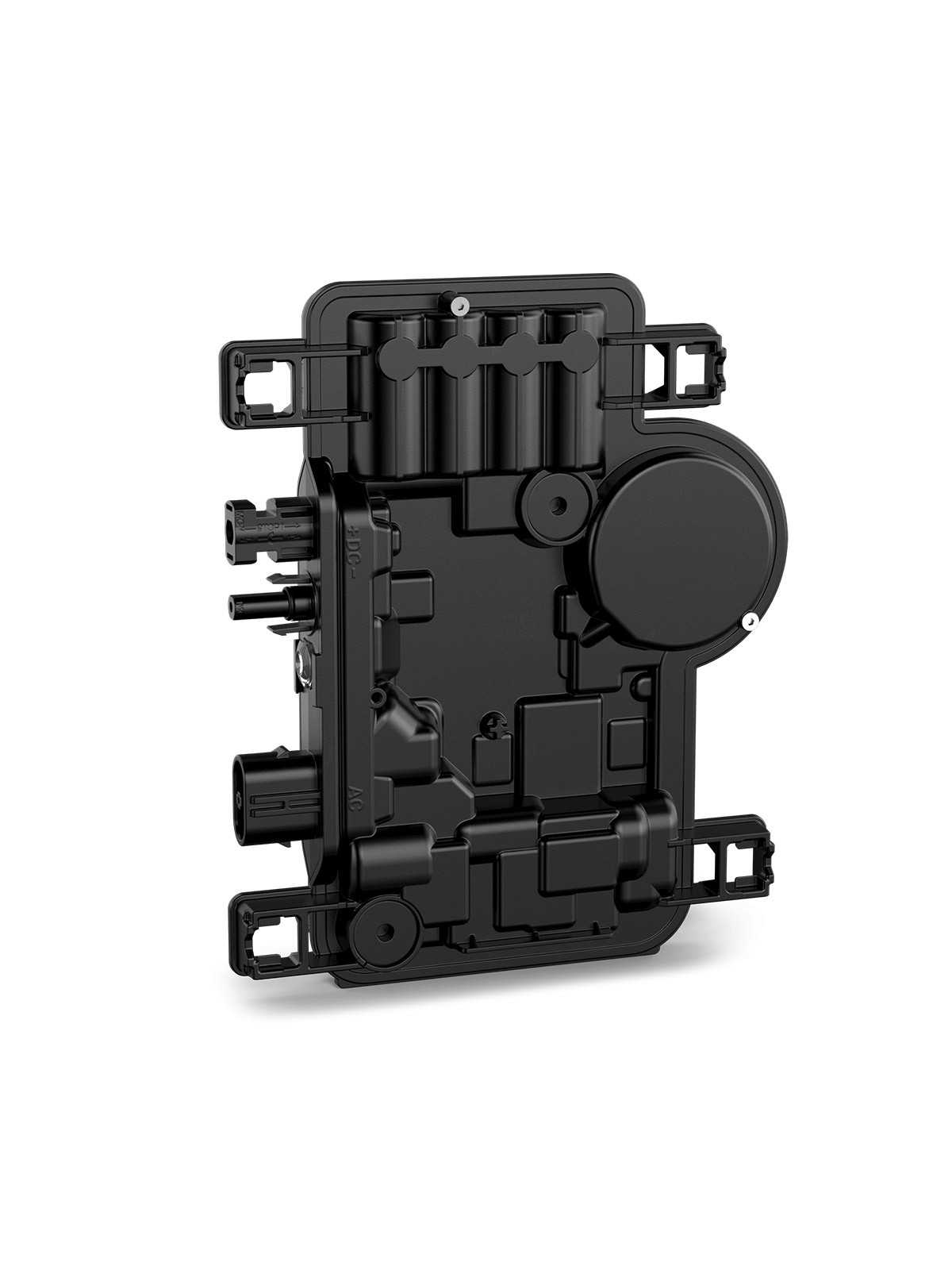

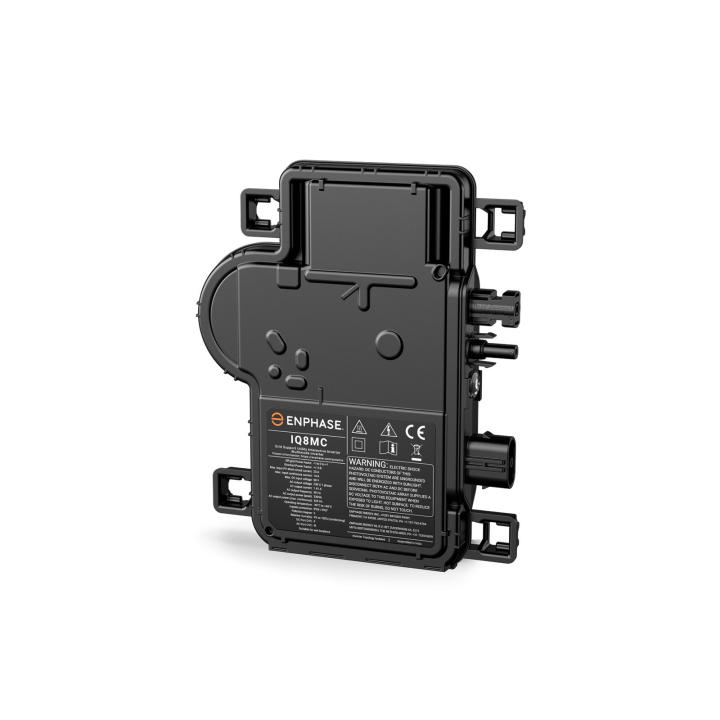

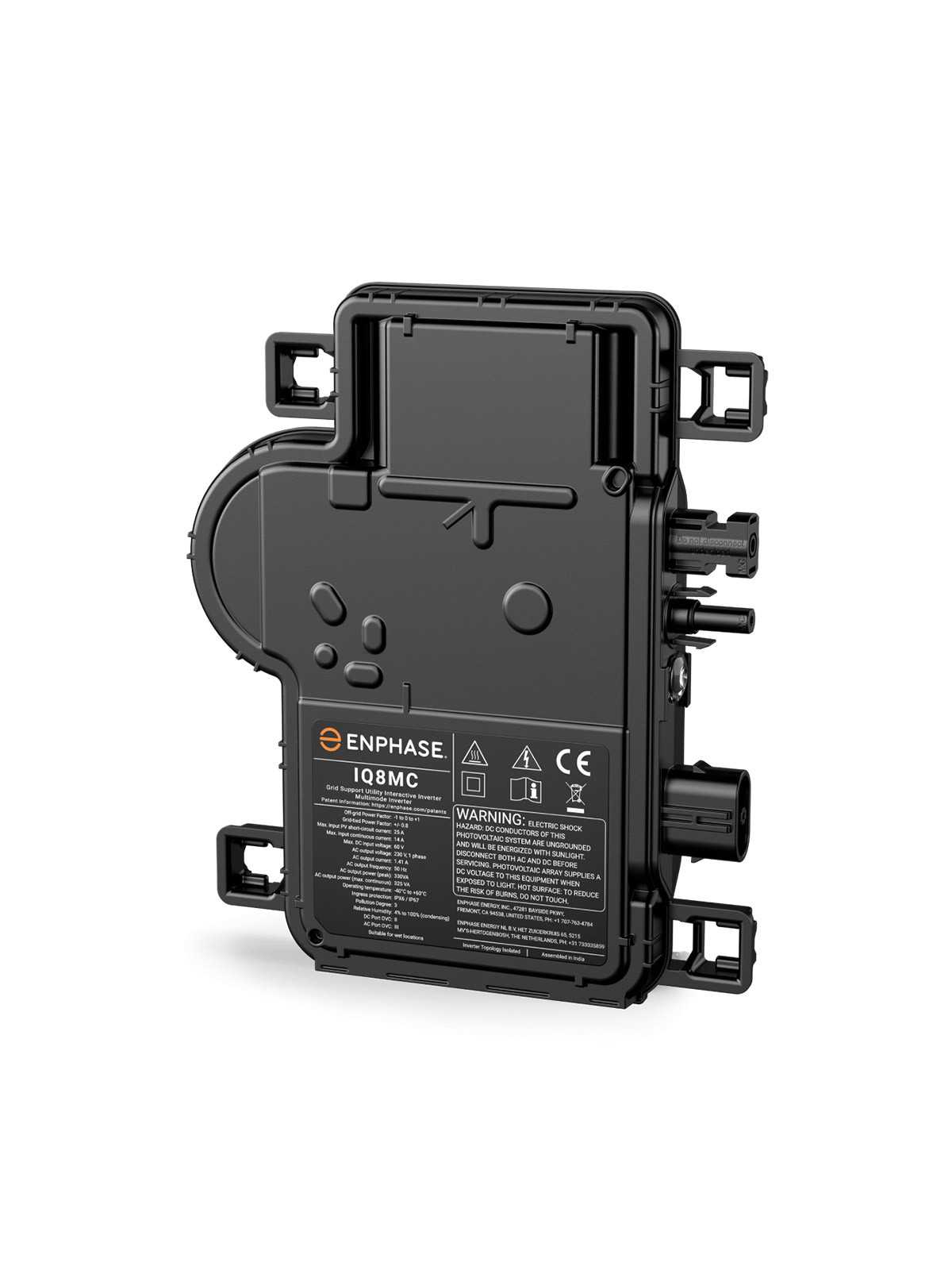

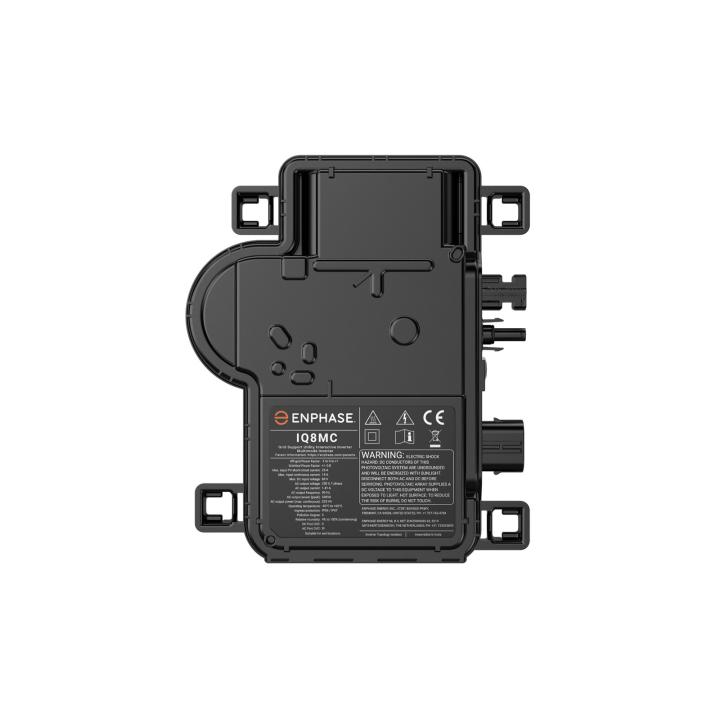

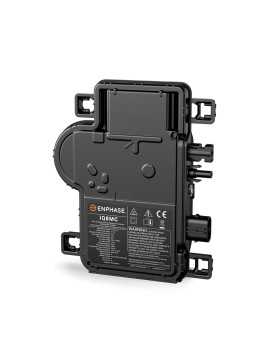

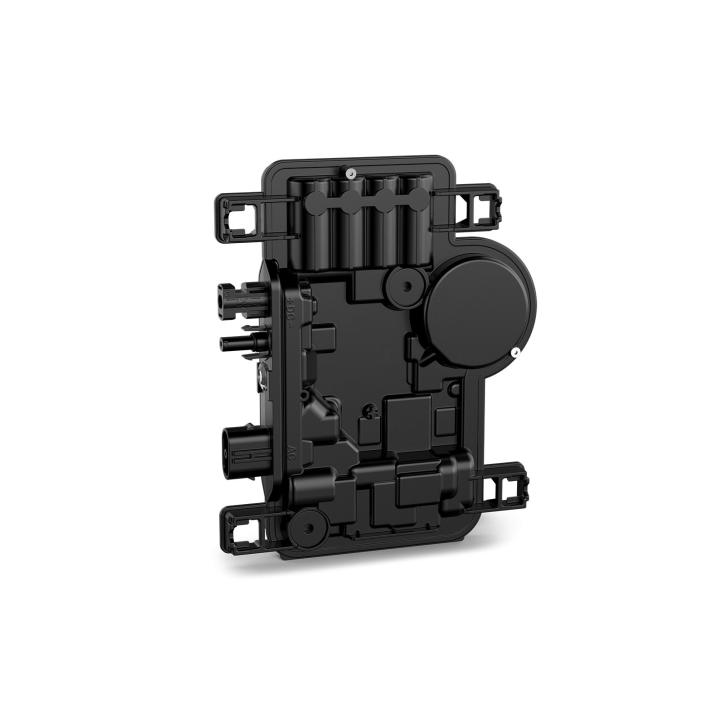

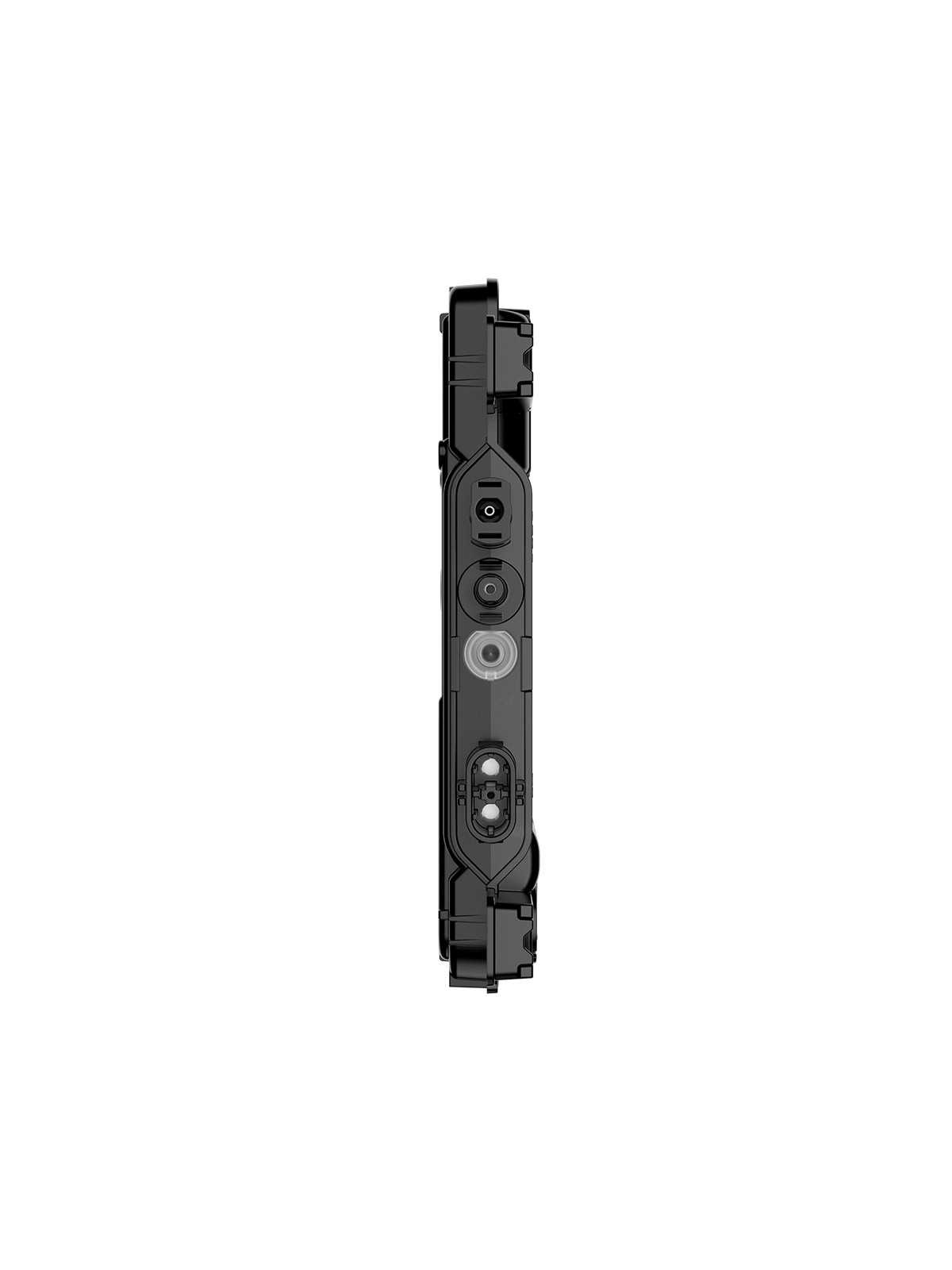

Enphase IQ8MC-72-M-INT single-phase microinverter
€183.99
Tax included
IQ8MC-72-M-INT
0768563820991
Our latest IQ8MC Microinverters are compatible with Smart Grids and designed for the latest generation of high-efficiency photovoltaic modules.
The IQ8MC Microinverter has the highest power output and reliability in the industry and, thanks to its quick-stop functionality, meets the most stringent safety standards.
IQ8MC Microinverters are CE-certified and comply with various legislation only when installed in accordance with the manufacturer's instructions.
100% secure payments
Sorry, there are no more items in stock.
Enphase IQ8MC-72-M-INT single-phase microinverter
Powerful, smart-grid-ready IQ8 Series Microinverters are designed to match the latest generation of high-efficiency PV modules. IQ8 Series Microinverters boast the industry's highest power generation and reliability standards, and thanks to rapid shutdown functionality, meet the most stringent safety standards. The brain of the solid-state microinverter is our exclusive Application Specific Integrated Circuit (ASIC), which enables the microinverter to operate in grid-connected mode.
Features
- 96.7% EU efficiency
- Lightweight and compact with plug-n-play connectors
- Power Line Communication (PLC) between components
- Faster installation thanks to simple two-wire cabling
- Over one million hours of cumulative testing
- Class II double-insulated enclosure
- Optimized for the latest high-power photovoltaic modules
- Compliant with advanced support for the latest grids
- Automatic remote updates to meet the latest grid requirements
- Configurable to support various network profiles
- 25-year limited warranty
Compatibility
- Compatible with latest-generation high-efficiency photovoltaic modules
- Half-cell and bi-facial
- IQ Gateway
- IQ Battery
- IQ Cable
Easy to install and commission
- Lightweight and compact, with integrated Stäubli MC4 connectors for easy installation
- Quick installation with simple AC wiring
- New integrated circuit technology enables faster firmware updates
Warranty
IQ8 Series microinverters are subjected to a rigorous series of reliability and quality tests totalling over one million hours, enabling Enphase to offer a warranty of up to 25 years.
IQ8MC-72-M-INT
Data sheet
- Nominal mains voltage
- 230 V
- Safety
- EN IEC 62109-1, EN IEC 62109-2
- EMC
- EN IEC 61000-3-2, 61000-3-3, 61000-6-2, 61000-6-3, EN IEC 50065-1, 50065-2-1, EN55011 2
- Type of cooling
- Natural convection - without fan
- Weight
- 1,1 kg
- Total harmonic distortion
- less than 5
- Protection class
- II
- Maximum input current
- 14 Adc
- Efficacité pondérée européenne
- 96,7 %
- Typical module compatibility
- 54 cells/108 half-cells, 60 cells/120 half-cells, 66 cells/132 half-cells, 72 cells/144 half-cells
- Minimum/maximum input voltage
- 18/60 V
- Start-up input voltage
- 22 V
- Nominal input voltage
- 35,0 V
- Minimum/maximum MPP voltage
- 25/45 V
- Minimum/maximum operating voltage
- 18/49 V
- Maximum short-circuit DC input current
- 25 Maximum short-circuit current for modules (Isc) authorized to be coupled with IQ8 Series Microinverters: 20 A (calculated with a safety factor of 1.25 according to IEC 62548).
- Maximum input power
- 480 W
- Maximum apparent power
- 330 VA
- Rated power
- 325 W
- Tension minimale/maximale du réseau
- 184/276 V
- Maximum output current
- 1,43 A
- Nominal frequency
- 50 Hz
- Minimum/maximum frequency
- 45/55 Hz
- Power factor adjustment
- 1,0
- Power factor range
- 0.8 capacitive - 0.8 inductive cosphi
- Maximum inverter efficiency
- 97,5 %
- Inverter topology
- Isolé (transformateur HF)
- Energy loss at night
- 50 mW
- Ambient air temperature range
- -40°C à 60°C (-40°F à 140°F)
- Relative humidity range
- 4% à 100% (condensation)
- AC port overvoltage class
- III
- Number of DC input connectors (pairs) per single MPP tracker
- 1
- AC connector type
- IQ Cabling (reportez-vous à la fiche technique séparée pour le câble et les accessoires)
- Type de connecteur DC
- MC4 Stäubli
- Housing
- Corrosion-resistant polymer housing with Class II double insulation
- IP index
- Extérieur - IP67
- Altitude
- Inférieur à 2600 m
- Calorific value
- 37.5 MJ/unit
- Network compliance (with IQ Relay)
- EN 50549-1
Specific References
- UPC
- 768563820991
- EAN13
- 0768563820991
