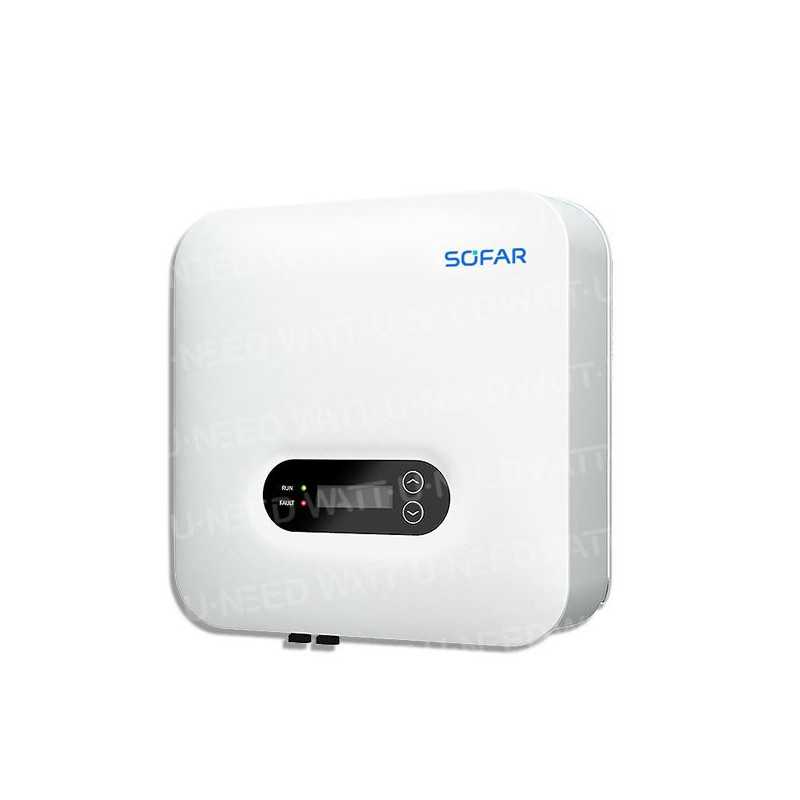

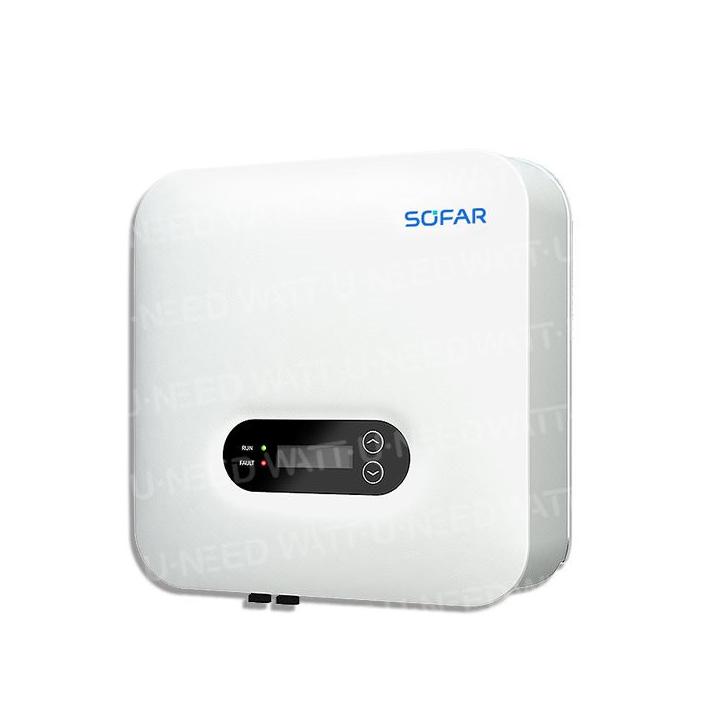

Sofar Solar Mono 4 kW Grid Inverter – 4KTLM-G3
€526.80
Tax included
Sofar-4KTLM-G3
0768563819896
The SOFAR SOLAR SOFAR-4KTLM-G3 grid-connected inverter is designed for single-phase residential photovoltaic installations, particularly when the roof has multiple orientations or shading, in order to optimise production thanks to its 2 MPPT trackers and I-V curve scanning.
- Technical specifications: power 4 kVA (4000 W), 2 MPPTs (80–550 V), max. efficiency 98.2% (European 97.30%), max. input voltage 600 V, recommended PV power 6000 Wp, IP65 protection rating.
- Compatibility: single-phase 230 VAC network, 1 DC input per MPPT (MC4), RS485/Wi-Fi/Bluetooth communication (Ethernet optional), LCD screen and app via Bluetooth, zero export optional.
- Benefit: It allows for better use of complex roofs by distributing the strings over 2 MPPTs, while maintaining a scalable solution thanks to connected monitoring.
No items in stock
Sofar 4.0KTLM-G3: The connected solar inverter for a smart home
The new G3 single-phase inverter with 2 MPPT trackers for residential PV systems
SOFAR 3K...6KTLM-G3 is the upgraded version of SofarSolar's residential inverter series. With its elegant IP65 design and natural cooling for silent operation, the inverter is perfectly suited to small residential installations.
The inverter is also equipped with two MPPT trackers and an integrated I-V curve scanning function, making it possible to realize more complex installations, for example those with shading problems or different roof orientations.
A WiFi key is supplied with the inverter, for easy connection to the SofarSolar monitoring portal.
High efficiency
- Maximum efficiency of 98.2%.
- Precise real-time MPPT algorithm for maximum utilization
- Wide input voltage operating range
All in one. Flexible, cost-effective system solution
- Free choice of location thanks to IP65 rating
- Plug & Play" connection for easy installation and maintenance
- Interface selection - Wi-Fi / RS485 /GPRS
- LCD + LED display
- Integrated zero export function (optional)
Low maintenance costs
- Detachable lid for easy installation
- Stainless aluminum covers
- A flexible control solution
Intelligent grid management
- Reactive power capacity
- Automatic power reduction in the event of overfrequency
- Remote control of active/reactive power limit
Specifications
| DC INPUT |
| PV input power max. | |
| Recommended | 6000 Wp |
| Max. power. | |
| DC power per MPPT | 3500 W |
| Number of MPP trackers |
| Number of DC inputs |
| for each MPPT |
| Max. input voltage | 600 |
| V |
| Starting voltage | 90 V |
| Nominal input voltage | 380 V |
| MPPT operating voltage range | 80 - 550 V |
| Full MPPT power in voltage range | 200 - 500 V |
| Max. MPPT input current | 15 |
| / 15 A |
| Max. input short-circuit current | |
| Per MPPT | 22.5 / 22.5 A |
| AC output |
| Rated power | 4000 W |
| Max. power. | |
| In AC | 4400 VA |
| Max. output current | 20 |
N
| ominal mains voltage | / N / PE, |
| 230 Vac |
| Mains voltage range | 180 - 276 Vac (according to local standards) |
| Nominal mains frequency | 50 Hz / 60 Hz |
| Mains frequency range | 45 - 55 Hz / 55 - 65 Hz (according to local standards) |
| Adjustable active power range |
| - 100 % |
| THDi | < |
| 3% |
| Power factor |
| default (adjustable +/-0.8) |
| PERFORMANCE |
| Max. efficiency. | 98,20 |
| Weighted European efficiency | 97.30% |
| PROTECTION |
| Protection against polarity reversal in direct current | Yes |
| DC switch | Optional |
| Safety protection | Anti-islanding, |
| leakage current detection, earth fault monitoring |
| Lightning arrester | Varistor : |
| Type III standard |
| COMMUNICATION |
| Standard communication mode | RS485 / Wi-fi / Bluetooth, optional : |
| Ethernet |
| GENERAL |
| Ambient temperature range |
| 30°C to 60°C |
| Night-time power consumption | <1 W |
| Topology | Transformerless |
| Degree of protection | IP65 |
| Permissible relative humidity range |
| - |
| Max. altitude. |
| Operating |
| 4000 m |
| < |
| 25 dB |
| Weight |
| .2 kg |
| Cooling | Natural |
| Dimensions | 349 x 344 x 164 mm |
| Display | LCD, |
| App via Bluetooth |
| Warranty | 10 years |
| Standards |
| (electromagnetic compatibility) | EN 61000-6-2, EN 61000-6-3, EN 61000-3-2, EN 61000-3-3, |
| EN 61000-3-11, EN 61000-3-12 |
| Safety standards | IEC 62109-1/2, IEC 62116, IEC 61727, IEC 61683, IEC 60068 (1,2,14,30) |
| Network standards |
| 4105, VDE V 0126-1-1, V 0124-100, IEC 0-21, G98 / G99, C10/11, EN 50549, RD1699 |
Sofar-4KTLM-G3
Data sheet
- Inverter power in VA
- 4000 VA
- MPPT/PWM
- MPPT
- Phase
- Monophasé
- Number of MPPT
- 2 MPPT
Specific References
- UPC
- 768563819896
- EAN13
- 0768563819896
New
Sofar Solar Mono 4 kW Grid Inverter – 4KTLM-G3 — Inverters and converters
Sofar Solar Mono 4 kW Grid Inverter – 4KTLM-G3 by Sofar Solar is available in our Inverters and converters catalog. Technical specifications: inverter power in va: 4000 VA, mppt/pwm: MPPT, phase: Monophasé, number of mppt: 2 MPPT. Product weight: 10.0 kg. Reference: Sofar-4KTLM-G3.
